Dictionary of Debugging: Orbifold Memory Space

Wednesday, February 16th, 2011

Orbifold Memory Space

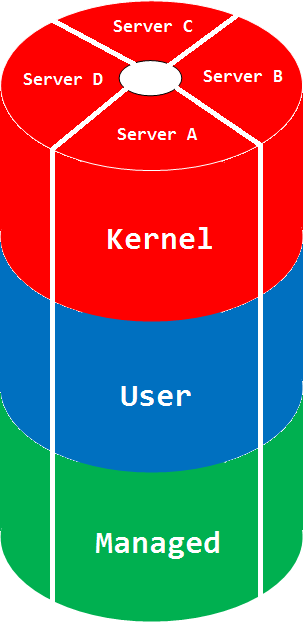

A multiple virtual/physical memory space view taking into account multiple computers:

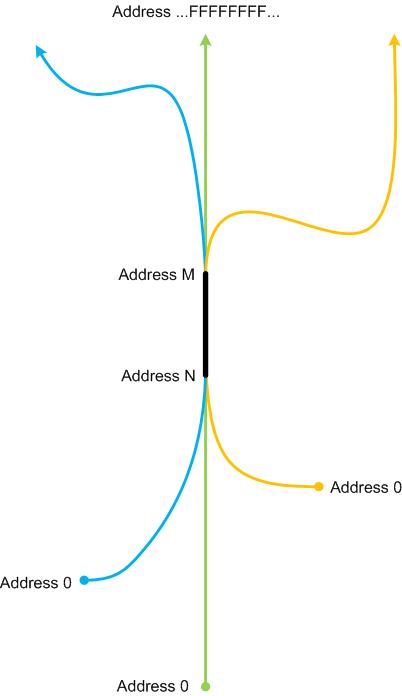

The picture can be much more complex if we glue different manifold memory spaces. The space name comes from a mathematical orbifold, a generalization of manifold.

Synonyms: cloud memory space

Antonyms:

Also: memory space, memory region, physical memory, virtual memory, manifold memory space, memory mapping.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Dictionary of Debugging: 8

Thursday, July 29th, 2010

8

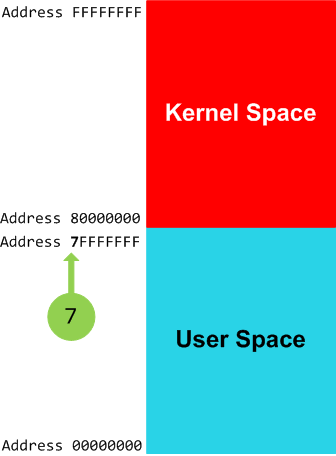

A separating digit of user space and kernel space in equi-bipartitional 32-bit virtual memory, for example, on x86 Windows systems:

RetAddr
80833491 nt!KiSwapContext+0×26
80828f2b nt!KiSwapThread+0×2e5
8099490a nt!KeDelayExecutionThread+0×2ab
808897cc nt!NtDelayExecution+0×84
7c82860c nt!KiFastCallEntry+0xfc
7c826f69 ntdll!KiFastSystemCallRet
7c83d454 ntdll!NtDelayExecution+0xc
77e6482f ntdll!RtlpTimerThread+0×47
00000000 kernel32!BaseThreadStart+0×34


lkd> lm
start end module name
[…]
77bd0000 77c19000 GDI32
77c20000 77cbf000 RPCRT4
77cd0000 77d5b000 OLEAUT32
77e20000 77eb2000 USER32
77ec0000 77f12000 SHLWAPI
77f30000 77fdc000 ADVAPI32
7c800000 7c915000 kernel32
7c920000 7c9e8000 ntdll
7c9f0000 7d1f9000 SHELL32
7e020000 7e02f000 SAMLIB

80800000 80a5d000 nt
80a5d000 80a89000 hal
bf800000 bf9d0000 win32k
[…]

This number doesn’t continue to be used in the same way on x64 Windows systems, for example:

RetAddr Call Site
fffff800`0167e082 nt!KiSwapContext+0×7a
fffff800`0167a34b nt!KiCommitThreadWait+0×1d2
fffff800`01973def nt!KeWaitForMultipleObjects+0×271
fffff800`019746f6 nt!ObpWaitForMultipleObjects+0×294
fffff800`01675ed3 nt!NtWaitForMultipleObjects+0xe5
00000000`77ca030a nt!KiSystemServiceCopyEnd+0×13

lkd> lm
start end module name
00000000`774a0000 00000000`7756d000 USER32
00000000`77570000 00000000`7769d000 kernel32
00000000`776a0000 00000000`77826000 ntdll
00000000`ffe60000 00000000`ffec0000 services
000007fe`fca90000 000007fe`fca97000 wshtcpip
000007fe`fcae0000 000007fe`fcb0c000 NTMARTA
000007fe`fcbe0000 000007fe`fcc34000 schannel
000007fe`fce10000 000007fe`fce5f000 mswsock
000007fe`fcf60000 000007fe`fcf69000 credssp
000007fe`fcf90000 000007fe`fcf97000 wship6
000007fe`fd0d0000 000007fe`fd207000 CRYPT32
000007fe`fd260000 000007fe`fd279000 MSASN1
000007fe`fd5a0000 000007fe`fd5b6000 NCObjAPI
000007fe`fd5c0000 000007fe`fd625000 SCESRV
000007fe`fd630000 000007fe`fd665000 apphelp
000007fe`fd680000 000007fe`fd6a6000 AUTHZ
000007fe`fd950000 000007fe`fd96c000 Secur32
000007fe`fd970000 000007fe`fd996000 USERENV
000007fe`fd9a0000 000007fe`fd9bc000 SAMLIB
000007fe`fdc80000 000007fe`fdce4000 GDI32
000007fe`fdd10000 000007fe`fdd1d000 LPK
000007fe`fdd20000 000007fe`fde28000 ADVAPI32
000007fe`fde30000 000007fe`fdecc000 msvcrt
000007fe`fded0000 000007fe`fdefd000 IMM32
000007fe`fdf00000 000007fe`fe0d8000 ole32
000007fe`fe0e0000 000007fe`fe0e7000 NSI
000007fe`fe190000 000007fe`fe22a000 USP10
000007fe`fe230000 000007fe`fe373000 RPCRT4
000007fe`ff340000 000007fe`ff395000 WLDAP32
000007fe`ff540000 000007fe`ff584000 WS2_32
000007fe`ff7d0000 000007fe`ff8d2000 MSCTF

fffff800`01802000 fffff800`01848000 hal
fffff800`01848000 fffff800`01d60000 nt
fffff960`000f0000 fffff960`003a1000 win32k
[…]

Synonyms:

Antonyms:

Also: virtual memory, user space, kernel space, x86, x64, 7

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Old Mental Dumps from June 24th

Thursday, June 24th, 2010

2009:

Crash Dump Analysis Patterns (Part 86)Nested Offender pattern. Appears also in the following case study: Stack trace collection, message box, hidden exception, nested offender, insufficient memory, C++ exception, heap leak and ubiquitous component

Dictionary of Debugging: Crash - posts that explain the difference between crashes and hangs: Crash Dumps for Dummies (Part 4) and Crash Dumps for Dummies (Part 6)

2008:

Crash Dump Analysis Patterns (Part 67) - Nested Exception pattern. Appears also in the following case study: WOW64 process, NULL data pointer, stack overflow, main thread, incorrect stack trace, nested exceptions, hidden exception, manual dump, multiple exceptions and virtualized system

2007:

No dumps on that day

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Old Mental Dumps from June 23rd

Wednesday, June 23rd, 2010

2009:

Dictionary of Debugging: Hang - plan to resume DoD in July. Have lots of ideas about it.

Crash Dump Analysis Patterns (Part 85) - Ubiquitous Component pattern. Appears also in the following case study: Stack trace collection, message box, hidden exception, nested offender, insufficient memory, C++ exception, heap leak and ubiquitous component

2008:

Reflecting on 2008 (Part 1) - It is so interesting to look at what people search.

2007:

Detecting loops in code - a good exercise in disassembling

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Modern Memory Dump and Software Trace Analysis: Volumes 1-3

Sunday, April 18th, 2010

OpenTask to offer first 3 volumes of Memory Dump Analysis Anthology in one set:

The set is available exclusively from OpenTask e-Commerce web site starting from June. Individual volumes are also available from Amazon, Barnes & Noble and other bookstores worldwide.

Product information:

  • Title: Modern Memory Dump and Software Trace Analysis: Volumes 1-3
  • Author: Dmitry Vostokov
  • Language: English
  • Product Dimensions: 22.86 x 15.24
  • Paperback: 1600 pages
  • Publisher: Opentask (31 May 2010)
  • ISBN-13: 978-1-906717-99-5

Information about individual volumes:

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

The Year of Debugging in Retrospection

Thursday, January 14th, 2010

The Year of Debugging, 0×7D9, was a remarkable year for DumpAnalysis.org. Here is the list of achievements to report:

- Software Trace Analysis as a new discipline with its own set of patterns

- Unification of Memory Dump Analysis with Software Trace Analysis (DA+TA)

- New computer memory dump-based art movements: Opcodism and Physicalist Art

- Discovery of 3D computer memory visualization techniques

- Establishing Software Maintenance Institute

- Broadening software fault injection as Software Defect Construction discipline

- Establishing a new profession of a Software Defect Researcher

- Starting ambitious Dictionary of Debugging

- Publishing Windows Debugging: Practical Foundations book

- Publishing the first x86-free Windows debugging book: x64 Windows Debugging: Practical Foundations

- Establishing the new debugging magazine: Debugged! MZ/PE

- Publishing Memory Dump Analysis Anthology, Volume 3

- Cooperation with OpenTask to promote First Fault Software Problem Solving book

- Establishing Debugging Expert(s) Magazine Online

- Creating the first development process for debugging and software troubleshooting tools: RADII

- Publishing the first pattern-driven memory dump analysis troubleshooting methodology as a foundation for software debugging

- Proposal for an International Memory Analysts and Debuggers Day

- Almost completed Windows Debugging Notebook to be published soon

Now DumpAnalysis.org focuses on The Year of Dump Analysis, 0×7DA, as a foundation for the forthcoming debugging decade and reveals future plans this weekend.

I’m sure that many other organizations and individuals have no less remarkable accomplishments to report for 2009. I promise to track down and write about some of them in the forthcoming book:

The Science of Dr. Watson: An Illustrated History of Debugging (ISBN: 978-1906717070)

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Dictionary of Debugging: Manifold Memory Space

Tuesday, December 1st, 2009

Manifold Memory Space

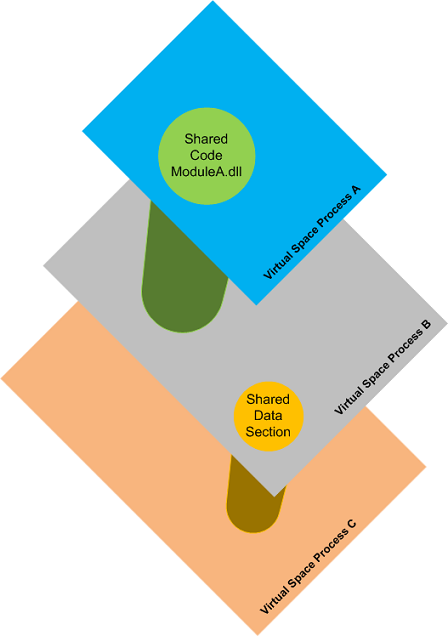

A multiple virtual memory space view taking into account code and data sharing:

The same physical memory region can be mapped to different virtual memory regions. Here is another example of a sample manifold memory space where a physical memory region is mapped to the same virtual memory address range [N, M] of 3 OS processes:

Synonyms:

Antonyms:

Also: memory space, memory region, physical memory, virtual memory, memory mapping, orbifold memory space.

- Dmitry Vostokov @ DumpAnalysis.org -

Dictionary of Debugging: 7

Monday, November 23rd, 2009

7

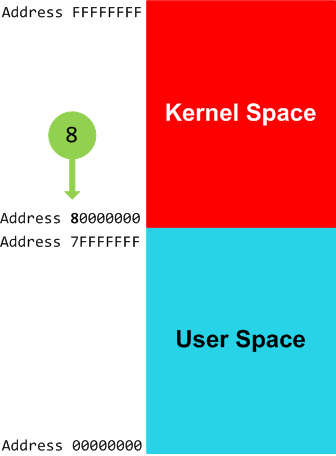

A separating digit of user space and kernel space in equi-bipartitional 32-bit virtual memory, for example, on x86 Windows systems:

RetAddr
80833491 nt!KiSwapContext+0×26
80828f2b nt!KiSwapThread+0×2e5
8099490a nt!KeDelayExecutionThread+0×2ab
808897cc nt!NtDelayExecution+0×84
7c82860c nt!KiFastCallEntry+0xfc
7c826f69 ntdll!KiFastSystemCallRet
7c83d454 ntdll!NtDelayExecution+0xc
77e6482f ntdll!RtlpTimerThread+0×47
00000000 kernel32!BaseThreadStart+0×34

lkd> lm
start    end        module name
[…]
77bd0000 77c19000   GDI32
77c20000 77cbf000   RPCRT4
77cd0000 77d5b000   OLEAUT32
77e20000 77eb2000   USER32
77ec0000 77f12000   SHLWAPI
77f30000 77fdc000   ADVAPI32
7c800000 7c915000   kernel32
7c920000 7c9e8000   ntdll
7c9f0000 7d1f9000   SHELL32
7e020000 7e02f000   SAMLIB

80800000 80a5d000   nt
80a5d000 80a89000   hal
bf800000 bf9d0000   win32k
[…]

This number continues to be used on x64 Windows systems, for example:

RetAddr           Call Site
fffff800`0167e082 nt!KiSwapContext+0×7a
fffff800`0167a34b nt!KiCommitThreadWait+0×1d2
fffff800`01973def nt!KeWaitForMultipleObjects+0×271
fffff800`019746f6 nt!ObpWaitForMultipleObjects+0×294
fffff800`01675ed3 nt!NtWaitForMultipleObjects+0xe5
00000000`77ca030a nt!KiSystemServiceCopyEnd+0×13

lkd> lm
start             end               module name
00000000`774a0000 00000000`7756d000 USER32
00000000`77570000 00000000`7769d000 kernel32
00000000`776a0000 00000000`77826000 ntdll
00000000`ffe60000 00000000`ffec0000 services
000007fe`fca90000 000007fe`fca97000 wshtcpip
000007fe`fcae0000 000007fe`fcb0c000 NTMARTA
000007fe`fcbe0000 000007fe`fcc34000 schannel
000007fe`fce10000 000007fe`fce5f000 mswsock
000007fe`fcf60000 000007fe`fcf69000 credssp
000007fe`fcf90000 000007fe`fcf97000 wship6
000007fe`fd0d0000 000007fe`fd207000 CRYPT32
000007fe`fd260000 000007fe`fd279000 MSASN1
000007fe`fd5a0000 000007fe`fd5b6000 NCObjAPI
000007fe`fd5c0000 000007fe`fd625000 SCESRV
000007fe`fd630000 000007fe`fd665000 apphelp
000007fe`fd680000 000007fe`fd6a6000 AUTHZ
000007fe`fd950000 000007fe`fd96c000 Secur32
000007fe`fd970000 000007fe`fd996000 USERENV
000007fe`fd9a0000 000007fe`fd9bc000 SAMLIB
000007fe`fdc80000 000007fe`fdce4000 GDI32
000007fe`fdd10000 000007fe`fdd1d000 LPK
000007fe`fdd20000 000007fe`fde28000 ADVAPI32
000007fe`fde30000 000007fe`fdecc000 msvcrt
000007fe`fded0000 000007fe`fdefd000 IMM32
000007fe`fdf00000 000007fe`fe0d8000 ole32
000007fe`fe0e0000 000007fe`fe0e7000 NSI
000007fe`fe190000 000007fe`fe22a000 USP10
000007fe`fe230000 000007fe`fe373000 RPCRT4
000007fe`ff340000 000007fe`ff395000 WLDAP32
000007fe`ff540000 000007fe`ff584000 WS2_32
000007fe`ff7d0000 000007fe`ff8d2000 MSCTF

fffff800`01802000 fffff800`01848000 hal
fffff800`01848000 fffff800`01d60000 nt
fffff960`000f0000 fffff960`003a1000 win32k
[…]

Synonyms:

Antonyms:

Also: virtual memory, user space, kernel space, x86, x64, 8

- Dmitry Vostokov @ DumpAnalysis.org -

Dictionary of Debugging: Thread

Wednesday, October 14th, 2009

Thread

A mapping T: t -> IP, where t is a discreet time arrow and IP is a memory space (Instruction Pointer). Threads can also be viewed as braided strings in an abstract computational space. Another computer science definition centers on considering each individual thread as a Turing machine. One of popular definitions is a parallel activity inside a process. The following diagram depicts a thread in equi-bipartitional virtual memory space comprised from user and kernel spaces:

Synonyms: lightweight process

Antonyms:

Also: virtual memory, memory space, user space, kernel space, breakpoint, process, fiber.

- Dmitry Vostokov @ DumpAnalysis.org -

Dictionary of Debugging: Breakpoint

Tuesday, October 6th, 2009

Breakpoint

A code or a processor state modification to plan for a synchronous diversion to another execution path when some condition is met. Usually implemented by a special processor instruction inserted at the specified address or a special processor register that holds the specified condition to be met. If that condition is met or the special instruction is executed the processor interrupts a computational process (a debuggee) and transfers the execution to another computational process (a debugger) that can inspect the debuggee state.

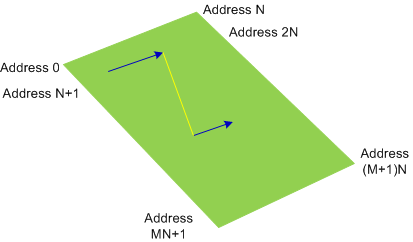

No breakpoints (normal execution path, the yellow line represents a function call):

2 breakpoints (BP#1 is inside the function and BP#2 is at the entry of another function):

Synonyms:

Antonyms:

Also: virtual memory, software breakpoint, hardware breakpoint, processor breakpoint, data breakpoint, code breakpoint, exception, debugger event.

- Dmitry Vostokov @ DumpAnalysis.org -

Dictionary of Debugging: Virtual Memory

Monday, October 5th, 2009

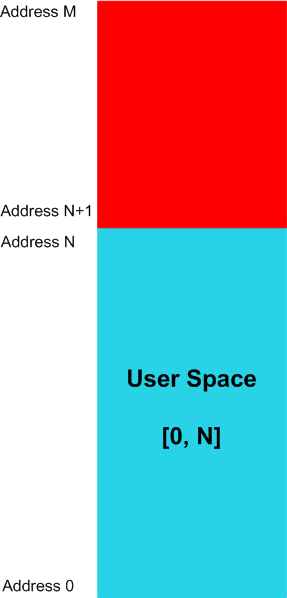

Virtual Memory

A computational process view of its memory. Memory content is combined from the process host memory (may not be physical) and from a storage memory. Virtual memory usually has linear ordered addresses in the range [0, N] where some regions may be inaccessible:

Synonyms: virtual space

Antonyms:

Also: memory space, memory dump, memory region, user dump, kernel dump, complete dump, kernel spacephysical memory, user space, generalized kernel space.

- Dmitry Vostokov @ DumpAnalysis.org -

Dictionary of Debugging: Physical Memory

Tuesday, September 29th, 2009

Physical Memory

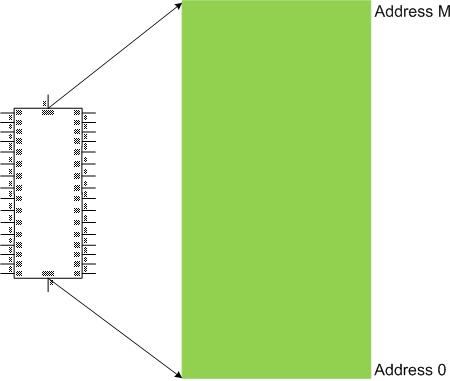

The linear ordering and numbering of physical memory unit implementations, one-to-one and onto the range [0, M] of addresses:

Synonyms: physical space

Antonyms:

Also: memory space, memory dump, memory region, user dump, kernel dump, complete dump, kernel space, virtual memory, user space, generalized kernel space.

- Dmitry Vostokov @ DumpAnalysis.org -

Dictionary of Debugging: Kernel Space

Friday, September 25th, 2009

Kernel Space

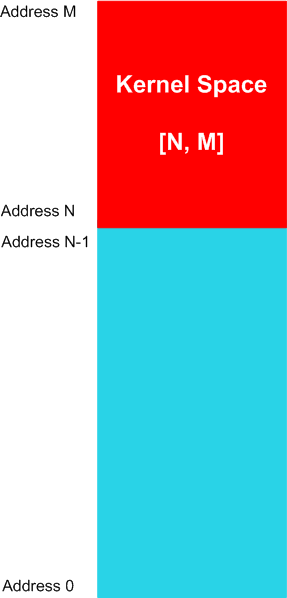

The linear range of memory addresses, a sub-interval of a memory space, comprising from code and data of an operating system computational process or its kernel part. For example, for a memory space [0, M] the kernel space can have the range of [N, M] addresses, where 0 < N < M, as illustrated on the following diagram valid for most of contemporary operating systems:

The memory contents might not be available for specific memory regions of a kernel space.

Synonyms:

Antonyms:

Also: memory space, memory dump, memory region, user dump, kernel dump, complete dump, physical memory, virtual memoryuser space, generalized kernel space.

- Dmitry Vostokov @ DumpAnalysis.org -

Dictionary of Debugging: User Space

Thursday, September 24th, 2009

User Space

The linear range of memory addresses, a sub-interval of a memory space, that computational process instructions can potentially read values from. For example, for a memory space [0, M] the user space can have the range of [0, N] addresses, where N < M, as illustrated on the following diagram valid for most of contemporary operating systems:

The memory contents might not be available for specific memory regions of a user space.

Synonyms:

Antonyms:

Also: memory space, memory dump, memory region, user dump, kernel dump, complete dump, physical memory, virtual memory, kernel space, generalized user space.

- Dmitry Vostokov @ DumpAnalysis.org -

Dictionary of Debugging: Memory Space

Tuesday, September 22nd, 2009

Memory Space

The linear range of memory addresses. Usually, addresses are numbers from N0 set. For example, [0, 7FFFFFFF] or [0×80000000, 0xFFFFFFFF]. Memory space is divided into memory regions. The memory contents might not be available for specific memory regions of a memory space.

Synonyms:

Antonyms:

Also: memory dump, memory region, user dump, kernel dump, complete dump, physical memory, virtual memory, user spacekernel space.

- Dmitry Vostokov @ DumpAnalysis.org -

Dictionary of Debugging: Memory Dump

Saturday, July 4th, 2009

Memory Dump

A snapshot of memory. Can be sequential (cell by cell) or selective.

References: Memory Dump - A Mathematical Definition

Synonyms: crash dump, core dump.

Antonyms:

Also: user dump, kernel dump, complete dump, full dump, minidump.

- Dmitry Vostokov @ DumpAnalysis.org -

Dictionary of Debugging: Crash

Wednesday, June 24th, 2009

Crash

The sudden disappearance of a program, service or system from observation.

References: Crashes explained, The difference between crashes and hangs explained

Synonyms: stop.

Antonyms: live.

Also: hang.

- Dmitry Vostokov @ DumpAnalysis.org -

Dictionary of Debugging: Hang

Tuesday, June 23rd, 2009

This is the first draft entry for the forthcoming Dictionary of Debugging (ISBN: 978-1906717353). The entry format is not final and more information will be added to individual entries in the future.

Hang

The perceived absence of response from a present program, service or system, either visual or functional.

References: Hangs explained, The difference between crashes and hangs explained

Synonyms: freeze, stop, halt.

Antonyms: live.

Similar: sluggish.

Also: crash.

- Dmitry Vostokov @ DumpAnalysis.org -
