Dumps and Systems Theory

Friday, November 24th, 2006

The environment where Citrix software operates is so complex that some education in Systems Theory and basic understanding of “cause and effect” and impossibility of “action at a distance” is needed. In forthcoming mini-series I would try to highlight some notions of that.

- Dmitry Vostokov -

Inside Citrix - November 2006

Wednesday, November 22nd, 2006

Welcome to Inside Citrix. This monthly column gives a glimpse of different aspects of Citrix through our people. Our guests have different areas of responsibility and expertise to give you an idea of what is happening behind the scenes. We discuss items of interest with people from Product Readiness, Escalation, Technical Support, and Engineering just to name a few.

In this installment of Inside Citrix, we discuss the meaning of life with Dmitry Vostokov, EMEA Development Analysis Team Lead.

Q: Hello Dmitry, how are you? I am very happy to conduct this interview as you are a creative and prolific worker. I wonder…has fame caught up to you yet, due to your creativity?

A: I’m fine, thank you! I believe there is a synergistic effect going on here. I make the company famous and the company makes me famous.

Q: So, before I get too far ahead of myself, please tell everyone a bit of your history. Where are you from? What did you do before Citrix? How long have you been with us? What kinds of things have you been doing at Citrix during your tenure?

A: I’m from Russia. I was born near Moscow and I spent 14 years there after enrolling at Moscow State University to study chemistry. In that university, I saw a computer and immediately started programming. My first program was written in FORTRAN and had almost 200 lines. My second program had commercial success: I ported 800 FORTRAN lines to about 2000 PDP-11 assembler lines and achieved a 25 percent increase in speed (the program calculated rocket fuel properties for weeks). Since then I’d been working from home for some U.S. and Russian ISV companies (mostly in speech and image processing domains) until 1999, when I went to work in an office to see a large software factory from the inside out.

In 2001 I went to Ireland to learn English. My first job in Ireland was with Ericsson in a small town as a Senior Software Designer. The title sounded great to me, but I heard rumors that the only engineers in Ericsson were hardware engineers. So that job didn’t last long because I was headhunted by a company called Programming Research and I relocated to Dublin. I spent 1.5 years there and after working briefly for a security company (that company is extinct now) I was hired by Citrix. I’ve already spent 3.16 years here. For Citrix I analyze crash dumps and provide recommendations. It’s like being a computer psychologist assessing brain damage. I also do a bit of escalation work when I have time. I like to provide full escalation and software maintenance cycles whenever I have sufficient resources to analyze the problem, contact the customer, and provide the resolution. I also have an opportunity here to apply my software design and programming skills by writing various troubleshooting tools.

Q: Most people probably didn’t know all of that. I guarantee you that Escalation knows you well. How is the blogging going? How can readers get to your blog?

A: I love blogging. I didn’t even think about blogging until I suddenly realized its potential in information sharing. When I joined the company there was no sufficient information available about crash dump analysis, so I had to learn on my own. Now I’m happy to share what I have learnt to everyone.

One topic I like to write about in my blog at the moment is crash dump analysis patterns and anti-patterns, where I summarize general solutions you can apply or should not apply in specific contexts to common recurrent dump analysis problems.

More will come…

Q: And the tools that you create, very useful! Can you take a moment to talk about each of the ones you have created? Which ones have you gotten the best feedback about? Which ones have been the most useful?

A: Thanks! I use them too. The tool I got the most complaints about is RepairCBDChain; the tool with the fewest complaints is SystemDump. I got the best feedback about PDBFinder.

All of them are useful in certain troubleshooting scenarios. I’m preparing a presentation about all these tools and I will present it to the EMEA TRM team in December. I’ll definitely publish it as soon as I get feedback about that training.

Here are brief descriptions of these tools (most of them have different versions for various platforms, and some were even ported to Windows Mobile):

• RepairCBDChain: Repairs clipboard functionality and magically you are able to copy/paste again (not always actually – I promise to write a blog post explaining why).

• ADSCleaner: Cleans Windows NT File System (NTFS) file streams created by Citrix memory optimization code if you no longer need this feature (it also frees disk space, by the way).

• ProcessHistory: Tracks processes, threads, and modules on 32-bit and 64-bit platforms. I’m going to release a Windows Mobile version soon.

• MessageHistory: Tracks window messages. It’s similar to Spy++ but much easier to use for troubleshooting and it works on 64-bit platforms too.

• WindowHistory: Tracks windows as they change their appearance, are created, and are destroyed and saves a log file. This is what Spy++ lacks and it was the primary motivation to write this tool.

• SystemDump: Forces a dump immediately or after a specified period of time. This can be done remotely too. It works on both 32-bit and 64-bit Windows! My primary motivation was that the OSR “bang” tool doesn’t work on 64-bit Windows.

• PDBFinder: Helps to find symbol files if you have zillions of them.

• DumpCheck: Verifies that you have a valid dump and even provides recommendations to avoid common mistakes before sending dumps to support.

• CtxHidEx32: Can hide any annoying windows or message boxes and reduce unnecessary support calls. It also has a peculiar feature: you can specify an action to do before hiding the window. When the Media Player window appears it can send a message to your boss.

• Dump2Wave: My most controversial tool that allows you to hear the sound of memory corruption. Some people say it’s useless but I would say it is entertaining.

Some other upcoming tools I’m working days and nights on (when I have free time) are:

• DumpDepends: Helps to automate repetitive dumping.

• DumpAlerts: Provides notification whenever new dump is saved.

• SessionHistory: Tracks session information.

• HistoryToolbar: Organizes “History” tools into one coherent super tool.

• DumpPlayer: Plays musical dumps in real-time and provides visual images based on crash dump memory contents. I coined a term—Dump Tomography—for this.

Q: They must take some upkeep, as we see a lot of improvements, updates, and so on. I also see you provide a lot of training information on escalation techniques, debugging, analysis, and more. What do you believe is the most important characteristic of a successful escalation engineer?

A: As Winston Churchill said: “Never, never, never give up!”?

Q: Any advice for Citrix administrators who might be reading this on how to avoid trouble or have their environment best situated to speed resolution, should an issue occur?

A: If you are asked to generate and/or collect crash dumps, please tell support personnel how you got that dump. And ensure that you are sending the right dump for the right issue.

I started writing Dumps for Dummies blog posts to explain dumps and I promise to continue and expand them.

Q: What do you find most challenging about your job?

A: To work with enormous amounts of information and make quick decisions at the same time.

Q: Is there anything you can share with us about new Citrix products or technologies (not giving away confidential information) that you are excited about?

A: I would tell you that with whatever new technology comes along, crash dumps will be the same! And this gives me some optimism. Whether there will be more or less crash dumps in the future is pretty confidential though…

Q: Any plans to visit Citrix headquarters in Fort Lauderdale, Florida?

A: I’m actually visiting Citrix headquarters at the end of this month! See you there.

Q: Not so much a question, make us laugh!

A: One day we got a fax from a customer where all of the blue screen information was written down by hand—hundreds of digits… How long it took to copy all that from the screen and whether or not he made any mistakes, we will never know. The copy from that fax is still hanging on my desk wall.

Q: What do you do in your free time besides analyzing dumps, debugging and programming?

A: Read books. I read lots of them and about quite diverse subjects. However, my favorite subject for the last four years has been math—the more abstract the better.

It really helps in improving the critical thinking skills required for my job.

Thanks, Dmitry. People will know to look you up online…

WindowHistory Mobile (new release)

Wednesday, November 22nd, 2006

WindowHistory Mobile edition has been updated. It replaces the previous version of WindowHistory CE/Mobile 2.1 and now available in two separate executables: for Windows Mobile 5.0 (ARMV4I) and Windows Pocket PC 2003 (ARMV4). It has been tested under emulators, Acer n300 (480×640 screen) and mobile phone Mio A701 (240×320 screen). Here are screenshots from Windows Mobile 5.0 emulator:



The tool also includes Easter Egg (activate soft keyboard, click on and then click on About button. The following window appears with scrolling text of contributors and special thanks):


- Dmitry Vostokov -

Voices from Process Space

Sunday, November 19th, 2006

Following the release of Dump2Wave tool some members of Citrix community have been asking me to provide some interesting sound fragments from dump files. I was also particularly interested in catching voices from the past: embedded fragments of human voice. So I recorded my “Hello” message, played it by Media Player and then saved a process dump. Then I converted the dump to CD-quality wave file and saved interesting sound fragments from it (to conserve space - the original wave file was 76Mb).

To listen to these fragments you can download wave files from the following location:

DumpSounds.zip (8Mb)

Here is the description of what I heard in these wave files:

- dump1.wav

  • violin
  • aliens
  • train sound
  • Hello

- dump2.wav

  • electric guitar
  • signals from cosmos

- dump3.wav

  • Morse code alphabet

- dump4.wav

  • helicopter

- dump5.wav

  • horn
  • some interesting noise and fragments of electronic music

 Enjoy :-)

Of course, you can convert kernel memory dumps to wave files and hear voices from kernel space too…

- Dmitry Vostokov -

Preview of DumpAlerts tool

Sunday, November 19th, 2006

The tool monitors folders where dumps can be saved including Dr. Watson, a folder specified when NTSD is set as a default debugger, etc. It then alerts a user, an administrator or a software vendor whenever a new dump is saved:

  • Icon in System Tray changes its color from green to red
  • Popup window appears until dismissed
  • E-mail is sent to a specified address
  • Sound is played
  • Custom action is executed, for example, automatically launching WinDbg.exe with the latest dump or copying it to an ftp server

All actions are fully configurable and can be enabled/disabled. Here is the screenshot of the main window:

I’m planning to incluide TAPI support and alerts from hung applications in the next version(s).

Later this tool will included in Dump Monitor Suite

Any comments and suggestions are welcome.

- Dmitry Vostokov -

Crash Dumps for Dummies (Part 4)

Sunday, November 19th, 2006

In the previous Dumps for Dummies (Part 3) I tried to explain the nature of crashes. Another category of problems happens very often and we also need a dump for analysis: hangs. There is some confusion exists in understanding the difference between these two categories: crash and hang. Although sometimes a hang is a direct consequence of a crash most of the time hangs happen independently. They also manifest themselves differently. Let’s look at application (process) crashes and hangs first. When a crash happens an application (process) often disappears. When hang happens an application (process) is still in memory: you can see it in Task Manager, for example, but it doesn’t respond to user commands or to any other requests like pinging a TCP/IP port. If we have a crash in OS then the most visible manifestation is blue screen and/or reboot. If we have a hang then everything freezes.

Application or system hang happens because from high level view of the interaction between application or OS components (modules) is done via messages. One component sends a message to another and waits for a response. Some components are critical, for example, registry. The following hand-made picture depicts very common system hang situations when the register component stops responding. Then every running application (process) stops responding if its execution path depends on registry access.

The very common reason for hang is so called deadlock when two running applications (their execution paths, threads) are waiting for each other. Here is the analogy with a blocked road:

In order to see what’s inside the process or OS which caused a hang we need a dump. Usually this dump is called a crash dump too because in order to get it the usual method is to make some sort of a trap which causes an application or OS to crash and to save the dump. I personally prefer to call these dumps just memory dumps to avoid confusion.

How can you get a memory dump if your application or service hangs?

How can you get a memory dump if your system hangs?

For most system hangs choosing Kernel memory dump option in Control Panel\System\Advanced\Startup and Recovery applet is sufficient. Kernel memory dumps are smaller and less susceptible to corruption or truncation due to small page file size. If you discover that you need to peer inside running user applications then you can always ask for another Complete memory dump when the problem happens again.

- Dmitry Vostokov @ DumpAnalysis.org -

Crash Dumps and Security

Friday, November 17th, 2006

Suppose you work in a banking industry or for any company that has sensitive information. Is it secure to send a crash dump outside for analysis? One semi-anonymous person asked this question on www.dumpanalysis.org and here is my unedited answer based on my experience in crash dump analysis and kernel level development:

"It depends on credit card transactions software design and architecture and what type of dump is configured in Control Panel\System\Advanced\Startup and Recovery applet: Small, Kernel or Complete.

Software usually encrypts data before sending it down TCP/IP stack or other network protocol. If your credit card transactions software doesn't have any kernel space encryption drivers and doesn't rely on any MS or other 3rd-party encryption API that might send data to kernel, communicate to KSECDD or to user-space component like LSASS via LPC/RPC you can safely assume that kernel memory dumps will not have unencrypted data. If encryption is done entirely in user space Small memory dump and Kernel memory dump will only have encrypted fragments. Otherwise there is a probability that BSOD happens just before encryption or after decryption or when secure protocol is being handled. This exposure can even happen in Small memory dumps if BSOD happens in the thread that handles sensitive information in kernel mode.

The same applies if your software stores credit data on any medium. If it stores only encrypted data and decrypts entirely in user space without any transition to kernel it should be safe to enable kernel memory dump.

If your goal is ultimate security then even Small memory dump (64Kb) should not be allowed. But in reality as we consider probabilities sending small memory dump is equivalent to no more than exposing just one credit card number or one password.

What you must avoid at any cost is to enable complete memory dump option in control panel. In this case all your credit card transactions software code and data including file system cache will be exposed.

Contrary to complete memory dump kernel memory dump will not have much data even if some potion of it is being communicated during crash time. I would also be interested in hearing what other experts say. This is very interesting topic."

If you are interested too you can participate in that discussion (registration is needed to avoid spammers):

http://www.dumpanalysis.org/forum/viewtopic.php?t=56

- Dmitry Vostokov -

How WINE can help in Crash Dump Analysis

Thursday, November 16th, 2006

You probably already know or have heard about the project WINE: Windows API on top of X and Unix

winehq.com

I first heard about it more than 10 years ago when it started. Today I rediscovered it again and was really surprised. I was looking for one NT status code I couldn’t find in MS official documentation and found it here:

dlls/ntdll/error.c

In order to run Win32 programs WINE emulates all API calls including OLE32, USER32, GDI32, KERNEL32, ADVAPI32 and of course, NTDLL:

dlls/ntdll
dlls/ole32
dlls/user32
dlls/kernel32
dlls/gdi32
dlls/advapi32

Plus hundreds of other components. All source code is located here:

http://cvs.winehq.com/cvsweb/wine/

So if want to see how particular function or protocol might have been implemented hypothetically by Windows OS designers it is a good place to start.

- Dmitry Vostokov -

Horrors of debugging legacy code

Wednesday, November 8th, 2006

We all know that macro definitions in C and C++ are evil. They cause maintenance nightmares by introducing subtle bugs. I never took that seriously until last weekend I was debugging my old code written 10 years ago which uses macros written 15 years ago :-)

My Windows Mobile 5.0 application was crashing when I was using POOM COM interfaces (Pocket Outlook Object Model). The crash never pointed to my code. It always happened after pimstore.dll and other MS modules were loaded and COM interfaces started to return errors. I first suspected that I was using POOM incorrectly and rewrote all code several times and in different ways. No luck. Then I tried PoomMaster sample from Windows Mobile 5.0 SDK and it worked well. So I rewrote my code in exactly the same way as in that sample. No luck. My last hope was that moving code from my DLL to EXE (as in sample SDK project) would eliminate crashes but it didn’t help too. Then I slowly started to realize that the problem might have been in my old code and I also noticed that one old piece of code had never been used before. So I started debugging by elimination (commenting out less and less code) until I found a macro. I had to stare at it for couple of minutes until I realized that one pair of brackets was missing and that caused allocating less memory and worse: the returned pointer to allocated memory was multiplied by 2! So the net result was the pointer pointing to other modules and subsequent string copy was effectively overwriting their memory and eventually causing crashes inside MS dlls.

Here is that legacy macro:

#define ALLOC(t, p, s)
((p)=(t)GlobalLock(GlobalAlloc(GHND, (s))))

It allocates memory and returns a pointer. It should have been called like this (size parameter is highlighted in blue):

if (ALLOC(LPWSTR,lpm->lpszEvents,
(lstrlen(lpszMacro)+1)*sizeof(WCHAR)))
{
lstrcpy(lpm->lpszEvents, lpszMacro);
    lpm->nEvents=lstrlen(lpm->lpszEvents)+1;
}

What I found is the missing bracket before lstrlen and last enclosing bracket (size parameter is highlighted in red):

if (ALLOC(LPWSTR,lpm->lpszEvents,
lstrlen(lpszMacro)+1)*sizeof(WCHAR))
{
lstrcpy(lpm->lpszEvents, lpszMacro);
    lpm->nEvents=lstrlen(lpm->lpszEvents)+1;
}

The resulted code after macro expansion looks like this

if (lpm->lpszEvents=(LPWSTR)GlobalLock(GlobalAlloc(GHND,
lstrlen(lpszMacro)+1))*sizeof(WCHAR))

You see that the pointer to allocated memory is multiplied by two and string copy is performed to a random place in the address space of other loaded dlls corrupting their data and causing the process to crash later.

- Dmitry Vostokov -

Crash Dump Analysis Patterns (Part 4)

Friday, November 3rd, 2006

After looking at one dump today where all thread environment blocks were zeroed, import table corrupt and recalling some similar cases I encountered previously I came up with the next pattern: Lateral Damage.

When this problem happens you don’t have much choice and your first temptation is to apply Alien Component anti-pattern unless your module list is corrupt and you have manifestation of another common problem I will talk about next time: Corrupt Dump.

Anti-pattern is not always bad solution if complemented by subsequent verification and backed by experience. If you get damaged process and thread structures you can point to a suspicious component (supported by some evidence like raw stack analysis and educated guess) and request additional dumps in hope to get less damaged process space or see that component again. At the very end if removing it stabilizes the customer environment it proves you were right.

- Dmitry Vostokov @ DumpAnalysis.org -

Crash Dump Analysis AntiPatterns (Part 1)

Wednesday, November 1st, 2006

In any domain of activity where patterns exist we can find anti-patterns too. They are bad solutions for recurrent problems in specific contexts. One of them I would like to introduce briefly is Alien Component. In essence, when every technique fails or you run out of WinDbg commands look at some innocent component you have never seen before or don’t have symbols for: be it some driver or hook. Of course, this component cannot be the component developed by the company you are working for. :-)

- Dmitry Vostokov -

Crash Dump Analysis Patterns (Part 3)

Wednesday, November 1st, 2006

Another pattern I observe frequently is False Positive Dump. We get dumps pointing in a wrong direction or not useful for analysis and this usually happens when wrong tool was selected or right one was not properly configured for capturing crash dumps. Here is one example I investigated in detail.

The customer experienced frequent spooler crashes. The dump was sent for investigation to find an offending component: usually it is a printer driver. WinDbg revealed the following exception thread stack (parameters are not shown here for readability):

KERNEL32!RaiseException+0x56
KERNEL32!OutputDebugStringA+0x55
KERNEL32!OutputDebugStringW+0x39
HPZUI041!ConvertTicket+0x3c90
HPZUI041!DllGetClassObject+0x5d9b
HPZUI041!DllGetClassObject+0x11bb

The immediate response is to point to HPZUI041.DLL but if we look at parameters to KERNEL32!OutputDebugStringA we would see that the string passed to it is a valid NULL-terminated string:

0:010> da 000d0040
000d0040  ".Lower DWORD of elapsed time = 3"
000d0060  "750000."

If we disassemble OutputDebugStringA up to RaiseException call we would see:

0:010> u KERNEL32!OutputDebugStringA
KERNEL32!OutputDebugStringA+0x55
KERNEL32!OutputDebugStringA:
push    ebp
mov     ebp,esp
push    0FFFFFFFFh
push    offset KERNEL32!'string'+0x10
push    offset KERNEL32!_except_handler3
mov     eax,dword ptr fs:[00000000h]
push    eax
mov     dword ptr fs:[0],esp
push    ecx
push    ecx
sub     esp,228h
push    ebx
push    esi
push    edi
mov     dword ptr [ebp-18h],esp
and     dword ptr [ebp-4],0
mov     edx,dword ptr [ebp+8]
mov     edi,edx
or      ecx,0FFFFFFFFh
xor     eax,eax
repne scas byte ptr es:[edi]
not     ecx
mov     dword ptr [ebp-20h],ecx
mov     dword ptr [ebp-1Ch],edx
lea     eax,[ebp-20h]
push    eax
push    2
push    0
push    40010006h
call    KERNEL32!RaiseException

There is no jumps in the code prior to KERNEL32!RaiseException call and this means that raising exception was expected. Also MSDN documentation says:

“If the application has no debugger, the system debugger displays the string. If the application has no debugger and the system debugger is not active, OutputDebugString does nothing.”

So spoolsv.exe might have been monitored by a debugger which caught that exception and instead of dismissing it dumped the spooler process.

If we look at ‘analyze -v’ output we could see the following:

Comment: 'Userdump generated complete user-mode minidump
with Exception Monitor function on WS002E0O-01-MFP'
ERROR_CODE: (NTSTATUS) 0x40010006 -
Debugger printed exception on control C.

Now we see that debugger was User Mode Process Dumper you can download from Microsoft web site:

How to use the Userdump.exe tool to create a dump file

If we download it, install it and write a small console program in Visual C++ to reproduce this crash:

#include "stdafx.h"
#include
int _tmain(int argc, _TCHAR* argv[])
{
    OutputDebugString(_T("Sample string"));
    return 0;
}

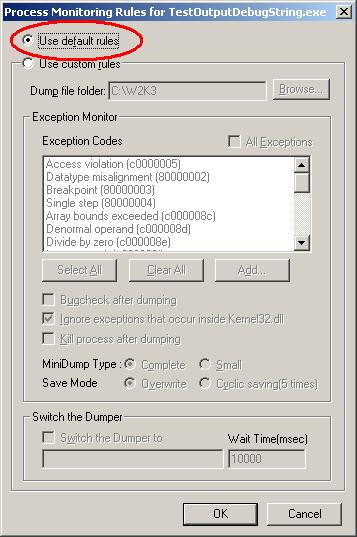

and if we compile it in Release mode and configure Process Dumper applet in Control Panel to include TestOutputDebugString.exe with the following properties:

and then run our program we would see Process Dumper catching KERNEL32!RaiseException and saving the dump.

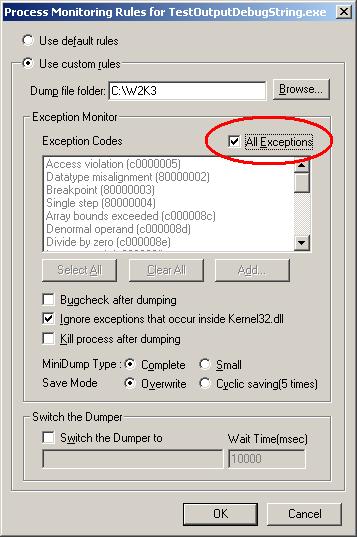

Even if we select to ignore exceptions that occur inside kernel32.dll this tool still dumps our process. Now we can see that the customer most probably enabled ‘All Exceptions’ check box too. What the customer should have done is to use default rules like on the picture below:

Or select exception codes manually. In this case no dump is generated even if we manually select all of them. Just to check that the latter configuration still catches access violations we can add a line of code dereferencing NULL pointer and Process Dumper will catch it and save the dump.

Conclusion: the customer should have used NTSD as a default postmortem debugger from the start. Then if crash happened we would have seen the real offending component or could have applied other patterns and requested additional dumps.

- Dmitry Vostokov @ DumpAnalysis.org -
