Trace Analysis Patterns (Part 130)

Monday, August 15th, 2016

Recently we performed the diagnostic analysis of a software incident where certain functionality was not available to users and provided the report based on analysis patterns such as Focus of Tracing and Opposition Messages. We also conjectured some hypotheses explaining the observed abnormal behaviour. However, at the end, the problem was solved not by the analysis of a lengthy software execution log but by looking at the small configuration INI file where not working functionality was simply disabled in one line:

EnableFunctionality = 0

Even before that analysis we were thinking about the importance of Small DA+TA such as configuration files and registry details that can be considered as general software traces. Here DA+TA means Dump Artefact + Trace Artefact and Big DA+TA refers to software execution memory dump artefacts and trace artefacts that can be really huge. The analysis pattern is illustrated in the following diagram where we see no difference between working and non-working scenarios due to insufficient trace coverage (Sparse Trace):

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Trace Analysis Patterns (Part 129)

Saturday, August 13th, 2016

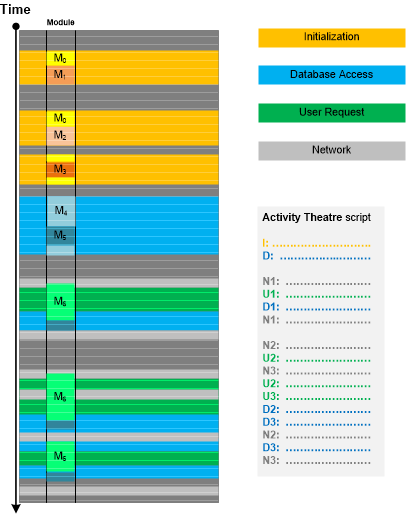

In addition to Message Patterns there are higher level patterns of specific activities and Motives. Such activities may or may not coincide with specific components (modules) because they may be grouped based on implementation messages, software internals semantics and not on architectural and design entities (as in Use Case Trail analysis pattern). Moreover, he same components may “play” different activity roles. Once assigned, Activity Theatre “scripts” can be compared with “scripts” from other traces and logs (Inter-Correlation) or different parts of the same log (Intra-Correlation). This pattern is illustrated in the following diagram:

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Trace Analysis Patterns (Part 128)

Tuesday, August 9th, 2016

Now we come to the trace and log analysis pattern that we call Message Pattern. It is an ordered set of messages from Thread of Activity or Adjoint Thread of Activity having Message Invariants that can be used for matching another ordered set of messages in another (Inter-Correlation) or the same trace or log (Intra-Correlation). A typical Message Pattern from one of our own trace and log analysis sessions is depicted in the following diagram:

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Structural Memory Patterns (Part 8)

Monday, August 8th, 2016

After almost a 6-year break we resume extending the catalog of structural memory patterns as a foundation of pattern-oriented memory forensics, root cause analysis, and software internals. The next pattern we add is borrowed from archaeology and is called Region Strata. When we have several memory snapshots we can analyze Memory Regions for their changes at different times:

For example, we got two memory dumps of the same process saved by WER with approx. one minute difference. We saved the raw stack region of the current thread using .writemem WinDbg command in text files (Strata1.txt and Strata2.txt) and then combined them into one Excel table (Strata.xlsx). In that table we can see memory region changes as shown in this picture (click to expand):
