Crash Dump Analysis Patterns (Part 245, Linux)

Sunday, December 4th, 2016

This is a Linux variant of Module Stack Trace pattern previously described for Windows platform. Linux core dumps are Abridged Dumps by default with shared libraries code and paged out pages missing. To enable saving full process dumps use this command (see core man page for more details):

[training@localhost CentOS]$ echo 0x7f > /proc/$$/coredump_filter

Compare the file sizes for sleep process core dump generated before (core.3252) and after (core.3268) changing coredump_filter value:

[training@localhost CentOS]$ ls -l
-rwxrwxrwx. 1 root root 323584 Oct 3 07:39 core.3252
-rwxrwxrwx. 1 root root 103337984 Oct 3 07:40 core.3268

Although GDB is not able to get symbolic stack trace for both dumps above due to the absence of symbols, CODA tool is able to show stack trace variant with modules (with Reduced Symbolic Information):

(gdb) bt
#0 0x00000032bd4accc0 in ?? ()
#1 0x0000000000403ce8 in ?? ()
#2 0x00000000000004d2 in ?? ()
#3 0x0000000000000000 in ?? ()

[training@localhost CentOS]$ ./coda/coda -i core.3268
Welcome to coda interactive command line.
THE SOFTWARE IS PROVIDED 'AS IS', WITHOUT WARRANTY OF ANY KIND.
Supported on x86_64-linux.
Coredump generated by command line => sleep 1234
coda > bt
[0] 0x00000032bd4accc0 <0x00000032bd4accb0 - 0x00000032bd4acd0e> __nanosleep+0x10 [RO TEXT]:/lib64/libc.so.6
[1] 0×0000000000403ce8 <0×0000000000403c40 - 0×0000000000403cf3> close_stdout+0×2378 [RO TEXT]:sleep
[2] 0×000000000040336d <0×00000000004032c0 - 0×00000000004033e9> close_stdout+0×19fd [RO TEXT]:sleep
[3] 0×00000000004016bc <0×00000000004014c0 - 0×0000000000401775> usage+0×3fc [RO TEXT]:sleep
[4] 0×00000032bd41ed1d <0×00000032bd41ec20 - 0×00000032bd41ede7> __libc_start_main+0xfd [RO TEXT]:/lib64/libc.so.6
[5] 0×00000000004011f9 <0×00000000004012c0 - 0×00000000004014bb> ?? [RO TEXT]:sleep
[6] 0×00007fff89d82a68 <————-RANGE UNKNOWN————-> ?? [RW DATA]:

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Crash Dump Analysis Patterns (Part 36, Linux)

Saturday, December 19th, 2015

This is a Linux variant of Local Buffer Overflow pattern previously described for Mac OS X and Windows platforms. Most of the time simple mistakes in using memory and string manipulation functions are easily detected by runtime. The more sophisticated example which overwrites stack trace without being detected involves overwriting indirectly via a pointer to a local buffer passed to the called function. In such cases we might see incorrect and truncated stack traces:

(gdb) bt
#0  0×0000000000000000 in ?? ()
#1  0×0000000000000000 in ?? ()

(gdb) x/100a $rsp
[...]
0x7fc3dd9dece8: 0x0 0x0
0x7fc3dd9decf8: 0x0 0x0
0x7fc3dd9ded08: 0x0 0x0
0x7fc3dd9ded18: 0x0 0x0
0x7fc3dd9ded28: 0×7fc3dd9ded48 0×4005cc <procA+40>
0×7fc3dd9ded38: 0×422077654e20794d 0×7542207265676769
0×7fc3dd9ded480×72656666 0×0
0×7fc3dd9ded58: 0×0 0×0
0×7fc3dd9ded68: 0×0 0×0
0×7fc3dd9ded78: 0×0 0×0
[…]

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Crash Dump Analysis Patterns (Part 16b, Linux)

Saturday, December 19th, 2015

This is a Linux variant of Stack Overflow (user mode) pattern previously described for Mac OS X and Windows platforms:

(gdb) bt
#0  0x00000000004004fb in procF ()
#1  0x000000000040054b in procF ()
#2  0x000000000040054b in procF ()
#3  0x000000000040054b in procF ()
#4  0x000000000040054b in procF ()
#5  0x000000000040054b in procF ()
#6  0x000000000040054b in procF ()
#7  0x000000000040054b in procF ()
#8  0x000000000040054b in procF ()
#9  0x000000000040054b in procF ()
#10 0x000000000040054b in procF ()
#11 0x000000000040054b in procF ()
#12 0x000000000040054b in procF ()
#13 0x000000000040054b in procF ()
#14 0x000000000040054b in procF ()
#15 0x000000000040054b in procF ()
#16 0x000000000040054b in procF ()
[...]

(gdb) bt -10
#15409 0x000000000040054b in procF ()
#15410 0x000000000040054b in procF ()
#15411 0x000000000040054b in procF ()
#15412 0x000000000040055b in procE ()
#15413 0x0000000000400575 in bar_one ()
#15414 0x0000000000400585 in foo_one ()
#15415 0x000000000040059d in thread_one ()
#15416 0x0000000000401690 in start_thread (arg=<optimized out>)
at pthread_create.c:304
#15417 0x0000000000432549 in clone ()
#15418 0x0000000000000000 in ?? ()

In case of a stack overflow the stack pointer is decremented beyond the stack region boundary into an non-accessible region so any stack memory access triggers an access violation:

(gdb) x $rsp
0×7eff46109ec0: 0×0

(gdb) frame 1
#1  0x000000000040054b in procF ()

(gdb) x $rsp
0×7eff4610a0e0: 0×0

(gdb) maintenance info sections
[...]
Core file:
[...]
0×7eff46109000->0×7eff4610a000 at 0×02034000: load13 ALLOC LOAD READONLY HAS_CONTENTS
0×7eff4610a000->0×7eff4690a000 at 0×02035000: load14 ALLOC LOAD HAS_CONTENTS
[…]

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Crash Dump Analysis Patterns (Part 24, Linux)

Saturday, December 19th, 2015

This is a Linux variant of Coincidental Symbolic Information pattern previously described for Mac OS X and Windows platforms. The idea is the same: to disassemble the address to see if the preceding instruction is a call. If it is indeed then most likely the symbolic address is a return address from past Execution Residue:

(gdb) x/i 0x4005e6
0x4005e6 <_Z6work_3v+9>: pop    %rbp

(gdb) disassemble 0x4005e6
Dump of assembler code for function _Z6work_3v:
0x00000000004005dd <+0>: push   %rbp
0x00000000004005de <+1>: mov    %rsp,%rbp
0x00000000004005e1 <+4>: callq  0×4005d2 <_Z6work_4v>
0×00000000004005e6 <+9>: pop    %rbp
0×00000000004005e7 <+10>: retq
End of assembler dump.

(gdb) x/4i 0x49c740-4
0x49c73c: add    %al,(%rax)
0x49c73e: add    %al,(%rax)
0×49c740 <default_attr>: add    %al,(%rax)
0×49c742 <default_attr+2>: add    %al,(%rax)

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Crash Dump Analysis Patterns (Part 60, Linux)

Saturday, December 19th, 2015

This is a Linux variant of Execution Residue pattern previously described for Mac OS X and Windows platforms. This is symbolic information left in a stack region including ASCII and UNICODE fragments or pointers to them, for example, return addresses from past function calls:

(gdb) bt
#0  0x00000000004431f1 in nanosleep ()
#1  0x00000000004430c0 in sleep ()
#2  0x0000000000400771 in procNE() ()
#3  0x00000000004007aa in bar_two() ()
#4  0x00000000004007b5 in foo_two() ()
#5  0x00000000004007c8 in thread_two(void*) ()
#6  0x00000000004140f0 in start_thread (arg=<optimized out>)
at pthread_create.c:304
#7  0x0000000000445879 in clone ()
#8  0x0000000000000000 in ?? ()

(gdb) x/512a $rsp-2000
0x7f4cacc42360: 0x0 0x0
0x7f4cacc42370: 0x0 0x0
0x7f4cacc42380: 0x0 0x0
0x7f4cacc42390: 0x0 0x0
[...]
0x7f4cacc42830: 0x0 0x0
0x7f4cacc42840: 0x0 0x0
0x7f4cacc42850: 0x0 0x0
0x7f4cacc42860: 0x7f4cacc42870 0×4005af <_Z6work_8v+9>
0×7f4cacc42870: 0×7f4cacc42880 0×4005ba <_Z6work_7v+9>
0×7f4cacc42880: 0×7f4cacc42890 0×4005c5 <_Z6work_6v+9>
0×7f4cacc42890: 0×7f4cacc428a0 0×4005d0 <_Z6work_5v+9>
0×7f4cacc428a0: 0×7f4cacc428b0 0×4005db <_Z6work_4v+9>
0×7f4cacc428b0: 0×7f4cacc428c0 0×4005e6 <_Z6work_3v+9>
0×7f4cacc428c0: 0×7f4cacc428d0 0×4005f1 <_Z6work_2v+9>
0×7f4cacc428d0: 0×7f4cacc428e0 0×4005fc <_Z6work_1v+9>
0×7f4cacc428e0: 0×7f4cacc42cf0 0×40060e <_Z4workv+16>
0×7f4cacc428f0: 0×0 0×0
0×7f4cacc42900: 0×0 0×0
0×7f4cacc42910: 0×0 0×0
[…]
0×7f4cacc42af0: 0×0 0×0
0×7f4cacc42b00: 0×0 0×0
0×7f4cacc42b10: 0×0 0×0
0×7f4cacc42b20: 0×0 0×4431e6 <nanosleep+38>
0×7f4cacc42b30: 0×0 0×4430c0 <sleep+224>
0×7f4cacc42b40: 0×0 0×0
0×7f4cacc42b50: 0×0 0×0
0×7f4cacc42b60: 0×0 0×0
0×7f4cacc42b70: 0×0 0×0
[…]
0×7f4cacc42cb0: 0×0 0×0
0×7f4cacc42cc0: 0×0 0×0
0×7f4cacc42cd0: 0×0 0×0
0×7f4cacc42ce0: 0xfffffed2 0×3ad3affa
0×7f4cacc42cf0: 0×7f4cacc42d00 0×0
0×7f4cacc42d00: 0×7f4cacc42d20 0×49c740 <default_attr>
0×7f4cacc42d10: 0×7f4cacc439c0 0×400771 <_Z6procNEv+19>
0×7f4cacc42d20: 0×7f4cacc42d30 0×4007aa <_Z7bar_twov+9>
0×7f4cacc42d30: 0×7f4cacc42d40 0×4007b5 <_Z7foo_twov+9>
0×7f4cacc42d40: 0×7f4cacc42d60 0×4007c8 <_Z10thread_twoPv+17>
0×7f4cacc42d50: 0×0 0×0
0×7f4cacc42d60: 0×0 0×4140f0 <start_thread+208>
0×7f4cacc42d70: 0×0 0×7f4cacc43700
0×7f4cacc42d80: 0×0 0×0
0×7f4cacc42d90: 0×0 0×0
[…]

However, supposed return addresses need to be checked for Coincidental Symbolic Information.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Crash Dump Analysis Patterns (Part 2, Linux)

Saturday, December 19th, 2015

This is a Linux variant of Dynamic Memory Corruption (process heap) pattern previously described for Mac OS X and Windows platforms.

The corruption may be internal for heap structures with subsequent memory access violation:

(gdb) bt
#0  0×000000000041482e in _int_malloc ()
#1  0×0000000000416d88 in malloc ()
#2  0×00000000004005dc in proc ()
#3  0×00000000004006ee in bar_three ()
#4  0×00000000004006fe in foo_three ()
#5  0×0000000000400716 in thread_three ()
#6  0×0000000000401760 in start_thread (arg=<optimized out>)
at pthread_create.c:304
#7  0×0000000000432609 in clone ()
#8  0×0000000000000000 in ?? ()

(gdb) x/i $rip
=> 0x41482e <_int_malloc+622>: mov    %rbx,0×10(%r12)

(gdb) x $r12+0x10
0x21687371: Cannot access memory at address 0x21687371

(gdb) p (char[4])0x21687371
$1 = "qsh!"

Or it may be detected with a diagnostic message (similar to double free):

(gdb) bt
#0  0×000000000043ef65 in raise ()
#1  0×0000000000409fc0 in abort ()
#2  0×000000000040bf5b in __libc_message ()
#3  0×0000000000412042 in malloc_printerr ()

#4  0×0000000000416c27 in free ()
#5  0×0000000000400586 in proc ()
#6  0×000000000040067e in bar_four ()
#7  0×000000000040068e in foo_four ()
#8  0×00000000004006a6 in thread_four ()
#9  0×00000000004016c0 in start_thread (arg=<optimized out>)
at pthread_create.c:304
#10 0×0000000000432589 in clone ()
#11 0×0000000000000000 in ?? ()

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Crash Dump Analysis Patterns (Part 235, Linux)

Friday, December 18th, 2015

We first introduced Critical Region pattern in Accelerated Mac OS X Core Dump Analysis training but didn’t submit the pattern itself to the catalog at that time.

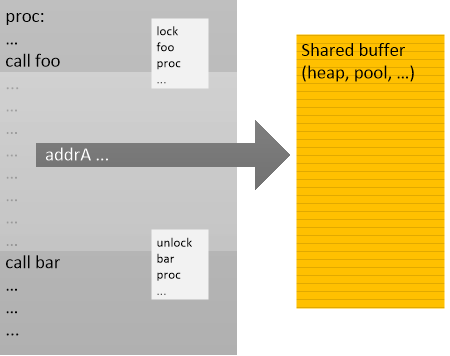

A critical region is usually a region of code protected by synchronization objects such as critical sections and mutexes. However, Critical Region analysis pattern is about identifying code regions “sandwiched” between contending function calls (which may or may not involve synchronization objects and corresponding synchronization calls such as identified in Contention patterns), and then identifying any possible shared data referenced by such code regions:

(gdb) thread apply all bt

Thread 6 (Thread 0x7f2665377700 (LWP 17000)):
#0  0x00000000004151a1 in _int_malloc ()
#1  0x0000000000416cf8 in malloc ()
#2  0x00000000004005a4 in proc ()
#3  0x0000000000400604 in bar_two ()
#4  0x0000000000400614 in foo_two ()
#5  0x000000000040062c in thread_two ()
#6  0x00000000004016c0 in start_thread (arg=<optimized out>)
at pthread_create.c:304
#7  0x0000000000432589 in clone ()
#8  0x0000000000000000 in ?? ()

Thread 5 (Thread 0x7f2664b76700 (LWP 17001)):
#0  __lll_unlock_wake_private ()
at ../nptl/sysdeps/unix/sysv/linux/x86_64/lowlevellock.S:343
#1  0×000000000041886d in _L_unlock_9670 ()
#2  0×0000000000416d22 in malloc ()
#3  0×00000000004005a4 in proc ()

#4  0×0000000000400641 in bar_three ()
#5  0×0000000000400651 in foo_three ()
#6  0×0000000000400669 in thread_three ()
#7  0×00000000004016c0 in start_thread (arg=<optimized out>)
at pthread_create.c:304
#8  0×0000000000432589 in clone ()
#9  0×0000000000000000 in ?? ()

Thread 4 (Thread 0x7f2665b78700 (LWP 16999)):
#0  __lll_lock_wait_private ()
at ../nptl/sysdeps/unix/sysv/linux/x86_64/lowlevellock.S:97
#1  0×0000000000418836 in _L_lock_9558 ()
#2  0×0000000000416c1c in free ()
#3  0×0000000000400586 in proc ()

#4  0×00000000004005c7 in bar_one ()
#5  0×00000000004005d7 in foo_one ()
#6  0×00000000004005ef in thread_one ()
#7  0×00000000004016c0 in start_thread (arg=<optimized out>)
at pthread_create.c:304
#8  0×0000000000432589 in clone ()
#9  0×0000000000000000 in ?? ()

Thread 3 (Thread 0x1ab1860 (LWP 16998)):
#0  0x000000000042fed1 in nanosleep ()
#1  0x000000000042fda0 in sleep ()
#2  0x000000000040078a in main ()

Thread 2 (Thread 0x7f2663b74700 (LWP 17003)):
#0  __lll_lock_wait_private ()
at ../nptl/sysdeps/unix/sysv/linux/x86_64/lowlevellock.S:97
#1  0x0000000000418836 in _L_lock_9558 ()
#2  0x0000000000416c1c in free ()
#3  0x0000000000400586 in proc ()
#4  0x00000000004006bb in bar_five ()
#5  0x00000000004006cb in foo_five ()
#6  0x00000000004006e3 in thread_five ()
#7  0x00000000004016c0 in start_thread (arg=<optimized out>)
at pthread_create.c:304
#8  0x0000000000432589 in clone ()
#9  0x0000000000000000 in ?? ()

Thread 1 (Thread 0x7f2664375700 (LWP 17002)):
#0  0x000000000043ef65 in raise ()
#1  0x0000000000409fc0 in abort ()
#2  0x000000000040bf5b in __libc_message ()
#3  0x0000000000412042 in malloc_printerr ()
#4  0x0000000000416c27 in free ()
#5  0x0000000000400586 in proc ()
#6  0x000000000040067e in bar_four ()
#7  0x000000000040068e in foo_four ()
#8  0x00000000004006a6 in thread_four ()
#9  0x00000000004016c0 in start_thread (arg=<optimized out>)
at pthread_create.c:304
#10 0x0000000000432589 in clone ()
#11 0x0000000000000000 in ?? ()

From threads #4 and #5 we can identify one such a region with a shared buffer 0×6b8fc0 which may further point to heap entries.

(gdb) disassemble proc
Dump of assembler code for function proc:
0x00000000004004f0 <+0>: push   %rbp
0x00000000004004f1 <+1>: mov    %rsp,%rbp
0x00000000004004f4 <+4>: push   %rbx
0x00000000004004f5 <+5>: sub    $0x18,%rsp
0x00000000004004f9 <+9>: callq  0x40ac70 <rand>
0x00000000004004fe <+14>: mov    %eax,%ecx
0x0000000000400500 <+16>: mov    $0x68db8bad,%edx
0x0000000000400505 <+21>: mov    %ecx,%eax
0x0000000000400507 <+23>: imul   %edx
0x0000000000400509 <+25>: sar    $0xc,%edx
0x000000000040050c <+28>: mov    %ecx,%eax
0x000000000040050e <+30>: sar    $0x1f,%eax
0x0000000000400511 <+33>: mov    %edx,%ebx
0x0000000000400513 <+35>: sub    %eax,%ebx
0x0000000000400515 <+37>: mov    %ebx,%eax
0x0000000000400517 <+39>: mov    %eax,-0x14(%rbp)
0x000000000040051a <+42>: mov    -0x14(%rbp),%eax
0x000000000040051d <+45>: imul   $0x2710,%eax,%eax
0x0000000000400523 <+51>: mov    %ecx,%edx
0x0000000000400525 <+53>: sub    %eax,%edx
0x0000000000400527 <+55>: mov    %edx,%eax
0x0000000000400529 <+57>: mov    %eax,-0x14(%rbp)
0x000000000040052c <+60>: callq  0x40ac70 <rand>
0x0000000000400531 <+65>: mov    %eax,%ecx
0x0000000000400533 <+67>: mov    $0x68db8bad,%edx
0x0000000000400538 <+72>: mov    %ecx,%eax
0x000000000040053a <+74>: imul   %edx
0x000000000040053c <+76>: sar    $0xc,%edx
0x000000000040053f <+79>: mov    %ecx,%eax
0x0000000000400541 <+81>: sar    $0x1f,%eax
0x0000000000400544 <+84>: mov    %edx,%ebx
0x0000000000400546 <+86>: sub    %eax,%ebx
0x0000000000400548 <+88>: mov    %ebx,%eax
0x000000000040054a <+90>: mov    %eax,-0x18(%rbp)
0x000000000040054d <+93>: mov    -0x18(%rbp),%eax
0x0000000000400550 <+96>: imul   $0x2710,%eax,%eax
0x0000000000400556 <+102>: mov    %ecx,%edx
0x0000000000400558 <+104>: sub    %eax,%edx
0x000000000040055a <+106>: mov    %edx,%eax
0x000000000040055c <+108>: mov    %eax,-0x18(%rbp)
0x000000000040055f <+111>: mov    -0x14(%rbp),%eax
0x0000000000400562 <+114>: cltq
0x0000000000400564 <+116>: mov    0x6b8fc0(,%rax,8),%rax
0x000000000040056c <+124>: test   %rax,%rax
0x000000000040056f <+127>: je     0x400597 <proc+167>
0x0000000000400571 <+129>: mov    -0x14(%rbp),%eax
0x0000000000400574 <+132>: cltq
0x0000000000400576 <+134>: mov    0x6b8fc0(,%rax,8),%rax
0x000000000040057e <+142>: mov    %rax,%rdi
0x0000000000400581 <+145>: callq  0x416bc0 <free>
0×0000000000400586 <+150>: mov    -0×14(%rbp),%eax
0×0000000000400589 <+153>: cltq
0×000000000040058b <+155>: movq   $0×0,0×6b8fc0(,%rax,8)
0×0000000000400597 <+167>: mov    -0×18(%rbp),%eax
0×000000000040059a <+170>: cltq
0×000000000040059c <+172>: mov    %rax,%rdi

0×000000000040059f <+175>: callq  0×416c90 <malloc>
0×00000000004005a4 <+180>: mov    %rax,%rdx
0×00000000004005a7 <+183>: mov    -0×14(%rbp),%eax
0×00000000004005aa <+186>: cltq
0×00000000004005ac <+188>: mov    %rdx,0×6b8fc0(,%rax,8)
0×00000000004005b4 <+196>: jmpq   0×4004f9 <proc+9>
End of assembler dump.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Crash Dump Analysis Patterns (Part 6b, Linux)

Friday, December 18th, 2015

This is a Linux variant of NULL Pointer (data) pattern previously described for Mac OS X and Windows platforms:

(gdb) bt
#0  0×0000000000400500 in procA ()
#1  0×000000000040057a in bar_two ()
#2  0×000000000040058a in foo_two ()
#3  0×00000000004005a2 in thread_two ()
#4  0×0000000000401630 in start_thread (arg=<optimized out>)
at pthread_create.c:304
#5  0×00000000004324e9 in clone ()
#6  0×0000000000000000 in ?? ()

(gdb) x/i 0x400500
=> 0x400500 <procA+16>: movl   $0x1,(%rax)

(gdb) info r $rax
rax            0×0 0

(gdb) x $rax
0×0: Cannot access memory at address 0×0

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Crash Dump Analysis Patterns (Part 25, Linux)

Friday, December 18th, 2015

This is a Linux variant of Stack Trace pattern previously described for Mac OS X and Windows platforms. Here we show a stack trace when debug symbols are not available (stripped executable) and also how to apply debug symbols from the executable where they were preserved:

(gdb) bt
#0 0x000000000043e4f1 in nanosleep ()
#1 0x000000000043e3c0 in sleep ()
#2 0x0000000000400789 in main ()

(gdb) symbol-file ./App/App.debug
Reading symbols from /home/Apps/App/App.debug...done.

(gdb) bt
#0 0x000000000043e4f1 in nanosleep ()
#1 0x000000000043e3c0 in sleep ()
#2 0x0000000000400789 in main (argc=1, argv=0x7fff5d1572d8) at main.cpp:85

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Crash Dump Analysis Patterns (Part 6a, Linux)

Friday, December 18th, 2015

This is a Linux variant of NULL Pointer (code) pattern previously described for Mac OS X and Windows platforms:

(gdb) bt
#0  0×0000000000000000 in ?? ()
#1  0×0000000000400531 in procB ()
#2  0×00000000004005f8 in bar_four ()
#3  0×0000000000400608 in foo_four ()
#4  0×0000000000400620 in thread_four ()
#5  0×0000000000401630 in start_thread (arg=<optimized out>)
at pthread_create.c:304
#6  0×00000000004324e9 in clone ()
#7  0×0000000000000000 in ?? ()

(gdb) disassemble procB
Dump of assembler code for function procB:
0x0000000000400516 <+0>: push   %rbp
0x0000000000400517 <+1>: mov    %rsp,%rbp
0x000000000040051a <+4>: sub    $0x10,%rsp
0x000000000040051e <+8>: movq   $0x0,-0x8(%rbp)
0x0000000000400526 <+16>: mov    -0x8(%rbp),%rdx
0x000000000040052a <+20>: mov    $0x0,%eax
0x000000000040052f <+25>: callq  *%rdx
0×0000000000400531 <+27>: leaveq
0×0000000000400532 <+28>: retq
End of assembler dump.

(gdb) info r rdx
rdx            0×0 0

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Crash Dump Analysis Patterns (Part 78a, Linux)

Tuesday, December 15th, 2015

This is a Linux variant of Divide by Zero (user mode) pattern previously described for Mac OS X and Windows platforms:

GNU gdb (GDB)
[...]
Program terminated with signal 8, Arithmetic exception.
#0 0×000000000040056f in procD ()

(gdb) x/i $rip
=> 0x40056f <procD+18>: idivl -0×8(%rbp)

(gdb) info r $rax
rax 0x1 1

(gdb) x/w $rbp-0x8
0x7f0f6806bd28: 0×00000000

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Crash Dump Analysis Patterns (Part 4, Linux)

Tuesday, December 15th, 2015

This is a Linux variant of Lateral Damage pattern previously described for Windows platforms. It also covers memory dumps where some usual commands may not work and we have to find a workaround to simulate their output, for example, by using other commands:

(gdb) info threads
Cannot find new threads: generic error

(gdb) thread apply all bt
Cannot find new threads: generic error

(gdb) thread 2
[Switching to thread 2 (LWP 12567)]
#0 0x000000000042ff51 in nanosleep ()

(gdb) thread 3
[Switching to thread 3 (LWP 12566)]
#0 0x000000000041482e in _int_malloc ()

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Crash Dump Analysis Patterns (Part 187, Linux)

Monday, December 14th, 2015

Here we publish a Linux variant of Active Thread pattern that was previously introduced for Mac OS X and Windows. Basically it is a thread that is not waiting, sleeping, or suspended (most threads are). However, from a memory dump it is not possible to find out whether it was Spiking Thread at the dump generation time (unless we have a set of memory snapshots and in each one we have the same or similar back trace) and we don’t have any Paratext with CPU consumption stats for threads. For example, in one core dump we have this thread:

(gdb) info threads
Id Target Id Frame
6 Thread 0×7f560d467700 (LWP 3483) 0×00000000004324a9 in clone ()
5 Thread 0×7f560c465700 (LWP 3485) 0×000000000042fe31 in nanosleep ()
4 Thread 0×7f560bc64700 (LWP 3486) 0×000000000042fe31 in nanosleep ()
3 Thread 0×7f560b463700 (LWP 3487) 0×000000000042fe31 in nanosleep ()
2 Thread 0×18b9860 (LWP 3482) 0×000000000042fe31 in nanosleep ()
1 Thread 0×7f560cc66700 (LWP 3484) 0×000000000042fe31 in nanosleep ()

Thread #6 is not waiting so we inspect its back trace:

(gdb) thread 6
[Switching to thread 6 (Thread 0x7f560d467700 (LWP 3483))]
#0 0x00000000004324a9 in clone ()

(gdb) bt
#0 0×00000000004324a9 in clone ()
#1 0×0000000000401560 in ?? () at pthread_create.c:217
#2 0×00007f560d467700 in ?? ()
#3 0×0000000000000000 in ?? ()

(gdb) x/i 0x4324a9
=> 0x4324a9 : test %rax,%rax

Perhaps the core dump was saved at the thread creation time.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Crash Dump Analysis Patterns (Part 14, Linux)

Monday, December 14th, 2015

This is a variant of Spiking Thread pattern previously described for Mac OS X and Windows platforms:

(gdb) info threads
Id Target Id Frame
6 LWP 3712 0x00000000004329d1 in nanosleep ()
5 LWP 3717 0×00000000004007a3 in isnan ()
4 LWP 3716 0×00000000004329d1 in nanosleep ()
3 LWP 3715 0×00000000004329d1 in nanosleep ()
2 LWP 3714 0×00000000004329d1 in nanosleep ()
* 1 LWP 3713 0×00000000004329d1 in nanosleep ()

We notice a non-waiting thread and switch to it:

(gdb) thread 5
[Switching to thread 5 (LWP 3717)]
#0 0x00000000004007a3 in isnan ()

(gdb) bt
#0 0×00000000004007a3 in isnan ()
#1 0×0000000000400743 in sqrt ()
#2 0×0000000000400528 in procB ()
#3 0×0000000000400639 in bar_five ()
#4 0×0000000000400649 in foo_five ()
#5 0×0000000000400661 in thread_five ()
#6 0×0000000000403e30 in start_thread ()
#7 0×0000000000435089 in clone ()
#8 0×0000000000000000 in ?? ()

If we disassemble the return address for procB function to come back from sqrt call we see an infinite loop:

(gdb) disassemble 0x400528
Dump of assembler code for function procB:
0x0000000000400500 <+0>: push   %rbp
0x0000000000400501 <+1>: mov    %rsp,%rbp
0x0000000000400504 <+4>: sub    $0x20,%rsp
0x0000000000400508 <+8>: movabs $0x3fd5555555555555,%rax
0x0000000000400512 <+18>: mov    %rax,-0x8(%rbp)
0×0000000000400516 <+22>: mov    -0×8(%rbp),%rax
0×000000000040051a <+26>: mov    %rax,-0×18(%rbp)
0×000000000040051e <+30>: movsd  -0×18(%rbp),%xmm0
0×0000000000400523 <+35>: callq  0×400710 <sqrt>
0×0000000000400528 <+40>: movsd  %xmm0,-0×18(%rbp)
0×000000000040052d <+45>: mov    -0×18(%rbp),%rax
0×0000000000400531 <+49>: mov    %rax,-0×8(%rbp)
0×0000000000400535 <+53>: jmp    0×400516 <procB+22>
End of assembler dump.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Crash Dump Analysis Patterns (Part 77, Linux)

Monday, December 14th, 2015

This is a Linux variant of C++ Exception pattern previously described for Mac OS X and Windows platforms:

(gdb) bt
#0 0x00007f0a1d0e5165 in *__GI_raise ()
at ../nptl/sysdeps/unix/sysv/linux/raise.c:64
#1 0x00007f0a1d0e83e0 in *__GI_abort () at abort.c:92
#2 0x00007f0a1db5789d in __gnu_cxx::__verbose_terminate_handler() ()
from /usr/lib/x86_64-linux-gnu/libstdc++.so.6
#3 0x00007f0a1db55996 in ?? () from /usr/lib/x86_64-linux-gnu/libstdc++.so.6
#4 0x00007f0a1db559c3 in std::terminate() ()
from /usr/lib/x86_64-linux-gnu/libstdc++.so.6
#5 0x00007f0a1db55bee in __cxa_throw ()
from /usr/lib/x86_64-linux-gnu/libstdc++.so.6
#6 0x0000000000400dcf in procB() ()
#7 0x0000000000400e26 in procA() ()
#8 0x0000000000400e88 in procNH() ()
#9 0x0000000000400ea8 in bar_one() ()
#10 0x0000000000400eb3 in foo_one() ()
#11 0x0000000000400ec6 in thread_one(void*) ()
#12 0x00007f0a1d444b50 in start_thread ()
#13 0x00007f0a1d18e95d in clone ()
at ../sysdeps/unix/sysv/linux/x86_64/clone.S:112
#14 0x0000000000000000 in ?? ()

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Crash Dump Analysis Patterns (Part 180, Linux)

Monday, December 14th, 2015

This is Linux variant of Paratext pattern for Mac OS X. Because of debugger tool limitations additional software logs and the output of other tools may help in memory dump analysis. Typical examples of such pattern usage can be the list of modules with version and path info, application crash specific information from instrumentation tools such as valgrind, memory region names with attribution and boundaries, and CPU usage information. For example, top and pmap commands output:

14039: ./App1.shared
0000000000400000 4K r-x-- /home/training/ALCDA/App1/App1.shared
0000000000600000 4K rw--- /home/training/ALCDA/App1/App1.shared
0000000000611000 132K rw--- [ anon ]
00007fe8999a6000 4K ----- [ anon ]
00007fe8999a7000 8192K rw--- [ anon ]
00007fe89a1a7000 4K ----- [ anon ]
00007fe89a1a8000 8192K rw--- [ anon ]
00007fe89a9a8000 4K ----- [ anon ]
00007fe89a9a9000 8192K rw--- [ anon ]
00007fe89b1a9000 4K ----- [ anon ]
00007fe89b1aa000 8192K rw--- [ anon ]
00007fe89b9aa000 4K ----- [ anon ]
00007fe89b9ab000 8192K rw--- [ anon ]
00007fe89c1ab000 1540K r-x-- /lib/x86_64-linux-gnu/libc-2.13.so
00007fe89c32c000 2048K ----- /lib/x86_64-linux-gnu/libc-2.13.so
00007fe89c52c000 16K r---- /lib/x86_64-linux-gnu/libc-2.13.so
00007fe89c530000 4K rw--- /lib/x86_64-linux-gnu/libc-2.13.so
00007fe89c531000 20K rw--- [ anon ]
00007fe89c536000 92K r-x-- /lib/x86_64-linux-gnu/libpthread-2.13.so
00007fe89c54d000 2044K ----- /lib/x86_64-linux-gnu/libpthread-2.13.so
00007fe89c74c000 4K r---- /lib/x86_64-linux-gnu/libpthread-2.13.so
00007fe89c74d000 4K rw--- /lib/x86_64-linux-gnu/libpthread-2.13.so
00007fe89c74e000 16K rw--- [ anon ]
00007fe89c752000 128K r-x-- /lib/x86_64-linux-gnu/ld-2.13.so
00007fe89c966000 12K rw--- [ anon ]
00007fe89c96f000 8K rw--- [ anon ]
00007fe89c971000 4K r---- /lib/x86_64-linux-gnu/ld-2.13.so
00007fe89c972000 4K rw--- /lib/x86_64-linux-gnu/ld-2.13.so
00007fe89c973000 4K rw--- [ anon ]
00007ffd458c1000 132K rw--- [ stack ]
00007ffd459e9000 4K r-x-- [ anon ]
ffffffffff600000 4K r-x-- [ anon ]
total 47208K

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Software Diagnostics Services

Friday, July 13th, 2012

For some time I was struggling with finding a good name for memory dump and software trace analysis activities. The name Memoretics I use for the science of memory dump analysis (that also incorporates software traces) seems not so good to describe the whole practical activity that should be transparent to everyone in IT. Fortunately, I timely understood that all these activities constitute the essence of software diagnostics that previously lacked any solid foundation. Thus, Software Diagnostics Institute was reborn from the previous Crash Dump Analysis Portal. This institute does pure and applied research and scientific activities and in recent years was funded mainly from OpenTask publisher and recently from Memory Dump Analysis Services. The latter company also recognized that the broadening of its commercial activities requires a new name. So, Software Diagnostics Services was reborn:

The First Comprehensive Software Diagnostics Service

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

GDB for WinDbg Users (Part 8)

Monday, April 30th, 2012

As we started providing memory dump analysis pattern examples for Mac OS X we resume our table of command correspondence between WinDbg and GDB providing some corrections on the way. For example, in the previous version of table we omitted a correspondence to ub WinDbg command. Now we provide such an equivalent:

(gdb) bt
[...]
#1 0×000000010e8cce73 in bar (ps=0×7fff6e4cbac0)
[…]

(gdb) disas 0×000000010e8cce73-10 0×000000010e8cce73
Dump of assembler code from 0×10e8cce69 to 0×10e8cce73:
0×000000010e8cce69 : mov %edi,-0×8(%rbp)
0×000000010e8cce6c : mov -0×8(%rbp),%rdi
0×000000010e8cce70 : callq *0×8(%rdi)
End of assembler dump.

Please note that the beginning of assembly will be dependent on how good we guessed the offset:

(gdb) disas 0x000000010e8cce73-0×10 0×000000010e8cce73
Dump of assembler code from 0×10e8cce63 to 0×10e8cce73:
0×000000010e8cce63 : in $0×48,%eax
0×000000010e8cce65 : sub $0×10,%esp
0×000000010e8cce68 : mov %rdi,-0×8(%rbp)
0×000000010e8cce6c : mov -0×8(%rbp),%rdi
0×000000010e8cce70 : callq *0×8(%rdi)
End of assembler dump.

(gdb) disas 0x000000010e8cce73-0×13 0×000000010e8cce73
Dump of assembler code from 0×10e8cce60 to 0×10e8cce73:
0×000000010e8cce60 : push %rbp
0×000000010e8cce61 : mov %rsp,%rbp
0×000000010e8cce64 : sub $0×10,%rsp

0×000000010e8cce68 : mov %rdi,-0×8(%rbp)
0×000000010e8cce6c : mov -0×8(%rbp),%rdi
0×000000010e8cce70 : callq *0×8(%rdi)
End of assembler dump.

However, we can ignore that because our goal is to check whether a CPU instruction before a return address is a call.

Additional commands we add are x/<N>bc for db (WinDbg), thread <N> for ~<N>s (WinDbg, process dumps), maintenance info sections for for !address (WinDbg), add-symbol-file for .reload (WinDbg), info r for r (WinDbg).

Action                      | GDB                 | WinDbg
----------------------------------------------------------------
Start the process           | run                 | g
Exit                        | (q)uit              | q
Disassemble (forward)       | (disas)semble       | uf, u
Disassemble N instructions  | x/<N>i              | -
Disassemble (backward)      | disas <a-o> <a>     | ub
Stack trace                 | backtrace (bt)      | k
Full stack trace            | bt full             | kv
Stack trace with parameters | bt full             | kP
Partial trace (innermost)   | bt <N>              | k <N>
Partial trace (outermost)   | bt -<N>             | -
Stack trace for all threads | thread apply all bt | ~*k
Breakpoint                  | break               | bp
Frame numbers               | any bt command      | kn
Select frame                | frame               | .frame
Display parameters          | info args           | dv /t /i /V
Display locals              | info locals         | dv /t /i /V
Dump byte char array        | x/<N>bc             | db
Switch to thread            | thread <N>          | ~<N>s
Sections/regions            | maint info sections | !address
Load symbol file            | add-symbol-file     | .reload
CPU registers               | i(nfo) r            | r

Now an advertisement command:

(gdb) info training
(gdb) Accelerated Mac OS X Core Dump Analysis training

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Software Behavior Pattern Prediction

Saturday, April 28th, 2012

Sometimes I hear voices saying that Linux, FreeBSD, and Mac OS X core dumps are uninteresting. This is not true. If you haven’t seen anything interesting there it just simply means you have only encountered a limited amount of abnormal software behaviour. The widespread usage of Windows OS means that most patterns have been diagnosed and described first and other OS are waiting their turn.

My goal is to have a pattern catalog with examples from different OS. For example, currently, all Mac OS X patterns I provide are just examples to existing Windows pattern names. All OS share the same structure and behavior, for example, structural memory analysis patterns and the same computational model. Although structural patterns are different from behavioral patterns I also plan to expand the structural list significantly especially in relation to forthcoming Windows malware analysis training. Regarding behavioral patterns it is possible to model and predict specific pattern examples for another OS by using already existing catalog.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Professional Software Debugging Services

Tuesday, January 31st, 2012

Memory Dump Analysis Services starts providing debugging training and assistance in addition to (based on) memory dump and software trace analysis. It has recently registered www.debugging.pro domain and is working on extending its courses to cover live debugging and additional OS platforms this year.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -
