Crash Dump Analysis Patterns (Part 180, Linux)

Monday, December 14th, 2015

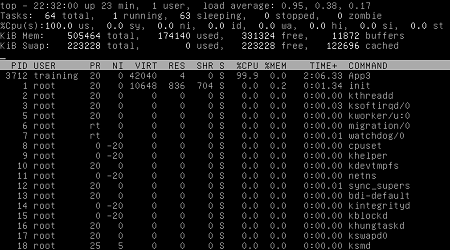

This is Linux variant of Paratext pattern for Mac OS X. Because of debugger tool limitations additional software logs and the output of other tools may help in memory dump analysis. Typical examples of such pattern usage can be the list of modules with version and path info, application crash specific information from instrumentation tools such as valgrind, memory region names with attribution and boundaries, and CPU usage information. For example, top and pmap commands output:

14039: ./App1.shared
0000000000400000 4K r-x-- /home/training/ALCDA/App1/App1.shared
0000000000600000 4K rw--- /home/training/ALCDA/App1/App1.shared
0000000000611000 132K rw--- [ anon ]
00007fe8999a6000 4K ----- [ anon ]
00007fe8999a7000 8192K rw--- [ anon ]
00007fe89a1a7000 4K ----- [ anon ]
00007fe89a1a8000 8192K rw--- [ anon ]
00007fe89a9a8000 4K ----- [ anon ]
00007fe89a9a9000 8192K rw--- [ anon ]
00007fe89b1a9000 4K ----- [ anon ]
00007fe89b1aa000 8192K rw--- [ anon ]
00007fe89b9aa000 4K ----- [ anon ]
00007fe89b9ab000 8192K rw--- [ anon ]
00007fe89c1ab000 1540K r-x-- /lib/x86_64-linux-gnu/libc-2.13.so
00007fe89c32c000 2048K ----- /lib/x86_64-linux-gnu/libc-2.13.so
00007fe89c52c000 16K r---- /lib/x86_64-linux-gnu/libc-2.13.so
00007fe89c530000 4K rw--- /lib/x86_64-linux-gnu/libc-2.13.so
00007fe89c531000 20K rw--- [ anon ]
00007fe89c536000 92K r-x-- /lib/x86_64-linux-gnu/libpthread-2.13.so
00007fe89c54d000 2044K ----- /lib/x86_64-linux-gnu/libpthread-2.13.so
00007fe89c74c000 4K r---- /lib/x86_64-linux-gnu/libpthread-2.13.so
00007fe89c74d000 4K rw--- /lib/x86_64-linux-gnu/libpthread-2.13.so
00007fe89c74e000 16K rw--- [ anon ]
00007fe89c752000 128K r-x-- /lib/x86_64-linux-gnu/ld-2.13.so
00007fe89c966000 12K rw--- [ anon ]
00007fe89c96f000 8K rw--- [ anon ]
00007fe89c971000 4K r---- /lib/x86_64-linux-gnu/ld-2.13.so
00007fe89c972000 4K rw--- /lib/x86_64-linux-gnu/ld-2.13.so
00007fe89c973000 4K rw--- [ anon ]
00007ffd458c1000 132K rw--- [ stack ]
00007ffd459e9000 4K r-x-- [ anon ]
ffffffffff600000 4K r-x-- [ anon ]
total 47208K

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Memory Dump Analysis Best Practices (Part 3)

Wednesday, May 8th, 2013

Another best practice that is directly related to productivity is a parallel processing of the same memory dump especially in the case of complete memory dumps. Here an analysis might start with running time consuming scripts that dump all process and threads in the variety of formats such as x64 and x86 thread stack traces. However, if the nature of the problem is such that it is possible to start with some pattern and continue unfolding its analysis then we can do that in parallel. One of examples may be a discovered Incomplete Session with an ALPC Wait Chain. Here we can follow such a wait chain while another WinDbg instance dumps all threads for further pattern search later.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org

Memory Dump Analysis Best Practices (Part 2)

Tuesday, May 7th, 2013

We continue with best practices, the previous was SCP. The second best practice is to check the system for additional patterns after the main pattern was found (similar to avoiding Common Mistake 8). For example, in the case of a bug check resulted from NULL pointer dereference or any other exception in some 3rd-party driver code don’t stop but look at all CPUs, processes and threads to find any other patterns such as Spiking Threads, Busy System, and Contention. Inspection of associated thread stack traces might reveal the same module and/or give additional clues to system behaviour prior to the fault.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Webinar: Introduction to Philosophy of Software Diagnostics

Sunday, September 23rd, 2012

Learn from this Webinar about phenomenological, hermeneutical and analytical approaches to software diagnostics and its knowledge, foundations, norms, theories, logic, methodology, language, ontology, nature and truth. This seminar is hosted by Software Diagnostics Services.

 Introduction to Philosophy of Software Diagnostics Logo

Title: Introduction to Philosophy of Software Diagnostics
Date: 17th of December, 2012
Time: 19:00 GMT
Duration: 60 minutes

Space is limited.
Reserve your Webinar seat now at:
https://www3.gotomeeting.com/register/872846486

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Crash Dump Analysis Patterns (Part 180, Mac OS X)

Saturday, July 28th, 2012

This is the first pattern that emerged after applying the same pattern-driven software diagnostics methodology to Mac OS X. I had problems using GDB which is so portable that hardly has operating system support like WinDbg has. Fortunately, I found a workaround by complementing core dumps with logs and reports from OS such as crash reports and vmmap data. I call this pattern Paratext which I borrowed from the concept of an extended software trace and software narratology where it borrowed the same concept from literary interpretation (paratext). Typical examples of such pattern usage can be the list of modules with version and path info, application crash specific information, memory region names with attribution and boundaries:

// from .crash reports

0x108f99000 - 0x109044ff7 com.apple.FontBook (198.4 - 198) <7244D36E-4563-3E42-BA46-1F279D30A6CE> /Applications/Font Book.app/Contents/MacOS/Font Book

Exception Type: EXC_BAD_INSTRUCTION (SIGILL)
Exception Codes: 0x0000000000000001, 0x0000000000000000

Application Specific Information:
objc[195]: garbage collection is OFF
*** error for object 0x7fd7fb818e08: incorrect checksum for freed object - object was probably modified after being freed.

// from vmmap logs

[...]
==== Writable regions for process 966
[...]
Stack 0000000101f71000-0000000101ff3000 [ 520K] rw-/rwx SM=PRV thread 1
MALLOC_LARGE 0000000103998000-00000001039b8000 [ 128K] rw-/rwx SM=PRV DefaultMallocZone_0x101e6e000
MALLOC_SMALL (freed) 00000001039b9000-00000001039bb000 [ 8K] rw-/rwx SM=PRV
mapped file 0000000103a05000-0000000103f32000 [ 5300K] rw-/rwx SM=COW ...box.framework/Versions/A/Resources/Extras2.rsrc
mapped file 0000000104409000-00000001046d2000 [ 2852K] rw-/rwx SM=COW /System/Library/Fonts/Helvetica.dfont
MALLOC_LARGE 0000000104f6e000-0000000104f8e000 [ 128K] rw-/rwx SM=PRV DefaultMallocZone_0x101e6e000
MALLOC_LARGE (freed) 0000000108413000-0000000108540000 [ 1204K] rw-/rwx SM=COW
MALLOC_LARGE (freed) 0000000108540000-0000000108541000 [ 4K] rw-/rwx SM=PRV
MALLOC_TINY 00007fefe0c00000-00007fefe0d00000 [ 1024K] rw-/rwx SM=COW DefaultMallocZone_0x101e6e000
MALLOC_TINY 00007fefe0d00000-00007fefe0e00000 [ 1024K] rw-/rwx SM=PRV DispatchContinuations_0x101f38000
MALLOC_TINY 00007fefe0e00000-00007fefe0f00000 [ 1024K] rw-/rwx SM=COW DefaultMallocZone_0x101e6e000
MALLOC_SMALL 00007fefe1000000-00007fefe107b000 [ 492K] rw-/rwx SM=ZER DefaultMallocZone_0x101e6e000
MALLOC_SMALL 00007fefe107b000-00007fefe1083000 [ 32K] rw-/rwx SM=PRV DefaultMallocZone_0x101e6e000
MALLOC_SMALL 00007fefe1083000-00007fefe1149000 [ 792K] rw-/rwx SM=ZER DefaultMallocZone_0x101e6e000
MALLOC_SMALL (freed) 00007fefe1149000-00007fefe1166000 [ 116K] rw-/rwx SM=PRV DefaultMallocZone_0x101e6e000
MALLOC_SMALL (freed) 00007fefe1166000-00007fefe1800000 [ 6760K] rw-/rwx SM=ZER DefaultMallocZone_0x101e6e000
MALLOC_SMALL 00007fefe1800000-00007fefe18ff000 [ 1020K] rw-/rwx SM=ZER DefaultMallocZone_0x101e6e000
MALLOC_SMALL (freed) 00007fefe18ff000-00007fefe1901000 [ 8K] rw-/rwx SM=PRV DefaultMallocZone_0x101e6e000
MALLOC_SMALL 00007fefe1901000-00007fefe2000000 [ 7164K] rw-/rwx SM=ZER DefaultMallocZone_0x101e6e000
MALLOC_TINY (freed) 00007fefe2000000-00007fefe2100000 [ 1024K] rw-/rwx SM=PRV DispatchContinuations_0x101f38000
MALLOC_TINY 00007fefe2100000-00007fefe2200000 [ 1024K] rw-/rwx SM=PRV DefaultMallocZone_0x101e6e000
Stack 00007fff61186000-00007fff61985000 [ 8188K] rw-/rwx SM=ZER thread 0
Stack 00007fff61985000-00007fff61986000 [ 4K] rw-/rwx SM=COW
[...]

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Forthcoming Training: Accelerated Mac OS X Core Dump Analysis

Software Diagnostics Services

Friday, July 13th, 2012

For some time I was struggling with finding a good name for memory dump and software trace analysis activities. The name Memoretics I use for the science of memory dump analysis (that also incorporates software traces) seems not so good to describe the whole practical activity that should be transparent to everyone in IT. Fortunately, I timely understood that all these activities constitute the essence of software diagnostics that previously lacked any solid foundation. Thus, Software Diagnostics Institute was reborn from the previous Crash Dump Analysis Portal. This institute does pure and applied research and scientific activities and in recent years was funded mainly from OpenTask publisher and recently from Memory Dump Analysis Services. The latter company also recognized that the broadening of its commercial activities requires a new name. So, Software Diagnostics Services was reborn:

The First Comprehensive Software Diagnostics Service

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Forthcoming 2nd edition of Memory Dump Analysis Anthology, Volume 1

Sunday, April 15th, 2012

After 4 years in print this bestselling title needs an update to address minor changes, include extra examples and reference additional research published in Volumes 2, 3, 4, 5 and 6.

  • Title: Memory Dump Analysis Anthology, Volume 1
  • Author: Dmitry Vostokov
  • Publisher: OpenTask (Summer 2012)
  • Language: English
  • Product Dimensions: 22.86 x 15.24
  • Paperback: 800 pages
  • ISBN-13: 978-1-908043-35-1
  • Hardcover: 800 pages
  • ISBN-13: 978-1-908043-36-8

The cover for both paperback and hardcover titles will also have a matte finish. We used A Memory Window artwork for the back cover.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Forthcoming Transcript of Introduction to Software Narratology Webinar

Sunday, April 15th, 2012

In a week this short full color book should appear in online bookstores:

  • Title: Software Narratology: An Introduction to the Applied Science of Software Stories
  • Authors: Dmitry Vostokov, Memory Dump Analysis Services
  • Description: This is a transcript of Memory Dump Analysis Services Webinar about Software Narratology: an exciting new discipline and a field of research founded by DumpAnalysis.org. When software executes it gives us its stories in the form of UI events, software traces and logs. Such stories can be analyzed for their structure and patterns for troubleshooting, debugging and problem resolution purposes. Topics also include software narremes and their types, anticipatory software construction and software diagnostics.
  • Publisher: OpenTask (April 2012)
  • Language: English
  • Product Dimensions: 28.0 x 21.6
  • Paperback: 26 pages
  • ISBN-13: 978-1908043078

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Forthcoming Introduction to Pattern-Driven Software Diagnostics

Monday, April 9th, 2012

Memory Dump Analysis Services organizes a free Webinar on Unified Software Diagnostics (USD) and the new scalable cost-effective software support model called Pattern-Driven Software Support devised to address various shortcomings in existing tiered software support organizations. Examples cover Windows, Mac OS  and Linux.

 Introduction to Pattern-Driven Software Diagnostics Logo

Date: 22nd of June, 2012
Time: 17:00 (BST) 12:00 (EST) 09:00 (PST)
Duration: 60 minutes

Space is limited.
Reserve your Webinar seat now at:
https://www3.gotomeeting.com/register/172771078

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

The Design of Memory Dump Analysis: 7 Steps of Highly Successful Analysts

Monday, February 20th, 2012

I was recently asked by a group of trainees to outline a simple approach to proceed after opening a memory dump. So I came up with these 7 steps:

1. !analyze -v [-hang]
2. Exception (Bugcheck): stack trace analysis with d* and lmv
3. !locks
4. !runaway f (!running)
5. Dump all (processes and) thread stack traces [with 32-bit] ~*kv (!process 0 ff)
6. Search for signs/patterns of abnormal behavior (exceptions, wait chains, message boxes [, from your custom checklist])
7. Narrow analysis down to a specific thread and dump raw stack data if needed [repeat*]

(commands/options in brackets denote kernel/complete dump variation)
[notes in square brackets denote additional options, such as x64 specifics, your product details, etc.]

What are your steps? I would be interested to hear about alternative analysis steps, techniques, etc.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Professional Software Debugging Services

Tuesday, January 31st, 2012

Memory Dump Analysis Services starts providing debugging training and assistance in addition to (based on) memory dump and software trace analysis. It has recently registered www.debugging.pro domain and is working on extending its courses to cover live debugging and additional OS platforms this year.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

My Vision of TaaS

Monday, December 5th, 2011

On the portal I published my vision of software tools as a service in the context of post-construction software problem solving. The main part is software problem description language (SPDL) which was previously introduced as Riemann programming language. I have decided to keep the name.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Forthcoming Volume 6 of Memory Dump Analysis Anthology

Thursday, November 3rd, 2011

The new 6th volume contains revised, edited, cross-referenced, and thematically organized selected DumpAnalysis.org blog posts about memory dump and software trace analysis, software troubleshooting and debugging written in November 2010 - October 2011 for software engineers developing and maintaining products on Windows platforms, quality assurance engineers testing software on Windows platforms, technical support and escalation engineers dealing with complex software issues, and security researchers, malware analysts and reverse engineers. The sixth volume features:

  • 56 new crash dump analysis patterns including 14 new .NET memory dump analysis patterns
  • 4 new pattern interaction case studies
  • 11 new trace analysis patterns
  • New Debugware pattern
  • Introduction to UI problem analysis patterns
  • Introduction to intelligence analysis patterns
  • Introduction to unified debugging pattern language
  • Introduction to generative debugging, metadefect template library and DNA of software behaviour
  • The new school of debugging and trends
  • .NET memory dump analysis checklist
  • Software trace analysis checklist
  • Introduction to close and deconstructive readings of a software trace
  • Memory dump analysis compass
  • Computical and Stack Trace Art
  • The abductive reasoning of Philip Marlowe
  • Orbifold memory space and cloud computing
  • Memory worldview
  • Interpretation of cyberspace
  • Relationship of memory dumps to religion
  • Fully cross-referenced with Volume 1, Volume 2, Volume 3, Volume 4, and Volume 5

Product information:

  • Title: Memory Dump Analysis Anthology, Volume 6
  • Author: Dmitry Vostokov
  • Language: English
  • Product Dimensions: 22.86 x 15.24
  • Paperback: 300 pages
  • Publisher: Opentask (December 2011)
  • ISBN-13: 978-1-908043-19-1
  • Hardcover: 300 pages
  • Publisher: Opentask (January 2012)
  • ISBN-13: 978-1-908043-20-7

Back cover features 3d memory space visualization image created with ParaView.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Crossdisciplinary Memoretics as Interdisciplinary Science

Wednesday, September 21st, 2011

Memoretics as a science of memory snapshots borrows many ideas from the following disciplines (the list is not exhaustive):

  • Troubleshooting and Debugging
  • Intelligence Analysis
  • Critical Thinking
  • Forensics
  • Linguistics
  • Archaeology
  • Psychoanalysis
  • History
  • Mathematics: Sets and Categories
  • Literary Criticism and Narratology

It also contributes many ideas back. The following diagram depicts such an interaction:

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Pattern-Driven Software Trace Analysis

Sunday, May 15th, 2011

Presentation Software Trace and Memory Dump Analysis: Patterns, Tools, Processes and Best Practices from E2E Virtualization Conference (13th of May, 2011) is available for download:

http://www.dumpanalysis.com/STMDA-materials

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

A.C.P. Root Cause Analysis Methodology

Friday, April 22nd, 2011

Very simple methodology summarized in just 3 words applicable to any problem solving domain and its activities including software troubleshooting and debugging:

Artifacts. Checklists. Patterns.

As an example of checklists and patterns please see these 3 presentations related to memory dump and software trace artifacts:

Introduction to Pattern-Driven Software Problem Solving

Fundamentals of Complete Crash and Hang Memory Dump Analysis

Pattern-Driven Memory Dump Analysis

I’m now working on a detailed presentation of this methodology.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Just In Time Crash Analysis Report (JIT CAR)

Thursday, April 21st, 2011

Imagine a pattern-driven crash analysis report (car) when you need it: at the very moment of a crash, just in time! And the car drives you to a problem resolution. Imagine also a periodic pattern-driven just-in-time memory space analysis (JIT MSA) that provides you instant intelligent reports on what’s going on inside memory while your application, service or system is running! This is a forthcoming optional client side part of CARE (Crash Analysis Report Environment) which is being developed by Memory Dump Analysis Services engineering team under the leadership of Alexey Golikov. Combined with generative debugging techniques both client and server parts form a complete unique enterprise crash and hang analysis solution suitable for development and production environments. Stay tuned for further exciting updates.

PS. The car drives on a road to the first fault software problem solving.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Memory Dump Analysis Anthology, Volume 5 is available for download

Sunday, April 17th, 2011

I’m pleased to announce that MDAA, Volume 5 is available in PDF format:

www.dumpanalysis.org/Memory+Dump+Analysis+Anthology+Volume+5

It features:

- 25 new crash dump analysis patterns
- 11 new pattern interaction case studies (including software tracing)
- 16 new trace analysis patterns
- 7 structural memory patterns
- 4 modeling case studies for memory dump analysis patterns
- Discussion of 3 common analysis mistakes
- Malware analysis case study
- Computer independent architecture of crash analysis report service
- Expanded coverage of software narratology
- Metaphysical and theological implications of memory dump worldview
- More pictures of memory space and physicalist art
- Classification of memory visualization tools
- Memory visualization case studies
- Close reading of the stories of Sherlock Holmes: Dr. Watson’s observational patterns
- Fully cross-referenced with Volume 1, Volume 2, Volume 3, and Volume 4

Its table of contents is available here:

www.dumpanalysis.org/MDAA/MDA-Anthology-V5-TOC.pdf

Paperback and hardcover versions should be available in a week or two. I also started working on Volume 6 that should be available in November-December.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Presentation from Webinar: Introduction to Pattern-Driven Software Problem Solving

Saturday, March 26th, 2011

The presentation materials from the webinar (25th of March, 2011) are available for download:

http://www.dumpanalysis.com/PDSPSI-materials

Thanks to everyone who registered and attended!

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Analysis Compass

Friday, March 18th, 2011

The forthcoming Software Behavior Analysis Patterns and Checklists: Corporate Reference Poster Edition for Windows Crash and Hang Memory Dump and Software Trace Analysis (ISBN: 978-1908043030) will feature Analysis Compass based on the reversal of an extended version of pattern-to-command table published in the printed version of Debugged! MZ/PE March, 2009 issue. Here’s a sneak preview screenshot of this feature:

The notation F”Function” means searching for frames having the given Function name in stack traces from Stack Trace Collection. S”String” means searching for String in the output of WinDbg commands, for example, !process 0 ff.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -
