Trace Analysis Patterns (Part 87)

Sunday, May 25th, 2014

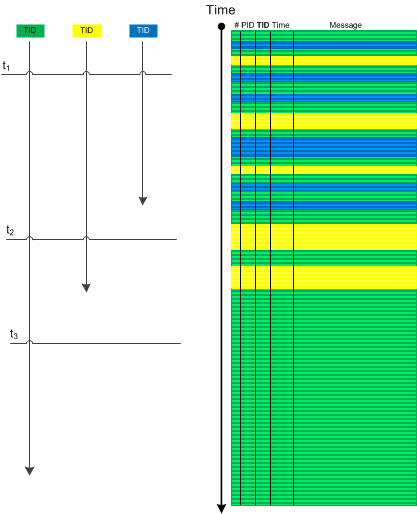

Sometimes we have several Threads of Activity (for example, from the same process) visible for a certain period of time and then suddenly we see only one such thread till the end of a trace (or even none). This may be an indication of an application hang or some other abnormal behaviour if several active threads doing logging are normal. If we consider such activities (including Adjoint Threads) as vectors running through some temporal “surface” we can use an analogy of a divergence and call this analysis pattern Activity Divergence:

- Dmitry Vostokov @ + -

Trace Analysis Patterns (Part 86)

Tuesday, May 20th, 2014

When we see Error Message or Exception Stack Trace in a log file we might want to explore the sequence of messages from the same Thread of Activity that led to the error. Such Message Set has an analogy with memory analysis patterns such as Execution Residue (of partial stack traces without overwrites) and Stack Trace (where the error message is a top stack frame) and we call this pattern Error Thread:

- Dmitry Vostokov @ + -

Trace Analysis Patterns (Part 85)

Monday, May 12th, 2014

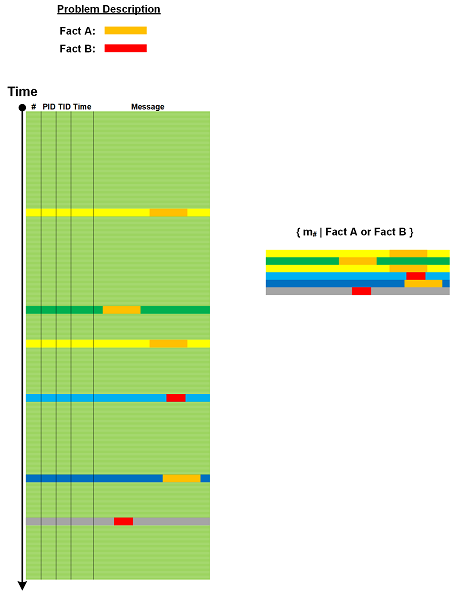

Most of the time, especially for large software logs, we need to select messages based on some criteria be it a set of Error Messages, a set of messages containing Basic Facts, or some other predicate. Then we can use selected messages from that Message Set as Anchor Messages or reverse Pivot Messages as an aid in further analysis.

- Dmitry Vostokov @ + -

Crash Dump Analysis Patterns (Part 206)

Saturday, May 10th, 2014

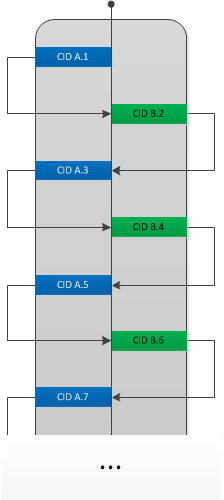

Here we introduce another Wait Chain pattern where a client thread makes a request and a created server thread servicing the request makes another request to the client which creates a new client thread to service the server request. The new client thread makes a request to the server again and a new server thread is created which makes a new client request, and so on. We call such a pattern Screwbolt Wait Chain. The additional signs here may be an abnormal number of threads and possibly Handle Leak pattern although the latter may be present only in a client or server process only. Thread Age, Waiting Thread Time, and common Blocking Module patterns may be used to unwind the chain and diagnose the possible problem module and corresponding Module Product Process. The pattern is illustrated on this diagram:

Although we initially found this pattern related to LPC /ALPC IPC we think it not limited to it and can occur in different client-server communication implementations.

- Dmitry Vostokov @ + -

Trace Analysis Patterns (Part 84)

Wednesday, May 7th, 2014

One of the powerful trace analysis techniques is using Adjoint Threads of Activity to filter various linear message activities (as a generalization of Thread Of Activity). Such filtered activities can then be analysed either separately (Sheaf of Activities) or together such as a new pattern we introduce here: Message Cover. If we identify parallel ATIDs (ATID is Adjoint TID, see an example) and see that one covers the other we can then make a hypothesis that they are correlated. Here is a graphical example of a Periodic Message Block largely composed from various Error Messages that covers periodic Discontinuities from another ATID (we can also consider the latter as periodic message blocks consisted from Silent Messages):

This is analogous to a cover in topology.

- Dmitry Vostokov @ + -

Trace Analysis Patterns (Part 83)

Monday, May 5th, 2014

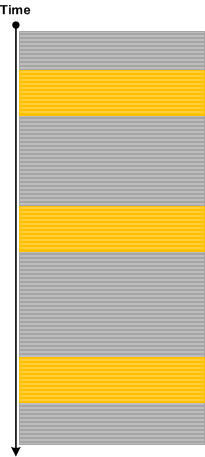

Introduced last year in Debugging TV Frames episode 0×32 about Android / Java debugging State Dump pattern solves the problem of a program state analysis when memory dump generation is not available or doesn’t help or complicated in the case of interpreted code. Basically a developer identifies a set of state variables and periodically prints their values to the output logging stream. Such output may also include but not limited to Counter Values.

- Dmitry Vostokov @ + -

Trace Analysis Patterns (Part 82)

Monday, May 5th, 2014

So far we have been discussing trace analysis patterns related to execution of a particular software version. However, software code changes and also its tracing and logging output: from large scale changes where components are replaced to small scale code refactoring affecting message structure and format. On a software narratological level this corresponds to a narrative about a software trace or log, it evolution. Such Meta Trace analysis pattern is different from Master Trace pattern where the latter is similar to what Metanarrative is usually meant in narratology: a master or grand idea - an expected trace if all functional requirements were correctly identified and implemented during software construction and non-functional ones are met during software execution.

- Dmitry Vostokov @ + -

Trace Analysis Patterns (Part 81)

Friday, May 2nd, 2014

Sometimes we are interested in changes in particular {property, value} pairs or in tuples {x1,x2,x3,…) in general where xi can be a number or a substring. This is more general pattern than Message Change because such tuples can be from different sources and belong to different messages:

This pattern is also different from Data Flow where a value stays constant across different sources and messages. It is also different from Gossip pattern which involves more semantic changes. Metaphorically we can think of Data Association pattern as a partial derivative.
