Using scripts to process hundreds of user dumps

Thursday, December 28th, 2006

Suppose you have 100 - 200 user dumps from various user processes in the system and you want to quickly check their thread stacks, locks, etc. to see something suspicious related to your product or its environment your customers complaining about. It is much easier to collect such information into text files and browse them quickly than open every dump in WinDbg. I used shell script (VBScript) to automate loading dumps into WinDbg and used WinDbg scripts to run complex commands against loaded user dumps. For example, I used the following shell script:

'
' UDumps2Txt.vbs
'
Set fso = CreateObject("Scripting.FileSystemObject")
Set Folder = fso.GetFolder(".")
Set Files = Folder.Files
Set WshShell = CreateObject("WScript.Shell")
For Each File In Files
  Set oExec = WshShell.Exec("C:\Program Files\Debugging Tools for Windows\WinDbg.exe -y ""srv*c:\mss*http://msdl.microsoft.com/download/symbols"" -z " + File.Name + " -c ""$$><c:\scripts\UDmp2Txt.txt;q"" -Q -QS -QY –QSY")
  Do While oExec.Status = 0
     WScript.Sleep 1000
  Loop
Next
'
' UDumps2Txt.vbs: End of File
'

and the following WinDbg script:

$$
$$ UDmp2Txt: Dump information from user dump into log
$$
.logopen /d
!analyze -v
!locks
~*kv
lmv
.logclose
$$
$$ UDmp2Txt: End of File
$$

The following command launches multiple Dmp2Txt conversions:

C:\UserDumps>cscript /nologo c:\scripts\UDumps2Txt.vbs

You can also use CDB from Debugging Tools for Windows (console debugger) instead of WinDbg. I just use WinDbg uniformly instead of using separately CDB for user process dumps and KD for kernel and complete memory dumps.

Now when you have text files you can search for patterns using regular expressions. I will write more about applying them later. There is a very good book about them from practical point of view I read 6 years ago when I needed to understand them beyond wildcards and question marks. Since that time the book has undergone another two editions:

Mastering Regular Expressions, 3rd edition

Buy from Amazon

Or you can process text files further and feed them into your database - part of automated crash dump analysis system.

- Dmitry Vostokov -

Automated Crash Dump Analysis (Part 1)

Tuesday, December 26th, 2006

I’ve been doing some research in this direction and found so many patents filed, to name a few:

Method and expert system for analysis of crash dumps

System for performing dump analysis

Some companies have their own systems. For example, Microsoft has its own Online Crash Analysis system (OCA) and even promotes its Corporate Error Reporting (CER) tool. CER architecture is described in the following document:

CER_Implementation_Plan

In the next parts I will try to outline different implementation choices for building automated crash dump analysis system and discuss their advantages and disadvantages from expert systems perspective.

- Dmitry Vostokov -

Unhandled exception handling changes in Vista

Tuesday, December 26th, 2006

Microsoft describes the reason behind these changes: silent process death if thread stack is corrupt. In Vista such crashes will be reported to MS via Windows Error Reporting mechanism.

Presentation, Reliability and Recovery, slide 42

- Dmitry Vostokov -

Added e-mail subscription

Monday, December 25th, 2006

Several readers asked me for possibility to be notified by e-mail when I publish a new post and after trying a few e-mail notification plugins for WordPress I finally put Subscribe2 plugin (had to fix its problems with WordPress 2.0.5). If you would like to be notified by e-mail please use Users \ Subscribe link on a side bar.

- Dmitry Vostokov -

New blog header

Monday, December 25th, 2006

I wasn’t satisfied with default Kubrick header and designed my own based on famous BSOD theme. After seeing so many blue screens they became aesthetically pleasant to me :-) If you do crash dump analysis, read, analyze or write assembly language code then you probably like fixed fonts too. I tried many other Wordpress themes but they didn’t look great with my content which was originally tailored for default Wordpress theme and I’m so used to it. Perhaps I need to create a complete brand new BSOD theme for my blog.

- Dmitry Vostokov -

Crash Dump Analysis card

Sunday, December 24th, 2006

I have been thinking for a while what kind of a marketing card www.dumpanalysis.org should have (which should be useful to its users) and finally came up with the following design which is being printed now:

Front

Backside

I put most used commands (at least by me) and hope the backside of this card will be useful. If you see me in person you have a chance to get this card in hardcopy :-) If after reading this post you got an idea that we need a crash dump analysis and debugging poster (WinDbg related or a general one) then don’t worry and this is being designed now and details will be announced shortly… All suggestions are welcome anyway and if they are genuine and original then full credit will be given.

- Dmitry Vostokov -

Notes about NMI_HARDWARE_FAILURE

Saturday, December 23rd, 2006

WinDbg help states that NMI_HARDWARE_FAILURE (0×80) bugcheck 80 indicates a hardware fault. This description can easily lead to a conclusion that a kernel or complete crash dump you just got from your customer doesn’t worth examining. But hardware malfunction is not always the case especially if your customer mentions that their system was hanging and they forced a manual dump. Here I would advise to check whether they have a special hardware for debugging purposes, for example, a card or an integrated iLO chip (Integrated Lights-Out) for remote server administration. Both can generate NMI (Non Maskable Interrupt) on demand and therefore bugcheck the system. If this is the case then it is worth examining their dump to see why the system was hanging.

- Dmitry Vostokov -

Crash Dump Analysis Blog

Saturday, December 23rd, 2006

Welcome to the new blog location at dumpanalysis.org/blog/

Its feed address is

http://feeds.feedburner.com/CrashDumpAnalysis

The blog has been moved from its original location at

citrite.org/blogs/dmitryv/

in order to bring all crash dump analysis and debugging information to one place including www.dumpanalysis.org/forum and the forthcoming online encyclopedia about assembly languages:

www.asmpedia.org

Thank you and sorry for any inconvenience this might have caused.

Merry Christmas and Happy Debugging in New Year!

- Dmitry Vostokov -

Crash Dump Analysis Patterns (Part 6)

Monday, December 18th, 2006

Now it’s time to ”introduce” Invalid Pointer pattern. It’s just a number saved in a register or in a memory location and when we try to interpret it as a memory address itself and follow it (dereference) to fetch memory contents (value) it points to, OS with the help of hardware tells us that the address doesn’t exist or inaccessible due to security restrictions. The following two slides from my old presentation depict the concept of a pointer:

Pointer definition
Pointers depicted

In Windows you have your process memory partitioned into two big regions: kernel space and process space. Space partition is a different concept than execution mode (kernel or user, ring 0 or ring 3) which is a processor state. Code executing in kernel mode (a driver or OS, for example) can access memory that belongs to user space.

Based on this we can make distinction between invalid pointers containing kernel space addresses (start from 0×80000000 on x86, no /3Gb switch) and invalid pointers containing user space addresses (below 0×7FFFFFFF).

On Windows x64 user space addresses are below 0×0000070000000000 and kernel space addresses start from 0xFFFF080000000000.

When you dereference invalid kernel space address you get bugcheck immediately:

UNEXPECTED_KERNEL_MODE_TRAP (7f)

PAGE_FAULT_IN_NONPAGED_AREA (50)

There is no way you can catch it in your code (by using SEH).

However when you dereference user space address the course of action depends on whether your processor is in kernel mode (ring 0) or in user mode (ring 3). In any mode you can catch the exception (by using appropriate SEH handler) or leave this to the operating system or debugger. If there was no component willing to process the exception when it happened in user mode you get your process crash and in kernel mode you get bugchecks:

SYSTEM_THREAD_EXCEPTION_NOT_HANDLED (7e)

KERNEL_MODE_EXCEPTION_NOT_HANDLED (8e)

I summarized all of this on the following diagram:

NULL pointer is a special class of user space pointers. Usually its value is in the range of 0×00000000 - 0×0000FFFF. You can see them used in instructions like

mov   esi, dword ptr [ecx+0×10]

and ecx value is 0×00000000 so you try to access the value located at 0×00000010 memory address.

When you get a crash dump and you see an invalid pointer pattern the next step is to interpret the pointer value which should help in understanding possible steps that led to the crash. Pointer value interpretation is the subject of the next part.

- Dmitry Vostokov @ DumpAnalysis.org -

Real Programmers - no impossible code

Saturday, December 16th, 2006

I consider programmers as real programmers only if they attempted to write something like an editor or a word processor. My favorite interview question is “Did you write a word processor?” This probably explains why my team is small :-)

Why? Because writing a word processor shows your determination, persistence and if you are successful - understanding of OO principles. Even Gang of Four in their seminal book

Design Patterns: Elements of Reusable Object-Oriented Software

Buy from Amazon

used word processor as a unified example. I was very satisfied when I read their book - I designed and implemented at least 2 word processors: one in pure C meant to be better than MS Write 3.x and one in Java with syntax highlighting. And I implemented design patterns without knowing they were design patterns. The Java one was better and here is the screen shot showing my editor with C/C++ syntax highlighting implemented in Java 1.0 without any 3rd-party class libraries:


The earlier one (with Windows 3.x look and feel) was written in C and has MDI interface, floating embedded objects and printing support:


- Dmitry Vostokov -

Crash Dump Analysis Patterns (Part 5)

Friday, December 15th, 2006

The next pattern I would like to talk about is Optimized Code. If you have such cases you should not trust your crash dump analysis tools like WinDbg. Always suspect that compiler generated code might have been optimized if you see any suspicious or strange behaviour of your tool. Let’s consider this fragment of stack:

Args to Child
77e44c24 000001ac 00000000 ntdll!KiFastSystemCallRet
000001ac 00000000 00000000 ntdll!NtFsControlFile+0xc
00000034 00000bb8 0013e3f4 kernel32!WaitNamedPipeW+0x2c3
0016fc60 00000000 67c14804 MyModule!PipeCreate+0x48

3rd-party function PipeCreate from MyModule opens a named pipe and its first parameter (0016fc60) points to a pipe name L”\\.\pipe\MyPipe”. Inside the source code it calls Win32 API function WaitNamedPipeW (to wait for the pipe to be available for connection) and passes the same pipe name. But we see that  the first parameter to WaitNamedPipeW is 00000034 which cannot be the pointer to a valid Unicode string. And the program should have been crashed if 00000034 were a pointer value.

Everything becomes clear if we look at WaitNamedPipeW disassembly (comments are mine):

0:000> uf kernel32!WaitNamedPipeW
mov     edi,edi
push    ebp
mov     ebp,esp
sub     esp,50h
push    dword ptr [ebp+8]  ; Use pipe name
lea     eax,[ebp-18h]
push    eax
call    dword ptr [kernel32!_imp__RtlCreateUnicodeString (77e411c8)]




call    dword ptr [kernel32!_imp__NtOpenFile (77e41014)]
cmp     dword ptr [ebp-4],edi
mov     esi,eax
jne     kernel32!WaitNamedPipeW+0×1d5 (77e93316)
cmp     esi,edi
jl      kernel32!WaitNamedPipeW+0×1ef (77e93331)
movzx   eax,word ptr [ebp-10h]
mov     ecx,dword ptr fs:[18h]
add     eax,0Eh
push    eax
push    dword ptr [kernel32!BaseDllTag (77ecd14c)]
mov     dword ptr [ebp+8],eax  ; reuse parameter slot

As we know [ebp+8] is the first function parameter in non-FPO calls:

Parameters and Local Variables

And we see it is reused because after we convert LPWSTR to UNICODE_STRING and call NtOpenFile to get a handle we no longer need our parameter slot and the compiler can reuse it to store other information.

There is another compiler optimization we should be aware of and it is called OMAP. It moves the code inside the code section and puts the most frequently accessed code fragments together. In that case if you type in WinDbg, for example,

0:000> uf nt!someFunction

you get different code than if you type (assuming f4794100 is the address of the function you obtained from stack or disassembly)

0:000> uf f4794100

In conclusion the advice is to be alert and conscious during crash dump analysis and inspect any inconsistencies closer.

Happy debugging!

- Dmitry Vostokov @ DumpAnalysis.org -

Clipboard Issues Explained

Saturday, December 9th, 2006

I believe every Citrix user experienced clipboard breaks at least once. I remember my frustration when I coudn’t copy between Outlook and Vantive sessions and so 2.5 years ago I wrote RepairCBDChain tool to help to temporary restore clipboard functionality. Recently this feature was incorporated into ICA client. You can read about it in the client readme file (1. … [From 9.100][#112636]). However it is not enabled by default and if you experience clipboard breaks on the server side or you want to restore clipboard functionality immediately on your client without closing your session to apply changes to appsrv.ini or simply you are still using an old client then you can still benefit from this tool.

A month ago I promised to explain how my tool works. You all know that primary method for notifying windows about various events is window message mechanism. One of these notification events is clipboard notification message: WM_DRAWCLIPBOARD. Usually applications do not know whether clipboard content has changed if another program copied new data. Generally if you open Edit menu you see Paste enabled if there is data in the clipboard. This is done by application code itself by checking if clipboard is non-empty. If the application finds that clipboard is non-empty indeed it enables Paste menu item or disables it otherwise. In case of ICA client (wfica32.exe) it needs to know whether clipboard contains new data in order to send it down via ICA channel to a server session.

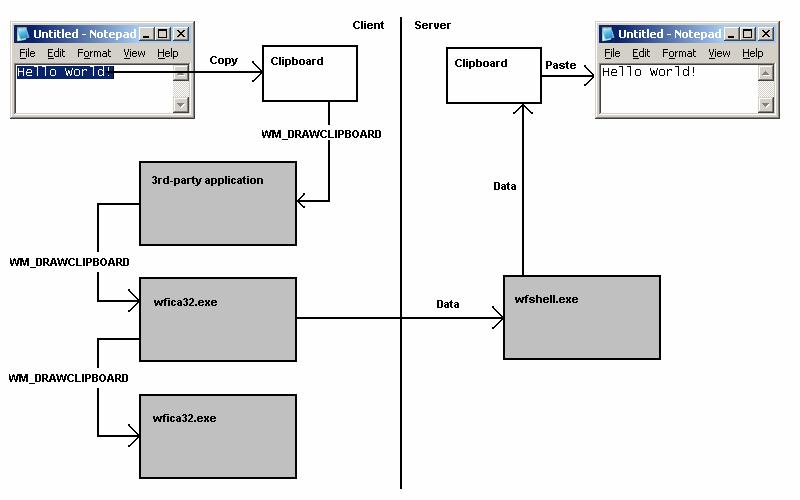

Windows has a mechanism to notify applications about clipboard changes. An application interested in such notifications has to register itself in the so called clipboard chain. Windows inserts it on top of that chain and that application is responsible to propagate changes down the chain:

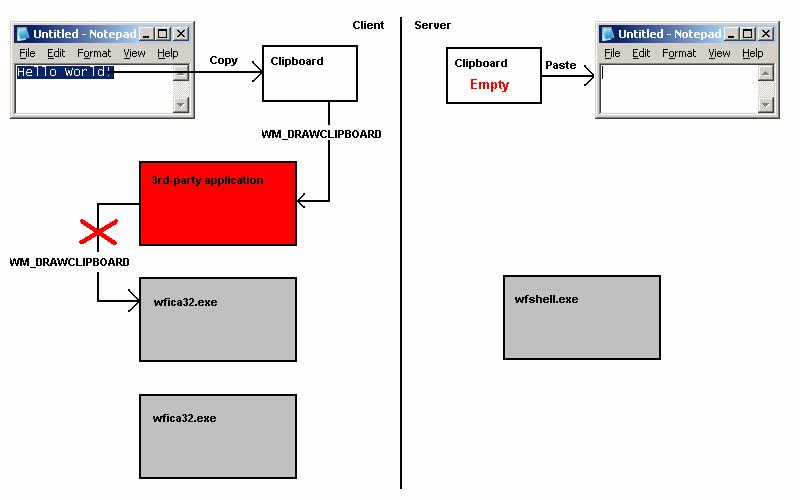

If a 3rd-party application forgets to forward notifications down then we have a broken clipboard chain and clipboard changes are not sent via ICA protocol:

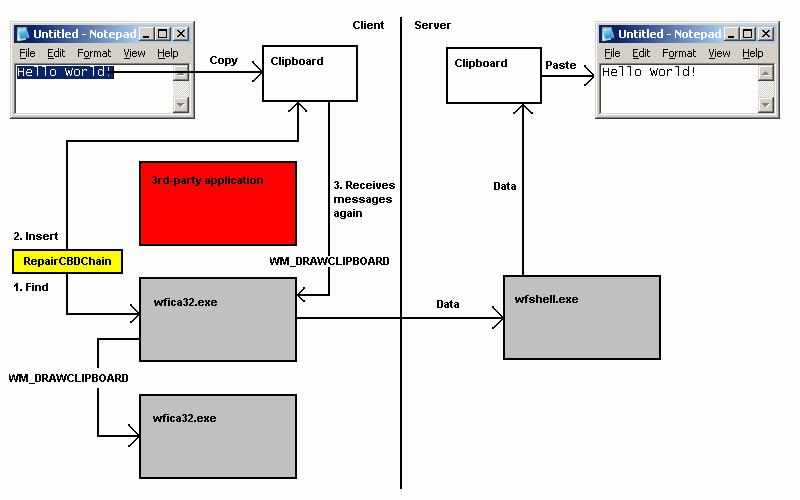

If you run RepairCBDChain.exe it tries to find the window of wfica32.exe and registers it for clipboard notifications again:


However if it finds the second instance of wfica32.exe (as on the picture above) the first instance will be still cut off from notifications and this explains why RepairCBDChain.exe doesn’t work sometimes.

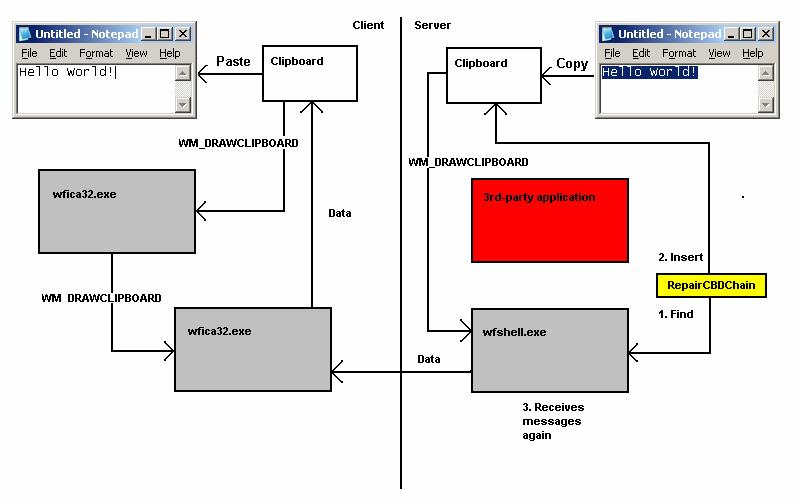

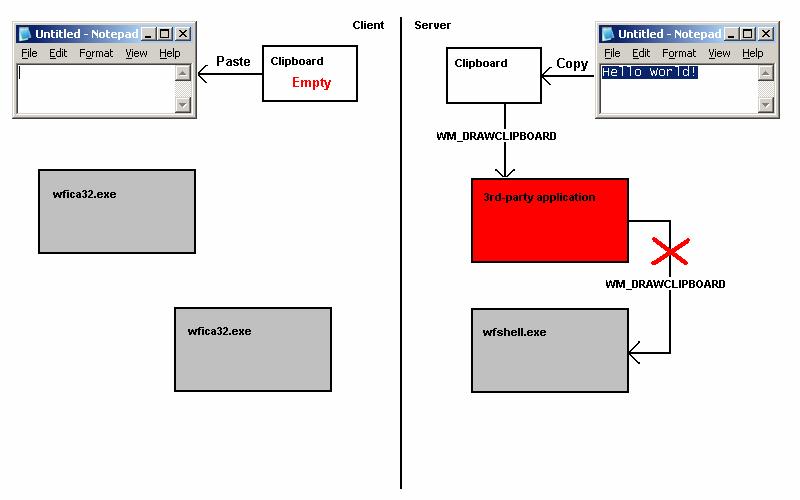

On the server session side the picture is similar (the registered application is wfshell.exe):




You can see WM_DRAWCLIPBOARD messages in MessageHistory logs for wfica32.exe process:

PID.TID: c20.c0c

HWND: 0x002501D4
Class: "wMFService006600CA004"
Title: "Microsoft Outlook7718 - MetaFrame Presentation Server Client [SpeedScreen On]"

HWND: 0x003F08DC
Class: "Transparent Windows Client"
Title: "^P ^b24 of 24 - Clipboard^b^SItem collected. - \\Remote"

HWND: 0x004E0332
Class: "WFClip"
Title: "WFClip"
17:58:53:484 S WM_DRAWCLIPBOARD (0×308) wParam: 0xd0aa0 lParam: 0×0

HWND: 0x0094036E
Class: "TWI Link"
Title: ""

Hope this little excursion explained clipboard chain, how it becomes broken and how it is repaired.

- Dmitry Vostokov -

Dmp2Txt: Solving Security Problem

Saturday, December 9th, 2006

This is a follow up to my previous Q&A about crash dumps and security issues like exposing confidential information stored in memory: Crash Dumps and Security. It seems a solution exists which allows to do some sort of crash dump analysis or at least identify problem components without sending complete or kernel memory dumps.

This solution takes advantage of WinDbg ability to execute scripts of arbitrary complexity. Couple of months ago I wrote about scripts and they really help me in pulling out various information from complete memory dumps:

WinDbg scripts
Yet another Windbg script
Critical sections

Now I created the bigger script that combines together all frequent commands used for identification of potential problems in memory dumps:

  • !analyze -v
  • !vm 4
  • lmv
  • !locks
  • !poolused 3
  • !poolused 4
  • !exqueue f
  • !irpfind
  • !stacks
  • List of all processes’ thread stacks, loaded modues and critical sections (for complete memory dump)

Other commands can be added if necessary.

How does all this work? A customer has to install Debugging Tools for Windows from Microsoft. This can be done on any workstation and not necessarily in a production environment. Then the customer has to run WinDbg.exe with some parameters including path(s) to symbols (-y), a path to memory dump (-z) and a path to script (-c):

C:\Program Files\Debugging Tools for Windows>WinDbg.exe -y "srv*c:\mss*http://msdl.microsoft.com/download/symbols" -z MEMORY.DMP -c "$$><c:\WinDbgScripts\Dmp2Txt.txt;q" -Q -QS -QY –QSY

Once WinDbg.exe finishes (it can run for couple of hours if you have many processes in your complete memory dump) you can copy the .log file created in “C:\Program Files\Debugging Tools for Windows” folder, archive it and send it to support for analysis. Kernel and process data and cached files are not exposed in the log! And because this is a text file the customer can inspect it before sending.

Here are the contents of Dmp2Txt.txt file:

$$
$$ Dmp2Txt: Dump all necessary information from complete full memory dump into log
$$
.logopen /d
!analyze -v
!vm 4
lmv
!locks
!poolused 3
!poolused 4
!exqueue f
!irpfind
!stacks
r $t0 = nt!PsActiveProcessHead
.for (r $t1 = poi(@$t0); (@$t1 != 0) & (@$t1 != @$t0); r $t1 = poi(@$t1))
{
    r? $t2 = #CONTAINING_RECORD(@$t1, nt!_EPROCESS, ActiveProcessLinks);
    .process @$t2
    .reload
    !process @$t2
    !ntsdexts.locks
    lmv
}
.logclose
$$
$$ Dmp2Txt: End of File
$$

For kernel dumps the script is simpler:

$$
$$ KeDmp2Txt: Dump all necessary information from kernel dump into log
$$
.logopen /d
!analyze -v
!vm 4
lmv
!locks
!poolused 3
!poolused 4
!exqueue f
!irpfind
!stacks
!process 0 7
.logclose
$$
$$ KeDmp2Txt: End of File
$$

Note: if the dump is LiveKd.exe generated then due to inconsistency scripts may run forever

- Dmitry Vostokov -

New TestDefaultDebugger Tool

Wednesday, December 6th, 2006

It often happens that Citrix support advises customers to change their default postmortem debugger to NTSD. But there is no way to test new settings unless some application crashes again. And some customers come back saying dumps are not saved despite new settings and we don’t know whether dumps were not saved because a crash hadn’t yet happened or default debugger hadn’t been configured properly or something else happened.

In addition the arrival of 64-bit Windows brings another problem: there are 2 default postmortem debuggers on 64-bit Windows (for 32-bit and 64-bit applications respectively):

NTSD on x64 Windows

The new tool TestDefaultDebugger forces a crash on itself to test the presence and configuration of default postmortem debugger (Dr. Watson, NTSD or other). Then if the default postmortem debugger is configured properly OS will launch it to save a dump of TestDefaultDebugger.exe process.



If you enabled NTSD as a default postmortem debugger (CTX105888) the following console window will briefly appear:

Postmortem debuggers are explained here:

Dumps for Dummies (Part 3)

On 64-bit Windows you can run both 32-bit TestDefaultDebugger.exe and 64-bit TestDefaultDebugger64.exe applications and then open crash dumps to see whether both postmortem debuggers have been configured properly. The tool has also command line interface so you can use it remotely:

c:\>TestDefaultDebugger.exe now

You can download the tool from Citrix support web site:

TestDefaultDebugger v1.0 for 32-bit and 64-bit platforms

- Dmitry Vostokov @ DumpAnalysis.org -
