Memory Map Visualization Tools

Friday, July 31st, 2009

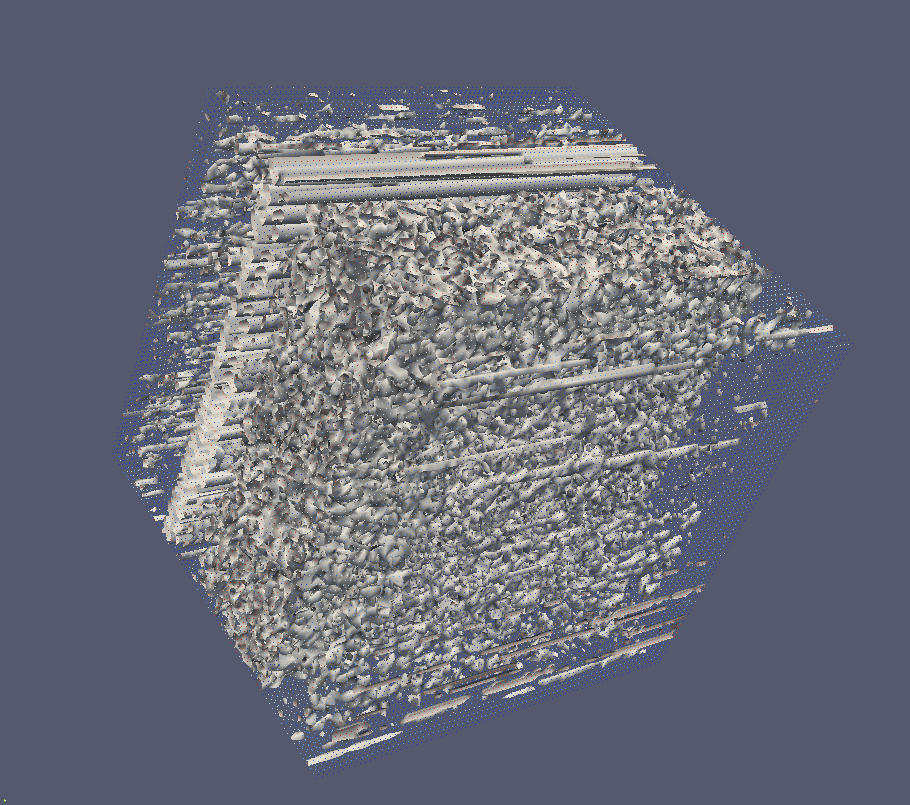

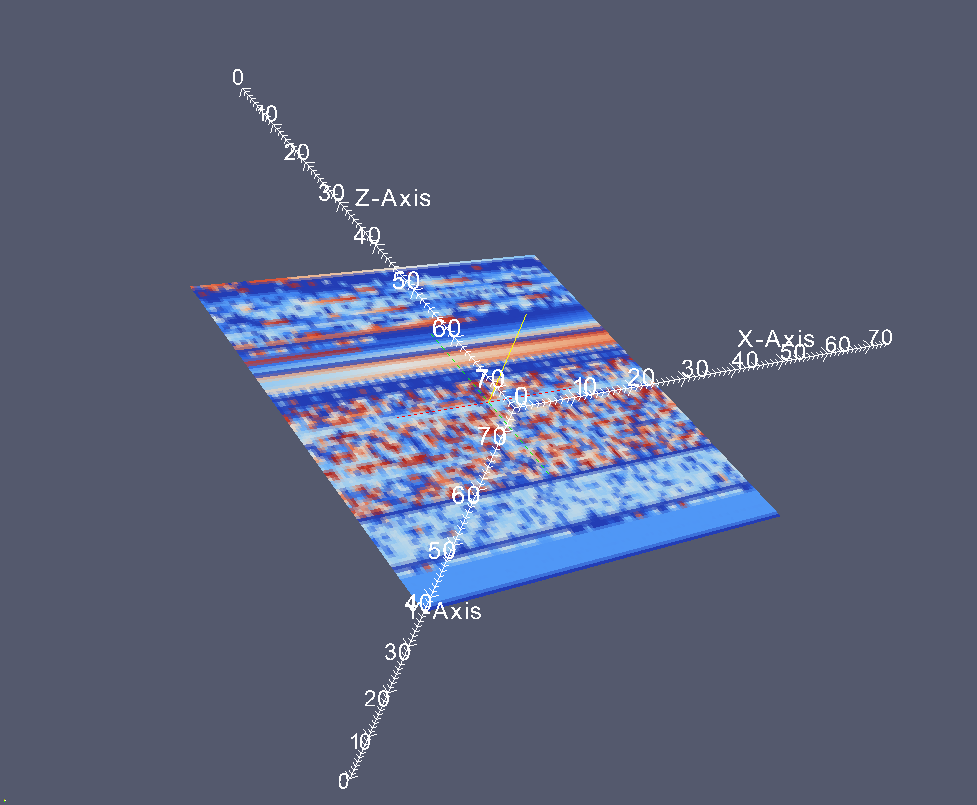

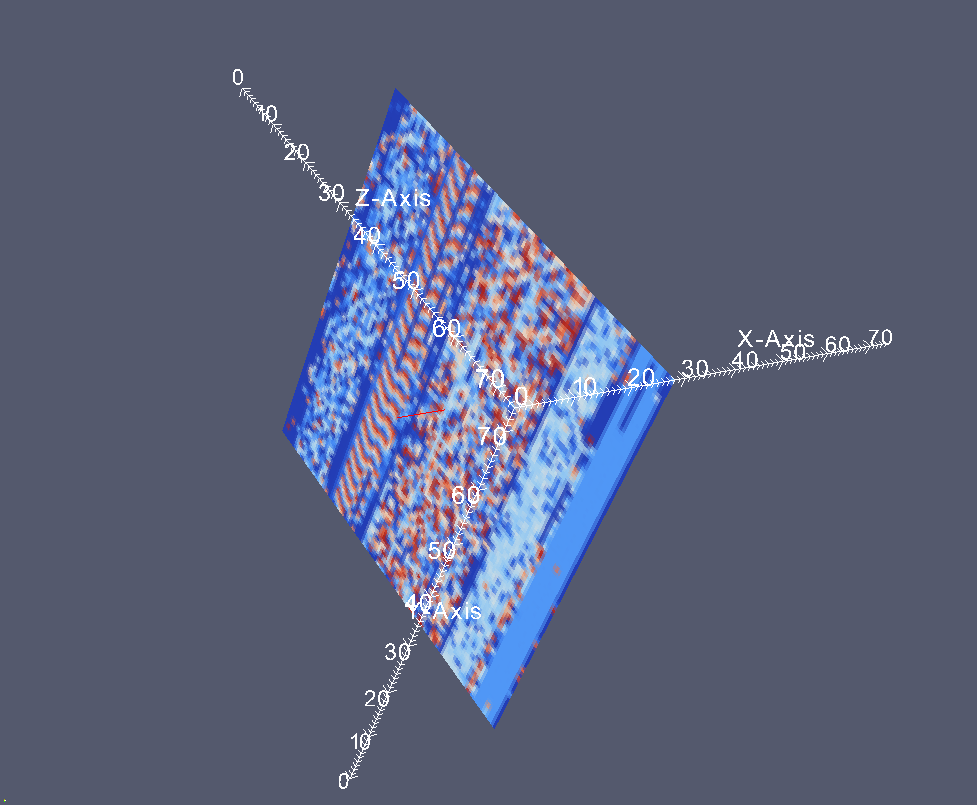

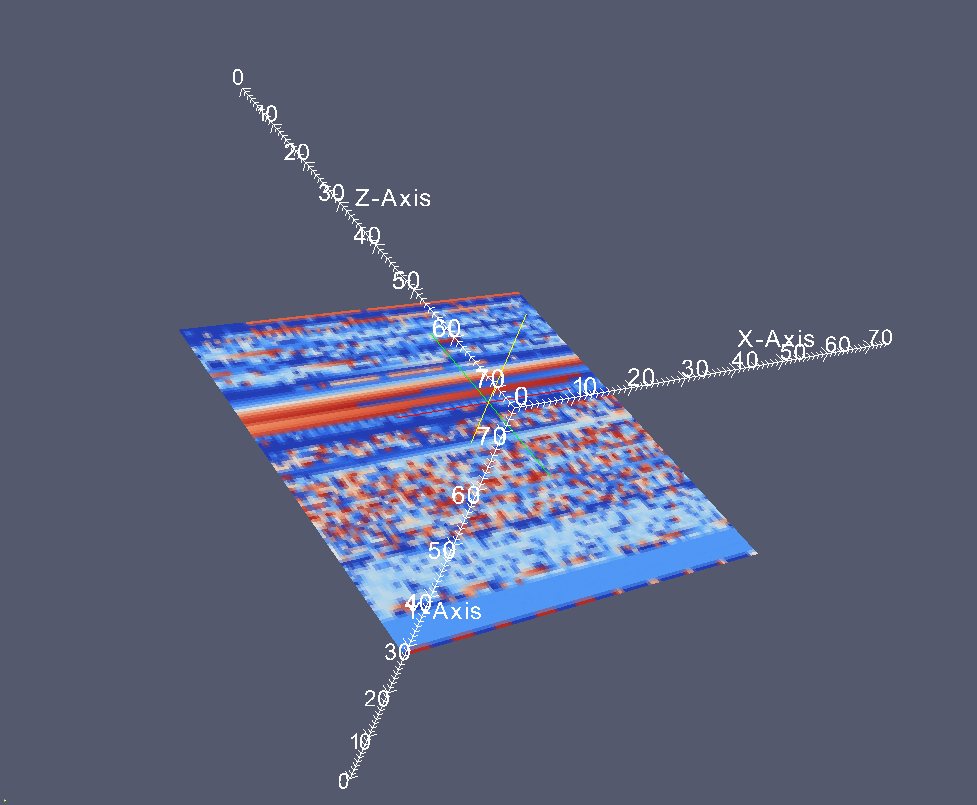

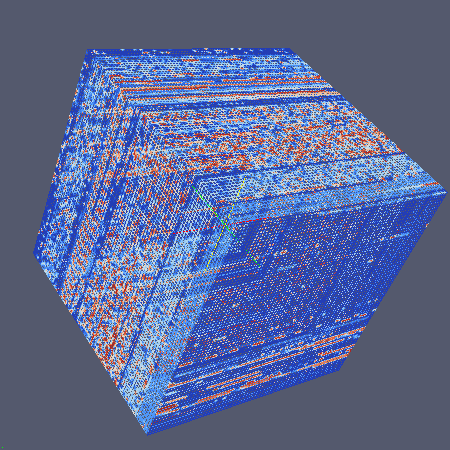

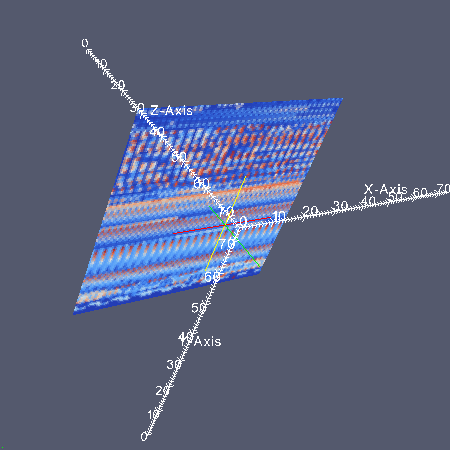

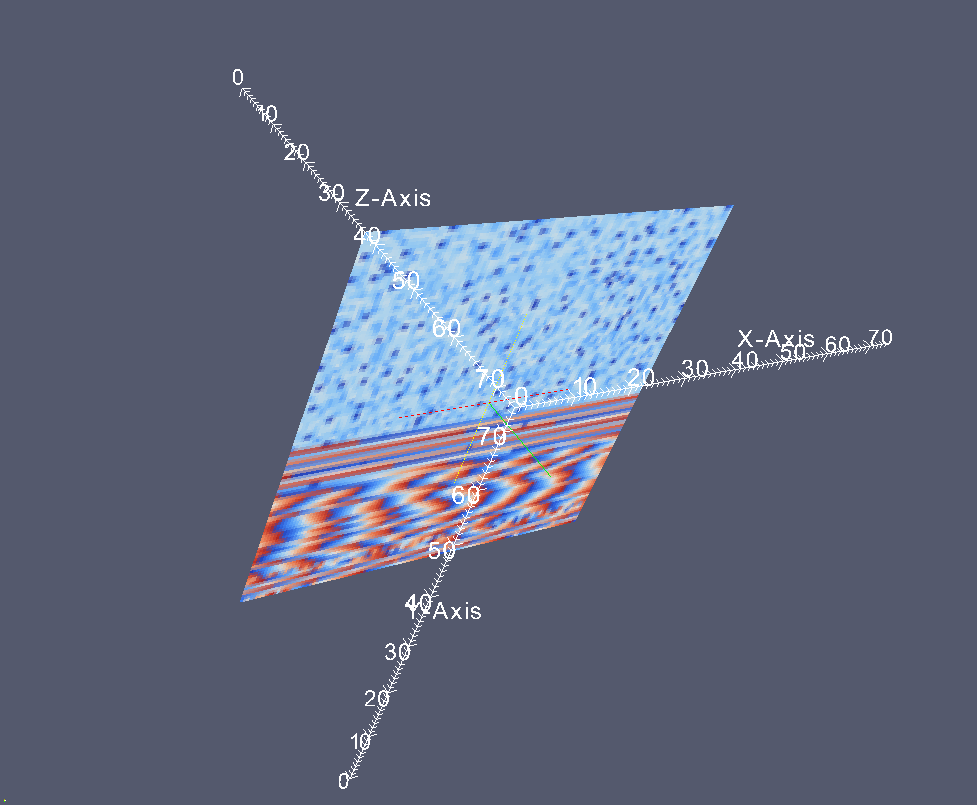

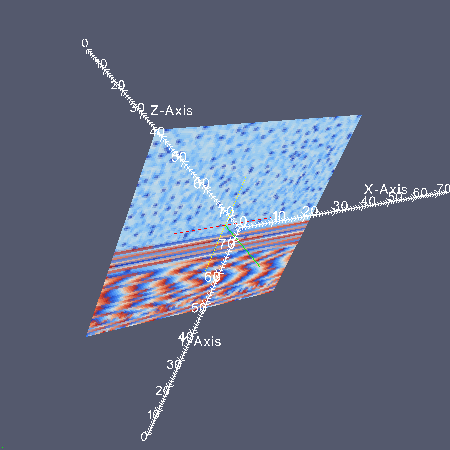

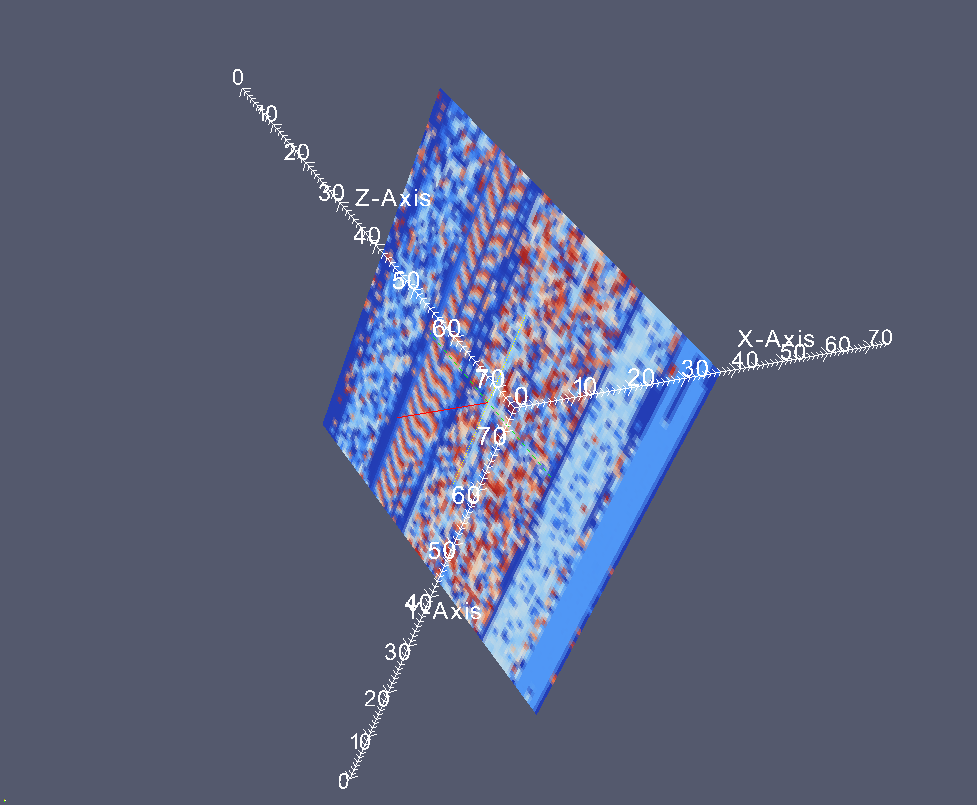

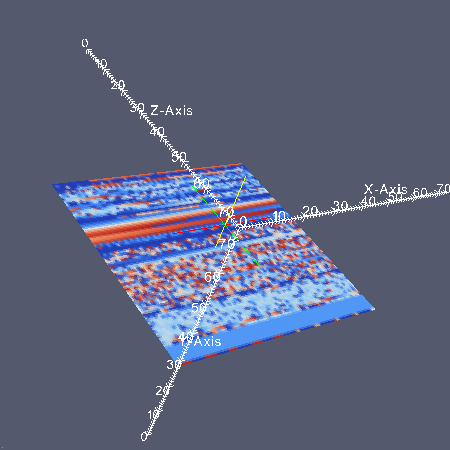

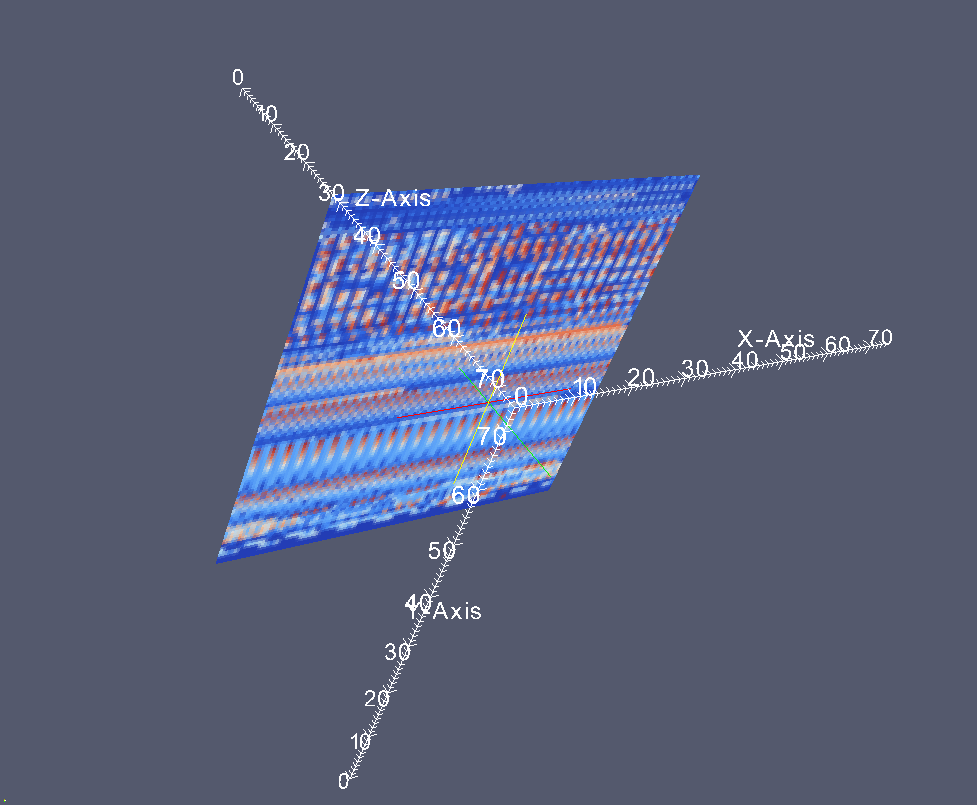

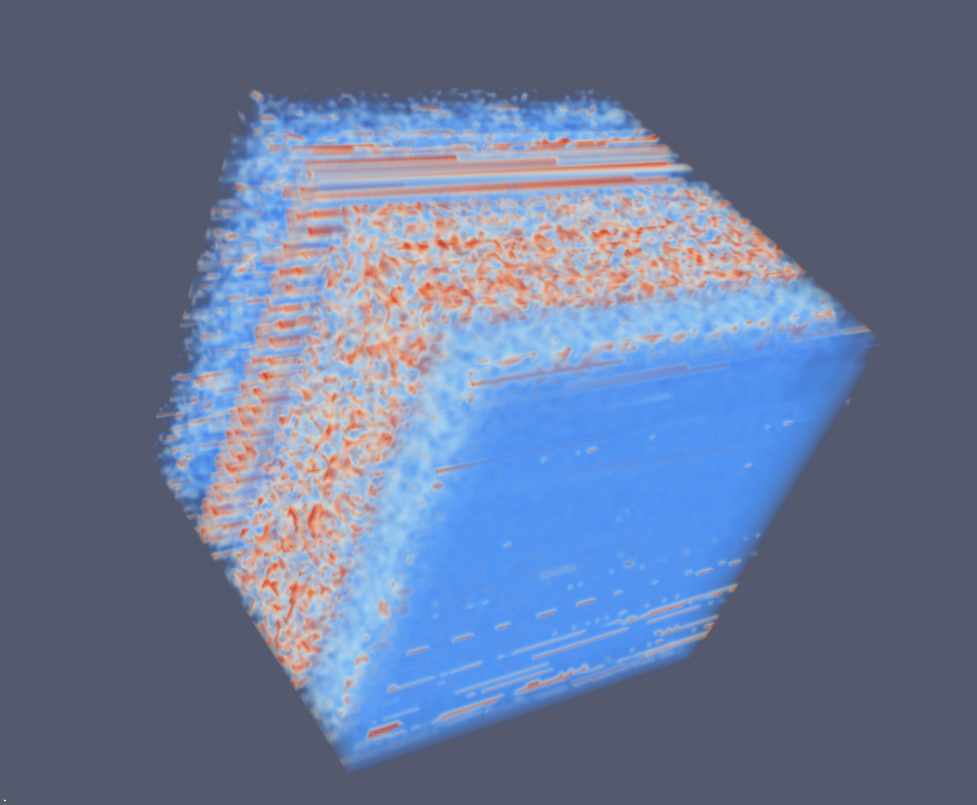

Mark Russinovich and Bryce Cogswell published a graphical virtual memory visualization tool: VMMap. Since more and more tools appear I attempted to classify them into 2 major categories or memory views they can provide:

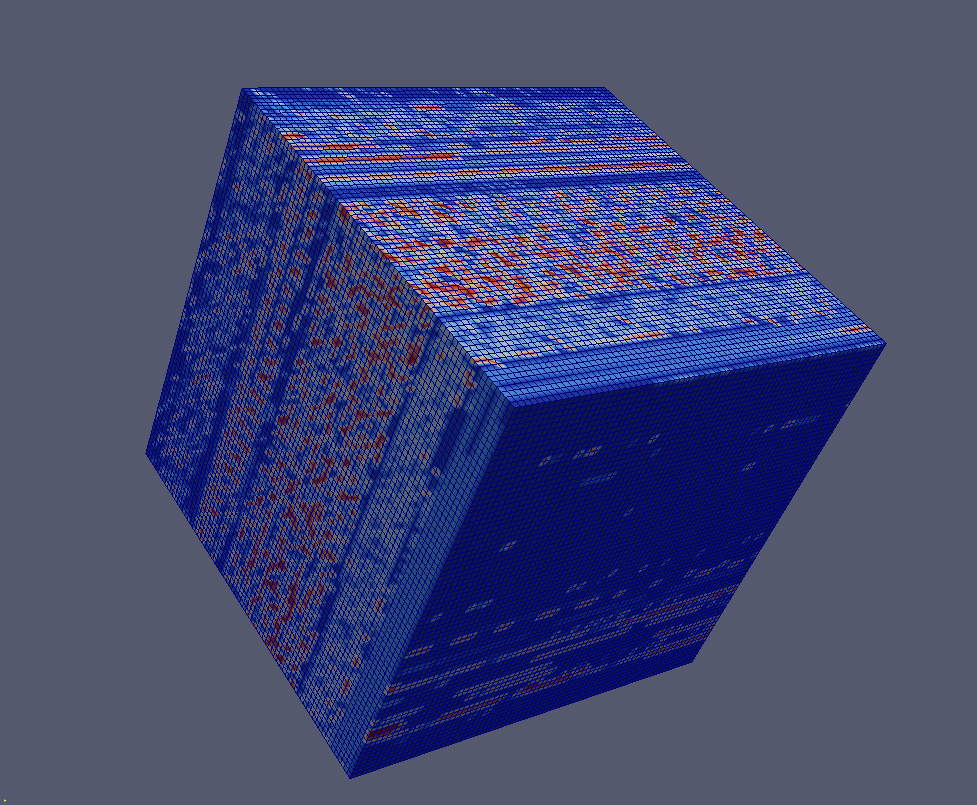

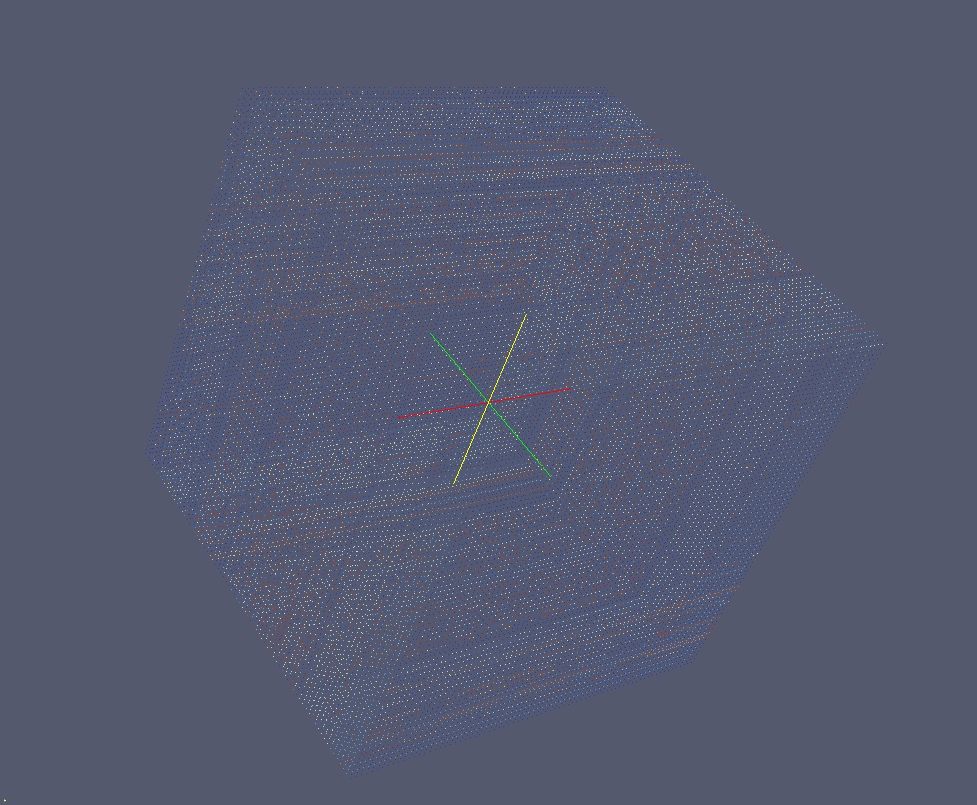

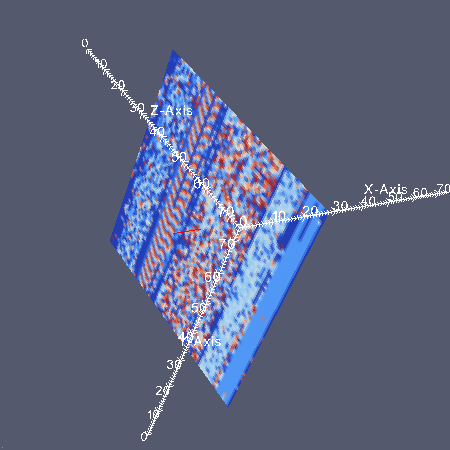

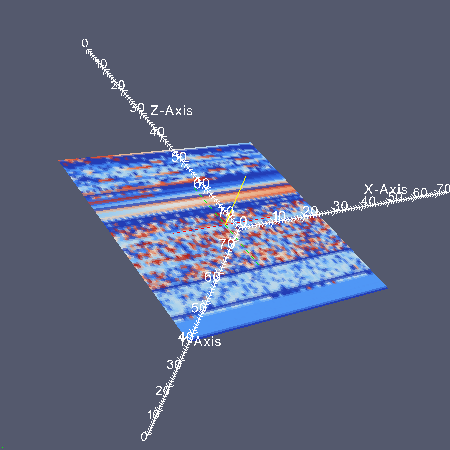

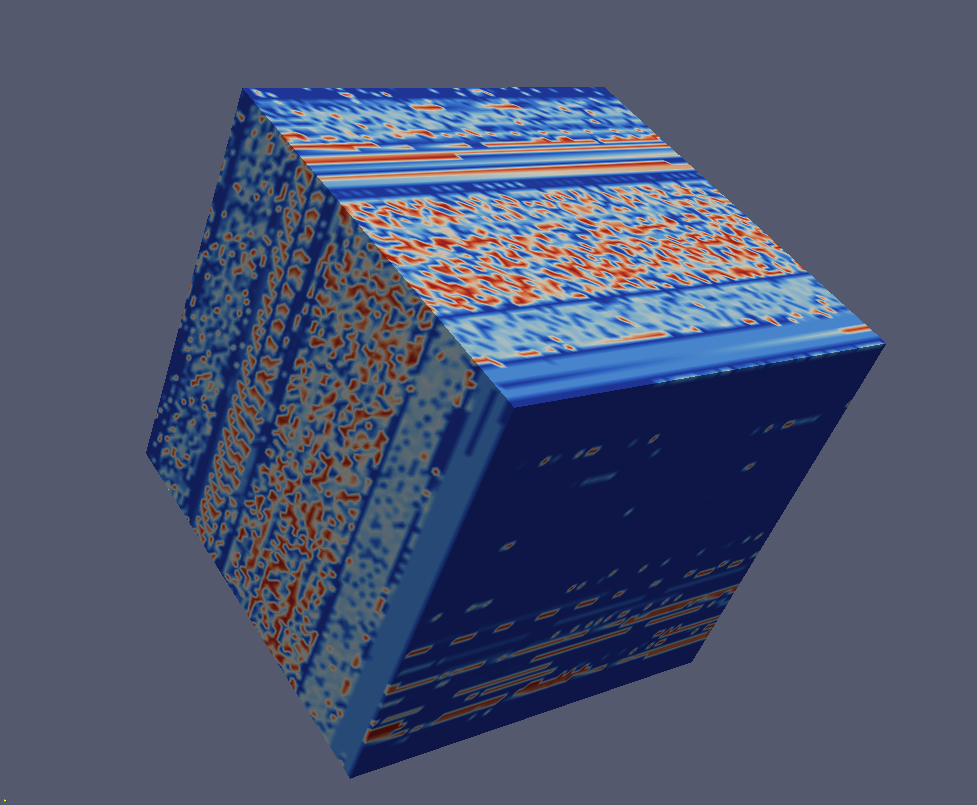

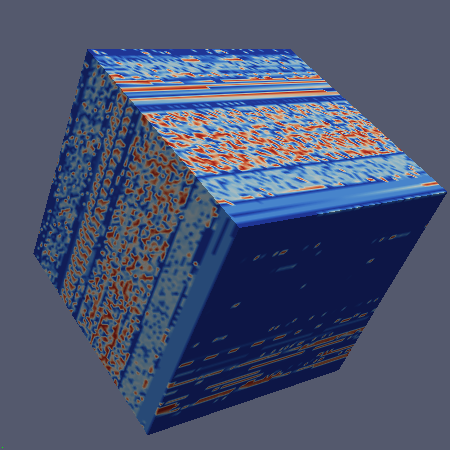

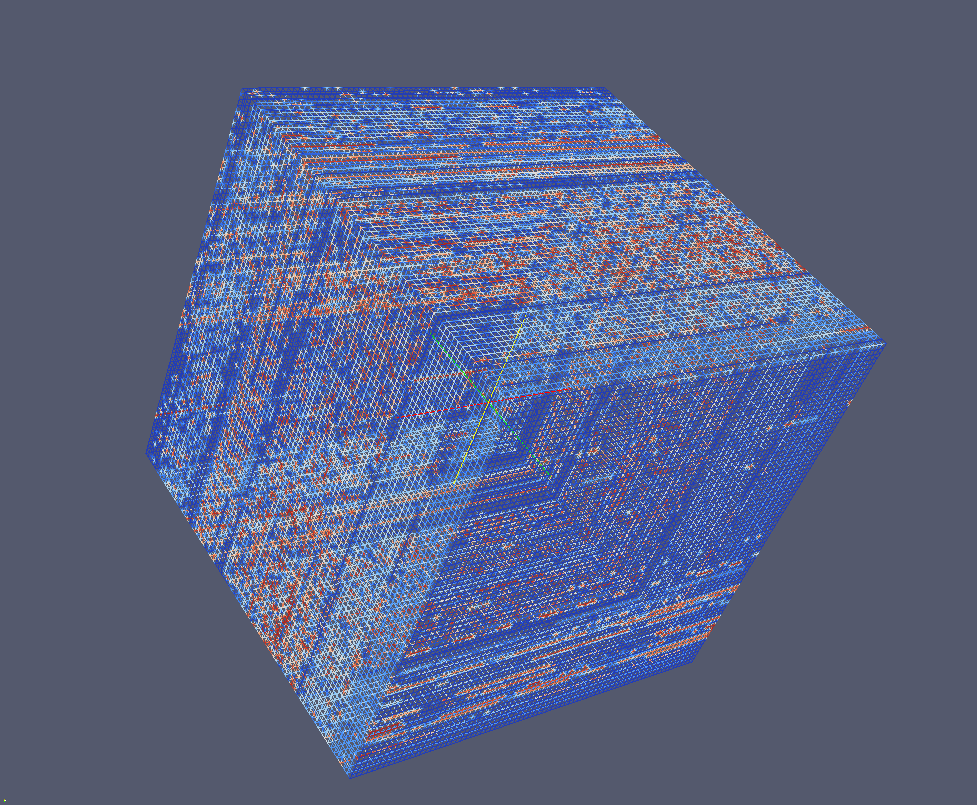

1. Traditional or synthetic memory visualization tools: show derived characteristics, like colors or computed values and graphs, from memory ranges.

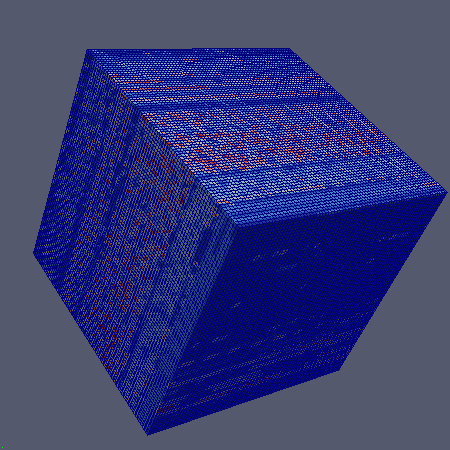

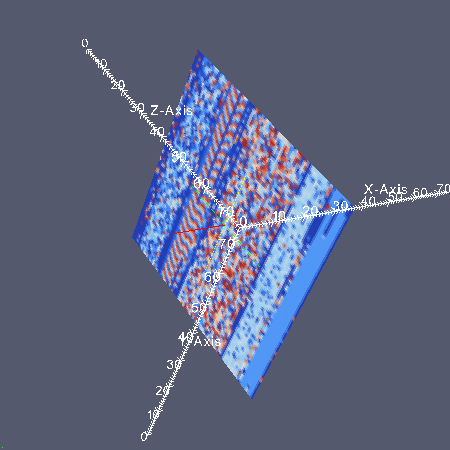

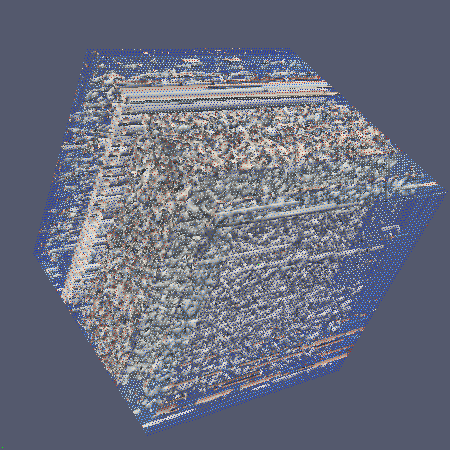

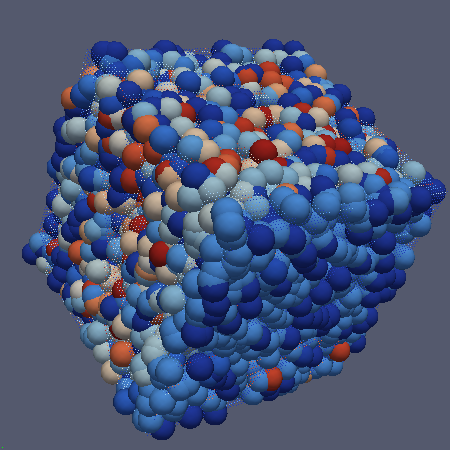

2. Natural memory visualization tools: treat memory as a bitmap but can also include image annotations. Image annotation was one of my main interests when I worked at Accusoft (now Accusoft Pegasus) a decade ago.

- Dmitry Vostokov @ DumpAnalysis.org -

The Meaning of CITRIX

Friday, July 31st, 2009

Centralized IT Ready In Xen

- Dmitry Vostokov @ DumpAnalysis.org -

How I spent my 40 USD Amazon voucher

Thursday, July 30th, 2009

I got an Amazon voucher yesterday and finally after an hour of consideration recalled that I was planning to buy this book but saved in my cart previously:

Elements of Programming (by Alexander Stepanov and Paul McJones)

Buy from Amazon

And so it happened I bought it. STL and meta-programming was (and perhaps still is) one of my favourite libraries and paradigms (correspondingly) and I was really excited when I saw C++-like templates during Search Inside. It is good to see that hardcore C++ books come back after some period of silence. Looking forward to reading and posting a review afterwards. I also see that Bjarne Stroustrup posted a review (the only one on Amazon by this moment and looking at his profile I see that he likes Chinese detective stories (his wish list). After reading another review that mentioned the fact that Stepanov recommends massive An Elementary Text-Book of Algebra by George Chrystal. So I bought 2 volumes of it too from Amazon Canada (the cheapest courier shipment for me, arriving tomorrow).

- Dmitry Vostokov @ DumpAnalysis.org -

Front Cover for X64 WDPF Book

Wednesday, July 29th, 2009

Here is the front cover for the forthcoming book X64 Windows Debugging: Practical Foundations (ISBN: 978-1906717568):

- Dmitry Vostokov @ DumpAnalysis.org -

Trace Analysis Patterns (Part 6)

Wednesday, July 29th, 2009

Often analysis of software traces starts with searching for short textual patterns, like a failure or an exception code or simply the word “exception”. And indeed, some software components are able to record their own exceptions or exceptions that were propagated to them including full stack traces. This is all common in .NET and Java environments. Here is a synthetic and beautified example based on real software traces:

N      PID  TID  Message
[...]
265799 8984 4216 ComponentA.Store.GetData threw exception: ‘System.Reflection.TargetInvocationException: DCOM connection to server failed with error: ‘Exception from HRESULT: 0×842D0001′ —> System.Runtime.InteropServices.COMException (0×842D0001): Exception from HRESULT: 0×842D0001
   at ComponentA.GetData(Byte[] pKey)
   at System.RuntimeMethodHandle._InvokeMethodFast(Object target, Object[] arguments, SignatureStruct& sig, MethodAttributes methodAttributes, RuntimeTypeHandle typeOwner)
   at System.RuntimeMethodHandle.InvokeMethodFast(Object target, Object[] arguments, Signature sig, MethodAttributes methodAttributes, RuntimeTypeHandle typeOwner)
   at System.Reflection.RuntimeMethodInfo.Invoke(Object obj, BindingFlags invokeAttr, Binder binder, Object[] parameters, CultureInfo culture, Boolean skipVisibilityChecks)
   at System.Reflection.RuntimeMethodInfo.Invoke(Object obj, BindingFlags invokeAttr, Binder binder, Object[] parameters, CultureInfo culture)
   at ComponentB.Connections.ComInterfaceProxy.Invoke(IMessage message)’
265800 8984 4216 === Begin Exception Dump ===
265801 8984 4216 ComponentB.Exceptions.ConnectionException: DCOM connection to server failed with error: ‘Exception from HRESULT: 0×842D0001′ —> System.Runtime.InteropServices.COMException (0×842D0001): Exception from HRESULT: 0×842D0001
265802 8984 4216 at ComponentA.Store.GetData(Byte[] pKey)
[…]
265808 8984 4216 Exception rethrown at [0]:
265809 8984 4216 at System.Runtime.Remoting.Proxies.RealProxy.HandleReturnMessage(IMessage reqMsg, IMessage retMsg)
265810 8984 4216 at System.Runtime.Remoting.Proxies.RealProxy.PrivateInvoke(MessageData& msgData, Int32 type)
265811 8984 4216 at ComponentA.Store.GetData(Byte[] pKey)
265812 8984 4216 at ComponentA.App.EnumBusinessObjects()

[…]
265816 8984 4216 ===> InnerException:
265817 8984 4216 ** COM Exception Error Code: 0×842d0001
265818 8984 4216 System.Runtime.InteropServices.COMException (0×842D0001): Exception from HRESULT: 0×842D0001
265819 8984 4216 at ComponentA.Store.GetData(Byte[] pKey)
265820 8984 4216 === End Exception Dump ===
[…]

In the embedded stack trace we see that App object was trying to enumerate business objects and asked Store object to get some data and the latter object was probably trying to communicate to the real data store via DCOM. The communication attempt failed with HRESULT.

- Dmitry Vostokov @ TraceAnalysis.org -

Memory Dumps from Hyper-Virtualized Windows

Tuesday, July 28th, 2009

Here is another addition to identification of memory dumps coming from VMWare, VirtualPC and Xen Server virtualized Windows systems. Now I had a look at Windows Server 2008 Hyper-V host system running Windows Server 2008 as a guest and found that this information could serve as an identification if infrastructure components were installed:

kd> lm
[...]
fffffa60`00cc2000 fffffa60`00cd7000   winhv       (deferred)
fffff960`00810000 fffff960`0081b000   VMBusVideoD (deferred)
fffffa60`00c7e000 fffffa60`00cc2000   vmbus       (deferred)
fffffa60`00df6000 fffffa60`00dfbb00   VMBusHID    (deferred)
fffffa60`0201c000 fffffa60`02028000   VMBusVideoM (deferred)
[...]

winhv driver has lots of exported hypervisor related functions:

kd> x winhv!*
*** ERROR: Symbol file could not be found.  Defaulted to export symbols for winhv.sys -
fffffa60`00cc3100 winhv!WinHvGetCurrentVpIndex (<no parameter info>)
fffffa60`00cc3160 winhv!WinHvSetSintOnCurrentProcessor (<no parameter info>)
fffffa60`00cc3230 winhv!WinHvNtProcessorToVpIndex (<no parameter info>)
fffffa60`00cc3260 winhv!WinHvDisconnectPort (<no parameter info>)
fffffa60`00cc32e0 winhv!WinHvDeletePort (<no parameter info>)
fffffa60`00cc35c0 winhv!WinHvMapGpaPages (<no parameter info>)
fffffa60`00cc36e0 winhv!WinHvSetVpRegisters (<no parameter info>)
fffffa60`00cc3e20 winhv!WinHvGetVpRegisters (<no parameter info>)
fffffa60`00cc3ed0 winhv!WinHvLowMemoryPolicyAutoDeposit (<no parameter info>)
fffffa60`00cc4110 winhv!WinHvSetPartitionProperty (<no parameter info>)
fffffa60`00cc4250 winhv!WinHvGetPartitionProperty (<no parameter info>)
fffffa60`00cc4290 winhv!WinHvPostMessage (<no parameter info>)
fffffa60`00cc4320 winhv!WinHvCreatePort (<no parameter info>)
fffffa60`00cc4380 winhv!WinHvConnectPort (<no parameter info>)
fffffa60`00cc43e0 winhv!WinHvCreateVp (<no parameter info>)
fffffa60`00cc4430 winhv!WinHvMapEventLogBuffer (<no parameter info>)
fffffa60`00cc44d0 winhv!WinHvCreateEventLogBuffer (<no parameter info>)
fffffa60`00cc4580 winhv!WinHvGetPartitionId (<no parameter info>)
fffffa60`00cc45d0 winhv!WinHvWithdrawAllMemory (<no parameter info>)
fffffa60`00cc4600 winhv!WinHvReleaseEventLogBuffer (<no parameter info>)
fffffa60`00cc4630 winhv!WinHvCreatePartition (<no parameter info>)
fffffa60`00cc49d0 winhv!WinHvDeletePartition (<no parameter info>)
fffffa60`00cc4f50 winhv!WinHvUnmapGpaPages (<no parameter info>)
fffffa60`00cc5150 winhv!WinHvInstallIntercept (<no parameter info>)
fffffa60`00cc5240 winhv!WinHvInitializeEventLogBufferGroup (<no parameter info>)
fffffa60`00cc52c0 winhv!WinHvDeleteVp (<no parameter info>)
fffffa60`00cc5340 winhv!WinHvGetPortProperty (<no parameter info>)
fffffa60`00cc53a0 winhv!WinHvSetEventLogGroupSources (<no parameter info>)
fffffa60`00cc55a0 winhv!WinHvOnInterrupt (<no parameter info>)
fffffa60`00cc5870 winhv!WinHvCancelTimer (<no parameter info>)
fffffa60`00cc5a20 winhv!WinHvSetAbsoluteTimer (<no parameter info>)
fffffa60`00cc5b40 winhv!WinHvSetEventLogCompletedNotificationRoutine (<no parameter info>)
fffffa60`00cc5b50 winhv!WinHvQueryInterceptIrql (<no parameter info>)
fffffa60`00cc5b60 winhv!WinHvGetSintMessage (<no parameter info>)
fffffa60`00cc5b90 winhv!WinHvAllocatePartitionSintIndex (<no parameter info>)
fffffa60`00cc5d60 winhv!WinHvClearVirtualInterrupt (<no parameter info>)
fffffa60`00cc5db0 winhv!WinHvFlushEventLogBuffer (<no parameter info>)
fffffa60`00cc5e10 winhv!WinHvQueryReferenceCounter (<no parameter info>)
fffffa60`00cc5e50 winhv!WinHvSignalEvent (<no parameter info>)
fffffa60`00cc5ea0 winhv!WinHvWriteGpa (<no parameter info>)
fffffa60`00cc5fb0 winhv!WinHvReadGpa (<no parameter info>)
fffffa60`00cc60c0 winhv!WinHvTranslateVirtualAddress (<no parameter info>)
fffffa60`00cc61a0 winhv!WinHvAssertVirtualInterrupt (<no parameter info>)
fffffa60`00cc6240 winhv!WinHvGetSintEventFlags (<no parameter info>)
fffffa60`00cc6e90 winhv!WinHvIsCompatibleServicedHypervisorImplementation (<no parameter info>)
fffffa60`00cc6e90 winhv!WinHvIsCompatibleServicedDriverImplementation (<no parameter info>)
fffffa60`00cc6e90 winhv!WinHvIsCompatibleHypervisorImplementation (<no parameter info>)
fffffa60`00cc6e90 winhv!WinHvIsCompatibleDriverImplementation (<no parameter info>)
fffffa60`00cc6ea0 winhv!WinHvLookupPortId (<no parameter info>)
fffffa60`00cc6ee0 winhv!WinHvLowMemoryPolicyRaiseException (<no parameter info>)
fffffa60`00cc6f90 winhv!WinHvLowMemoryPolicyReturnStatus (<no parameter info>)
fffffa60`00cc7070 winhv!WinHvQueryFeaturesState (<no parameter info>)
fffffa60`00cc71f0 winhv!WinHvDeleteEventLogBuffer (<no parameter info>)
fffffa60`00cc7220 winhv!WinHvUnmapEventLogBuffer (<no parameter info>)
fffffa60`00cc7250 winhv!WinHvFinalizeEventLogBufferGroup (<no parameter info>)
fffffa60`00cc7310 winhv!WinHvSetEndOfMessage (<no parameter info>)
fffffa60`00cc7340 winhv!WinHvAllocateSingleSintIndex (<no parameter info>)
fffffa60`00cc7530 winhv!WinHvClearLogicalProcessorRunTimeGroup (<no parameter info>)
fffffa60`00cc7560 winhv!WinHvSetLogicalProcessorRunTimeGroup (<no parameter info>)
fffffa60`00cc7740 winhv!WinHvGetMemoryBalance (<no parameter info>)
fffffa60`00cc77a0 winhv!WinHvGetLogicalProcessorRunTime (<no parameter info>)
fffffa60`00cc7830 winhv!WinHvGetNextChildPartition (<no parameter info>)
fffffa60`00ccf0e0 winhv!WinHvReportPresentHypervisor (<no parameter info>)
fffffa60`00ccf400 winhv!WinHvSetSint (<no parameter info>)
fffffa60`00ccf5b0 winhv!WinHvMapStatsPage (<no parameter info>)
fffffa60`00ccfa90 winhv!WinHvWithdrawMemory (<no parameter info>)
fffffa60`00ccfc80 winhv!WinHvDepositMemory (<no parameter info>)
fffffa60`00ccfd80 winhv!WinHvAllocatePortId (<no parameter info>)
fffffa60`00ccfff0 winhv!WinHvUnmapStatsPage (<no parameter info>)
fffffa60`00cd02d0 winhv!WinHvDeleteTimer (<no parameter info>)
fffffa60`00cd02f0 winhv!WinHvCreateTimer (<no parameter info>)
fffffa60`00cd0360 winhv!WinHvFreePortId (<no parameter info>)
fffffa60`00cd03c0 winhv!WinHvSupplyInterruptVector (<no parameter info>)
fffffa60`00cd0a80 winhv!WinHvAdjustFeaturesState (<no parameter info>)
fffffa60`00cd0aa0 winhv!WinHvQueryFeatureInformation (<no parameter info>)
fffffa60`00cd0ab0 winhv!WinHvGetIdentifierString (<no parameter info>)
fffffa60`00cd0bd0 winhv!WinHvFreeSingleSintIndex (<no parameter info>)
fffffa60`00cd0c20 winhv!WinHvFreePartitionSintIndex (<no parameter info>)
fffffa60`00cd0dd0 winhv!DllUnload (<no parameter info>)
fffffa60`00cd0f30 winhv!WinHvReclaimInterruptVector (<no parameter info>)
fffffa60`00cd1030 winhv!WinHvRestorePartitionState (<no parameter info>)
fffffa60`00cd1170 winhv!WinHvSavePartitionState (<no parameter info>)
fffffa60`00cd3050 winhv!DllInitialize (<no parameter info>)
fffffa60`00cd3990 winhv!DriverEntry (<no parameter info>)

If we have a clean virtualized guest without any tools installed then we can rely on hardware information:

kd> !sysinfo machineid
Machine ID Information [From Smbios 2.3, DMIVersion 35, Size=3752]
BiosVendor = American Megatrends Inc.
BiosVersion = 080002
BiosReleaseDate = 05/05/2008
SystemManufacturer = Microsoft Corporation
SystemProductName = Virtual Machine
SystemVersion = 5.0
BaseBoardManufacturer = Microsoft Corporation
BaseBoardProduct = Virtual Machine
BaseBoardVersion = 5.0

- Dmitry Vostokov @ DumpAnalysis.org -

NULL data pointer, stack trace, inline function optimization and platformorphic fault: pattern cooperation

Monday, July 27th, 2009

We have the following crash pointing to Driver.sys

7: kd> KL
Child-SP          RetAddr           Call Site
fffffadd`7671a678 fffff800`0102e5f4 nt!KeBugCheckEx
fffffadd`7671a680 fffff800`0102d587 nt!KiBugCheckDispatch+0x74
fffffadd`7671a800 fffffadd`88e5dbf3 nt!KiPageFault+0x207
fffffadd`7671a998 fffffadd`88df63f5 Driver!memcpy+0×83
fffffadd`7671a9a0 fffffadd`88dfe97b Driver!ItemCopyTo+0×85

fffffadd`7671a9e0 fffffadd`88e45bd1 Driver!CallbackEx+0×3cb
fffffadd`7671aa80 fffffadd`88dfb130 Driver!Callback+0×131
fffffadd`7671ab90 fffffadd`88dfaef3 Driver!Reply+0×1a0
fffffadd`7671ac40 fffffadd`88de9e23 Driver!OnDataReceive+0×1a3
fffffadd`7671acc0 fffff800`0124e932 Driver!ReaderThread+0×553
fffffadd`7671ad70 fffff800`010202b6 nt!PspSystemThreadStartup+0×3e
fffffadd`7671add0 00000000`00000000 nt!KxStartSystemThread+0×16

7: kd> !analyze -v
[...]
DRIVER_IRQL_NOT_LESS_OR_EQUAL (d1)
An attempt was made to access a pageable (or completely invalid) address at an interrupt request level (IRQL) that is too high.  This is usually caused by drivers using improper addresses. If kernel debugger is available get stack backtrace.
Arguments:
Arg1: 0000000000000007, memory referenced
Arg2: 0000000000000002, IRQL
Arg3: 0000000000000001, value 0 = read operation, 1 = write operation
Arg4: fffffadd88e5dbf3, address which referenced memory
[...]
TRAP_FRAME:  fffffadd7671a800 -- (.trap 0xfffffadd7671a800)
[...]

7: kd> .trap 0xfffffadd7671a800
[...]
NOTE: The trap frame does not contain all registers.
Some register values may be zeroed or incorrect

7: kd> r
Last set context:
rax=0000000000001000 rbx=0000000000000000 rcx=0000000000000007
rdx=fffffadda17d001d rsi=0000000000000000 rdi=0000000000000000
rip=fffffadd88e5dbf3 rsp=fffffadd7671a998 rbp=0000000000000001
 r8=0000000000000001  r9=fffffadda254f2f0 r10=0000000000000000
r11=0000000000000007 r12=0000000000000000 r13=0000000000000000
r14=0000000000000000 r15=0000000000000000
iopl=0 nv up ei pl nz na pe nc
cs=0010 ss=0018 ds=0006 es=0000 fs=fadf gs=ffff efl=00010202
Driver!memcpy+0×83:
fffffadd`88e5dbf3 8801  mov byte ptr [rcx],al ds:0006:0007=??

.trap warning above perhaps explains why we have non-standard values in ds, fs and gs. Typical expected values in kernel mode are these (ds is ignored in 64-bit mode anyway):

cs=0010 ss=0018 ds=002b es=002b fs=0053 gs=002b efl=00010202

7: kd> kL
Child-SP          RetAddr           Call Site
fffffadd`7671a998 fffffadd`88df63f5 Driver!memcpy+0×83
fffffadd`7671a9a0 fffffadd`88dfe97b Driver!ItemCopyTo+0×85
fffffadd`7671a9e0 fffffadd`88e45bd1 Driver!CallbackEx+0×3cb
fffffadd`7671aa80 fffffadd`88dfb130 Driver!Callback+0×131
fffffadd`7671ab90 fffffadd`88dfaef3 Driver!Reply+0×1a0
fffffadd`7671ac40 fffffadd`88de9e23 Driver!OnDataReceive+0×1a3
fffffadd`7671acc0 fffff800`0124e932 Driver!ReaderThread+0×553
fffffadd`7671ad70 fffff800`010202b6 nt!PspSystemThreadStartup+0×3e
fffffadd`7671add0 00000000`00000000 nt!KxStartSystemThread+0×16

We clearly have an instance of a NULL pointer data access. If we try to match this stack trace to known faults in database we would probably find many entries because memcpy is a generic function from C library. So we should try with ItemCopyTo. Indeed, we find a few matches but with slightly different stack traces:

b7535c7c b75931fa Driver!ItemCopyTo+0×6a
b7535ca4 b75c24c4 Driver!CallbackEx+0×23a
b7535d04 b7590c79 Driver!Callback+0xd4
b7535d44 b7590b41 Driver!Reply+0xe9
b7535d68 b7584b87 Driver!OnDataReceive+0×111
b7535dac 8094bea4 Driver!ReaderThread+0×397
b7535ddc 8088f61e nt!PspSystemThreadStartup+0×2e
00000000 00000000 nt!KiThreadStartup+0×16

Offsets are different but the function names are the same. We also don’t see memcpy call but if we look at the faulted instruction we suspect it was inlined memcpy call:

eax=88642870 ebx=00000005 ecx=00000001 edx=00000005 esi=88f3f9a4 edi=00000029
eip=b758d3ca esp=b7535c6c ebp=b7535c7c iopl=0 nv up ei pl nz ac po nc
cs=0008 ss=0010 ds=0023 es=0023 fs=0030 gs=0000 efl=00010212
Driver!ItemCopyTo+0×6a:
b758d3ca f3a5  rep movs dword ptr es:[edi],dword ptr [esi]

We also notice that the found stack trace is from x86 32-bit Windows but ours is from x64 Windows so we suspect the platformorphic fault here and check if we have a fix for x64 binaries.

- Dmitry Vostokov @ DumpAnalysis.org -

Memoidealism as Monistic Aspect Pluralism

Monday, July 27th, 2009

If memory is the basis of everything we might think that memoidealism is a kind of dual aspect monism or plural aspect monism, where mind, body and perhaps many other aspects are manifestations of one single memory substance. Or perhaps, memory is the same as matter or the realm of ideas (materialism or some sort of idealism), and memoidealism is the kind of monism. Or memory is the same or not the same as mind or matter and can be associated with one side of dualism. Not at all, memory is the aspect or attribute of mind, body and other substances, possibly itself. This can be illustrated on the following picture:



If there are only 2 substances then we have monistic aspect dualism as an extension of monism, for example, the extension of idealism:

or the extension of materialism (memuonic theory, memuonics):

Therefore, Memory is a substance and an aspect (attribute) at the same time. This is the essence of MAP (Monistic Aspect Pluralism).

- Dmitry Vostokov @ DumpAnalysis.org -

Epistemic Troubleshooting and Debugging (Part 1)

Sunday, July 26th, 2009

Paraphrasing “Knowing about knowing about knowing” (Side-box 0.1, Consciousness, David Rose) as “Knowing about knowing about problem solving”, I would suggest the following references to raise the level of awareness from meta-troubleshooting and meta-debugging, the subject of various general purpose debugging books to the next epistemic level. I’m currently reading the following books and let you know about my progress along the journey:

Toward a Unified Theory of Problem Solving: Views From the Content Domains

Buy from Amazon

The Psychology of Problem Solving

Buy from Amazon

The Cambridge Handbook of Expertise and Expert Performance

Buy from Amazon

- Dmitry Vostokov @ DumpAnalysis.org -

MDAA V1 is still a debugging bestseller

Saturday, July 25th, 2009

Noticed today that it is still one of the top bestselling debugging books on Amazon:

- Dmitry Vostokov @ DumpAnalysis.org -

Deadlocks in iPhone

Friday, July 24th, 2009

One of the authors of June Debugged! MZ/PE issue, Kapildev Ramlal, published a short article about XCode debugging of multithreaded deadlocks and a few GDB commands:

Episode 1 of XCode iPhone Debugging Adventures

- Dmitry Vostokov @ DumpAnalysis.org -

Debugged! MZ/PE June issue is out

Thursday, July 23rd, 2009

Finally the issue is available on Amazon and through other sellers:

Debugged! MZ/PE: Modeling Software Defects

Buy from Amazon

I’m now planning the September issue and post details later.

- Dmitry Vostokov @ DumpAnalysis.org -

Real-time Memory Visualization System

Thursday, July 23rd, 2009

Jamie Fenton has finally made available for beta testing fantastic memory visualization system HayWire & Barn Burner I use often for mining curious pictures from virtual memory space, like “cosmic rays“. Besides providing artistic pleasure, real-time natural memory visualization can have other applications including visual debugging. Looking forward to seeing more wonders in this area of research!

- Dmitry Vostokov @ DumpAnalysis.org -

Trace Analysis Patterns (Part 5)

Wednesday, July 22nd, 2009

Sometimes we have several disjoint Periodic Errors and possible false positives. We wonder where should we start or assign relative priorities for troubleshooting suggestions. Here Statement Density and Current pattern can help. The statement or message density is simply the ratio of the number of occurrences of the specific trace statement (message) in the trace to the total number of all different recorded messages.

Consider this software trace with two frequent messages:

N     PID  TID
21    5928 8092 LookupAccountSid failed. Result = -2146238462
[...]
1013  5928 1340 SQL execution needs a retry. Result = 0

We have approx. 7,500 statements for the former and approx. 1,250 statements for the latter. The total number of trace statements is 185,700, so we have the corresponding approx. trace densities: 0.04 and 0.0067. Their relative ratio 7,500 / 1,250 is 6.

Another trace for the same problem was collected at a different time with the same errors. It has 71,100 statements and only 160 and 27 statements counted for messages above. We have a ratio 160 / 27 approx. the same, 5.93, that suggests that messages are correlated. However statement density is much lower, 0,002 and 0.00038 approx. and this suggests the closer look at the second trace to see whether these problems started at some time later after the start of the recording.

We can also check the statement current as the number of messages per unit of time. The first trace was recorded over the period of 195 seconds and the second over the period of 650 seconds. Therefore, we have 952 msg/s and 109 msg/s respectively. This suggests that the problem might have started at some time during the second trace or there were more modules selected for the first trace. To make sure, we adjust the total number of messages for these two traces. We find the first occurrence of the error and subtract its message number from the total number of messages. For our first trace we see that messages start from the very beginning, and in our second trace they also almost start from the beginning. So such adjustment shouldn’t give much better results here. Also these statements continue to be recorded till the very end of these traces.

To avoid being lost in this discusssion I repeat main results:

           Density             Relative Density   Current,
                                                  all msg/s
Trace 1    0.04 / 0.0067       6                  952
Trace 2    0.002 / 0.00038     5.93               109

The possibility that much more was traced that resulted in lower density for the second trace should be discarded because we have much lower current. Perhaps environment was not quite the same for the second tracing. However the same relative density for two different errors suggest that they are correlated and the higher density of the first error suggests that we should start our investigation from it.

The reason why I came up with this statistical trace analysis pattern is because 2 different engineers analyzed the same trace and both were suggesting different troubleshooting paths based on selected error messages from software traces. So I did a statistical analysis to prioritize their suggestions.

- Dmitry Vostokov @ TraceAnalysis.org -

The Origin of Software Engineering Notebooks

Tuesday, July 21st, 2009

The idea to have a reading notebook online came to me after I recalled that at school I heard that Lenin had Philosophical Notebooks. You can find them in Lenin Internet Library, volume 38 of his Collected Works. As a schoolboy, I was curious about Lenin’s notebooks and even borrowed them from the school library to see how they looked like inside. I wasn’t impressed though due to the lack of philosophical knowledge on my side but the idea stuck to my mind. At my school age I read his biography several times and my favourite episode was an assassination attempt by socialist revolutionary Fanny Kaplan.

- Dmitry Vostokov @ DumpAnalysis.org -

Hot-Chopped MDAA Volumes

Tuesday, July 21st, 2009

Found today on Amazon that one seller sells cheap chopped copies of Memory Dump Analysis Anthology:

“The LOWEST PRICE because the spine binding & glue has been CHOPPED OFF; the binding is MISSING; this makes the loose pages suitable for photocopying or for hole punching to place into a 3-ring notebook. The pages have no marks or highlights. I also have Volume 2 with a cut spine for cheap.”

The seller has been contacted to stop this advertisement because the page number 2 in both volumes says:

You must not circulate this book in any other binding or cover and you must impose the same condition on any acquirer.

There is also the standard clause about reproduction and storage.

- Dmitry Vostokov @ DumpAnalysis.org -

3D Memory Visualization

Sunday, July 19th, 2009

Finally I realized this morning that in addition to folding of a linear memory space into a 2D image in ParaView, the so called DLL List Landscape, we can also do a 3D folding too. I used the same dump file but this time the formula for coordinates is:

(file_size/4)1/3

so for 1,746,853 byte file we have a 3D map of 75×75x75 points. Here are some beautiful images (click on them for a larger view) that I got and I write next parts of advanced memory visualization tutorial later next week.

Point view

Click to enlarge

Wireframe view

Click to enlarge

Surface view

Click to enlarge

Surface + edges view

Click to enlarge

Volume view

Click to enlarge

The chosen 3D folding shows varying 2D landscape in XY plane but almost constant landscape in YZ and XZ slices:

Click to enlarge

Click to enlarge

Click to enlarge

Click to enlarge

Click to enlarge

Click to enlarge

More effects.

Contour view

Click to enlarge

Process DNA view

Click to enlarge

- Dmitry Vostokov @ DumpAnalysis.org -

Anatomy of Analogy of Anthology of Memory

Saturday, July 18th, 2009

Here is a bit of history of Memory Dump Analysis Anthology. Back in 2008, in January-February I was in search of the title name and was focused on variations of Crash Dump Analysis until one day I stumbled across this book in the local book shop (UK version was available earlier in February before US and you can still buy it on Amazon UK):

Memory: An Anthology

Buy from Amazon

I immediately understood how I needed to name the collection of blog posts. Thus Memory Dump Analysis Anthology, Volume 1 was born.

- Dmitry Vostokov @ DumpAnalysis.org -

Realtime Reading of Windows Internals

Friday, July 17th, 2009

I resumed this week my reading notebook on Software Generalist blog with a top priority book to read every working day: Windows Internals, 5th edition. In reading notes I put what I find interesting for me (at this time) or related to Windows memory dump analysis or debugging and troubleshooting in general. For the latter case, sometimes I put additional references or even WinDbg examples from user, kernel and complete memory dumps in full color. Hope you find these notes useful too.

- Dmitry Vostokov @ DumpAnalysis.org -

On Space and Mode

Friday, July 17th, 2009

Sometimes I see engineers use memory “space” and protection “mode” terms interchangeably although, in my opinion, there is a big difference between them. They are independent from each other (orthogonal). For example, a thread may access a user space address but be running in a kernel protected mode. Even it is possible to call a user space function from a kernel space thread (that function shouldn’t try to call Windows API). The following combinations are possible:

user space / user mode
kernel space / kernel mode
user space / kernel mode

Most of the time space and mode coincide (blue - user, red - kernel):

ChildEBP RetAddr
b6046c50 80833e95 nt!KiSwapContext+0×26
b6046c7c 8082b72b nt!KiSwapThread+0×2e5
b6046cc4 808ef652 nt!KeRemoveQueue+0×417
b6046d48 8088b19c nt!NtRemoveIoCompletion+0xdc
b6046d48 7c94860c nt!KiFastCallEntry+0xfc
00bfff70 7c9477f9 ntdll!KiFastSystemCallRet
00bfff74 7c959f68 ntdll!NtRemoveIoCompletion+0xc
00bfffb8 7c82482f ntdll!RtlpWorkerThread+0×3d
00bfffec 00000000 kernel32!BaseThreadStart+0×34

I personally prefer to talk about ”spaces” when I analyze complete memory dumps and almost never talk about “modes”.

- Dmitry Vostokov @ DumpAnalysis.org -
