Crash Dump Analysis Patterns (Part 10)

Monday, March 19th, 2007

Sometimes the change of operating system version or installing an intrusive product reveals hidden bugs in software that was working perfectly before that.

What have happened after installing the new software? If you look at the process dump you would see many DLLs loaded at their specific virtual addresses. Here is the output from lm WinDbg command after attaching to iexplore.exe process running on my Windows XP SP2 workstation:

0:000> lm
start    end      module name
00400000 00419000 iexplore
01c80000 01d08000 shdoclc
01d10000 01fd5000 xpsp2res
022b0000 022cd000 xpsp3res
02680000 02946000 msi
031f0000 031fd000 LvHook
03520000 03578000 PortableDeviceApi
037e0000 037f7000 odbcint
0ffd0000 0fff8000 rsaenh
20000000 20012000 browselc
30000000 302ee000 Flash9b
325c0000 325d2000 msohev
4d4f0000 4d548000 WINHTTP
5ad70000 5ada8000 UxTheme
5b860000 5b8b4000 NETAPI32
5d090000 5d12a000 comctl32_5d090000
5e310000 5e31c000 pngfilt
63000000 63014000 SynTPFcs
662b0000 66308000 hnetcfg
66880000 6688c000 ImgUtil
6bdd0000 6be06000 dxtrans
6be10000 6be6a000 dxtmsft
6d430000 6d43a000 ddrawex
71a50000 71a8f000 mswsock
71a90000 71a98000 wshtcpip
71aa0000 71aa8000 WS2HELP
71ab0000 71ac7000 WS2_32
71ad0000 71ad9000 wsock32
71b20000 71b32000 MPR
71bf0000 71c03000 SAMLIB
71c10000 71c1e000 ntlanman
71c80000 71c87000 NETRAP
71c90000 71cd0000 NETUI1
71cd0000 71ce7000 NETUI0
71d40000 71d5c000 actxprxy
722b0000 722b5000 sensapi
72d10000 72d18000 msacm32
72d20000 72d29000 wdmaud
73300000 73367000 vbscript
73760000 737a9000 DDRAW
73bc0000 73bc6000 DCIMAN32
73dd0000 73ece000 MFC42
74320000 7435d000 ODBC32
746c0000 746e7000 msls31
746f0000 7471a000 msimtf
74720000 7476b000 MSCTF
754d0000 75550000 CRYPTUI
75970000 75a67000 MSGINA
75c50000 75cbe000 jscript
75cf0000 75d81000 mlang
75e90000 75f40000 SXS
75f60000 75f67000 drprov
75f70000 75f79000 davclnt
75f80000 7607d000 BROWSEUI
76200000 76271000 mshtmled
76360000 76370000 WINSTA
76390000 763ad000 IMM32
763b0000 763f9000 comdlg32
76600000 7661d000 CSCDLL
767f0000 76817000 schannel
769c0000 76a73000 USERENV
76b20000 76b31000 ATL
76b40000 76b6d000 WINMM
76bf0000 76bfb000 PSAPI
76c30000 76c5e000 WINTRUST
76c90000 76cb8000 IMAGEHLP
76d60000 76d79000 iphlpapi
76e80000 76e8e000 rtutils
76e90000 76ea2000 rasman
76eb0000 76edf000 TAPI32
76ee0000 76f1c000 RASAPI32
76f20000 76f47000 DNSAPI
76f60000 76f8c000 WLDAP32
76fc0000 76fc6000 rasadhlp
76fd0000 7704f000 CLBCATQ
77050000 77115000 COMRes
77120000 771ac000 OLEAUT32
771b0000 77256000 WININET
773d0000 774d3000 comctl32
774e0000 7761d000 ole32
77920000 77a13000 SETUPAPI
77a20000 77a74000 cscui
77a80000 77b14000 CRYPT32
77b20000 77b32000 MSASN1
77b40000 77b62000 appHelp
77bd0000 77bd7000 midimap
77be0000 77bf5000 MSACM32_77be0000
77c00000 77c08000 VERSION
77c10000 77c68000 msvcrt
77c70000 77c93000 msv1_0
77d40000 77dd0000 USER32
77dd0000 77e6b000 ADVAPI32
77e70000 77f01000 RPCRT4
77f10000 77f57000 GDI32
77f60000 77fd6000 SHLWAPI
77fe0000 77ff1000 Secur32
7c800000 7c8f4000 kernel32
7c900000 7c9b0000 ntdll
7c9c0000 7d1d5000 SHELL32
7dc30000 7df20000 mshtml
7e1e0000 7e280000 urlmon
7e290000 7e3ff000 SHDOCVW

Installing or upgrading software can change the distribution of loaded DLLs and their addresses. This also happens when you install some monitoring software which usually injects their DLLs into every process. As a result some DLLs might be relocated or even the new ones appear loaded. And this might influence 3rd-party program behavior therefore exposing its hidden bugs being dormant when executing the process in old environment. I call this pattern Changed Environment.

Let’s look at some hypothetical example. Suppose your program has the following code fragment

if (*p)
{
// do something useful
}

Suppose the pointer p is invalid, dangling, its value has been overwritten and this happened because of some bug. Being invalid that pointer can point to a valid memory location nevertheless and the value it points to most likely is non-zero. Therefore the body of the “if” statement will be executed. Suppose it always happens when you run the program and every time you execute it the value of the pointer happens to be the same. Here is the picture illustrating the point:

The pointer value 0×40010024 due to some reason always points to the value 0×00BADBAD. Although in the correct program the pointer itself should have had a completely different value and pointed to 0×1, for example, we see that dereferencing its current invalid value doesn’t crash the process.

After installing the new software, NewComponent DLL is loaded at the address range previously occupied by ComponentC:

Now the address 0×40010024 happens to be completely invalid and we have access violation and the crash dump.

- Dmitry Vostokov @ DumpAnalysis.org -

lvalues, rvalues and pointers

Monday, March 19th, 2007

I’ve just published stripped down HTML version of my old Code Reading lectures explaining lvalues and rvalues terminology (used in C and C++ standard documents) and pointers. It also explains how to read complex pointer declarations, const pointers and relationship between pointers and arrays. Understanding pointers is a must in low-level debugging. Can be found here:

lvalues, rvalues and pointers

- Dmitry Vostokov -

Practical Foundations of Debugging (x64)

Monday, March 19th, 2007

I’ve just published HTML slides for the first two original lectures on debugging on x64 platform written last year. Basically they are an improved version of my old lectures on debugging on x86 platforms developed in 2004. Now I put more emphasis on using WinDbg as a debugging tool and as previously no assembly language background is assumed. New lectures use x64 assembly language throughout. I’m planning to adapt them to ILP 32-32-64 Windows x64 model (integer-long-pointer) and port more old lectures this year.

- Dmitry Vostokov -

WinDbg tips and tricks: triple dereference

Tuesday, March 13th, 2007

WinDbg commands like dpp allow you to do double dereference in the following format

pointer *pointer **pointer

for example:

0:000> dpp 004015a2
004015a2  00405068 7c80929c kernel32!GetTickCount

I had a couple of cases where I needed triple dereference (or even quadruple dereference) done on a range of memory. Finally after some thinking I tried to use WinDbg scripts and it worked. The key is to use $p pseudo-register which shows the last value of d* commands (dd, dps, etc):

.for (r $t0=00000000`004015a2, $t1=4; @$t1 >= 0; r $t1=$t1-1, $t0=$t0+$ptrsize) { dps @$t0 l1; dps $p l1; dps $p l1; .printf "\n" }

where $t0 and $t1 are pseudo-registers used to hold the starting address of a memory block (I use 64-bit format) and the number of objects to be triple dereferenced and displayed. $ptrsize is a pointer size. The script is platform independent (can be used on both 32-bit and 64-bit target). On my 32-bit target it produces what I originally wanted (triple dereferenced memory), for example:

004015a2  00405068 component!_imp__GetTickCount
00405068  7c80929c kernel32!GetTickCount
7c80929c  fe0000ba

004015a6  458df033
458df033  ????????
458df033  ????????

004015aa  15ff50f0
15ff50f0  ????????
15ff50f0  ????????

004015ae  00405064 component!_imp__QueryPerformanceCounter
00405064  7c80a427 kernel32!QueryPerformanceCounter
7c80a427  8b55ff8b

004015b2  33f4458b
33f4458b  ????????
33f4458b  ????????

If you want quadruple dereferenced memory you just need to add the additional dps @$t0 l1; to .for loop body. With this script even double dereference looks much better because it shows symbol information for the first dereference too whereas dpp command shows symbol name only for the second dereference.

Another less “elegant” variation without $p pseudo-register uses poi operator but you need a .catch block to prevent the script termination on invalid memory access:

0:000> .for (r $t0=00000000`004015a2, $t1=4; @$t1 >= 0; r $t1=$t1-1, $t0=$t0+$ptrsize) { .catch { dds $t0 l1; dds poi($t0) l1; dds poi(poi($t0)) l1; }; .printf "\n" }

004015a2  00405068 component!_imp__GetTickCount
00405068  7c80929c kernel32!GetTickCount
7c80929c  fe0000ba

004015a6  458df033
458df033  ????????
Memory access error at ') '

004015aa  15ff50f0
15ff50f0  ????????
Memory access error at ') '

004015ae  00405064 component!_imp__QueryPerformanceCounter
00405064  7c80a427 kernel32!QueryPerformanceCounter
7c80a427  8b55ff8b

004015b2  33f4458b
33f4458b  ????????
Memory access error at ') '

You can also use !list extension but more formatting is necessary:

0:000> .for (r $t0=00000000`004015a2, $t1=4; @$t1 >= 0; r $t1=$t1-1, $t0=$t0+$ptrsize) { .printf "%p:\n--------\n\n", $t0; !list -x "dds @$extret l1" $t0; .printf "\n" }
004015a2:
---------
004015a2  00405068 component!_imp__GetTickCount
00405068  7c80929c kernel32!GetTickCount
7c80929c  fe0000ba
fe0000ba  ????????
Cannot read next element at fe0000ba
004015a6:
---------
004015a6  458df033
458df033  ????????
Cannot read next element at 458df033
004015aa:
---------
004015aa  15ff50f0
15ff50f0  ????????
Cannot read next element at 15ff50f0
004015ae:
---------
004015ae  00405064 component!_imp__QueryPerformanceCounter
00405064  7c80a427 kernel32!QueryPerformanceCounter
7c80a427  8b55ff8b
8b55ff8b  ????????
Cannot read next element at 8b55ff8b
004015b2:
---------
004015b2  33f4458b
33f4458b  ????????
Cannot read next element at 33f4458b

The advantage of !list is in unlimited number of pointer dereferences until invalid address is reached.

- Dmitry Vostokov -

Internet Based Crash Dump Analysis Service

Friday, March 9th, 2007

I’m planning to launch a pilot version of free research online service IBCDAS (Internet Based Crash Dump Analysis Service) which is under development and will be integrated with Crash Dump Analysis Portal (www.dumpanalysis.org). The idea is to use Google API to search for crash signatures and stack traces on Internet and mine that information for a potential solution (a fix, a service pack, actual component vendor responsible for a bug, an article, etc.). Information from internet will be fed to a database in a structured form for further analysis and to help with similar or related problems.

- Dmitry Vostokov -

Crash Dump Analysis and Debugging Portal

Friday, March 9th, 2007

I’ve decided that content management system is more suitable for organizing links, blog feeds, books and book reviews, articles, etc. Last year I set up crash dump analysis forum mainly to keep all that information in one place. Then later I started my own blog. The amount of information I’m trying to organize is growing and I want it to be more structured than it is now so I installed Drupal CMS on www.dumpanalysis.org and the portal is currently under development. Updates will be posted regularly. The crash dump analysis forum that was parked there has been moved to www.dumpanalysis.org/forum and I made great efforts to preserve links to its topics.

- Dmitry Vostokov -

Bugchecks depicted: IRQL_NOT_LESS_OR_EQUAL

Tuesday, March 6th, 2007

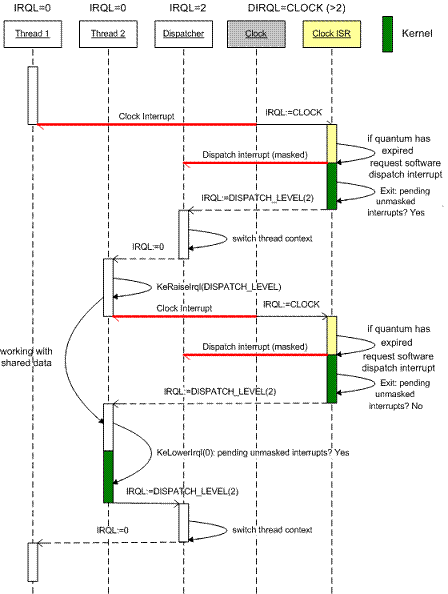

During kernel debugging training I’m providing I came up to the idea to use UML sequence diagrams to depict various Windows kernel behavior including bugchecks. Today I start with bugcheck A. To understand why this bugcheck is needed you need to understand the difference between thread scheduling and IRQL and I use the following diagram to illustrate it:

Then I explain interrupt masking:

Next I explain thread scheduling (thread dispatcher):

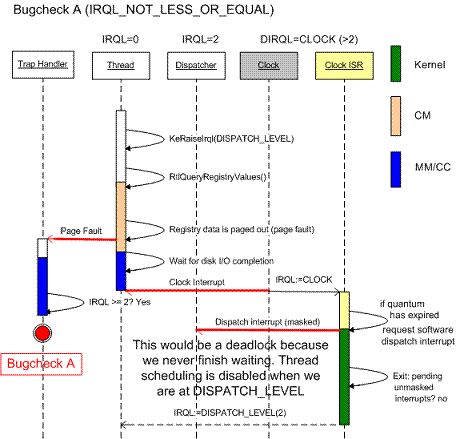

And finally here is the diagram showing when bugcheck A happens and what would happen if it doesn’t exist:

This bugcheck happens in the trap handler and IRQL checking before bugcheck happens in memory manager as you can see from the dump example below. There is no IRQL checking in disassembled handler so it must be in one of Mm functions:

BugCheck A, {3, 1c, 1, 8042d8f9}
0: kd> k
nt!KiTrap0E+0×210
driver!foo+0×209
0: kd> u nt!KiTrap0E nt!KiTrap0E+0×210
nt!KiTrap0E:

8046b05e call    nt!MmAccessFault (8044bfba)

8046b189 call    dword ptr [nt!_imp__KeGetCurrentIrql (8040063c)]
8046b18f lock    inc dword ptr [nt!KiHardwareTrigger (80470cc0)]
8046b196 mov     ecx,[ebp+0×64]
8046b199 and     ecx,0×2
8046b19c shr     ecx,1
8046b19e mov     esi,[ebp+0×68]
8046b1a1 push    esi
8046b1a2 push    ecx
8046b1a3 push    eax
8046b1a4 push    edi
8046b1a5 push    0xa
8046b1a7 call    nt!KeBugCheckEx (8042c1e2)

- Dmitry Vostokov -

WinDbg tips and tricks: analyzing hangs faster

Sunday, March 4th, 2007

I’ve just found (by using Google) that the additional parameter (-hang) to the venerable !analyze -v command is rarely used… Here is the command I use if I get a manually generated dump and there is no exception in it reported by !analyze -v and subsequent visual inspection of ~*kv output doesn’t show anything suspicious, leading to hidden exception(s):

!analyze -hang -v

Then I always double check with !locks command because there could be multiple hang conditions in a dump.

The same parameter can be used in kernel memory dumps too. But double checking ERESOURCE locks (!locks), kernel threads (!stacks) and DPC queues (!dpcs) manually is highly recommended.

- Dmitry Vostokov -

WinDbg tips and tricks: hypertext commands

Saturday, March 3rd, 2007

You may know that the recent versions of WinDbg have RichEdit command output window that allows to do syntax highlighting and simulate hyperlinks.

Tooltip from WindowHistory shows window class:

However you may not know there is Debugger Markup Language (DML) and there are new commands that take advantage of it. For documentation please look at dml.doc located in your Debugging Tools for Windows folder.

Here is the output of some commands:

!dml_proc

Here we can click on a process link and get the list of threads:

We can click either on “Full details” link or on an individual thread link to see its call stack. If we select “user-mode state” link we get automatic switch to process context (useful for complete memory dumps):

kd> .process /p /r 0x8342c128
Implicit process is now 8342c128
Loading User Symbols

You can also navigate frames and local variables very easily:

If you click on a thread name (No name here) you get its context:

Clicking on a number sets the scope and shows local variables (if you have full PDB files):



Similar command is kM:

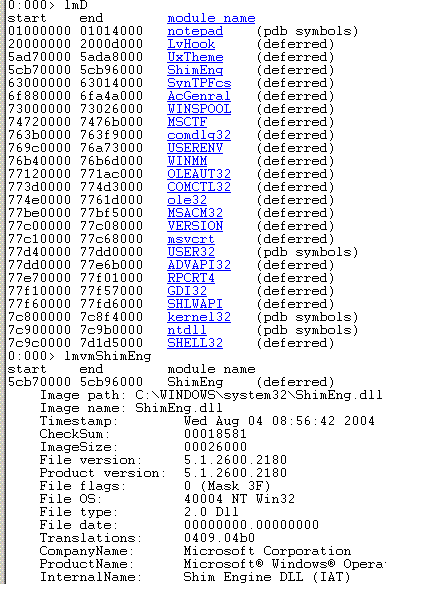

Another useful command is lmD where you can easily inspect modules:

- Dmitry Vostokov -

Crash Dump Analysis AntiPatterns (Part 4)

Thursday, March 1st, 2007

A customer reports application.exe crashes and you ask for a dump file. You get a dump, open it and see the dump is not from your application.exe. You ask for print spooler crash dump and you get mplayer.exe crash dump. I originally thought to call it Wrong Dump pattern and place it into patterns category but after writing about Zippocricy I clearly see it as anti-pattern. It is not a rocket science to check process name in a dump file before sending it for analysis:

  • Load the user process dump in WinDbg
  • Type command .symfix; .reload; !analyze -v and wait



until WinDbg is not busy analyzing

  • Find PROCESS_NAME: in the output. You get something like:

PROCESS_NAME: spoolsv.exe

You can also use dumpchk.exe from Debugging Tools for Windows.

I’m also writing a new version of Citrix DumpCheck Explorer extension that will include process name in its output.

Another example is when you ask for a complete memory dump but you get a kernel dump or you get various mini-dumps. Fortunately DumpCheck extension can  warn users before they submit a dump.

- Dmitry Vostokov -
