Crash Dump Analysis Patterns (Part 28)

Wednesday, September 26th, 2007

Sometimes we have a problem that some functionality is not available or it is unresponsive when we request it. We can suppose that the process implementing that functionality has crashed or hangs. If we know the relationship between processes we can request several user dumps at once or a complete memory dump to analyze the dependency between processes by looking at their stack traces. This is an example of the system level crash dump analysis pattern that I call Coupled Processes.

Process relationship can be implemented via different interprocess communication mechanisms (IPC), for example, Remote Procedure Call (RPC) via LPC (Local Procedure Call) which can be easily identified in stack traces.

My favorite example here is when some application tries to print and hangs. Printing API is exported from WINSPOOL.DLL and it forwards via RPC most requests to Windows Print Spooler service. Therefore it is logical to take two dumps, one from that application and one from spoolsv.exe. Similar example is from Citrix Presentation Server environments related to printer autocreation when there are dependencies between Citrix Printing Service CpSvc.exe and spoolsv.exe. Therefore if new user connections hang and restarting both printing services resolves the issue then we might need to analyze dumps from both services together to confirm this Procedure Call Chain and find the problem 3rd-party printing component or driver.

Back to my favorite example. In the hang application we have the following thread:

  18  Id: 2130.6320 Suspend: 1 Teb: 7ffa8000 Unfrozen
ChildEBP RetAddr
01eae170 7c821c94 ntdll!KiFastSystemCallRet
01eae174 77c72700 ntdll!NtRequestWaitReplyPort+0xc
01eae1c8 77c713ba rpcrt4!LRPC_CCALL::SendReceive+0x230
01eae1d4 77c72c7f rpcrt4!I_RpcSendReceive+0x24
01eae1e8 77ce219b rpcrt4!NdrSendReceive+0x2b
01eae5d0 7307c9ef rpcrt4!NdrClientCall2+0x22e
01eae5e8 73082d8d winspool!RpcAddPrinter+0x1c
01eaea70 0040d81a winspool!AddPrinterW+0x102
01eaef58 0040ee7c App!AddNewPrinter+0x816
...
...
...

Notice winspool and rpcrt4 modules. The application is calling spooler service using RPC to add a new printer and waiting for a reply back. Looking at spooler service dump shows several threads displaying message boxes and waiting for user input:

  20  Id: 790.5950 Suspend: 1 Teb: 7ffa2000 Unfrozen
ChildEBP RetAddr  Args to Child
03deea70 7739d02f 77392bf3 00000000 00000000 ntdll!KiFastSystemCallRet
03deeaa8 7738f122 03dd0058 00000000 00000001 user32!NtUserWaitMessage+0xc
03deead0 773a1722 77380000 00123690 00000000 user32!InternalDialogBox+0xd0
03deed90 773a1004 03deeeec 03dae378 03dae160 user32!SoftModalMessageBox+0x94b
03deeee0 773b1a28 03deeeec 00000028 00000000 user32!MessageBoxWorker+0x2ba
03deef38 773b19c4 00000000 03defb9c 03def39c user32!MessageBoxTimeoutW+0x7a
03deef58 773b19a0 00000000 03defb9c 03def39c user32!MessageBoxExW+0x1b
03deef74 021f265b 00000000 03defb9c 03def39c user32!MessageBoxW+0×45
WARNING: Stack unwind information not available. Following frames may be wrong.
03deef88 00000000 03dae160 03deffec 03dae16a PrinterDriver!UninstallerInstall+0×2cb

Dumping the 3rd parameter of MessageBoxW using WinDbg du command shows the message:

“Installation of the software for your printer is now complete. Restart your computer to make the new settings active.”

Another example when one process starts another and is waiting for it to finish:

0 Id: 2a34.24d0 Suspend: 1 Teb: 7ffde000 Unfrozen
ChildEBP RetAddr
0007ec8c 7c822124 ntdll!KiFastSystemCallRet
0007ec90 77e6bad8 ntdll!NtWaitForSingleObject+0xc
0007ed00 77e6ba42 kernel32!WaitForSingleObjectEx+0xac
0007ed14 01002f4c kernel32!WaitForSingleObject+0x12
0007f79c 01003137 userinit!ExecApplication+0x2d3
0007f7dc 0100366b userinit!ExecProcesses+0x1bb
0007fe68 010041fd userinit!StartTheShell+0x132
0007ff1c 010056f1 userinit!WinMain+0x263
0007ffc0 77e523e5 userinit!WinMainCRTStartup+0x186
0007fff0 00000000 kernel32!BaseProcessStart+0x23

- Dmitry Vostokov @ DumpAnalysis.org -

Resolving “Symbol file could not be found”

Monday, September 17th, 2007

On one of my debugging workstations I couldn’t analyze kernel and complete memory dumps from Windows 2003 Server R02. I was always getting this message:

*** ERROR: Symbol file could not be found.  Defaulted to export symbols for ntkrnlmp.exe -

An attempt to reload and overwrite PDB files using .reload /o /f command didn’t resolve the issue but the following WinDbg command helped:

1: kd> !sym noisy
noisy mode - symbol prompts on

Reloading symbol files showed that default symbol path contained corrupt ntkrnlmp.pdb:

1: kd> .reload
DBGHELP: C:\Program Files\Debugging Tools for Windows\sym\ntkrnlmp.pdb\A91CA63E49A840F4A50509F90ADE10D52\ntkrnlmp.pdb - E_PDB_CORRUPT
DBGHELP: ntkrnlmp.pdb - file not found
*** ERROR: Symbol file could not be found.  Defaulted to export symbols for ntkrnlmp.exe -
DBGHELP: nt - export symbol

Deleting it and reloading symbols again showed problems with the file downloaded from MS symbol server too:

1: kd> .reload
SYMSRV:  c:\mss\ntkrnlmp.pdb\A91CA63E49A840F4A50509F90ADE10D52\ntkrnlmp.pd_
         The file or directory is corrupted and unreadable.
DBGHELP: ntkrnlmp.pdb - file not found
*** ERROR: Symbol file could not be found.  Defaulted to export symbols for ntkrnlmp.exe -
DBGHELP: nt - export symbols

Removing the folder and reloading symbols resolved the problem:

1: kd> .reload
DBGHELP: nt - public symbols
         c:\mss\ntkrnlmp.pdb\A91CA63E49A840F4A50509F90ADE10D52\ntkrnlmp.pdb

Now it was time to switch noisy mode off:

1: kd> !sym quiet
quiet mode - symbol prompts on

- Dmitry Vostokov @ DumpAnalysis.org -

Crash Dump Analysis Patterns (Part 27)

Friday, September 14th, 2007

Sometimes a problem can be identified not from a single Stack Trace pattern but from a Stack Trace Collection

These include Coupled ProcessesProcedure Call Chains and Blocked Threads. All of them will be discussed in subsequent parts and in this part I only discuss various methods to list stack traces.

  • Process dumps including various process minidumps:

~*kv command lists all process threads

!findstack module[!symbol] 2 command filters all stack traces to show ones containing module or module!symbol

!uniqstack command

  • Kernel minidumps:

have only one problem thread. kv command or its variant is suffice.

  • Kernel and complete memory dumps:

!process 0 ff command lists all processes and their threads including user space process thread stacks for complete memory dumps. This command is valid for Windows XP and later. For older systems use WinDbg scripts

!stacks 2 [module[!symbol]] command shows kernel mode stack traces and you can filter the output based on module or module!symbol. Filtering is valid only for dumps from Windows XP and later systems

~[ProcessorN]s;.reload /user;kv command sequence shows stack trace for the running thread on the specified processor.

!sprocess 0n<SessionId> ff lists all processes and their threads for the specified [terminal services] session.

!for_each_thread “.thread /r /p @#Thread; kvallows execution of stack trace command variants per each thread. The following script takes the advantage of this command to list complete stack traces from an x64 system.

The processor change command is illustrated in this example:

0: kd> ~2s

2: kd> k
ChildEBP RetAddr
eb42bd58 00000000 nt!KiIdleLoop+0x14

2: kd> ~1s;.reload /user;k
Loading User Symbols
...
ChildEBP RetAddr
be4f8c30 eb091f43 i8042prt!I8xProcessCrashDump+0x53
be4f8c8c 8046bfe2 i8042prt!I8042KeyboardInterruptService+0x15d
be4f8c8c 8049470f nt!KiInterruptDispatch+0x32
be4f8d54 80468389 nt!NtSetEvent+0x71
be4f8d54 77f8290a nt!KiSystemService+0xc9
081cfefc 77f88266 ntdll!ZwSetEvent+0xb
081cff0c 77f881b1 ntdll!RtlpUnWaitCriticalSection+0x1b
081cff14 1b00c7d1 ntdll!RtlLeaveCriticalSection+0x1d
081cff4c 1b0034da msjet40!Database::ReadPages+0x81
081cffb4 7c57b3bc msjet40!System::WorkerThread+0x115
081cffec 00000000 KERNEL32!BaseThreadStart+0x52

Example of !findstack command (process dump):

0:000> !findstack kernel32!RaiseException 2
Thread 000, 1 frame(s) match
* 00 0013b3f8 72e8d3ef kernel32!RaiseException+0x53
  01 0013b418 72e9a26b msxml3!Exception::raiseException+0x5f
  02 0013b424 72e8ff00 msxml3!Exception::_throwError+0x22
  03 0013b46c 72e6abaa msxml3!COMSafeControlRoot::getBaseURL+0x3d
  04 0013b4bc 72e6a888 msxml3!Document::loadXML+0x82
  05 0013b510 64b73a9b msxml3!DOMDocumentWrapper::loadXML+0x5a
  06 0013b538 64b74eb6 iepeers!CPersistUserData::initXMLCache+0xa6
  07 0013b560 77d0516e iepeers!CPersistUserData::load+0xfc
  08 0013b57c 77d14abf oleaut32!DispCallFunc+0x16a
...
...
...
  66 0013fec8 0040243d shdocvw!IEWinMain+0x129
  67 0013ff1c 00402744 iexplore!WinMain+0x316
  68 0013ffc0 77e6f23b iexplore!WinMainCRTStartup+0x182
  69 0013fff0 00000000 kernel32!BaseProcessStart+0x23

Example of !stacks command (kernel dump):

2: kd> !stacks 2 nt!PspExitThread
Proc.Thread  .Thread  Ticks   ThreadState Blocker
                            [8a390818 System]

                            [8a1bbbf8 smss.exe]

                            [8a16cbf8 csrss.exe]

                            [89c14bf0 winlogon.exe]

                            [89dda630 services.exe]

                            [89c23af0 lsass.exe]

                            [8a227470 svchost.exe]

                            [89f03bb8 svchost.exe]

                            [89de3820 svchost.exe]

                            [89d09b60 svchost.exe]

                            [89c03530 ccEvtMgr.exe]

                            [89b8f4f0 ccSetMgr.exe]

                            [89dfe8c0 SPBBCSvc.exe]

                            [89c9db18 svchost.exe]

                            [89dfa268 spoolsv.exe]

                            [89dfa6b8 msdtc.exe]

                            [89df38f0 CpSvc.exe]

                            [89d97d88 DefWatch.exe]

                            [89e04020 IBMSPSVC.EXE]

                            [89b54710 IBMSPREM.EXE]

                            [89d9e4b0 IBMSPREM.EXE]

                            [89c2c4e8 svchost.exe]

                            [89d307c0 SavRoam.exe]

                            [89bfcd88 Rtvscan.exe]

                            [89b53b60 uphclean.exe]

                            [89c24020 AgentSVC.exe]

                            [89d75b60 sAginst.exe]

                            [89cf0d88 CdfSvc.exe]

                            [89d87020 cdmsvc.exe]

                            [89dafd88 ctxxmlss.exe]

                            [89d8dd88 encsvc.exe]

                            [89d06d88 ImaSrv.exe]

                            [89d37b60 mfcom.exe]

                            [89c8bb18 SmaService.exe]

                            [89d2ba80 svchost.exe]

                            [89ce8630 XTE.exe]

                            [89b64b60 XTE.exe]

                            [89b7c680 ctxcpusched.exe]

                            [88d94a88 ctxcpuusync.exe]

                            [89ba5418 unsecapp.exe]

                            [89d846e0 wmiprvse.exe]

                            [89cda9d8 ctxwmisvc.exe]

                            [88d6cb78 logon.scr]

                            [88ba0a70 csrss.exe]

                            [88961968 winlogon.exe]

                            [8865f740 rdpclip.exe]

                            [8858db20 wfshell.exe]

                            [88754020 explorer.exe]

                            [88846d88 BacsTray.exe]

                            [886b6180 ccApp.exe]

                            [884bc020 fppdis3a.exe]

                            [885cb350 ctfmon.exe]

                            [888bb918 cscript.exe]

                            [8880b3c8 cscript.exe]

                            [88ad2950 csrss.exe]
 b68.00215c  88930020 0000000 RUNNING    nt!KeBugCheckEx+0x1b
                                        nt!MiCheckSessionPoolAllocations+0xe3
                                        nt!MiDereferenceSessionFinal+0x183
                                        nt!MmCleanProcessAddressSpace+0x6b
                                        nt!PspExitThread+0x5f1
                                        nt!PspTerminateThreadByPointer+0x4b
                                        nt!PspSystemThreadStartup+0x3c
                                        nt!KiThreadStartup+0x16

                            [88629310 winlogon.exe]

                            [88a4d9b0 csrss.exe]

                            [88d9f8b0 winlogon.exe]

                            [88cd5840 wfshell.exe]

                            [8a252440 OUTLOOK.EXE]

                            [8a194bf8 WINWORD.EXE]

                            [88aabd20 ctfmon.exe]

                            [889ef440 EXCEL.EXE]

                            [88bec838 HogiaGUI2.exe]

                            [88692020 csrss.exe]

                            [884dd508 winlogon.exe]

                            [88be1d88 wfshell.exe]

                            [886a7d88 OUTLOOK.EXE]

                            [889baa70 WINWORD.EXE]

                            [8861e3d0 ctfmon.exe]

                            [887bbb68 EXCEL.EXE]

                            [884e4020 csrss.exe]

                            [8889d218 winlogon.exe]

                            [887c8020 wfshell.exe]

Threads Processed: 1101

What if we have a list of processes from a complete memory dump by using !process 0 0 command and we want to interrogate the specific process? In this case we need to switch to that process and reload user space symbol files (.process /r /p address)

There is also a separate command to reload user space symbol files any time (.reload /user).

After switching we can list threads (!process address), dump or search process virtual memory, etc. For example:

1: kd> !process 0 0
**** NT ACTIVE PROCESS DUMP ****
PROCESS 890a3320  SessionId: 0  Cid: 0008    Peb: 00000000  ParentCid: 0000
    DirBase: 00030000  ObjectTable: 890a3e08  TableSize: 405.
    Image: System

PROCESS 889dfd60  SessionId: 0  Cid: 0144    Peb: 7ffdf000  ParentCid: 0008
    DirBase: 0b9e7000  ObjectTable: 889fdb48  TableSize: 212.
    Image: SMSS.EXE

PROCESS 890af020  SessionId: 0  Cid: 0160    Peb: 7ffdf000  ParentCid: 0144
    DirBase: 0ce36000  ObjectTable: 8898e308  TableSize: 747.
    Image: CSRSS.EXE

PROCESS 8893d020  SessionId: 0  Cid: 0178    Peb: 7ffdf000  ParentCid: 0144
    DirBase: 0d33b000  ObjectTable: 890ab4c8  TableSize: 364.
    Image: WINLOGON.EXE

PROCESS 88936020  SessionId: 0  Cid: 0194    Peb: 7ffdf000  ParentCid: 0178
    DirBase: 0d7d5000  ObjectTable: 88980528  TableSize: 872.
    Image: SERVICES.EXE

PROCESS 8897f020  SessionId: 0  Cid: 01a0    Peb: 7ffdf000  ParentCid: 0178
    DirBase: 0d89d000  ObjectTable: 889367c8  TableSize: 623.
    Image: LSASS.EXE

1: kd> .process /r /p 8893d020
Implicit process is now 8893d020
Loading User Symbols
...

1: kd> !process 8893d020
PROCESS 8893d020  SessionId: 0  Cid: 0178    Peb: 7ffdf000  ParentCid: 0144
    DirBase: 0d33b000  ObjectTable: 890ab4c8  TableSize: 364.
    Image: WINLOGON.EXE
    VadRoot 8893a508 Clone 0 Private 1320. Modified 45178. Locked 0.
    DeviceMap 89072448
    Token                             e392f8d0
    ElapsedTime                        9:54:06.0882
    UserTime                          0:00:00.0071
    KernelTime                        0:00:00.0382
    QuotaPoolUsage[PagedPool]         34828
    QuotaPoolUsage[NonPagedPool]      43440
    Working Set Sizes (now,min,max)  (737, 50, 345) (2948KB, 200KB, 1380KB)
    PeakWorkingSetSize                2764
    VirtualSize                       46 Mb
    PeakVirtualSize                   52 Mb
    PageFaultCount                    117462
    MemoryPriority                    FOREGROUND
    BasePriority                      13
    CommitCharge                      1861

        THREAD 8893dda0  Cid 178.15c  Teb: 7ffde000  Win32Thread: a2034908 WAIT: (WrUserRequest) UserMode Non-Alertable
            8893bee0  SynchronizationEvent
        Not impersonating
        Owning Process 8893d020
        Wait Start TickCount    29932455      Elapsed Ticks: 7
        Context Switch Count    28087                   LargeStack
        UserTime                  0:00:00.0023
        KernelTime                0:00:00.0084
        Start Address winlogon!WinMainCRTStartup (0x0101cbb0)
        Stack Init eb1b0000 Current eb1afcc8 Base eb1b0000 Limit eb1ac000 Call 0
        Priority 15 BasePriority 15 PriorityDecrement 0 DecrementCount 0

        ChildEBP RetAddr  Args to Child
        eb1afce0 8042d893 00000000 a2034908 00000001 nt!KiSwapThread+0x1b1
        eb1afd08 a00019c2 8893bee0 0000000d 00000001 nt!KeWaitForSingleObject+0x1a3
        eb1afd44 a0013993 000020ff 00000000 00000001 win32k!xxxSleepThread+0x18a
        eb1afd54 a001399f 0006fdd8 80468389 00000000 win32k!xxxWaitMessage+0xe
        eb1afd5c 80468389 00000000 00000000 00000000 win32k!NtUserWaitMessage+0xb
        eb1afd5c 77e58b53 00000000 00000000 00000000 nt!KiSystemService+0xc9
        0006fdd0 77e33630 00000000 00000000 0000ffff USER32!NtUserWaitMessage+0xb
        0006fe04 77e44327 000100d2 00000000 00000010 USER32!DialogBox2+0x216
        0006fe28 77e38d37 76b90000 76c75c78 00000000 USER32!InternalDialogBox+0xd1
        0006fe48 77e39eba 76b90000 76c75c78 00000000 USER32!DialogBoxIndirectParamAorW+0x34
        0006fe6c 01011749 76b90000 00000578 00000000 USER32!DialogBoxParamW+0x3d
        0006fea8 01018bd3 000755e8 76b90000 00000578 winlogon!TimeoutDialogBoxParam+0x27
        0006fee0 76b93701 000755e8 76b90000 00000578 winlogon!WlxDialogBoxParam+0×7b
        0006ff08 010164c6 0008d0e0 5ffa0000 000755e8 3rdPartyGINA!WlxDisplaySASNotice+0×43
        0006ff20 01014960 000755e8 00000005 00072c9c winlogon!MainLoop+0×96
        0006ff58 0101cd06 00071fc8 00000000 00072c9c winlogon!WinMain+0×37a
        0006fff4 00000000 7ffdf000 000000c8 00000100 winlogon!WinMainCRTStartup+0×156

        THREAD 88980020  Cid 178.188  Teb: 7ffdc000  Win32Thread: 00000000 WAIT: (DelayExecution) UserMode Alertable
            88980108  NotificationTimer
        Not impersonating
        Owning Process 8893d020
        Wait Start TickCount    29930810      Elapsed Ticks: 1652
        Context Switch Count    15638
        UserTime                  0:00:00.0000
        KernelTime                0:00:00.0000
        Start Address KERNEL32!BaseThreadStartThunk (0x7c57b740)
        Win32 Start Address ntdll!RtlpTimerThread (0x77faa02d)
        Stack Init bf6f7000 Current bf6f6cc4 Base bf6f7000 Limit bf6f4000 Call 0
        Priority 13 BasePriority 13 PriorityDecrement 0 DecrementCount 0

        ChildEBP RetAddr  Args to Child
        bf6f6cdc 8042d340 bf6f6d64 00bfffac 00bfffac nt!KiSwapThread+0x1b1
        bf6f6d04 8052aac9 8046c101 00000001 bf6f6d34 nt!KeDelayExecutionThread+0x182
        bf6f6d54 80468389 00000001 00bfffac 00000000 nt!NtDelayExecution+0x7f
        bf6f6d54 77f82831 00000001 00bfffac 00000000 nt!KiSystemService+0xc9
        00bfff9c 77f842c4 00000001 00bfffac 00000000 ntdll!NtDelayExecution+0xb
        00bfffb4 7c57b3bc 0006fe60 00000000 00000000 ntdll!RtlpTimerThread+0x42
        00bfffec 00000000 77faa02d 0006fe60 00000000 KERNEL32!BaseThreadStart+0x52

1: kd> dds 0006fee0
0006fee0  0006ff08
0006fee4  76b93701 3rdPartyGINA!WlxDisplaySASNotice+0x43
0006fee8  000755e8
0006feec  76b90000 3rdParty
0006fef0  00000578
0006fef4  00000000
0006fef8  76b9370b 3rdParty!WlxDisplaySASNotice+0x4d
0006fefc  0008d0e0
0006ff00  00000008
0006ff04  00000080
0006ff08  0006ff20
0006ff0c  010164c6 winlogon!MainLoop+0x96
0006ff10  0008d0e0
0006ff14  5ffa0000
0006ff18  000755e8
0006ff1c  00000000
0006ff20  0006ff58
0006ff24  01014960 winlogon!WinMain+0x37a
0006ff28  000755e8
0006ff2c  00000005
0006ff30  00072c9c
0006ff34  00000001
0006ff38  000001bc
0006ff3c  00000005
0006ff40  00000001
0006ff44  0000000d
0006ff48  00000000
0006ff4c  00000000
0006ff50  00000000
0006ff54  0000ffe4
0006ff58  0006fff4
0006ff5c  0101cd06 winlogon!WinMainCRTStartup+0x156

- Dmitry Vostokov @ DumpAnalysis.org -

Is there any life inside Windows?

Thursday, September 13th, 2007

This question came into my mind while reading the fascinating book “Life Itself: A Comprehensive Inquiry into the Nature, Origin, and Fabrication of Life” written by theoretical biologist Robert Rosen and recalling that 13-14 years ago one Unix guru saw a Matt Pietrek’s book “Windows Internals” about Windows 3.x and asked me a rhetorical question: “Is there a life?”. Now we can ask the question again: “Is there any life inside a contemporary computer system?”.

Jokes apart, Rosen’s book about life is the most interesting science book I have ever read. It is a bit mathematical but doesn’t require more mathematical maturity than general science undergraduate level and even covers Category Theory in the context of modeling systems. Most people learnt about sets and their foundational nature at school or university but have never heard about a different approach via categories. Hopefully, this book will provide the right answer to me when I finish reading it.

Buy from Amazon

- Dmitry Vostokov @ DumpAnalysis.org -

Minidump Analysis (Part 3)

Wednesday, September 12th, 2007

Part 2 dealt with stack traces. Unfortunately stack traces reported by WinDbg, especially involving 3rd-party components, are usually incomplete and sometimes not even correct. They can also point to stable drivers when the system failure happened after slowly accumulated corruption caused by some intermediate driver or a combination of drivers.

Sometimes there are other 3rd-party drivers involved before the system crash that are not visible in the output of !analyze -v command and simply removing them, disabling or upgrading software they are part from make the system stable. To see them we can look at the so called raw stack data. Because kernel mode thread stack size is small (12Kb or 0×3000) we can simply dump memory range between ESP-3000 and ESP+3000. We can use RSP register for x64 dumps but the output will be the same.

Let’s look at our minidump from the previous part. The stack trace is small, incomplete and points to DisplayDriver. This is because we don’t have symbol information for DisplayDriver.dll. Could it be the case that DisplayDriver.dll was used incorrectly by another driver or operating system component? What are other components that might have been used prior to BSOD? Raw stack dump shows additional symbols like DisplayDriver_mini, win32k and dxg:

0: kd> dps esp-3000 esp+3000
b4f4f8b4  ????????
b4f4f8b8  ????????
b4f4f8bc  ????????
b4f4f8c0  ????????
...
...
...
b4f51ffc  ????????
b4f52000  00001000
b4f52004  00006000
b4f52008  b4f5204c
b4f5200c  89025978
b4f52010  89139000
b4f52014  00000000
b4f52018  b4f527ec
b4f5201c  b4f52840
b4f52020  bfbf0ca6 DisplayDriver+0x21bca6
b4f52024  00000000
b4f52028  89025978
...
...
...
b4f52100  e24079e0
b4f52104  bfbf0ca6 DisplayDriver+0x21bca6
b4f52108  00000008
...
...
...
b4f52364  b4f52414
b4f52368  804dc0b2 nt!ExecuteHandler+0x24
b4f5236c  b4f527ec
b4f52370  b4f52d40
b4f52374  b4f524e8
b4f52378  b4f52400
b4f5237c  bf9d2132 dxg!_except_handler3
b4f52380  2a2a2a0a
...
...
...
b4f523e8  b4f52408
b4f523ec  8053738a nt!KeBugCheckEx+0x1b
b4f523f0  0000008e
b4f523f4  c0000005
b4f523f8  bfbf0ca6 DisplayDriver+0x21bca6
b4f523fc  b4f52840
b4f52400  00000000
b4f52404  00000000
b4f52408  b4f527d0
b4f5240c  80521fed nt!KiDispatchException+0x3b1
b4f52410  0000008e
b4f52414  c0000005
b4f52418  bfbf0ca6 DisplayDriver+0x21bca6
b4f5241c  b4f52840
b4f52420  00000000
b4f52424  03a3fb4c
b4f52428  03a3fb4c
b4f5242c  b4f52800
b4f52430  00000000
b4f52434  00000000
b4f52438  00000000
b4f5243c  b9deffc6 DisplayDriver_mini+0x4bfc6
b4f52440  897c621c
b4f52444  00000086
b4f52448  0000003c
b4f5244c  b9f3af5a DisplayDriver_mini+0x196f5a
b4f52450  897c6200
b4f52454  00000086
b4f52458  897c6200
b4f5245c  00000000
b4f52460  00000000
b4f52464  00000000
b4f52468  b9f38b4e DisplayDriver_mini+0x194b4e
b4f5246c  00000000
...
...
...
b4f5250c  00002800
b4f52510  b9f3ac10 DisplayDriver_mini+0x196c10
b4f52514  897c6200
b4f52518  00002504
b4f5251c  00000010
b4f52520  897c6200
b4f52524  b9f2d194 DisplayDriver_mini+0x189194
b4f52528  897c6200
b4f5252c  00002504
b4f52530  00000010
b4f52534  897c6200
b4f52538  898cca80
b4f5253c  00000080
b4f52540  89654008
b4f52544  b9f358e2 DisplayDriver_mini+0x1918e2
b4f52548  897c6200
...
...
...
b4f5256c  00000000
b4f52570  b9deff5c DisplayDriver_mini+0x4bf5c
b4f52574  00000000
...
...
...
b4f5259c  e24079e0
b4f525a0  bfbf0ca6 DisplayDriver+0x21bca6
b4f525a4  00000008
b4f525a8  00010246
b4f525ac  b4f528b4
b4f525b0  00000010
b4f525b4  0000003c
b4f525b8  b9f3af5a DisplayDriver_mini+0x196f5a
b4f525bc  897c6200
b4f525c0  00000086
b4f525c4  89b81008
b4f525c8  897c6200
b4f525cc  00000000
b4f525d0  00007c00
b4f525d4  b9deff5c DisplayDriver_mini+0x4bf5c
b4f525d8  b9deff5c DisplayDriver_mini+0x4bf5c
b4f525dc  8988d7d8
b4f525e0  b9deff66 DisplayDriver_mini+0x4bf66
b4f525e4  b9deff5c DisplayDriver_mini+0x4bf5c
b4f525e8  8961c288
b4f525ec  b9deff66 DisplayDriver_mini+0x4bf66
b4f525f0  8961c288
b4f525f4  00000000
b4f525f8  00000046
b4f525fc  00000000
b4f52600  89903000
b4f52604  b9e625a9 DisplayDriver_mini+0xbe5a9
b4f52608  8961c288
b4f5260c  00000046
b4f52610  00000000
b4f52614  b9deff5c DisplayDriver_mini+0x4bf5c
b4f52618  896ac008
...
...
...
b4f52630  898a8000
b4f52634  b9e9f220 DisplayDriver_mini+0xfb220
b4f52638  89941400
b4f5263c  b9e2ffec DisplayDriver_mini+0x8bfec
b4f52640  00000000
b4f52644  00000000
b4f52648  00000050
b4f5264c  b9e790d3 DisplayDriver_mini+0xd50d3
b4f52650  897c6200
...
...
...
b4f5266c  89bf6200
b4f52670  805502fa nt!ExFreePoolWithTag+0x664
b4f52674  00000000
b4f52678  88f322e0
b4f5267c  88c9d708
b4f52680  00000001
b4f52684  898cf918
b4f52688  ffdff538
b4f5268c  804dc766 nt!KiUnlockDispatcherDatabase+0x1c
b4f52690  b4f52901
b4f52694  b4f526ac
b4f52698  00000001
b4f5269c  804eaf06 nt!IopFreeIrp+0xed
b4f526a0  00000000
b4f526a4  00000000
b4f526a8  88c9d708
b4f526ac  b4f52700
b4f526b0  804f2b9f nt!IopCompleteRequest+0x319
b4f526b4  804f2bb5 nt!IopCompleteRequest+0x32f
b4f526b8  88c9d748
b4f526bc  89025978
b4f526c0  890259ac
b4f526c4  897752e8
b4f526c8  89025978
b4f526cc  b4f52910
b4f526d0  b4f527c8
b4f526d4  00000000
b4f526d8  b9e0d300 DisplayDriver_mini+0x69300
b4f526dc  88c9d708
b4f526e0  00000000
b4f526e4  00000086
b4f526e8  b4f526b8
b4f526ec  b9f3ad28 DisplayDriver_mini+0x196d28
b4f526f0  ffffffff
b4f526f4  804e2ed8 nt!_except_handler3
b4f526f8  804f2bb8 nt!GUID_DOCK_INTERFACE+0x424
b4f526fc  ffffffff
b4f52700  804f2bb5 nt!IopCompleteRequest+0x32f
b4f52704  804f2db5 nt!KiDeliverApc+0xb3
b4f52708  88c9d748
b4f5270c  b4f5274c
b4f52710  b4f52728
b4f52714  890259ac
b4f52718  804dce74 nt!KiDeliverApc+0x1e0
b4f5271c  806ffae4 hal!KeReleaseQueuedSpinLock+0x3c
b4f52720  89025978
b4f52724  b4f527f8
b4f52728  00000000
b4f5272c  89025a60
b4f52730  00000001
b4f52734  b4f52d64
b4f52738  88e775c8
b4f5273c  804f2a72 nt!IopCompleteRequest
b4f52740  00000000
b4f52744  00000000
b4f52748  00000000
b4f5274c  00000000
b4f52750  b4f52768
b4f52754  806ffef2 hal!HalpApcInterrupt+0xc6
b4f52758  00000000
b4f5275c  00000000
b4f52760  b4f52768
b4f52764  00000000
b4f52768  b4f527f8
b4f5276c  806ffae4 hal!KeReleaseQueuedSpinLock+0x3c
b4f52770  badb0d00
b4f52774  00000000
b4f52778  00000000
b4f5277c  806ffae4 hal!KeReleaseQueuedSpinLock+0x3c
b4f52780  00000008
b4f52784  00000246
b4f52788  804e5d2c nt!KeInsertQueueApc+0x6d
b4f5278c  88c9d748
...
...
...
b4f527c0  b4f52c10
b4f527c4  804e2ed8 nt!_except_handler3
b4f527c8  804faca0 nt!KiFindFirstSetLeft+0x120
b4f527cc  ffffffff
b4f527d0  b4f52840
b4f527d4  804de403 nt!CommonDispatchException+0x4d
b4f527d8  b4f527ec
...
...
...
b4f527f4  00000000
b4f527f8  bfbf0ca6 DisplayDriver+0x21bca6
b4f527fc  00000002
...
...
...
b4f52828  b4f52840
b4f5282c  804e0944 nt!KiTrap0E+0xd0
b4f52830  00000000
b4f52834  03a3fb4c
b4f52838  00000000
b4f5283c  804de3b4 nt!Kei386EoiHelper+0x18a
b4f52840  e24079e0
b4f52844  bfbf0ca6 DisplayDriver+0x21bca6
b4f52848  badb0d00
...
...
...
b4f52884  00000000
b4f52888  bfdba6c7 DisplayDriver+0x3e56c7
b4f5288c  b4f52c10
...
...
...
b4f528a4  00000000
b4f528a8  bfbf0ca6 DisplayDriver+0x21bca6
b4f528ac  00000008
...
...
...
b4f528d8  000000f3
b4f528dc  bfb6269f DisplayDriver+0x18d69f
b4f528e0  9745d083
b4f528e4  00000001
b4f528e8  e9a18d4c
b4f528ec  ffffffff
b4f528f0  bfb268e7 DisplayDriver+0x1518e7
b4f528f4  000000ab
...
...
...
b4f52960  0000027a
b4f52964  bfb2696c DisplayDriver+0x15196c
b4f52968  00000000
...
...
...
b4f5298c  e2004308
b4f52990  bfab8ce4 DisplayDriver+0xe3ce4
b4f52994  000000ab
...
...
...
b4f52bd0  00000000
b4f52bd4  bf804779 win32k!GreReleaseFastMutex+0x14
b4f52bd8  b4f52be8
b4f52bdc  bf8a04e3 win32k!dhpdevRetrieveNode+0x32
b4f52be0  89b20128
b4f52be4  b4f52c50
b4f52be8  b4f52c20
b4f52bec  bf907d15 win32k!WatchdogDdBlt+0x38
b4f52bf0  b4f52c50
...
...
...
b4f52c10  b4f52d40
b4f52c14  bf9877ae win32k!_except_handler3
b4f52c18  bf995380 win32k!`string'+0x2b4
b4f52c1c  00000000
b4f52c20  b4f52d50
b4f52c24  bf9cdd78 dxg!DxDdBlt+0x374
b4f52c28  b4f52c50
b4f52c2c  b4f52d64
b4f52c30  038dfaf4
b4f52c34  bf907ca3 win32k!NtGdiDdBlt
b4f52c38  00000001
...
...
...
b4f52c90  000000b0
b4f52c94  bf805b42 win32k!AllocateObject+0xaa
b4f52c98  00000001
b4f52c9c  00000006
b4f52ca0  b4f52cb0
b4f52ca4  32040ddf
b4f52ca8  bf805734 win32k!HANDLELOCK::vLockHandle+0x75
b4f52cac  00000ff4
b4f52cb0  00000000
b4f52cb4  bc40ddf0
b4f52cb8  b4f52cd0
b4f52cbc  00000001
b4f52cc0  804da3ee nt!ExAcquireResourceExclusiveLite+0x67
b4f52cc4  00000008
...
...
...
b4f52ce8  80004005
b4f52cec  804dc605 nt!ExReleaseResourceLite+0x8d
b4f52cf0  00000000
...
...
...
b4f52d08  b4f52d18
b4f52d0c  bf8018bf win32k!GreReleaseSemaphore+0xa
b4f52d10  bf803d1e win32k!GreUnlockDisplay+0x24
b4f52d14  00000000
...
...
...
b4f52d40  ffffffff
b4f52d44  bf9d2132 dxg!_except_handler3
b4f52d48  bf9d2928 dxg!GUID_MiscellaneousCallbacks+0x42c
b4f52d4c  ffffffff
b4f52d50  b4f52d64
b4f52d54  804dd99f nt!KiFastCallEntry+0xfc
b4f52d58  02400002
...
...
...
b4f52ddc  00000023
b4f52de0  804ec781 nt!KiThreadStartup+0x16
b4f52de4  f7849b85 NDIS!ndisWorkerThread
b4f52de8  88c9d4d0
b4f52dec  00000000
b4f52df0  0020027f
b4f52df4  011c0000
b4f52df8  bfdb97b7 DisplayDriver+0x3e47b7
b4f52dfc  00000008
...
...
...
b4f52e70  00000000
b4f52e74  f7800000 InCDPass+0x1000
b4f52e78  00004026
...
...
...
b4f52ff8  00000000
b4f52ffc  00000000
b4f53000  ????????
b4f53004  ????????

Some are coincidental like InCDPass and NDIS. Obviously DisplayDriver, DisplayDriver_mini, dxg and win32k are related due to their functions: Display, DirectX, GDI (Graphics Device Interface).

Now we can check their module information:

0: kd> lmv m DisplayDriver
start    end        module name
bf9d5000 bff42500   DisplayDriver T (no symbols)
    Loaded symbol image file: DisplayDriver.dll
    Image path: DisplayDriver.dll
    Image name: DisplayDriver.dll
    Timestamp:        Fri Jun 29 09:13:08 2007 (4684BF14)
    CheckSum:         00570500
    ImageSize:        0056D500
    Translations:     0000.04b0 0000.04e0 0409.04b0 0409.04e0

0: kd> lmv m DisplayDriver_mini
start    end        module name
b9da4000 ba421f20   DisplayDriver_mini T (no symbols)
    Loaded symbol image file: DisplayDriver_mini.sys
    Image path: DisplayDriver_mini.sys
    Image name: DisplayDriver_mini.sys
    Timestamp:        Fri Jun 29 09:16:41 2007 (4684BFE9)
    CheckSum:         00680F20
    ImageSize:        0067DF20
    Translations:     0000.04b0 0000.04e0 0409.04b0 0409.04e0

0: kd> lmv m dxg
start    end        module name
bf9c3000 bf9d4580   dxg        (pdb symbols)
    Loaded symbol image file: dxg.sys
    Mapped memory image file: c:\websymbols\dxg.sys\41107B9311580\dxg.sys
    Image path: dxg.sys
    Image name: dxg.sys
    Timestamp:        Wed Aug 04 07:00:51 2004 (41107B93)
    CheckSum:         0001D181
    ImageSize:        00011580
    File version:     5.1.2600.2180
    Product version:  5.1.2600.2180
    File flags:       0 (Mask 3F)
    File OS:          40004 NT Win32
    File type:        3.7 Driver
    File date:        00000000.00000000
    Translations:     0409.04b0
    CompanyName:      Microsoft Corporation
    ProductName:      Microsoft® Windows® Operating System
    InternalName:     dxg.sys
    OriginalFilename: dxg.sys
    ProductVersion:   5.1.2600.2180
    FileVersion:      5.1.2600.2180 (xpsp_sp2_rtm.040803-2158)
    FileDescription:  DirectX Graphics Driver
    LegalCopyright:   © Microsoft Corporation. All rights reserved.

0: kd> lmv m win32k
start    end        module name
bf800000 bf9c2180   win32k   # (pdb symbols)
    Loaded symbol image file: win32k.sys
    Mapped memory image file: c:\websymbols\win32k.sys\45F013F61c2180\win32k.sys
    Image path: win32k.sys
    Image name: win32k.sys
    Timestamp:        Thu Mar 08 13:47:34 2007 (45F013F6)
    CheckSum:         001C4886
    ImageSize:        001C2180
    File version:     5.1.2600.3099
    Product version:  5.1.2600.3099
    File flags:       0 (Mask 3F)
    File OS:          40004 NT Win32
    File type:        3.7 Driver
    File date:        00000000.00000000
    Translations:     0406.04b0
    CompanyName:      Microsoft Corporation
    ProductName:      Microsoft® Windows® Operativsystem
    InternalName:     win32k.sys
    OriginalFilename: win32k.sys
    ProductVersion:   5.1.2600.3099
    FileVersion:      5.1.2600.3099 (xpsp_sp2_gdr.070308-0222)
    FileDescription:  Win32-flerbrugerdriver
    LegalCopyright:   © Microsoft Corporation. Alle rettigheder forbeholdes.

- Dmitry Vostokov @ DumpAnalysis.org -

Crash Dump Analysis Patterns (Part 26)

Tuesday, September 11th, 2007

Sometimes we get a process dump from x64 Windows and when we load it into WinDbg we get the output telling us that an exception or a breakpoint comes from wow64.dll. For example:

Loading Dump File [X:\ppid2088.dmp]
User Mini Dump File with Full Memory: Only application data is available

Comment: 'Userdump generated complete user-mode minidump with Exception Monitor function on SERVER01'
Symbol search path is: srv*c:\mss*http://msdl.microsoft.com/download/symbols
Executable search path is:
Windows Server 2003 Version 3790 (Service Pack 2) MP (4 procs) Free x64
Product: Server, suite: TerminalServer
Debug session time: Tue Sep  4 13:36:14.000 2007 (GMT+2)
System Uptime: 6 days 3:32:26.081
Process Uptime: 0 days 0:01:54.000
WARNING: tsappcmp overlaps ws2_32
WARNING: msvcp60 overlaps oleacc
WARNING: tapi32 overlaps rasapi32
WARNING: rtutils overlaps rasman
WARNING: dnsapi overlaps rasapi32
WARNING: wldap32 overlaps dnsapi
WARNING: ntshrui overlaps userenv
WARNING: wtsapi32 overlaps dnsapi
WARNING: winsta overlaps setupapi
WARNING: activeds overlaps rtutils
WARNING: activeds overlaps rasman
WARNING: adsldpc overlaps activeds
WARNING: drprov overlaps apphelp
WARNING: netui1 overlaps netui0
WARNING: davclnt overlaps apphelp
...
This dump file has an exception of interest stored in it.
The stored exception information can be accessed via .ecxr.
(2088.2fe4): Unknown exception - code 000006d9 (first/second chance not available)
wow64!Wow64NotifyDebugger+0×9:
00000000`6b006369 b001            mov     al,1

Analysis shows that some run-time exception was raised but the stack trace shows only WOW64 CPU simulation code in all process threads:

0:000> !analyze -v
*********************************************************
*                                                       *
*                  Exception Analysis                   *
*                                                       *
*********************************************************

FAULTING_IP:
kernel32!RaiseException+53
00000000`7d4e2366 5e              pop     rsi

EXCEPTION_RECORD:  ffffffffffffffff -- (.exr 0xffffffffffffffff)
ExceptionAddress: 000000007d4e2366 (kernel32!RaiseException+0x0000000000000053)
   ExceptionCode: 000006d9
  ExceptionFlags: 00000001
NumberParameters: 0

DEFAULT_BUCKET_ID:  STACK_CORRUPTION

PROCESS_NAME:  App.exe

ERROR_CODE: (NTSTATUS) 0x6d9 - There are no more endpoints available from the endpoint mapper.

NTGLOBALFLAG:  0

APPLICATION_VERIFIER_FLAGS:  0

LAST_CONTROL_TRANSFER:  from 000000006b0064f2 to 000000006b006369

FOLLOWUP_IP:
wow64!Wow64NotifyDebugger+9
00000000`6b006369 b001            mov     al,1

SYMBOL_STACK_INDEX:  0

SYMBOL_NAME:  wow64!Wow64NotifyDebugger+9

FOLLOWUP_NAME:  MachineOwner

MODULE_NAME: wow64

IMAGE_NAME:  wow64.dll

DEBUG_FLR_IMAGE_TIMESTAMP:  45d6943d

FAULTING_THREAD:  0000000000002fe4

PRIMARY_PROBLEM_CLASS:  STACK_CORRUPTION

BUGCHECK_STR:  APPLICATION_FAULT_STACK_CORRUPTION

STACK_COMMAND:  ~0s; .ecxr ; dt ntdll!LdrpLastDllInitializer BaseDllName ; dt ntdll!LdrpFailureData ; kb

FAILURE_BUCKET_ID:  X64_APPLICATION_FAULT_STACK_CORRUPTION_wow64!Wow64NotifyDebugger+9

BUCKET_ID:  X64_APPLICATION_FAULT_STACK_CORRUPTION_wow64!Wow64NotifyDebugger+9

Followup: MachineOwner
---------

0:000> ~*k

.  0  Id: 2088.2fe4 Suspend: 1 Teb: 00000000`7efdb000 Unfrozen
Child-SP          RetAddr           Call Site
00000000`0016e190 00000000`6b0064f2 wow64!Wow64NotifyDebugger+0x9
00000000`0016e1c0 00000000`6b006866 wow64!Wow64KiRaiseException+0x172
00000000`0016e530 00000000`78b83c7d wow64!Wow64SystemServiceEx+0xd6
00000000`0016edf0 00000000`6b006a5a wow64cpu!ServiceNoTurbo+0x28
00000000`0016ee80 00000000`6b005e0d wow64!RunCpuSimulation+0xa
00000000`0016eeb0 00000000`77ed8030 wow64!Wow64LdrpInitialize+0x2ed
00000000`0016f3f0 00000000`77ed582f ntdll!LdrpInitializeProcess+0x1538
00000000`0016f6f0 00000000`77ef30a5 ntdll!LdrpInitialize+0x18f
00000000`0016f7d0 00000000`7d4d1510 ntdll!KiUserApcDispatcher+0x15
00000000`0016fcc8 00000000`00000000 kernel32!BaseProcessStartThunk
00000000`0016fcd0 00000000`00000000 0x0
00000000`0016fcd8 00000000`00000000 0x0
00000000`0016fce0 00000000`00000000 0x0
00000000`0016fce8 00000000`00000000 0x0
00000000`0016fcf0 00000000`00000000 0x0
00000000`0016fcf8 00000000`00000000 0x0
00000000`0016fd00 00010007`00000000 0x0
00000000`0016fd08 00000000`00000000 0x10007`00000000
00000000`0016fd10 00000000`00000000 0x0
00000000`0016fd18 00000000`00000000 0x0

   1  Id: 2088.280c Suspend: 1 Teb: 00000000`7efd8000 Unfrozen
Child-SP          RetAddr           Call Site
00000000`0200f0d8 00000000`6b006a5a wow64cpu!WaitForMultipleObjects32+0x3a
00000000`0200f180 00000000`6b005e0d wow64!RunCpuSimulation+0xa
00000000`0200f1b0 00000000`77f109f0 wow64!Wow64LdrpInitialize+0x2ed
00000000`0200f6f0 00000000`77ef30a5 ntdll!LdrpInitialize+0x2aa
00000000`0200f7d0 00000000`7d4d1504 ntdll!KiUserApcDispatcher+0x15
00000000`0200fcc8 00000000`00000000 kernel32!BaseThreadStartThunk
00000000`0200fcd0 00000000`00000000 0x0
00000000`0200fcd8 00000000`00000000 0x0
00000000`0200fce0 00000000`00000000 0x0
00000000`0200fce8 00000000`00000000 0x0
00000000`0200fcf0 00000000`00000000 0x0
00000000`0200fcf8 00000000`00000000 0x0
00000000`0200fd00 0001002f`00000000 0x0
00000000`0200fd08 00000000`00000000 0x1002f`00000000
00000000`0200fd10 00000000`00000000 0x0
00000000`0200fd18 00000000`00000000 0x0
00000000`0200fd20 00000000`00000000 0x0
00000000`0200fd28 00000000`00000000 0x0
00000000`0200fd30 00000000`00000000 0x0
00000000`0200fd38 00000000`00000000 0x0

   2  Id: 2088.1160 Suspend: 1 Teb: 00000000`7efd5000 Unfrozen
Child-SP          RetAddr           Call Site
00000000`0272e7c8 00000000`6b29c464 wow64win!ZwUserGetMessage+0xa
00000000`0272e7d0 00000000`6b006866 wow64win!whNtUserGetMessage+0x34
00000000`0272e830 00000000`78b83c7d wow64!Wow64SystemServiceEx+0xd6
00000000`0272f0f0 00000000`6b006a5a wow64cpu!ServiceNoTurbo+0x28
00000000`0272f180 00000000`6b005e0d wow64!RunCpuSimulation+0xa
00000000`0272f1b0 00000000`77f109f0 wow64!Wow64LdrpInitialize+0x2ed
00000000`0272f6f0 00000000`77ef30a5 ntdll!LdrpInitialize+0x2aa
00000000`0272f7d0 00000000`7d4d1504 ntdll!KiUserApcDispatcher+0x15
00000000`0272fcc8 00000000`00000000 kernel32!BaseThreadStartThunk
00000000`0272fcd0 00000000`00000000 0x0
00000000`0272fcd8 00000000`00000000 0x0
00000000`0272fce0 00000000`00000000 0x0
00000000`0272fce8 00000000`00000000 0x0
00000000`0272fcf0 00000000`00000000 0x0
00000000`0272fcf8 00000000`00000000 0x0
00000000`0272fd00 00010003`00000000 0x0
00000000`0272fd08 00000000`00000000 0x10003`00000000
00000000`0272fd10 00000000`00000000 0x0
00000000`0272fd18 00000000`00000000 0x0
00000000`0272fd20 00000000`00000000 0x0

   3  Id: 2088.2d04 Suspend: 1 Teb: 00000000`7efad000 Unfrozen
Child-SP          RetAddr           Call Site
00000000`0289f108 00000000`78b84191 wow64cpu!CpupSyscallStub+0x9
00000000`0289f110 00000000`6b006a5a wow64cpu!Thunk2ArgNSpNSpReloadState+0x21
00000000`0289f180 00000000`6b005e0d wow64!RunCpuSimulation+0xa
00000000`0289f1b0 00000000`77f109f0 wow64!Wow64LdrpInitialize+0x2ed
00000000`0289f6f0 00000000`77ef30a5 ntdll!LdrpInitialize+0x2aa
00000000`0289f7d0 00000000`7d4d1504 ntdll!KiUserApcDispatcher+0x15
00000000`0289fcc8 00000000`00000000 kernel32!BaseThreadStartThunk
00000000`0289fcd0 00000000`00000000 0x0
00000000`0289fcd8 00000000`00000000 0x0
00000000`0289fce0 00000000`00000000 0x0
00000000`0289fce8 00000000`00000000 0x0
00000000`0289fcf0 00000000`00000000 0x0
00000000`0289fcf8 00000000`00000000 0x0
00000000`0289fd00 0001002f`00000000 0x0
00000000`0289fd08 00000000`00000000 0x1002f`00000000
00000000`0289fd10 00000000`00000000 0x0
00000000`0289fd18 00000000`00000000 0x0
00000000`0289fd20 00000000`00000000 0x0
00000000`0289fd28 00000000`00000000 0x0
00000000`0289fd30 00000000`00000000 0x0

   4  Id: 2088.15c4 Suspend: 1 Teb: 00000000`7efa4000 Unfrozen
Child-SP          RetAddr           Call Site
00000000`02def0a8 00000000`6b006a5a wow64cpu!RemoveIoCompletionFault+0x41
00000000`02def180 00000000`6b005e0d wow64!RunCpuSimulation+0xa
00000000`02def1b0 00000000`77f109f0 wow64!Wow64LdrpInitialize+0x2ed
00000000`02def6f0 00000000`77ef30a5 ntdll!LdrpInitialize+0x2aa
00000000`02def7d0 00000000`7d4d1504 ntdll!KiUserApcDispatcher+0x15
00000000`02defcc8 00000000`00000000 kernel32!BaseThreadStartThunk
00000000`02defcd0 00000000`00000000 0x0
00000000`02defcd8 00000000`00000000 0x0
00000000`02defce0 00000000`00000000 0x0
00000000`02defce8 00000000`00000000 0x0
00000000`02defcf0 00000000`00000000 0x0
00000000`02defcf8 00000000`00000000 0x0
00000000`02defd00 0001002f`00000000 0x0
00000000`02defd08 00000000`00000000 0x1002f`00000000
00000000`02defd10 00000000`00000000 0x0
00000000`02defd18 00000000`00000000 0x0
00000000`02defd20 00000000`00000000 0x0
00000000`02defd28 00000000`00000000 0x0
00000000`02defd30 00000000`00000000 0x0
00000000`02defd38 00000000`00000000 0x0

This is a clear indication that the process was in fact 32-bit but the dump is 64-bit. This situation is depicted in one of my earlier posts last year:

Dumps, Debuggers and Virtualization

and we need a debugger plugin to understand virtualized CPU architecture:

Dumps, Debuggers and Virtualization refined

This crash dump pattern can be called Virtualized Process. In our case we need to load wow64exts.dll WinDbg extension and set the target processor mode to x86 by using .effmach command

0:000> .load wow64exts
0:000> .effmach x86
Effective machine: x86 compatible (x86)

Then analysis gives us more meaningful results:

0:000:x86> !analyze -v
*********************************************************
*                                                       *
*                Exception Analysis                     *
*                                                       *
*********************************************************

FAULTING_IP:
kernel32!RaiseException+53
00000000`7d4e2366 5e              pop     esi

EXCEPTION_RECORD:  ffffffffffffffff -- (.exr 0xffffffffffffffff)
ExceptionAddress: 000000007d4e2366 (kernel32!RaiseException+0x0000000000000053)
   ExceptionCode: 000006d9
  ExceptionFlags: 00000001
NumberParameters: 0

BUGCHECK_STR:  6d9

DEFAULT_BUCKET_ID:  APPLICATION_FAULT

PROCESS_NAME:  App.exe

ERROR_CODE: (NTSTATUS) 0x6d9 - There are no more endpoints available from the endpoint mapper.

NTGLOBALFLAG:  0

APPLICATION_VERIFIER_FLAGS:  0

LAST_CONTROL_TRANSFER:  from 000000007da4a631 to 000000007d4e2366

STACK_TEXT:
0012d98c 7da4a631 000006d9 00000001 00000000 kernel32!RaiseException+0x53
0012d9a4 7da4a5f7 000006d9 0012ddc4 0012dda0 rpcrt4!RpcpRaiseException+0x24
0012d9b4 7dac0140 0012da00 00000018 0024a860 rpcrt4!NdrGetBuffer+0x46
0012dda0 5f2a2fba 5f2777b8 5f2771e2 0012ddc4 rpcrt4!NdrClientCall2+0x197
0012ddbc 5f29c6a6 0024a860 00000370 00000000 hnetcfg!FwOpenDynamicFwPort+0x1d
0012de68 7db4291f 0024a860 00000370 00000002 hnetcfg!IcfOpenDynamicFwPort+0x6a
0012df00 71c043db 00000370 0012df4c 00000010 mswsock!WSPBind+0x2e3
WARNING: Frame IP not in any known module. Following frames may be wrong.
0012df24 76ed91c8 00000370 0012df4c 00000010 ws2_32+0x43db
0012df6c 76ed9128 00000370 00000002 00000000 rasapi32+0x491c8
0012df98 76ed997c 00000002 00000002 00000000 rasapi32+0x49128
0012dfc0 76ed8ac2 00000002 02c225f8 02c22688 rasapi32+0x4997c
0012dfd4 76ed89cd 02c225f8 02c22ce8 02c22f38 rasapi32+0x48ac2
0012dff0 76ed82e5 02c226b2 02c22f38 00000000 rasapi32+0x489cd
0012e010 76ed827f 02c225f8 02c22ce8 02c22f38 rasapi32+0x482e5
0012e044 76ed8bf0 02c225f8 00000000 00000000 rasapi32+0x4827f
0012e0c8 76ed844d 02c225f8 00000000 04000000 rasapi32+0x48bf0
0012e170 76ed74b5 04000000 0000232b 02c21f58 rasapi32+0x4844d
0012e200 76ed544f 02c21f58 00000000 02c21f58 rasapi32+0x474b5
0012e22c 76ed944d 00000001 00000000 02c21f58 rasapi32+0x4544f
0012e24c 76ed93a4 00000000 00000000 00000000 rasapi32+0x4944d
0012e298 76ed505f 02c22c9c 00000001 04000000 rasapi32+0x493a4
0012e2bc 7db442bf 02c22c9c 00000001 04000000 rasapi32+0x4505f
0012e2ec 7db4418b 02c22c9c 00000001 04000000 mswsock!SaBlob_Query+0x2d
0012e330 7db4407c 00000000 020243f0 020243d8 mswsock!Rnr_DoDnsLookup+0xf0
0012e5c8 71c06dc0 02c22c38 00000000 0012e680 mswsock!Dns_NSPLookupServiceNext+0x24b
0012e5e0 71c06da0 02024498 02c22c38 00000000 ws2_32+0x6dc0
0012e5fc 71c06d6a 02024560 00000000 0012e680 ws2_32+0x6da0
0012e628 71c06d08 020243f0 00000000 0012e680 ws2_32+0x6d6a
0012e648 71c08282 020243d8 00000000 0012e680 ws2_32+0x6d08
0012ef00 71c07f68 02024c98 00000002 0012ef74 ws2_32+0x8282
0012ef34 71c08433 02024c98 00000001 0012ef74 ws2_32+0x7f68
0012efa0 71c03236 02024c98 00000000 00000000 ws2_32+0x8433
0012f094 71c03340 02024c98 00000000 0012f148 ws2_32+0x3236
0012f0bc 7dab22fb 0012f0d4 00000000 0012f148 ws2_32+0x3340
0012f11c 7dab3a0e 0012f184 0026fff0 0026836c rpcrt4!IP_ADDRESS_RESOLVER::NextAddress+0x13e
0012f238 7dab3c11 0026836c 00272f38 00000402 rpcrt4!TCPOrHTTP_Open+0xdb
0012f270 7da44c85 0026836c 00271d38 00272f38 rpcrt4!TCP_Open+0x55
0012f2b8 7da44b53 00000000 00271d38 00272f38 rpcrt4!OSF_CCONNECTION::TransOpen+0x5e
0012f31c 7da447d7 0026fff0 000dbba0 00000000 rpcrt4!OSF_CCONNECTION::OpenConnectionAndBind+0xbe
0012f360 7da44720 00000000 0012f414 00000000 rpcrt4!OSF_CCALL::BindToServer+0xfa
0012f378 7da3a9df 00000000 00000000 00000000 rpcrt4!OSF_BINDING_HANDLE::InitCCallWithAssociation+0x63
0012f3f4 7da3a8dd 0012f414 0012f480 00270028 rpcrt4!OSF_BINDING_HANDLE::AllocateCCall+0x49d
0012f428 7da37a1c 0012f480 0012f4ac 00000001 rpcrt4!OSF_BINDING_HANDLE::NegotiateTransferSyntax+0x2e
0012f440 7da3642c 0012f480 00000000 0012f460 rpcrt4!I_RpcGetBufferWithObject+0x5b
0012f450 7da37bff 0012f480 0012f86c 0012f84c rpcrt4!I_RpcGetBuffer+0xf
0012f460 7dac0140 0012f4ac 0000006c 0026fff0 rpcrt4!NdrGetBuffer+0x2e
0012f84c 766f41f1 766f24e8 766f423a 0012f86c rpcrt4!NdrClientCall2+0x197
0012f864 766f40b8 0026fff0 0012f904 0012f8e4 ntdsapi!_IDL_DRSBind+0x1c
0012f930 7d8ecaa2 002788bc 00278908 00000000 ntdsapi!DsBindWithSpnExW+0x223
0012f9b0 7d8ed028 00000000 02264f90 00000000 secur32!SecpTranslateName+0x1f3
0012f9d0 00434aa0 02264f90 00000000 00000002 secur32!TranslateNameW+0x2d
0012fab4 00419a7f 022a85e4 0012fc94 afec94eb App+0x34aa0
0012fb0c 0041a61b afec9443 ffffffff 00463fb8 App+0x19a7f
0012fbc0 0045a293 ffffffff 0043682f 004188f3 App+0x1a61b
0012fbc8 0043682f 004188f3 afec93eb ffffffff App+0x5a293
0012fbcc 004188f3 afec93eb ffffffff 00463fb0 App+0x3682f
0043682f 00000000 7459c085 7000c707 c3004645 App+0x188f3

STACK_COMMAND:  kb

FOLLOWUP_IP:
hnetcfg!FwOpenDynamicFwPort+1d
00000000`5f2a2fba 83c40c          add     esp,0Ch

SYMBOL_STACK_INDEX:  4

SYMBOL_NAME:  hnetcfg!FwOpenDynamicFwPort+1d

FOLLOWUP_NAME:  MachineOwner

MODULE_NAME: hnetcfg

IMAGE_NAME:  hnetcfg.dll

DEBUG_FLR_IMAGE_TIMESTAMP:  45d6cc2a

FAULTING_THREAD:  0000000000002fe4

FAILURE_BUCKET_ID:  X64_6d9_hnetcfg!FwOpenDynamicFwPort+1d

BUCKET_ID:  X64_6d9_hnetcfg!FwOpenDynamicFwPort+1d

Followup: MachineOwner
---------

0:000:x86> ~*k

.  0  Id: 2088.2fe4 Suspend: 1 Teb: 00000000`7efdb000 Unfrozen
ChildEBP          RetAddr
0012d98c 7da4a631 kernel32!RaiseException+0x53
0012d9a4 7da4a5f7 rpcrt4!RpcpRaiseException+0x24
0012d9b4 7dac0140 rpcrt4!NdrGetBuffer+0x46
0012dda0 5f2a2fba rpcrt4!NdrClientCall2+0x197
0012ddbc 5f29c6a6 hnetcfg!FwOpenDynamicFwPort+0x1d
0012de68 7db4291f hnetcfg!IcfOpenDynamicFwPort+0x6a
0012df00 71c043db mswsock!WSPBind+0x2e3
WARNING: Frame IP not in any known module. Following frames may be wrong.
0012df24 76ed91c8 ws2_32+0x43db
0012df6c 76ed9128 rasapi32+0x491c8
0012df98 76ed997c rasapi32+0x49128
0012dfc0 76ed8ac2 rasapi32+0x4997c
0012dfd4 76ed89cd rasapi32+0x48ac2
0012dff0 76ed82e5 rasapi32+0x489cd
0012e010 76ed827f rasapi32+0x482e5
0012e044 76ed8bf0 rasapi32+0x4827f
0012e0c8 76ed844d rasapi32+0x48bf0
0012e170 76ed74b5 rasapi32+0x4844d
0012e200 76ed544f rasapi32+0x474b5
0012e22c 76ed944d rasapi32+0x4544f
0012e24c 76ed93a4 rasapi32+0x4944d

   1  Id: 2088.280c Suspend: 1 Teb: 00000000`7efd8000 Unfrozen
ChildEBP          RetAddr
01fcfea4 7d63f501 ntdll_7d600000!NtWaitForMultipleObjects+0x15
01fcff48 7d63f988 ntdll_7d600000!EtwpWaitForMultipleObjectsEx+0xf7
01fcffb8 7d4dfe21 ntdll_7d600000!EtwpEventPump+0x27f
01fcffec 00000000 kernel32!BaseThreadStart+0x34

   2  Id: 2088.1160 Suspend: 1 Teb: 00000000`7efd5000 Unfrozen
ChildEBP          RetAddr
026eff50 0042f13b user32!NtUserGetMessage+0x15
WARNING: Stack unwind information not available. Following frames may be wrong.
026effb8 7d4dfe21 App+0x2f13b
026effec 00000000 kernel32!BaseThreadStart+0x34

   3  Id: 2088.2d04 Suspend: 1 Teb: 00000000`7efad000 Unfrozen
ChildEBP          RetAddr
0285ffa0 7d634d69 ntdll_7d600000!ZwDelayExecution+0x15
0285ffb8 7d4dfe21 ntdll_7d600000!RtlpTimerThread+0x47
0285ffec 00000000 kernel32!BaseThreadStart+0x34

   4  Id: 2088.15c4 Suspend: 1 Teb: 00000000`7efa4000 Unfrozen
ChildEBP          RetAddr
02daff80 7db4b6c6 ntdll_7d600000!NtRemoveIoCompletion+0x15
02daffb8 7d4dfe21 mswsock!SockAsyncThread+0x69
02daffec 00000000 kernel32!BaseThreadStart+0x34

- Dmitry Vostokov @ DumpAnalysis.org -

Crash Dump Analysis Patterns (Part 25)

Monday, September 10th, 2007

The most important pattern that is used for problem identification and resolution is Stack Trace. Consider the following fragment of !analyze -v output from w3wp.exe crash dump:

STACK_TEXT:
WARNING: Frame IP not in any known module. Following frames may be wrong.
1824f90c 5a39f97e 01057b48 01057bd0 5a3215b4 0x0
1824fa50 5a32cf7c 01057b48 00000000 79e651c0 w3core!ISAPI_REQUEST::SendResponseHeaders+0x5d
1824fa78 5a3218ad 01057bd0 79e651c0 79e64d9c w3isapi!SSFSendResponseHeader+0xe0
1824fae8 79e76127 01057bd0 00000003 79e651c0 w3isapi!ServerSupportFunction+0x351
1824fb0c 79e763a3 80000411 00000000 00000000 aspnet_isapi!HttpCompletion::ReportHttpError+0x3a
1824fd50 79e761c3 34df6cf8 79e8e42f 79e8e442 aspnet_isapi!HttpCompletion::ProcessRequestInManagedCode+0x1d1
1824fd5c 79e8e442 34df6cf8 00000000 00000000 aspnet_isapi!HttpCompletion::ProcessCompletion+0x24
1824fd70 791d6211 34df6cf8 18e60110 793ee0d8 aspnet_isapi!CorThreadPoolWorkitemCallback+0x13
1824fd84 791d616a 18e60110 00000000 791d60fa mscorsvr!ThreadpoolMgr::ExecuteWorkRequest+0x19
1824fda4 791fe95c 00000000 8083d5c7 00000000 mscorsvr!ThreadpoolMgr::WorkerThreadStart+0x129
1824ffb8 77e64829 17bb9c18 00000000 00000000 mscorsvr!ThreadpoolMgr::intermediateThreadProc+0x44
1824ffec 00000000 791fe91b 17bb9c18 00000000 kernel32!BaseThreadStart+0x34

Ignoring the first 5 numeric columns gives us the following trace:

0x0
w3core!ISAPI_REQUEST::SendResponseHeaders+0x5d
w3isapi!SSFSendResponseHeader+0xe0
w3isapi!ServerSupportFunction+0x351
aspnet_isapi!HttpCompletion::ReportHttpError+0x3a
aspnet_isapi!HttpCompletion::ProcessRequestInManagedCode+0x1d1
aspnet_isapi!HttpCompletion::ProcessCompletion+0x24
aspnet_isapi!CorThreadPoolWorkitemCallback+0x13
mscorsvr!ThreadpoolMgr::ExecuteWorkRequest+0x19
mscorsvr!ThreadpoolMgr::WorkerThreadStart+0x129
mscorsvr!ThreadpoolMgr::intermediateThreadProc+0x44
kernel32!BaseThreadStart+0x34

or in general we have something like this:

moduleA!functionX+offsetN
moduleB!functionY+offsetM
...
...
...

Sometimes function names are not available or offsets are very big like 0×2380. If this is the case then we probably don’t have symbol files for moduleA and moduleB:

moduleA+offsetN
moduleB+offsetM
...
...
...

Usually there is some kind of a database of previous issues we can use to match moduleA!functionX+offsetN against. If there is no such match we can try functionX+offsetN, moduleA!functionX or just functionX. If there is no such match again we can try the next signature, moduleB!functionY+offsetM, and moduleB!functionY, etc. Usually, the further down the trace the less useful the signature is for problem resolution. For example, mscorsvr!ThreadpoolMgr::WorkerThreadStart+0x129 will probably match many issues because this signature is common for many ASP.NET applications.

If there is no match in internal databases we can try Google. For our example, Google search for SendResponseHeaders+0x5d gives the following search results:

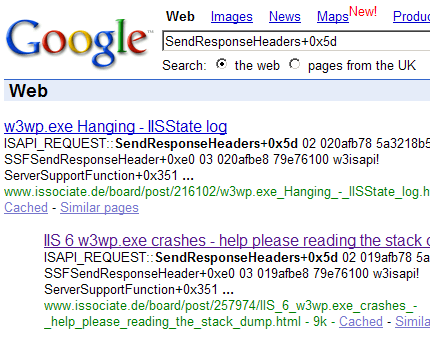

Browsing search results reveals the following discussion:

http://groups.google.com/group/microsoft.public.inetserver.iis/ browse_frm/thread/34bc2be635b26531?tvc=1

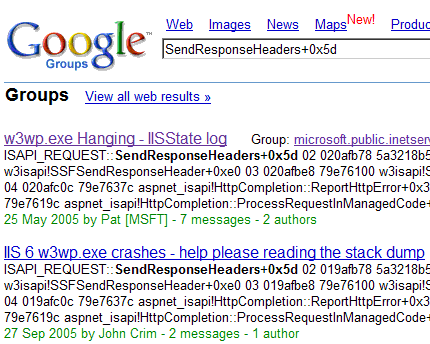

which can be found directly by searching Google groups:



Another example from BSOD complete memory dump. Analysis command has the following output (stripped for clarity):

MODE_EXCEPTION_NOT_HANDLED (1e)
This is a very common bugcheck. Usually the exception address pinpoints the driver/function that caused the problem. Always note this address as well as the link date of the driver/image that contains this address.
Arguments:
Arg1: c0000005, The exception code that was not handled
Arg2: bff90ca3, The address that the exception occurred at
Arg3: 00000000, Parameter 0 of the exception
Arg4: 00000000, Parameter 1 of the exception

TRAP_FRAME: bdf80834 -- (.trap ffffffffbdf80834)
ErrCode = 00000000
eax=00000000 ebx=bdf80c34 ecx=89031870 edx=88096928 esi=88096928 edi=8905e7f0
eip=bff90ca3 esp=bdf808a8 ebp=bdf80a44 iopl=0 nv up ei ng nz na po nc
cs=0008 ss=0010 ds=0023 es=0023 fs=0030 gs=0000 efl=00010282
tsmlvsa+0xfca3:
bff90ca3 8b08 mov ecx,dword ptr [eax] ds:0023:00000000=????????
Resetting default scope

STACK_TEXT:
bdf807c4 80467a15 bdf807e0 00000000 bdf80834 nt!KiDispatchException+0x30e
bdf8082c 804679c6 00000000 bdf80860 804d9f69 nt!CommonDispatchException+0x4d
bdf80838 804d9f69 00000000 00000005 e56c6946 nt!KiUnexpectedInterruptTail+0x207
00000000 00000000 00000000 00000000 00000000 nt!ObpAllocateObject+0xe1

Because the crash point tsmlvsa+0xfca3 is not on the stack trace we use .trap command:

1: kd> .trap ffffffffbdf80834
ErrCode = 00000000
eax=00000000 ebx=bdf80c34 ecx=89031870 edx=88096928 esi=88096928 edi=8905e7f0
eip=bff90ca3 esp=bdf808a8 ebp=bdf80a44 iopl=0 nv up ei ng nz na po nc
cs=0008 ss=0010 ds=0023 es=0023 fs=0030 gs=0000 efl=00010282
tsmlvsa+0xfca3:
bff90ca3 8b08 mov ecx,dword ptr [eax] ds:0023:00000000=????????

1: kd> k
*** Stack trace for last set context - .thread/.cxr resets it
ChildEBP RetAddr
WARNING: Stack unwind information not available. Following frames may be wrong.
00000000 bdf80afc tsmlvsa+0xfca3
89080c00 00000040 nt!ObpLookupObjectName+0x504
00000000 00000001 nt!ObOpenObjectByName+0xc5
c0100080 0012b8d8 nt!IopCreateFile+0x407
c0100080 0012b8d8 nt!IoCreateFile+0x36
c0100080 0012b8d8 nt!NtCreateFile+0x2e
c0100080 0012b8d8 nt!KiSystemService+0xc9
c0100080 0012b8d8 ntdll!NtCreateFile+0xb
c0000000 00000000 KERNEL32!CreateFileW+0x343

1: kd> lmv m tsmlvsa
bff81000 bff987c0 tsmlvsa (no symbols)
Loaded symbol image file: tsmlvsa.sys
Image path: tsmlvsa.sys
Image name: tsmlvsa.sys
Timestamp: Thu Mar 18 06:18:51 2004 (40593F4B)
CheckSum: 0002D102
ImageSize: 000177C0
Translations: 0000.04b0 0000.04e0 0409.04b0 0409.04e0

Google search for tsmlvsa+0xfca3 fails but if we search just for tsmlvsa we get the first link towards problem resolution:

http://www-1.ibm.com/support/docview.wss?uid=swg1IC40964

- Dmitry Vostokov @ DumpAnalysis.org -

Minidump Analysis (Part 2)

Thursday, September 6th, 2007

In the first part I outlined WinDbg commands we can use to get various information from system minidumps. In this part I will show how to find a 3rd-party driver that might have been responsible for system crash and verify that WinDbg reports that driver correctly.

For example, one of the log files shows the following !analyze -v results:

command> !analyze -v
*************************************************************
*                                                           *
*                     Bugcheck Analysis                     *
*                                                           *
*************************************************************

BAD_POOL_CALLER (c2)
The current thread is making a bad pool request. Typically this is at a bad IRQL level or double freeing the same allocation, etc.
Arguments:
Arg1: 00000047, Attempt to free a non-allocated nonpaged pool address
Arg2: 85083000, Starting address
Arg3: 00005083, physical page frame
Arg4: 000bfff9, highest physical page frame

Debugging Details:
------------------
BUGCHECK_STR:  0xc2_47

CUSTOMER_CRASH_COUNT:  2

DEFAULT_BUCKET_ID:  DRIVER_FAULT_SERVER_MINIDUMP

PROCESS_NAME:  3rdPartyAntivirus.exe

CURRENT_IRQL:  0

LAST_CONTROL_TRANSFER:  from 8054d2eb to 805435b9

STACK_TEXT:
b325db68 8054d2eb 000000c2 00000047 85083000 nt!KeBugCheckEx+0x19
b325db94 805689c2 85083000 00080000 85083000 nt!MmGetSizeOfBigPoolAllocation+0x1cb
b325dbe4 f77c8098 00000000 00000000 00000004 nt!ExFreePoolWithTag+0x1d0
WARNING: Stack unwind information not available. Following frames may be wrong.
b325dc24 f77c8234 8599d4e0 8599d4e0 88cecf38 3rdPartyAVDrv+0×1098
b325dc3c 804f04f3 871d2cf0 00004808 8743b6a0 3rdPartyAVDrv+0×1234
b325dc4c 80585208 8599d550 872c8028 8599d4e0 nt!IofCallDriver+0×3f
b325dc60 80585fe6 871d2cf0 8599d4f0 872c8028 nt!IopSynchronousServiceTail+0×6f
b325dd00 80586028 00000468 00000614 00000000 nt!IopXxxControlFile+0×607
b325dd34 804dfd24 00000468 00000614 00000000 nt!NtDeviceIoControlFile+0×28
b325dd34 7ffe0304 00000468 00000614 00000000 nt!KiSystemService+0xd0
0087b6c0 00000000 00000000 00000000 00000000 SharedUserData!SystemCallStub+0×4
STACK_COMMAND:  kb

FOLLOWUP_IP:
3rdPartyAVDrv+1098
f77c8098 ??              ???

SYMBOL_STACK_INDEX:  3

SYMBOL_NAME:  3rdPartyAVDrv+1098

FOLLOWUP_NAME:  MachineOwner

MODULE_NAME: 3rdPartyAVDrv

IMAGE_NAME:  3rdPartyAVDrv.sys

DEBUG_FLR_IMAGE_TIMESTAMP:  410752c5

FAILURE_BUCKET_ID:  0xc2_47_3rdPartyAVDrv+1098

BUCKET_ID:  0xc2_47_3rdPartyAVDrv+1098

Followup: MachineOwner
---------

MODULE_NAME and IMAGE_NAME report 3rd-party antivirus driver 3rdPartyAVDrv.sys responsible for BSOD. However the top lines from STACK_TEXT report nt module, Windows NT kernel and system. We can get information about all loaded drivers from the output of lmv command:

command> lmv
start    end        module name
804de000 80744000   nt       # (pdb symbols)          c:\...\ntkrnlmp.pdb\...\ntkrnlmp.pdb
    Loaded symbol image file: ntkrnlmp.exe
    Mapped memory image file: c:\...\ntkrnlmp.exe\...\ntkrnlmp.exe
    Image path: ntkrnlmp.exe
    Image name: ntkrnlmp.exe
    Timestamp:        Tue Mar 25 08:39:34 2003 (3E8015C6)
    CheckSum:         00254553
    ImageSize:        00266000
    File version:     5.2.3790.0
    Product version:  5.2.3790.0
    File flags:       0 (Mask 3F)
    File OS:          40004 NT Win32
    File type:        1.0 App
    File date:        00000000.00000000
    Translations:     0415.04b0
    CompanyName:      Microsoft Corporation
    ProductName:      Microsoft® Windows® Operating System
    InternalName:     ntkrnlmp.exe
    OriginalFilename: ntkrnlmp.exe
    ProductVersion:   5.2.3790.0
    FileVersion:      5.2.3790.0 (srv03_rtm.030324-2048)
    FileDescription:  NT Kernel & System
    LegalCopyright:   © Microsoft Corporation. All rights reserved.
...
...
...
f77c7000 f77cf000   3rdPartyAVDrv 3rdPartyAVDrv.sys
    Loaded symbol image file: 3rdPartyAVDrv.sys
    Symbol file: 3rdPartyAVDrv.sys
    Image path: 3rdPartyAVDrv.sys
    Timestamp:        Wed Jul 28 07:15:21 2004 (410752C5)
    CheckSum:         00011518
    ImageSize:        00008000
    Translations:     0000.04b0 0000.04e0 0409.04b0 0409.04e0
...
...
...

Why WinDbg skips Microsoft module and points to the 3rd-party one? Because, when WinDbg encounters a non-Microsoft driver, it always shows it as the possible cause. Then it looks at triage.ini file located in triage folder under Debugging Tools for Windows installation folder where certain modules and functions are listed with appropriate actions for WinDbg, for example:

nt!KeBugCheck*=ignore
nt!ExAllocatePool=Pool_corruption

Let’s add the following entry at the end of that INI file:

3rdPartyAVDrv!*=ignore

Now, if we load the dump in WinDbg, set the symbols and run the analysis, we get different results:

3: kd> .symfix
No downstream store given, using C:\Program Files\Debugging Tools for Windows\sym
3: kd> !analyze -v
...
...
...
FOLLOWUP_NAME:  MachineOwner

MODULE_NAME: nt

DEBUG_FLR_IMAGE_TIMESTAMP:  3e8015c6

SYMBOL_NAME:  nt!MmGetSizeOfBigPoolAllocation+1cb

IMAGE_NAME:  memory_corruption

FAILURE_BUCKET_ID:  0xc2_47_nt!MmGetSizeOfBigPoolAllocation+1cb

BUCKET_ID:  0xc2_47_nt!MmGetSizeOfBigPoolAllocation+1cb

Followup: MachineOwner
---------

Because nt!MmGetSizeOfBigPoolAllocation is not listed in triage.ini WinDbg reports nt module and memory corruption. The latter cause is probably inferred from either BAD_POOL_CALLER bugcheck name or Mm function prefix.

Let’s add more lines to tiage.ini:

3rdPartyAVDrv!*=ignore
nt!MmGetSizeOfBigPoolAllocation=ignore
nt!ExFreePoolWithTag=Dynamic memory corruption detected when freeing memory

Now the analysis reports our custom follow up message:

3: kd> !analyze -v
...
...
...
FOLLOWUP_IP:
nt!ExFreePoolWithTag+1d0
805689c2 e9c8f0ffff      jmp     nt!ExFreePoolWithTag+0x1d0 (80567a8f)

SYMBOL_STACK_INDEX:  2

FOLLOWUP_NAME:  Dynamic memory corruption detected when freeing memory

MODULE_NAME: nt

IMAGE_NAME:  ntkrnlmp.exe

DEBUG_FLR_IMAGE_TIMESTAMP:  3e8015c6

SYMBOL_NAME:  nt!ExFreePoolWithTag+1d0

FAILURE_BUCKET_ID:  0xc2_47_nt!ExFreePoolWithTag+1d0

BUCKET_ID:  0xc2_47_nt!ExFreePoolWithTag+1d0

Followup: Dynamic memory corruption detected when freeing memory
---------

Let’s look at STACK_TEXT data:

STACK_TEXT:
b325db68 8054d2eb 000000c2 00000047 85083000 nt!KeBugCheckEx+0x19
b325db94 805689c2 85083000 00080000 85083000 nt!MmGetSizeOfBigPoolAllocation+0x1cb
b325dbe4 f77c8098 00000000 00000000 00000004 nt!ExFreePoolWithTag+0×1d0
WARNING: Stack unwind information not available. Following frames may be wrong.
b325dc24 f77c8234 8599d4e0 8599d4e0 88cecf38 3rdPartyAVDrv+0×1098
b325dc3c 804f04f3 871d2cf0 00004808 8743b6a0 3rdPartyAVDrv+0×1234
b325dc4c 80585208 8599d550 872c8028 8599d4e0 nt!IofCallDriver+0×3f
b325dc60 80585fe6 871d2cf0 8599d4f0 872c8028 nt!IopSynchronousServiceTail+0×6f
b325dd00 80586028 00000468 00000614 00000000 nt!IopXxxControlFile+0×607
b325dd34 804dfd24 00000468 00000614 00000000 nt!NtDeviceIoControlFile+0×28
b325dd34 7ffe0304 00000468 00000614 00000000 nt!KiSystemService+0xd0
0087b6c0 00000000 00000000 00000000 00000000 SharedUserData!SystemCallStub+0×4

We see that WinDbg is not sure that it correctly identified 3rdPartyAVDrv module. We can check this manually by subtracting 0×1098 from f77c8098 (shown in blue above). The latter address is the so called return address saved when nt!ExFreePoolWithTag was called and can located in the second column. We can see that it falls within 3rdPartyAVDrv address range and therefore the stack looks correct:

3: kd> ? f77c8098-0x1098
Evaluate expression: -142839808 = f77c7000

3: kd> lmv m 3rdPartyAVDrv
f77c7000 f77cf000   3rdPartyAVDrv 3rdPartyAVDrv.sys
    Loaded symbol image file: 3rdPartyAVDrv.sys
    Symbol file: 3rdPartyAVDrv.sys
    Image path: 3rdPartyAVDrv.sys
    Browse all global symbols  functions  data
    Timestamp:        Wed Jul 28 07:15:21 2004 (410752C5)
    CheckSum:         00011518
    ImageSize:        00008000
    Translations:     0000.04b0 0000.04e0 0409.04b0 0409.04e0

The driver is dated Jul, 2004 and therefore we can try either to disable it or contract the vendor for any updates. The “Timestamp” refers to the time when the driver was built at the vendor software factory and not the time when it was installed. This is a way to identify the version of the software if no more information except the time is present in the output of lmv command.

Also note the PROCESS_NAME field in the analysis output. It is a process that was active at the time of the system failure. The application that the process belongs to might be from the same vendor as the suspicious driver but usually they are independent, for example, if there is a bug in a display driver it might manifest when any application is running.

Sometimes stack trace (STACK_TEXT) starts with a warning like in this example:

STACK_TEXT:
WARNING: Stack unwind information not available. Following frames may be wrong.
b4f528b0 b4f52904 e24079e0 000000ab 000003cb DisplayDriver+0x21bca6
b4f528b4 e24079e0 000000ab 000003cb 43f0027f 0xb4f52904
b4f52904 00000000 000003cb 0000027a 00000135 0xe24079e0

In such cases we can look at a crash point (FAULTING_IP) and notice the module there:

FAULTING_IP:
DisplayDriver+21bca6
bfbf0ca6 8b3e            mov     edi,dword ptr [esi]

0: kd> lmv m DisplayDriver
start    end        module name
bf9d5000 bff42500   DisplayDriver T (no symbols)
    Loaded symbol image file: DisplayDriver.dll
    Image path: DisplayDriver.dll
    Image name: DisplayDriver.dll
    Timestamp:        Fri Jun 29 09:13:08 2007 (4684BF14)
    CheckSum:         00570500
    ImageSize:        0056D500
    Translations:     0000.04b0 0000.04e0 0409.04b0 0409.04e0

- Dmitry Vostokov @ DumpAnalysis.org -
