Trace Analysis Patterns (Part 164)

Sunday, October 14th, 2018

When we have very large traces (including Split Traces) we can use the concept of sharding to split a log into several shards for parallel processing. However, some patterns may require the analysis across the boundary of shards. Trace Sharding is illustrated in the following diagram:

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Trace Analysis Patterns (Part 163)

Saturday, October 13th, 2018

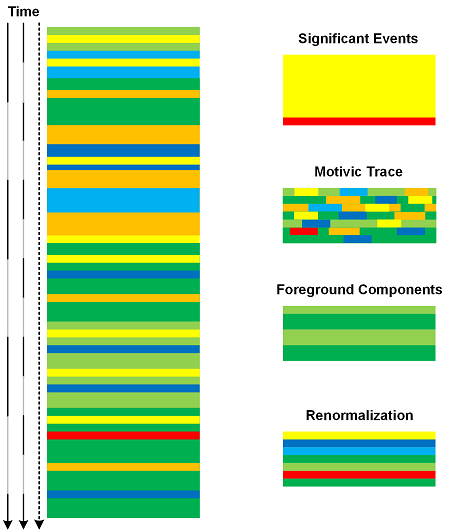

A software trace or log can be analyzed using different Time Scales. The coarser the scale the more messages are included in time intervals. Such per interval Message Sets can be analyzed and transformed into one message using analysis patterns such as Significant Event, Motivic Trace, Background and Foreground Components, and Renormalization. The resulted new trace will be a scaled version of the original trace as depicted in the following diagram:

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Trace Analysis Patterns (Part 162)

Sunday, October 7th, 2018

The data in individual messages and in State Dump message blocks may be truncated. This is similar to Visibility Limit at the log message level. When data values are sorted and resorted this may result in “hidden” data replacing the previously “visible” data and vice versa as shown in the following diagram:

This pattern (Truncated Data) was conceived after we observed the change of data key in sequence of a LinkedIn post (not related to firefighting) stats sorted by value and thought that was “strange”:

However, stats from the other post showed the both keys were valid:

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Crash Dump Analysis Patterns (Part 13l)

Saturday, October 6th, 2018

Insufficient stack memory may not result in Stack Overflow if there are internal thread checks or external watchdog threads. In some way this is a specialization of a more general Insufficient Memory (region) analysis pattern.

Consider this thread stack trace we see when we open a crash dump in WinDbg:

0:003> kc
# Call Site
00 EdgeContent!wil::details::ReportFailure
01 EdgeContent!wil::details::ReportFailure_Hr
02 EdgeContent!wil::details::in1diag3::FailFast_Hr
03 EdgeContent!`anonymous namespace'::MemoryLimitWatchdogThreadProc
04 kernel32!BaseThreadInitThunk
05 ntdll!RtlUserThreadStart

The reported error is related to general security checks and doesn’t reveal much:

0:003> .lastevent
Last event: 10e0.25fc: Security check failure or stack buffer overrun - code c0000409 (first/second chance not available)
debugger time: Sat Sep 29 21:30:31.531 2018 (UTC + 1:00)

However, from Stack Trace Motif we may infer that the failure was related to some memory limit.

When looking at Stack Trace Collection we notice the thread #11 which has the long sequence of frames:

11 Id: 10e0.d68 Suspend: 2 Teb: 000000ca`e96e3000 Unfrozen
# Call Site
00 ntdll!NtWaitForSingleObject
01 KERNELBASE!WaitForSingleObjectEx
02 Chakra!Memory::Recycler::WaitForConcurrentThread
03 Chakra!Memory::Recycler::FinishConcurrentCollect
04 Chakra!ThreadContext::ExecuteRecyclerCollectionFunction
05 Chakra!Memory::Recycler::FinishConcurrentCollectWrapped
06 Chakra!Memory::Recycler::LargeAlloc<0>
07 Chakra!Memory::Recycler::AllocLeaf
08 Chakra!Js::CompoundString::GetSz
09 Chakra!Js::JSONStringifier::ReadProperty
0a Chakra!Js::JSONStringifier::ReadObject
0b Chakra!Js::JSONStringifier::ReadProperty
0c Chakra!Js::JSONStringifier::Stringify
0d Chakra!JSON::Stringify
0e Chakra!amd64_CallFunction
0f Chakra!Js::InterpreterStackFrame::OP_CallCommon<Js::OpLayoutDynamicProfile<
Js::OpLayoutT_CallIWithICIndex<Js::LayoutSizePolicy<0> > > >
10 Chakra!Js::InterpreterStackFrame::ProcessUnprofiled
11 Chakra!Js::InterpreterStackFrame::Process
12 Chakra!Js::InterpreterStackFrame::InterpreterHelper
13 Chakra!Js::InterpreterStackFrame::InterpreterThunk
[...]
fa Chakra!ThreadContext::ExecuteImplicitCall<<
lambda_5a46706206cf607f01fe0fb33b6e8acf> >
fb Chakra!Js::DynamicObject::CallToPrimitiveFunction
fc Chakra!Js::DynamicObject::ToPrimitiveImpl<409>
fd Chakra!Js::DynamicObject::ToPrimitive
fe Chakra!Js::JavascriptConversion::OrdinaryToPrimitive
ff Chakra!Js::JavascriptConversion::MethodCallToPrimitive

It looks like the thread stack is really long that we suspect the possibility of overflow:

0:003> ~11kc 0xffff
[...]
c473 Chakra!amd64_CallFunction
c474 Chakra!Js::JavascriptFunction::CallFunction<1>
c475 Chakra!Js::JavascriptFunction::CallRootFunctionInternal
c476 Chakra!Js::JavascriptFunction::CallRootFunction
c477 Chakra!ScriptSite::CallRootFunction
c478 Chakra!ScriptSite::Execute
c479 Chakra!ScriptEngineBase::Execute
c47a edgehtml!CMutationObserver::PerformMicrotaskCheckpoint
c47b edgehtml!CObserverManager::InvokeObserversForCheckpoint
c47c edgehtml!CObserverManager::MicroTaskExecutionCallback
c47d edgehtml!HTML5TaskScheduler::RunReadiedTask
c47e edgehtml!HTML5TaskScheduler::PerformMicrotaskCheckpoint
c47f edgehtml!CJScript9Holder::ExecuteCallback
c480 edgehtml!CScriptTimer::ExecuteTimer
c481 edgehtml!CScriptTimerManager::OnTick
c482 edgehtml!CPaintAlignedTimerManager<CPaintBeat>::ProcessTimers
c483 edgehtml!CPaintBeat::OnProcessTimersTask
c484 edgehtml!GWndAsyncTask::Run
c485 edgehtml!HTML5TaskScheduler::RunReadiedTask
c486 edgehtml!TaskSchedulerBase::RunReadiedTasksInTaskQueueWithCallback
c487 edgehtml!HTML5TaskScheduler::RunReadiedTasks
c488 edgehtml!HTML5EventLoopDriver::DriveLowPriorityTaskExecution
c489 edgehtml!GlobalWndOnPaintPriorityMethodCall
c48a edgehtml!GlobalWndProc
c48b user32!FilteredProcessRedirectingWndProcW
c48c user32!UserCallWinProcCheckWow
c48d user32!DispatchClientMessage
c48e user32!_fnDWORD
c48f ntdll!KiUserCallbackDispatcherContinue
c490 win32u!NtUserDispatchMessage
c491 user32!DispatchMessageWorker
c492 EdgeContent!CBrowserTab::_TabWindowThreadProc
c493 EdgeContent!LCIETab_ThreadProc
c494 edgeIso!_IsoThreadProc_WrapperToReleaseScope
c495 kernel32!BaseThreadInitThunk
c496 ntdll!RtlUserThreadStart

However, the current stack pointer is the way above the stack region limit:

0:003> ~11s
ntdll!NtWaitForSingleObject+0x14:
00007ffa`b0d99f74 c3              ret

0:011> r rsp
rsp=000000caeb033348

0:011> !teb
TEB at 000000cae96e3000
ExceptionList:        0000000000000000
StackBase:            000000caeba00000
StackLimit:           000000caeb00b000
SubSystemTib:         0000000000000000
FiberData:            0000000000001e00
ArbitraryUserPointer: 0000000000000000
Self:                 000000cae96e3000
EnvironmentPointer:   0000000000000000
ClientId:             00000000000010e0 . 0000000000000d68
RpcHandle:            0000000000000000
Tls Storage:          000001e915185590
PEB Address:          000000cae96a8000
LastErrorValue:       1455
LastStatusValue:      c000012d
Count Owned Locks:    0
HardErrorMode:        0

The last error code shows possible Insufficient Memory (committed memory) pattern but there were enough space in the page file and the same crashes were observed in a much more spacious memory environments:

0:011> !error c000012d
Error code: (NTSTATUS) 0xc000012d (3221225773) - {Out of Virtual Memory}  Your system is low on virtual memory. To ensure that Windows runs properly, increase the size of your virtual memory paging file. For more information, see Help.

0:011> !error 0n1455
Error code: (Win32) 0x5af (1455) - The paging file is too small for this operation to complete.

When we look at a raw stack trace region though, we see it was used to the fullest:

0:011> dps 000000caeb00b000 L30
000000ca`eb00b000 00000000`00000000
000000ca`eb00b008 00000000`00000000
000000ca`eb00b010 00000000`00000000
000000ca`eb00b018 00000000`00000000
000000ca`eb00b020 00000000`00000000
000000ca`eb00b028 00000000`00000000
000000ca`eb00b030 00000000`00000000
000000ca`eb00b038 00000000`00000000
000000ca`eb00b040 00000000`00000000
000000ca`eb00b048 00000000`00000000
000000ca`eb00b050 00000000`00000000
000000ca`eb00b058 00000000`00000000
000000ca`eb00b060 00000000`00000000
000000ca`eb00b068 00000000`00000000
000000ca`eb00b070 00000000`00000000
000000ca`eb00b078 00000000`00000000
000000ca`eb00b080 00000000`00000000
000000ca`eb00b088 00000000`00000000
000000ca`eb00b090 00000000`00000000
000000ca`eb00b098 000001e9`258805c0
000000ca`eb00b0a0 00000000`00000000
000000ca`eb00b0a8 00000000`00000000
000000ca`eb00b0b0 00000000`00000131
000000ca`eb00b0b8 00007ffa`8de137a9 Chakra!Js::DictionaryTypeHandlerBase<unsigned>::GetProperty+0×119
000000ca`eb00b0c0 00000000`00000006
000000ca`eb00b0c8 000001e9`258805c0
000000ca`eb00b0d0 000001e9`258805c0
000000ca`eb00b0d8 000001e9`283d4e70
000000ca`eb00b0e0 000000ca`eb00b210
000000ca`eb00b0e8 00000000`00000000
000000ca`eb00b0f0 00000000`00000131
000000ca`eb00b0f8 000001f1`71863c70
000000ca`eb00b100 00007ffa`8e3cd468 Chakra!Js::BuiltInPropertyRecords::number
000000ca`eb00b108 00000000`00000000
000000ca`eb00b110 000001f1`71863c70
000000ca`eb00b118 000000ca`eb00b210
000000ca`eb00b120 000001e9`258805c0
000000ca`eb00b128 00007ffa`8de103d3 Chakra!Js::DynamicObject::GetPropertyQuery+0×53
000000ca`eb00b130 000001e9`24cc65b0
000000ca`eb00b138 000001e9`258805c0
000000ca`eb00b140 000001e9`258805c0
000000ca`eb00b148 00000000`00000131
000000ca`eb00b150 000000ca`eb00b210
000000ca`eb00b158 00000000`00000000
000000ca`eb00b160 000001f1`71863c70
000000ca`eb00b168 00000000`00000000
000000ca`eb00b170 00000000`00000000
000000ca`eb00b178 00007ffa`8df79864 Chakra!Js::JavascriptOperators::GetProperty_InternalSimple+0×64

We also see Execution Residue possibly indicating catch exception processing:

0:011> dpS 000000caeb00b000 L100
00007ffa`8de137a9 Chakra!Js::DictionaryTypeHandlerBase<unsigned short>::GetProperty+0x119
00007ffa`8e3cd468 Chakra!Js::BuiltInPropertyRecords::number
00007ffa`8de103d3 Chakra!Js::DynamicObject::GetPropertyQuery+0x53
00007ffa`8df79864 Chakra!Js::JavascriptOperators::GetProperty_InternalSimple+0x64
00007ffa`b0d470d0 ntdll!RtlSetLastWin32Error+0x40
00007ffa`b0d470d0 ntdll!RtlSetLastWin32Error+0x40
00007ffa`b048a5da msvcrt!getptd_noexit+0x6e
00007ffa`8dfb36d6 Chakra!`Js::JavascriptExceptionOperators::StackTraceAccessor'::`1'::catch$8
+0x50
00007ffa`b048a553 msvcrt!getptd+0xb
00007ffa`b045aad6 msvcrt!_DestructExceptionObject+0x46
00007ffa`b0463798 msvcrt!_CxxCallCatchBlock+0x1e8
00007ffa`8ddb6d54 Chakra!Js::JavascriptExceptionOperators::StackTraceAccessor+0x2a4
00007ffa`8e324798 Chakra!ValueType::PrimitiveOrObject+0xa80
00007ffa`8dfb3686 Chakra!`Js::JavascriptExceptionOperators::StackTraceAccessor'::`1'::catch$8
00007ffa`8dd20000 Chakra!_jscriptinfo_IID_Lookup <PERF> (Chakra+0x0)
00007ffa`b04635b0 msvcrt!_CxxCallCatchBlock
00007ffa`b0d9e2b3 ntdll!RcConsolidateFrames+0x3
00007ffa`8ddb6d54 Chakra!Js::JavascriptExceptionOperators::StackTraceAccessor+0x2a4
00007ffa`8de137a9 Chakra!Js::DictionaryTypeHandlerBase<unsigned short>::GetProperty+0x119
00007ffa`8e3cd468 Chakra!Js::BuiltInPropertyRecords::number
00007ffa`8de103d3 Chakra!Js::DynamicObject::GetPropertyQuery+0x53
00007ffa`8df79864 Chakra!Js::JavascriptOperators::GetProperty_InternalSimple+0x64
00007ffa`b0d470d0 ntdll!RtlSetLastWin32Error+0x40
00007ffa`b0d470d0 ntdll!RtlSetLastWin32Error+0x40
00007ffa`b048a5da msvcrt!getptd_noexit+0x6e
00007ffa`8dfb36d6 Chakra!`Js::JavascriptExceptionOperators::StackTraceAccessor'::`1'::catch$8
+0x50
00007ffa`b048a553 msvcrt!getptd+0xb
00007ffa`b045aad6 msvcrt!_DestructExceptionObject+0x46
00007ffa`b0463798 msvcrt!_CxxCallCatchBlock+0x1e8
00007ffa`8ddb6d54 Chakra!Js::JavascriptExceptionOperators::StackTraceAccessor+0x2a4

Another similar crash on a different machine with much more memory available had Active Thread Exception Stack Trace:

0:013> kc
# Call Site
00 ntdll!NtQueryWnfStateNameInformation
01 ntdll!SignalStartWerSvc
02 ntdll!SendMessageToWERService
03 ntdll!ReportExceptionInternal
04 kernel32!WerpReportFaultInternal
05 kernel32!WerpReportFault
06 KERNELBASE!UnhandledExceptionFilter
07 Chakra!FatalExceptionFilter
08 Chakra!ReportFatalException$filt$0
09 msvcrt!_C_specific_handler
0a ntdll!RtlpExecuteHandlerForException
0b ntdll!RtlDispatchException
0c ntdll!RtlRaiseException
0d KERNELBASE!RaiseException
0e Chakra!ReportFatalException
0f Chakra!OutOfMemory_fatal_error
10 Chakra!Js::Exception::RaiseIfScriptActive
11 Chakra!Js::Throw::OutOfMemory
12 Chakra!Memory::Recycler::LargeAlloc<0>
13 Chakra!Memory::Recycler::AllocLeaf
14 Chakra!Js::LazyJSONString::GetSz
15 Chakra!Js::CompoundString::AppendGeneric<Js::CompoundString>
16 Chakra!Js::JavascriptExceptionOperators::StackTraceAccessor
17 Chakra!Js::InlineCache::TryGetProperty<1,1,1,1,0>
18 Chakra!Js::CacheOperators::TryGetProperty<1,1,1,1,1,1,1,0,0>
19 Chakra!Js::JavascriptOperators::PatchGetValue<1,Js::InlineCache>
1a js!d.toString
[...]

which actually showed the Javascript URL:

0:013> .frame 1a
1a 00000037`4671e5e0 00007ffe`1753f1a1 js!d.toString [https://yastatic.net/awaps-ad-sdk-js-bundles/1.0-889/bundles/inpage.bundle.js @ 8,36454]

The stack region was also almost full with execution residue including exception catch processing. But this time it show “stack space” hint:

0:013> !teb
TEB at 00000037456dc000
ExceptionList:        0000000000000000
StackBase:            0000003747100000
StackLimit:           000000374670a000
SubSystemTib:         0000000000000000
FiberData:            0000000000001e00
ArbitraryUserPointer: 0000000000000000
Self:                 00000037456dc000
EnvironmentPointer:   0000000000000000
ClientId:             0000000000005914 . 0000000000001150
RpcHandle:            0000000000000000
Tls Storage:          000001a5bcfd88d0
PEB Address:          00000037456bd000
LastErrorValue:       0
LastStatusValue:      c000012d
Count Owned Locks:    0
HardErrorMode:        0

0:013> s-su 000000374670a000 00000037`46720000
[…]
00000037`4670d210 “tack space”
[…]

Note: Regardless of the actual root cause and mechanism for these crash dumps, such stack region monitoring can also be used for software prognostics purposes.

The example dump can be downloaded from here.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -
