Trace Analysis Patterns (Part 203)

Sunday, January 10th, 2021

Various metrics are covered by Counter Value trace and log analysis pattern. However, metric labels or metric metadata as implemented by monitoring tools such as Prometheus can be mapped directly to Adjoint Threads of Activity in our trace and log analysis pattern catalog:

<Metric Name>{<Label Name>=<Label Value>, ...}=<Metric Value> (from Prometheus data model)

{<Metric Name ATID>=<ATID Value>, <ATID Name>=<ATID Value>, ..., <Message (Metric Value)>}

This allows the application of many trace and log analysis patterns related to threading and adjoint threading (multibraiding).

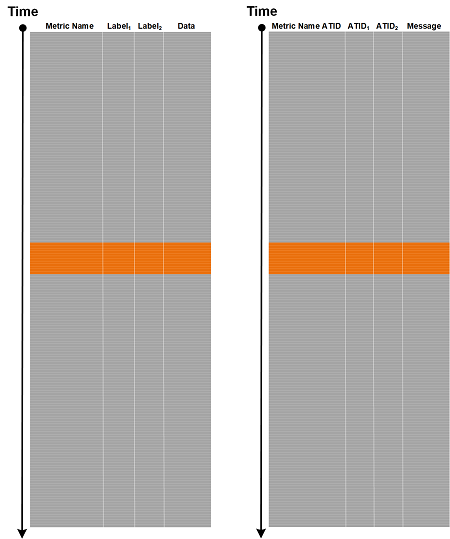

We call this analysis pattern Message Metadata. It is illustrated for time series in the following diagram where we have the same Labels for all metric names (in general labels may be different):

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Trace, Log, Text, Narrative

Monday, November 9th, 2020

The content of trace analysis patterns is available in edited and revised PDF format:

https://www.patterndiagnostics.com/trace-log-analysis-pattern-reference

Software Narratology (Literary Theory Terms, Part 2): abstract, accent, act, action, adaptation, address

Sunday, November 8th, 2020

Abstract is usually the summary of an artifact (see Trace Summary analysis pattern) or not concrete description (see Analysis Pattern Square diagram).

Accent as stress in a line of verse has its correspondence to data in Message Pattern, which can be seen as a sequence of variables and Message Invariants.

Act as a play division corresponds to Activity Regions (see also trace partitioning and Activity Theatre analysis patterns).

Action as the main story of a narrative artifact may involve a sequence of selected Significant Events, Macrofunctions, Activity Regions with Motives. In a software narratological framework for presenting software storiesaction is a sequence of selected messages that constitutes a software plot (an acquired software artifact that may not be complete/full due to abridgment like restricting tracing/logging to selected components).

Adaptation as interpreting an artifact as a different one (from one media to another, or a different structure) is similar to treating memory dumps as traces/logs or vice versa as Projective Debugging.

Address as a story written for a specific group of people could be a software execution artifact explicitly acquired and adapted to some external users or Declarative Trace messages crafted for a specific team in mind (see also Embedded Comment analysis pattern).

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Software Narratology (Literary Theory Terms, Part 1): ab ovo, in medias res, flashback, abridged edition

Thursday, November 5th, 2020

Ab ovo is a software story (for example, a trace or log, a problem description, see software narratology square) that starts from the beginning of the use case events it narrates (see also Use Case Trail analysis patterns) or the start of software execution (see also Visibility Limit analysis pattern). Logging may start from some middle event of a use case, source code (see also Declarative Trace analysis pattern), or a log may be a part of a larger full trace (see also a software narratological framework for presenting software stories): in medias res. Such software stories may also have flashbacks, for example, stack traces, especially in software problem descriptions. Often, flashbacks are the only available software stories. Some tracing and logging sessions may be deliberately shortened to save space, communication throughput, or other reasons like security, similar to abridged editions of literary works (see also Abridged Dump and Missing Component analysis patterns). Such editions of software execution artifacts often hinder analysis (see Lateral Damage analysis pattern).

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Trace Analysis Patterns (Part 202)

Sunday, October 25th, 2020

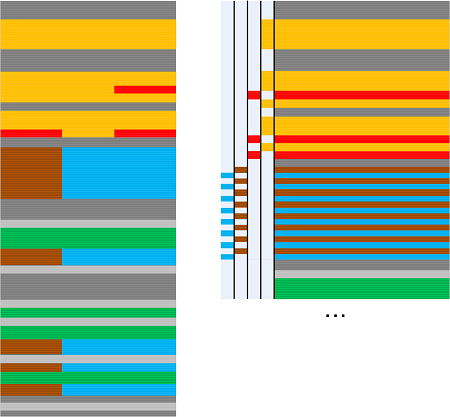

Ideally a trace or log message should contain only one piece of information including associated data. However, some Multidimensional Messages may contain unrelated information, including several Message Invariants and variable data places, for example: “Entry GetData. Error opening file: 0×5″ or “Window handle: 0xa60834 pHandler: 0×456210F0″. Such messages may be split into several independent messages and, if necessary, additional ATIDs (new Adjoint Threads of Activity) may be added like depicted in this diagram of Combed Trace:

Another example is Exception Stack Trace messages in some logging implementations.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Trace Analysis Patterns (Part 201)

Saturday, September 19th, 2020

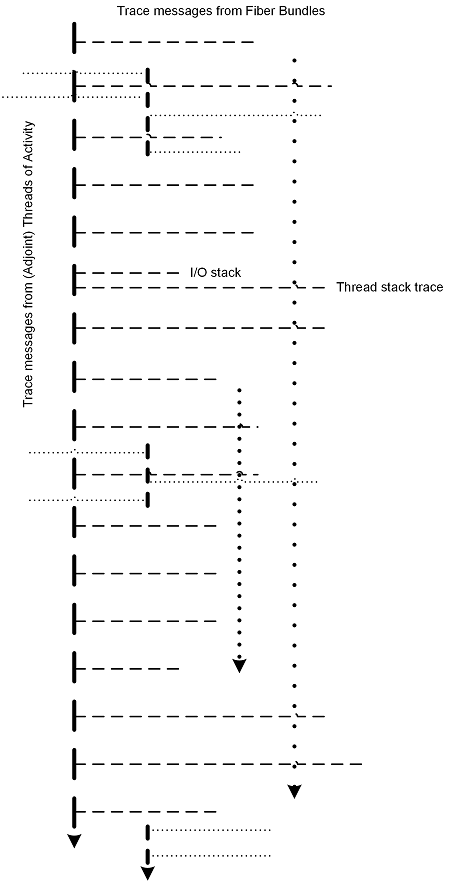

If messages from (Adjoint) Thread of Activity also have associated traces (Fiber Bundle) then the latter messages data, for example, module names, can be interlinked with corresponding Adjoint Threads of Activity, thus forming “two-dimensional” Weave of Activity.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Trace Analysis Patterns (Part 200)

Sunday, September 13th, 2020

Trace and log analysis patterns may be additionally applied not only to a database like tables but also to texts (as an example of general trace and log analysis). Sentences may form trace messages with paragraphs and chapters corresponding to traditional ATIDs (IDs for Adjoint Threads of Activity) such as TID and PID in the most simple syntax mapping case, and certain sentences may be interpreted as Silent Messages.

Different attribute generation schemas may be used, for example, selected vocabulary may be used to assign TID numbers. More complex cases may require paratexts, supplementary texts providing additional structure and semantic information like in the case of Paratext memory analysis pattern, the case of extended traces.

The opposite process of converting traces and logs to text is also possible with additional paratext generation if necessary. We call this two-way analysis pattern Text Trace. After converting texts to logs it is possible to apply the majority of trace and log analysis patterns from the catalog.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Trace Analysis Patterns (Part 199)

Sunday, September 13th, 2020

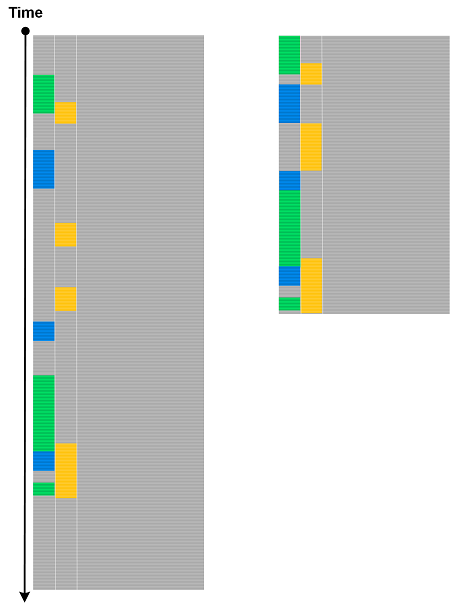

Several Strands of Activity from different types of ATIDs (Adjoint Threads of Activity) combine into Cord of Activity:

Between cord and rope analogies we chose cord as having “ord” (ordinal) in it (and c as cardinal). It is also possible to combine several Cords of Activity from different traces (Trace Dimension) to form a “cable-laid rope”. We don’t introduce a separate pattern here since in the resulting Trace Mask we have new Cord of Activity due to the additionally created ATID type referencing former separate traces and logs. Data references in messages may provide additional braiding via Braids of Activity.

We started with strands (we got the idea from the discussion of ethnomathematics where strand analysis was mentioned) but then we found the following useful discussion on rope terminology: “Art and Science of Rope“.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Trace Analysis Patterns (Part 198)

Saturday, September 12th, 2020

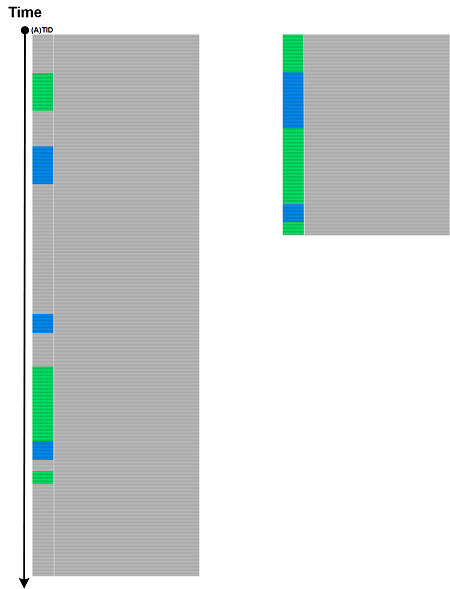

Strand of Activity combines different Threads of Activity or Adjoint Threads of Activity of the same type.

Strands extend cable and rope composition metaphors that start with Fibers of Activity, and continue with threads and Braids of Activity.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Trace Analysis Patterns (Part 197)

Sunday, August 23rd, 2020

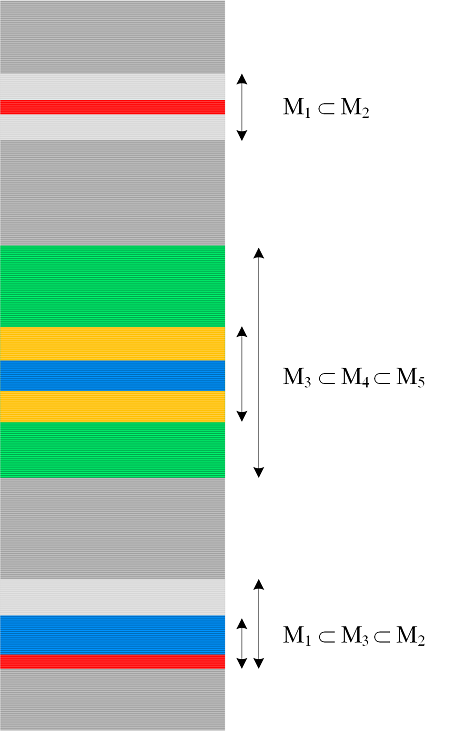

Sometimes we may want to Flag a message or Activity Region, for example, using Message Annotations. In other cases we may have Activity Regions are sorted by their coordinate-wise inclusion. Or we have inclusion of Message Sets. The analysis pattern name is borrowed from flag filtration in mathematics, where we consider subsets of messages and Activity Regions as subspaces. Dia|gram pictures of Flags may even resemble flags of some countries.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Trace Analysis Patterns (Part 196)

Friday, July 31st, 2020

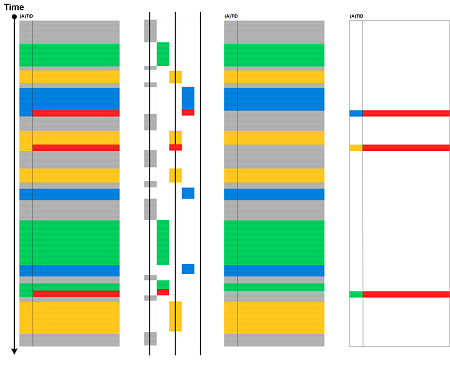

It is possible to foliate traces into separate traces having the same structure and scale (we also show corresponding Trace Fabric for the original trace):

In the diagram above Trace Foliation was done for message type, for example, error and normal messages. The reverse operation of Trace Mask would produce the same original trace.

Correspondingly Trace Fabric can be foliated too giving rise to “orchestra” representation and vice versa via Trace Mask:

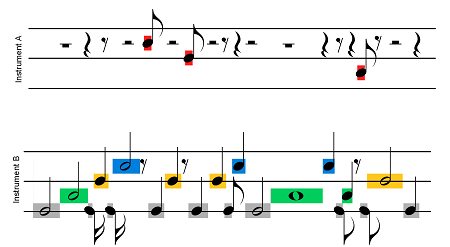

Bars can be added with the help of Silent Messages.

The name of this analysis pattern was also inspired by foliations in mathematics.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Trace Analysis Patterns (Part 195)

Friday, July 31st, 2020

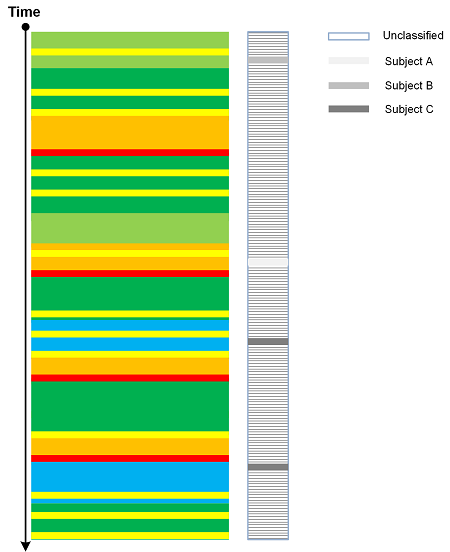

Semantic Field is a set of messages that belong to particular category or subject:

It is different from Trace Field which is a function, not an already prepared codomain of mapping.

Some Semantic Fields may be formed by the analysis of Implementation Discourse, for example using machine learning techniques.

The pattern name was inspired by semantic field in linguistics and came to our attention when reading “German Loanwords in English: An Historical Dictionary” book.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Trace Analysis Patterns (Part 194)

Friday, July 31st, 2020

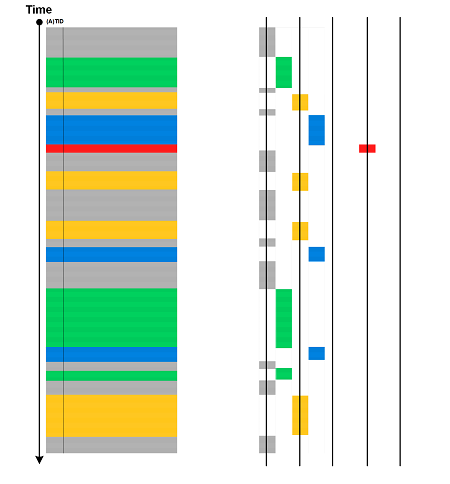

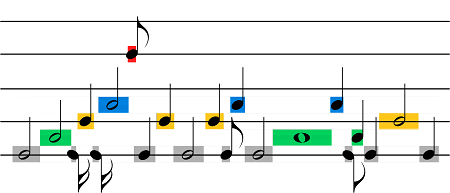

If we take Combed Trace for Thread of Activity or some Adjoint Thread of Activity and strip other message content like we did for Trace Contour log analysis pattern we get individual braids that form Trace Fabric:

We can also get a stave representation of individual braids after a counter clockwise 90 degree rotation:

Bars can be added with the help of Silent Messages. Conversely, a musical piece can be transformed into some trace.

We mentioned “fabric” metaphor already when we introduced multibraiding.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Trace Analysis Patterns (Part 193)

Thursday, July 30th, 2020

If we take Combed Trace for Thread of Activity or some Adjoint Thread of Activity, strip other message content, and then trace all non-empty values we get Trace Contour:


- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Trace Analysis Patterns (Part 192)

Monday, July 20th, 2020

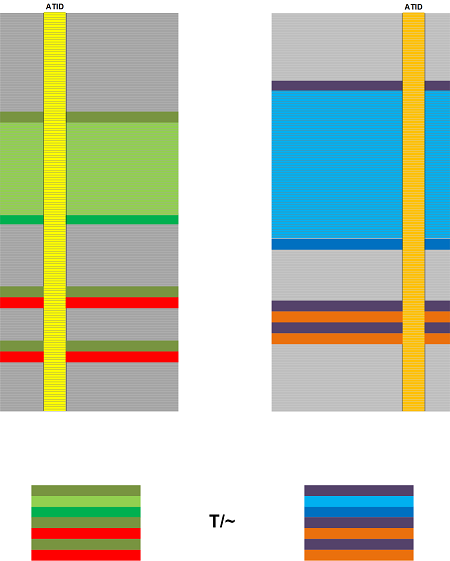

Traces and logs from diverse software systems doing different things may have similar Trace Shape despite completely different message content, especially for specific Threads of Activity or Adjoint Threads of Activity:

This may be apparent when we compare Trace Shape of Quotient Trace.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Trace Analysis Patterns (Part 191)

Sunday, July 19th, 2020

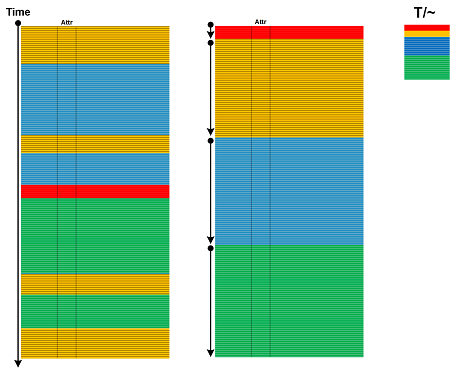

If we have an attribute we can sort messages based on that attribute values and get Sorted Trace. If that attribute is TID or ATID we get the sequence of Threads of Activity or Adjoint Threads of Activity:

If we sort by message types or Message Invariants or some message data we get a sequence of Fibers of Activity.

The diagram above also shows on the right Quotient Trace by message type equivalence after additional sorting inside each Adjoint Thread of Activity.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Trace Analysis Patterns (Part 190)

Saturday, July 18th, 2020

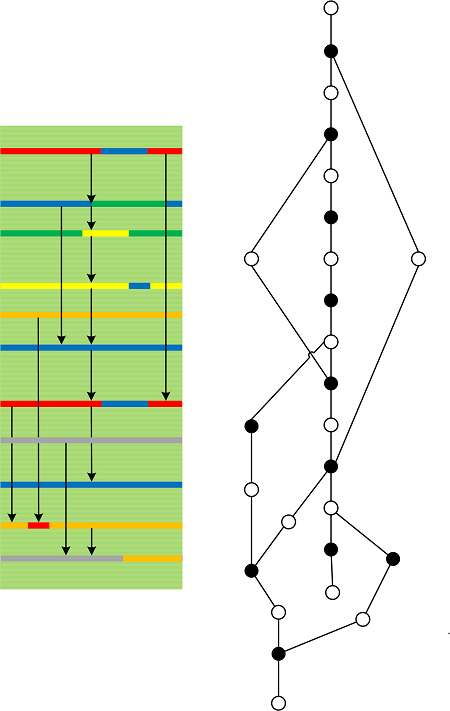

Causal History messages (black circles) pass through Activity Regions which can be marked as hollow circles:

We call this analysis pattern Trace D’Enfant by analogy with dessin d’enfant in mathematics, a bipartite graph embedded in an oriented surface, so in theory Traces D’Enfants can be studied algebraically.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Trace Analysis Patterns (Part 189)

Friday, July 17th, 2020

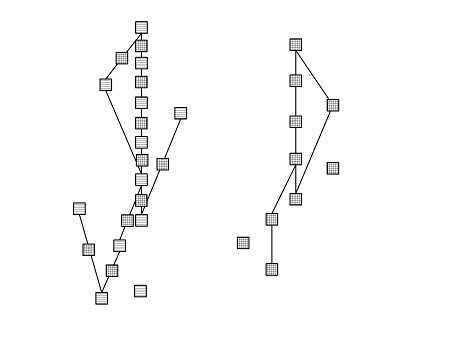

The relations between Causal History messages (0-chains) can be abstracted as Causal Chains (1-chains). Two relations can be linked if an endpoint of one is also a beginning point of another:

The relations of 1-chains can be abstracted as 2-chains and so on (n-chains):

We took the idea of relation spaces and chains from already quoted “Discreet Causal Theory” book. Causal chain terminology is also used in philosophy.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Trace Analysis Patterns (Part 188)

Thursday, July 16th, 2020

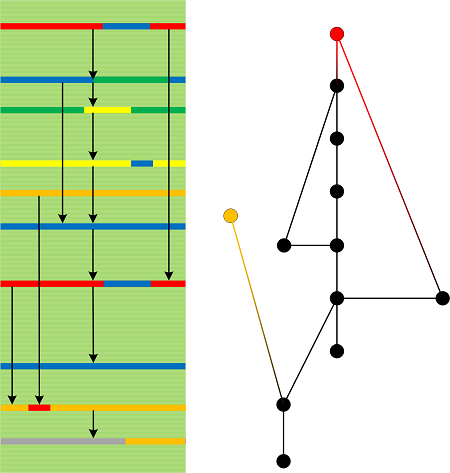

When looking at Causal History we can choose Causal Messages (not necesseraly the top ones):

Causal Messages may not overlap with the trace Defect Group which may not have any causal relevance being only correlation messages.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Trace Analysis Patterns (Part 187)

Wednesday, July 15th, 2020

Trace Paths and Back Traces form Causal History of the log where arrows point in the direction of possible causation:

Here we borrow the notion of causal sets from physics and corresponding mathematics. The left diagramming idea was taken from Discrete Causal Theory book and Hasse diagrams (which is inverted in our picture). Also, such graphs are internal to software narratives compared to the more general external space we proposed earlier.

We omit Time arrow as it is possible to consider general traces and logs with their causality markers.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -
