Trace Analysis Patterns (Part 170)

Monday, May 27th, 2019

The advent of virtualization simplified the debugging of complex issues by allowing to save the snapshot of the execution environment and then resume it from the save point of execution. This allows continuing tracing using a different set of environmental conditions and input data. New tracing continuations constitute a network that we call Polytrace:

Bifurcation Point for two identical trace beginnings may be considered as an example of a simple Polytrace.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Crash Dump Analysis Patterns (Part 16d)

Thursday, May 23rd, 2019

Stack Overflow (user mode) analysis pattern relied on prominent stack trace signs. However, in cases of low memory condition there may not be an opportunity to create a new guard page for the expanding stack region and the exception itself may be Hidden Exception:

0:003> kc
# Call Site
00 KERNELBASE!GetModuleHandleExW
01 EdgeContent!wil::details::GetModuleInformation
02 EdgeContent!wil::details::GetCurrentModuleName
03 EdgeContent!wil::details::LogFailure
04 EdgeContent!wil::details::ReportFailure
05 EdgeContent!wil::details::ReportFailure_Hr
06 EdgeContent!wil::details::in1diag3::FailFast_Hr
07 EdgeContent!`anonymous namespace'::MemoryLimitWatchdogThreadProc
08 kernel32!BaseThreadInitThunk
09 ntdll!RtlUserThreadStart

0:003> .exr -1
ExceptionAddress: 00007ff992f6391b (KERNELBASE!GetModuleHandleExW+0x000000000000007b)
ExceptionCode: c00000fd (Stack overflow)
ExceptionFlags: 00000000
NumberParameters: 2
Parameter[0]: 0000000000000001
Parameter[1]: 000000fe709fdfc8

0:003> r
rax=0000000000000001 rbx=0000000000000006 rcx=00007ff945e3fa80
rdx=000000fe709fe020 rsi=00007ff945e3fa80 rdi=000000fe709fe030
rip=00007ff992f6391b rsp=000000fe709fdfd0 rbp=0000000000000040
r8=000000fe709fe030  r9=0000000000000040 r10=00000fff28bc7dba
r11=0440000001000010 r12=00007ff94606be60 r13=000000000000013f
r14=0000000000000003 r15=0000000000000000
iopl=0         nv up ei pl nz na pe nc
cs=0033  ss=002b  ds=002b  es=002b  fs=0053  gs=002b             efl=00010200
KERNELBASE!GetModuleHandleExW+0x7b:
00007ff9`92f6391b ff1597f31200    call    qword ptr [KERNELBASE!_imp_RtlPcToFileHeader (00007ff9`93092cb8)] ds:00007ff9`93092cb8={ntdll!RtlPcToFileHeader (00007ff9`960d0f50)}

The stack trace is short and the exception seem happened during call so we examine the stack pointer:

0:003> !address 000000fe709fdfd0
Usage:                  Stack
Base Address:           000000fe`709fb000
End Address:            000000fe`70a00000
Region Size:            00000000`00005000 (  20.000 kB)
State:                  00001000          MEM_COMMIT

Protect:                00000004          PAGE_READWRITE
Type:                   00020000          MEM_PRIVATE
Allocation Base:        000000fe`70900000
Allocation Protect:     00000004          PAGE_READWRITE

The committed stack region is very small so we expect its surrounding from the output of !address WinDbg command (without any address parameters):

Opened log file 'c:\MemoryDumps\stack.txt'
0:003> !address 000000fe709fdfd0
[...]
+ fe`70600000 fe`706fb000 0`000fb000 MEM_PRIVATE MEM_RESERVE Stack [~1; 1f50.21d4]
fe`706fb000 fe`706fe000 0`00003000 MEM_PRIVATE MEM_COMMIT PAGE_READWRITE|PAGE_GUARD Stack [~1; 1f50.21d4]
fe`706fe000 fe`70700000 0`00002000 MEM_PRIVATE MEM_COMMIT PAGE_READWRITE Stack [~1; 1f50.21d4]
+ fe`70700000 fe`70800000 0`00100000 MEM_FREE PAGE_NOACCESS Free
+ fe`70800000 fe`708f9000 0`000f9000 MEM_PRIVATE MEM_RESERVE Stack [~2; 1f50.460c]
fe`708f9000 fe`708fc000 0`00003000 MEM_PRIVATE MEM_COMMIT PAGE_READWRITE|PAGE_GUARD Stack [~2; 1f50.460c]
fe`708fc000 fe`70900000 0`00004000 MEM_PRIVATE MEM_COMMIT PAGE_READWRITE Stack [~2; 1f50.460c]
+ fe`70900000 fe`709fb000 0`000fb000 MEM_PRIVATE MEM_RESERVE Stack [~3; 1f50.4f80]
fe`709fb000 fe`70a00000 0`00005000 MEM_PRIVATE MEM_COMMIT PAGE_READWRITE Stack [~3; 1f50.4f80]

+ fe`70a00000 fe`70afc000 0`000fc000 MEM_PRIVATE MEM_RESERVE Stack [~4; 1f50.4ff4]
fe`70afc000 fe`70aff000 0`00003000 MEM_PRIVATE MEM_COMMIT PAGE_READWRITE|PAGE_GUARD Stack [~4; 1f50.4ff4]
fe`70aff000 fe`70b00000 0`00001000 MEM_PRIVATE MEM_COMMIT PAGE_READWRITE Stack [~4; 1f50.4ff4]
+ fe`70b00000 fe`70bf9000 0`000f9000 MEM_PRIVATE MEM_RESERVE Stack [~5; 1f50.5ea0]
fe`70bf9000 fe`70bfc000 0`00003000 MEM_PRIVATE MEM_COMMIT PAGE_READWRITE|PAGE_GUARD Stack [~5; 1f50.5ea0]
fe`70bfc000 fe`70c00000 0`00004000 MEM_PRIVATE MEM_COMMIT PAGE_READWRITE Stack [~5; 1f50.5ea0]
[…]

We see that there is no guard page for the stack ~3 compared to other stacks and there is plenty of reserved space before that to create a new guard page in the normal circumstances. We also recall that the stack overflow exception is about the inability to create a guard page:

0:003> !error c00000fd
Error code: (NTSTATUS) 0xc00000fd (3221225725) - A new guard page for the stack cannot be created.

Looking at Stack Trace Collection we find the thread ~11 that was doing System Call:

0:003> ~*kc
[...]

11  Id: 1f50.2424 Suspend: 1 Teb: 000000fe`6fec8000 Unfrozen
# Call Site
00 ntdll!NtAllocateVirtualMemory
01 KERNELBASE!VirtualAlloc
02 eShims!NS_ACGLockdownTelemetry::APIHook_VirtualAlloc
03 Chakra!Memory::VirtualAllocWrapper::AllocPages
[…]

For this thread the last error value show that there was low memory condition, perhaps the page file was full to create new committed pages:

0:003> ~11s
ntdll!NtAllocateVirtualMemory+0x14:
00007ff9`9615aca4 c3              ret

0:011> !teb
TEB at 000000fe6fec8000
ExceptionList:        0000000000000000
StackBase:            000000fe71e00000
StackLimit:           000000fe7140a000
SubSystemTib:         0000000000000000
FiberData:            0000000000001e00
ArbitraryUserPointer: 0000000000000000
Self:                 000000fe6fec8000
EnvironmentPointer:   0000000000000000
ClientId:             0000000000001f50 . 0000000000002424
RpcHandle:            0000000000000000
Tls Storage:          0000023c84be2c70
PEB Address:          000000fe6fe97000
LastErrorValue:       1455
LastStatusValue:      c000012d
Count Owned Locks:    0
HardErrorMode:        0

0:011> !error c000012d
Error code: (NTSTATUS) 0xc000012d (3221225773) - {Out of Virtual Memory}  Your system is low on virtual memory. To ensure that Windows runs properly, increase the size of your virtual memory paging file. For more information, see Help.

0:011> !error 0n1455
Error code: (Win32) 0x5af (1455) - The paging file is too small for this operation to complete.

Because the original analysis you see above was done on the memory dump from the working computer we are not able to provide that memory dump for security reasons. So, to model this behavior, we created an application that has two threads: one leaks committed virtual memory and when the next allocation fails it creates a separate thread that attempts to do stack overflow. We then launched 20 copies of that process to limit the size of the individual crash dump. The example memory dump and the application PDB file can be downloaded from here.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Trace Analysis Patterns (Part 169)

Monday, May 6th, 2019

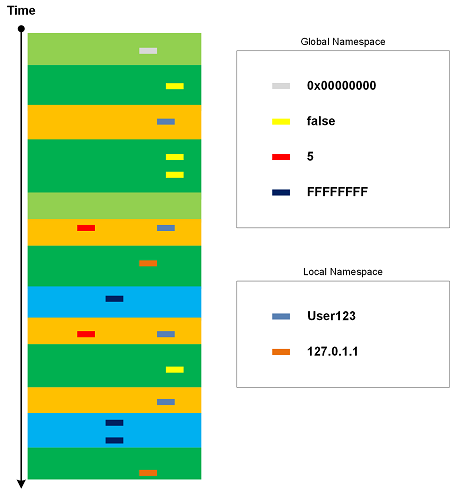

Every trace and log has its own set of constants, values that belong to global namespace such as true/false, NULL, Abnormal Values, and common error constants such as “access denied”. Trace Constants may be dependent upon Implementation Discourse. There are also constant values that are local to each trace, for example, user names and IP addresses. They may be constantly repeated in one log but may change for another log. Constants that belong to local namespace may be a part of Vocabulary Index and Basic Facts. Usually Trace Constant is not considered Message Invariant.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -
