Crash Dump Analysis Patterns (Part 9d)

Thursday, November 29th, 2007

Finally I got a good example of Deadlock pattern involving LPC. In the stack trace below svchost.exe thread (we call it thread A) receives an LPC call and dispatches it to componentA module which makes another LPC call (MessageId 000135b8) and waiting for a reply:

THREAD 89143020  Cid 09b4.10dc  Teb: 7ff91000 Win32Thread: 00000000 WAIT: (Unknown) UserMode Non-Alertable
    8914320c  Semaphore Limit 0x1
Waiting for reply to LPC MessageId 000135b8:
Current LPC port d64a5328
Not impersonating
DeviceMap                 d64028f0
Owning Process            891b8b80       Image:         svchost.exe
Wait Start TickCount      237408         Ticks: 1890 (0:00:00:29.531)
Context Switch Count      866
UserTime                  00:00:00.031
KernelTime                00:00:00.015
Win32 Start Address 0×000135b2
LPC Server thread working on message Id 135b2
Start Address kernel32!BaseThreadStartThunk (0×7c82b5f3)
Stack Init b91f9000 Current b91f8c08 Base b91f9000 Limit b91f6000 Call 0
Priority 9 BasePriority 8 PriorityDecrement 0
ChildEBP RetAddr
b91f8c20 8083e6a2 nt!KiSwapContext+0×26
b91f8c4c 8083f164 nt!KiSwapThread+0×284
b91f8c94 8093983f nt!KeWaitForSingleObject+0×346
b91f8d50 80834d3f nt!NtRequestWaitReplyPort+0×776
b91f8d50 7c94ed54 nt!KiFastCallEntry+0xfc
02bae928 7c941c94 ntdll!KiFastSystemCallRet
02bae92c 77c42700 ntdll!NtRequestWaitReplyPort+0xc
02bae984 77c413ba RPCRT4!LRPC_CCALL::SendReceive+0×230
02bae990 77c42c7f RPCRT4!I_RpcSendReceive+0×24
02bae9a4 77cb5d63 RPCRT4!NdrSendReceive+0×2b
02baec48 674825b6 RPCRT4!NdrClientCall+0×334

02baec5c 67486776 componentA!bar+0×16



02baf8d4 77c40f3b componentA!foo+0×157
02baf8f8 77cb23f7 RPCRT4!Invoke+0×30
02bafcf8 77cb26ed RPCRT4!NdrStubCall2+0×299
02bafd14 77c409be RPCRT4!NdrServerCall2+0×19
02bafd48 77c4093f RPCRT4!DispatchToStubInCNoAvrf+0×38
02bafd9c 77c40865 RPCRT4!RPC_INTERFACE::DispatchToStubWorker+0×117
02bafdc0 77c434b1 RPCRT4!RPC_INTERFACE::DispatchToStub+0xa3
02bafdfc 77c41bb3 RPCRT4!LRPC_SCALL::DealWithRequestMessage+0×42c
02bafe20 77c45458 RPCRT4!LRPC_ADDRESS::DealWithLRPCRequest+0×127
02baff84 77c2778f RPCRT4!LRPC_ADDRESS::ReceiveLotsaCalls+0×430
02baff8c 77c2f7dd RPCRT4!RecvLotsaCallsWrapper+0xd
02baffac 77c2de88 RPCRT4!BaseCachedThreadRoutine+0×9d
02baffb8 7c82608b RPCRT4!ThreadStartRoutine+0×1b
02baffec 00000000 kernel32!BaseThreadStart+0×34

We search for that LPC message to find the server thread:

1: kd> !lpc message 000135b8
Searching message 135b8 in threads ...
    Server thread 89115db0 is working on message 135b8
Client thread 89143020 waiting a reply from 135b8




It belongs to Process.exe (we call it thread B):

1: kd> !thread 89115db0 0x16
THREAD 89115db0  Cid 098c.0384  Teb: 7ff79000 Win32Thread: 00000000 WAIT: (Unknown) UserMode Non-Alertable
    8a114628  SynchronizationEvent
Not impersonating
DeviceMap                 d64028f0
Owning Process            8a2c9d88       Image:         Process.exe
Wait Start TickCount      237408         Ticks: 1890 (0:00:00:29.531)
Context Switch Count      1590
UserTime                  00:00:03.265
KernelTime                00:00:01.671
Win32 Start Address 0x000135b8
LPC Server thread working on message Id 135b8
Start Address kernel32!BaseThreadStartThunk (0x7c82b5f3)
Stack Init b952d000 Current b952cc60 Base b952d000 Limit b952a000 Call 0
Priority 9 BasePriority 8 PriorityDecrement 0
ChildEBP RetAddr  Args to Child
b952cc78 8083e6a2 89115e28 89115db0 89115e58 nt!KiSwapContext+0x26
b952cca4 8083f164 00000000 00000000 00000000 nt!KiSwapThread+0x284
b952ccec 8092db70 8a114628 00000006 ffffff01 nt!KeWaitForSingleObject+0x346
b952cd50 80834d3f 00000a7c 00000000 00000000 nt!NtWaitForSingleObject+0x9a
b952cd50 7c94ed54 00000a7c 00000000 00000000 nt!KiFastCallEntry+0xfc
22aceb48 7c942124 7c95970f 00000a7c 00000000 ntdll!KiFastSystemCallRet
22aceb4c 7c95970f 00000a7c 00000000 00000000 ntdll!NtWaitForSingleObject+0xc
22aceb88 7c959620 00000000 00000004 00002000 ntdll!RtlpWaitOnCriticalSection+0x19c
22aceba8 1b005744 06d30940 1b05ea80 06d30940 ntdll!RtlEnterCriticalSection+0xa8
22acebb0 1b05ea80 06d30940 feffffff 0cd410c0 componentB!bar+0xb



22acf8b0 77c40f3b 00080002 000800e2 00000001 componentB!foo+0xeb
22acf8e0 77cb23f7 0de110dc 22acfac8 00000007 RPCRT4!Invoke+0×30
22acfce0 77cb26ed 00000000 00000000 19f38f94 RPCRT4!NdrStubCall2+0×299
22acfcfc 77c409be 19f38f94 17316ef0 19f38f94 RPCRT4!NdrServerCall2+0×19
22acfd30 77c75e41 0de1dc58 19f38f94 22acfdec RPCRT4!DispatchToStubInCNoAvrf+0×38
22acfd48 77c4093f 0de1dc58 19f38f94 22acfdec RPCRT4!DispatchToStubInCAvrf+0×14
22acfd9c 77c40865 00000041 00000000 0de2b398 RPCRT4!RPC_INTERFACE::DispatchToStubWorker+0×117
22acfdc0 77c434b1 19f38f94 00000000 0de2b398 RPCRT4!RPC_INTERFACE::DispatchToStub+0xa3
22acfdfc 77c41bb3 1beeaec8 16b96f50 1baeef00 RPCRT4!LRPC_SCALL::DealWithRequestMessage+0×42c
22acfe20 77c45458 16b96f88 22acfe38 1beeaec8 RPCRT4!LRPC_ADDRESS::DealWithLRPCRequest+0×127

0×16 flags for !thread extension command are used to temporarily set the process context to the owning process and show the first three function call parameters. We see that the thread B is waiting for the critical section 06d30940 and we use user space !locks extension command to find who owns it after switching process context:

1: kd> .process /r /p 8a2c9d88
Implicit process is now 8a2c9d88
Loading User Symbols

1: kd> !ntsdexts.locks

CritSec +6d30940 at 06d30940
WaiterWoken        No
LockCount          1
RecursionCount     1
OwningThread       d6c
EntryCount         0
ContentionCount    1
*** Locked

Now we try to find a thread with TID d6c (thread C):

1: kd> !thread -t d6c
Looking for thread Cid = d6c ...
THREAD 890d8bb8  Cid 098c.0d6c  Teb: 7ff71000 Win32Thread: bc23cc20 WAIT: (Unknown) UserMode Non-Alertable
    890d8da4  Semaphore Limit 0x1
Waiting for reply to LPC MessageId 000135ea:
Current LPC port d649a678
Not impersonating
DeviceMap                 d64028f0
Owning Process            8a2c9d88       Image:         Process.exe
Wait Start TickCount      237641         Ticks: 1657 (0:00:00:25.890)
Context Switch Count      2102                 LargeStack
UserTime                  00:00:00.734
KernelTime                00:00:00.234
Win32 Start Address msvcrt!_endthreadex (0×77b9b4bc)
Start Address kernel32!BaseThreadStartThunk (0×7c82b5f3)
Stack Init ba91d000 Current ba91cc08 Base ba91d000 Limit ba919000 Call 0
Priority 13 BasePriority 8 PriorityDecrement 0
ChildEBP RetAddr  Args to Child
ba91cc20 8083e6a2 890d8c30 890d8bb8 890d8c60 nt!KiSwapContext+0×26
ba91cc4c 8083f164 890d8da4 890d8d78 890d8bb8 nt!KiSwapThread+0×284
ba91cc94 8093983f 890d8da4 00000011 8a2c9d01 nt!KeWaitForSingleObject+0×346
ba91cd50 80834d3f 000008bc 19c94f00 19c94f00 nt!NtRequestWaitReplyPort+0×776
ba91cd50 7c94ed54 000008bc 19c94f00 19c94f00 nt!KiFastCallEntry+0xfc
2709ebf4 7c941c94 77c42700 000008bc 19c94f00 ntdll!KiFastSystemCallRet
2709ebf8 77c42700 000008bc 19c94f00 19c94f00 ntdll!NtRequestWaitReplyPort+0xc
2709ec44 77c413ba 2709ec80 2709ec64 77c42c7f RPCRT4!LRPC_CCALL::SendReceive+0×230
2709ec50 77c42c7f 2709ec80 779b2770 2709f06c RPCRT4!I_RpcSendReceive+0×24
2709ec64 77cb219b 2709ecac 1957cfe4 1957ab38 RPCRT4!NdrSendReceive+0×2b
2709f04c 779b43a3 779b2770 779b1398 2709f06c RPCRT4!NdrClientCall2+0×22e




2709ff84 77b9b530 26658fb0 00000000 00000000 ComponentC!foo+0×18d
2709ffb8 7c82608b 26d9af70 00000000 00000000 msvcrt!_endthreadex+0xa3
2709ffec 00000000 77b9b4bc 26d9af70 00000000 kernel32!BaseThreadStart+0×34

We see that thread C makes another LPC call (MessageId 000135e) and waiting for a reply. Let’s find the server thread processing the message (thread D):

1: kd> !lpc message 000135ea
Searching message 135ea in threads ...
Client thread 890d8bb8 waiting a reply from 135ea
    Server thread 89010020 is working on message 135ea


1: kd> !thread 89010020 16
THREAD 89010020  Cid 09b4.1530  Teb: 7ff93000 Win32Thread: 00000000 WAIT: (Unknown) UserMode Non-Alertable
    8903ba28  Mutant - owning thread 89143020
Not impersonating
DeviceMap                 d64028f0
Owning Process            891b8b80       Image:         svchost.exe
Wait Start TickCount      237641         Ticks: 1657 (0:00:00:25.890)
Context Switch Count      8
UserTime                  00:00:00.000
KernelTime                00:00:00.000
Win32 Start Address 0×000135ea
LPC Server thread working on message Id 135ea
Start Address kernel32!BaseThreadStartThunk (0×7c82b5f3)
Stack Init b9455000 Current b9454c60 Base b9455000 Limit b9452000 Call 0
Priority 9 BasePriority 8 PriorityDecrement 0
ChildEBP RetAddr  Args to Child
b9454c78 8083e6a2 89010098 89010020 890100c8 nt!KiSwapContext+0×26
b9454ca4 8083f164 00000000 00000000 00000000 nt!KiSwapThread+0×284
b9454cec 8092db70 8903ba28 00000006 00000001 nt!KeWaitForSingleObject+0×346
b9454d50 80834d3f 00000514 00000000 00000000 nt!NtWaitForSingleObject+0×9a
b9454d50 7c94ed54 00000514 00000000 00000000 nt!KiFastCallEntry+0xfc
02b5f720 7c942124 75fdbe44 00000514 00000000 ntdll!KiFastSystemCallRet
02b5f724 75fdbe44 00000514 00000000 00000000 ntdll!NtWaitForSingleObject+0xc
02b5f744 75fdc57f 000e6014 000da62c 02b5fca0 ComponentD!bar+0×42



02b5f8c8 77c40f3b 000d0a48 02b5fc90 00000001 ComponentD!foo+0×49
02b5f8f8 77cb23f7 75fdf8f2 02b5fae0 00000007 RPCRT4!Invoke+0×30
02b5fcf8 77cb26ed 00000000 00000000 000d4f24 RPCRT4!NdrStubCall2+0×299
02b5fd14 77c409be 000d4f24 000b5d70 000d4f24 RPCRT4!NdrServerCall2+0×19
02b5fd48 77c4093f 75fff834 000d4f24 02b5fdec RPCRT4!DispatchToStubInCNoAvrf+0×38
02b5fd9c 77c40865 00000005 00000000 7600589c RPCRT4!RPC_INTERFACE::DispatchToStubWorker+0×117
02b5fdc0 77c434b1 000d4f24 00000000 7600589c RPCRT4!RPC_INTERFACE::DispatchToStub+0xa3
02b5fdfc 77c41bb3 000d3550 000a78d0 001054b8 RPCRT4!LRPC_SCALL::DealWithRequestMessage+0×42c
02b5fe20 77c45458 000a7908 02b5fe38 000d3550 RPCRT4!LRPC_ADDRESS::DealWithLRPCRequest+0×127
02b5ff84 77c2778f 02b5ffac 77c2f7dd 000a78d0 RPCRT4!LRPC_ADDRESS::ReceiveLotsaCalls+0×430
02b5ff8c 77c2f7dd 000a78d0 00000000 00000000 RPCRT4!RecvLotsaCallsWrapper+0xd
02b5ffac 77c2de88 0008ae00 02b5ffec 7c82608b RPCRT4!BaseCachedThreadRoutine+0×9d
02b5ffb8 7c82608b 000d5c20 00000000 00000000 RPCRT4!ThreadStartRoutine+0×1b
02b5ffec 00000000 77c2de6d 000d5c20 00000000 kernel32!BaseThreadStart+0×34

We see that thread D is waiting for the mutant object owned by thread A (89143020). Therefore we have a deadlock spanning 2 process boundaries via RPC/LPC calls with the following dependency graph:

A (svchost.exe) LPC-> B (Process.exe) CritSec-> C (Process.exe) LPC-> D (svchost.exe) Obj-> A (svchost.exe)

- Dmitry Vostokov @ DumpAnalysis.org -

Four pillars of software troubleshooting

Thursday, November 29th, 2007

They are (sorted alphabetically):

  1. Crash Dump Analysis (also called Memory Dump Analysis or Core Dump Analysis)

  2. Problem Reproduction

  3. Trace and Log Analysis

  4. Virtual Assistance (also called Remote Assistance)



For troubleshooting software on Windows platforms Citrix provides GoToAssist for virtual on-site presence and Xen for problem reproduction.

- Dmitry Vostokov @ DumpAnalysis.org -

Understanding I/O Completion Ports

Tuesday, November 27th, 2007

Many articles and books explain Windows I/O completion ports from high level design considerations arising when building high-performance server software. But it is hard to recall them later when someone asks to explain and not everyone writes that software. Looking at complete memory dumps has an advantage of a bottom-up or reverse engineering approach where we see internals of server software and can immediately grasp the implementation of certain architectural and design decisions.

Consider this thread stack trace we can find almost inside any service or network application process:

THREAD 86cf09c0  Cid 05cc.2030  Teb: 7ffd7000 Win32Thread: 00000000 WAIT: (Unknown) UserMode Non-Alertable
    8a3bb970  QueueObject
    86cf0a38  NotificationTimer
Not impersonating
DeviceMap                 e15af5a8
Owning Process            8a3803d8       Image:         svchost.exe
Wait Start TickCount      2131621        Ticks: 1264 (0:00:00:19.750)
Context Switch Count      6
UserTime                  00:00:00.000
KernelTime                00:00:00.000
Win32 Start Address RPCRT4!ThreadStartRoutine (0×77c5de6d)
Start Address kernel32!BaseThreadStartThunk (0×77e6b5f3)
Stack Init ba276000 Current ba275c38 Base ba276000 Limit ba273000 Call 0
Priority 8 BasePriority 8 PriorityDecrement 0
ChildEBP RetAddr
ba275c50 8083d3b1 nt!KiSwapContext+0×26
ba275c7c 8083dea2 nt!KiSwapThread+0×2e5
ba275cc4 8092b205 nt!KeRemoveQueue+0×417
ba275d48 80833a6f nt!NtRemoveIoCompletion+0xdc

ba275d48 7c82ed54 nt!KiFastCallEntry+0xfc
0093feac 7c821bf4 ntdll!KiFastSystemCallRet
0093feb0 77e66142 ntdll!NtRemoveIoCompletion+0xc
0093fedc 77c604c3 kernel32!GetQueuedCompletionStatus+0×29

0093ff18 77c60655 RPCRT4!COMMON_ProcessCalls+0xa1
0093ff84 77c5f9f1 RPCRT4!LOADABLE_TRANSPORT::ProcessIOEvents+0×117
0093ff8c 77c5f7dd RPCRT4!ProcessIOEventsWrapper+0xd
0093ffac 77c5de88 RPCRT4!BaseCachedThreadRoutine+0×9d
0093ffb8 77e6608b RPCRT4!ThreadStartRoutine+0×1b
0093ffec 00000000 kernel32!BaseThreadStart+0×34

We see that I/O completion port is implemented via kernel queue object so requests (work items, completion notifications, etc) are stored in that queue for further processing by threads. The number of active threads processing requests is bound to some maximum value that usually corresponds to the number of processors:

0: kd> dt _KQUEUE 8a3bb970
ntdll!_KQUEUE
   +0x000 Header           : _DISPATCHER_HEADER
   +0x010 EntryListHead    : _LIST_ENTRY [ 0x8a3bb980 - 0x8a3bb980 ]
   +0x018 CurrentCount     : 0
   +0×01c MaximumCount     : 2
   +0×020 ThreadListHead   : _LIST_ENTRY [ 0×86cf0ac8 - 0×89ff9520 ]

0: kd> !smt
SMT Summary:
------------
   KeActiveProcessors: **------------------------------ (00000003)
        KiIdleSummary: **------------------------------ (00000003)
No PRCB     Set Master SMT Set                                     IAID
 0 ffdff120 Master     **—————————— (00000003)  00
 1 f772f120 ffdff120   **—————————— (00000003)  01

Kernel work queues are also implemented via the same queue object as we might have guessed already:

THREAD 8a777660  Cid 0004.00d0  Teb: 00000000 Win32Thread: 00000000 WAIT: (Unknown) UserMode Non-Alertable
    808b707c  QueueObject
Not impersonating
DeviceMap                 e1000928
Owning Process            8a780818       Image:         System
Wait Start TickCount      2615           Ticks: 2130270 (0:09:14:45.468)
Context Switch Count      301
UserTime                  00:00:00.000
KernelTime                00:00:00.000
Start Address nt!ExpWorkerThread (0×8082d92b)
Stack Init f71e0000 Current f71dfcec Base f71e0000 Limit f71dd000 Call 0
Priority 12 BasePriority 12 PriorityDecrement 0
Kernel stack not resident.
ChildEBP RetAddr
f71dfd04 8083d3b1 nt!KiSwapContext+0×26
f71dfd30 8083dea2 nt!KiSwapThread+0×2e5
f71dfd78 8082d9c1 nt!KeRemoveQueue+0×417
f71dfdac 809208fc nt!ExpWorkerThread+0xc8
f71dfddc 8083fc9f nt!PspSystemThreadStartup+0×2e
00000000 00000000 nt!KiThreadStartup+0×16

0: kd> dt _KQUEUE 808b707c
ntdll!_KQUEUE
   +0x000 Header           : _DISPATCHER_HEADER
   +0x010 EntryListHead    : _LIST_ENTRY [ 0x808b708c - 0x808b708c ]
   +0x018 CurrentCount     : 0
   +0×01c MaximumCount     : 2
   +0×020 ThreadListHead   : _LIST_ENTRY [ 0×8a77a128 - 0×8a777768 ]

I’ve created the simple UML diagram showing high-level relationship between various objects seen from crash dumps. Note that Active Thread object can process items from more than one completion port if its wait was satisfied for one port and then for another but I have never seen this. Obviously Waiting thread can wait only for one completion port.

- Dmitry Vostokov @ DumpAnalysis.org -

DebugWare

Tuesday, November 27th, 2007

I’ve been slowly accumulating blog posts about various troubleshooting tools for my next book in a row with a working title:

DebugWare: The Art and Craft of Writing Troubleshooting and Debugging Tools

Details will be announced later together with supporting website which is under construction. This book will be about architecture, design and implementation of troubleshooting tools for software technical support.

- Dmitry Vostokov @ DumpAnalysis.org -

Teaching binary to decimal conversion

Monday, November 26th, 2007

Sometimes we have data in binary and we want to convert it to decimal to lookup some constant in a header file, for example. I used to do it previously via calc.exe. Now I use .formats WinDbg command and 0y binary prefix:

0:000> .formats 0y111010
Evaluate expression:
  Hex:     0000003a
  Decimal: 58
  Octal:   00000000072
  Binary:  00000000 00000000 00000000 00111010
  Chars:   ...:
  Time:    Thu Jan 01 00:00:58 1970
  Float:   low 8.12753e-044 high 0
  Double:  2.86558e-322

Some months ago I was flying SWISS and found this binary watch in their duty-free catalog which I use now to guess time :-)

01 The One Binary Watch


Buy from Amazon

It has 6 binary digits for minutes. There are desktop binary clocks and other binary watches available if you google them but they don’t have 6 binary digits for minutes. They approximate them by using 2 rows or columns: tenths of minutes and minutes (2 + 4 binary digits) and we are all good in handling 4 binary digits because of our work with hexadecimal nibbles but not good in handling more binary digits like 5 or 6 when we see them in one row.

- Dmitry Vostokov @ DumpAnalysis.org -

Stack traces on the Web

Monday, November 26th, 2007

How many WinDbg stack traces on the web are available for mining? Google gave the answer when I searched for typical stack trace text fragments:

"ChildEBP RetAddr" - about 40,200

"ChildEBP RetAddr  Args to Child" - about 30,000

"Frame IP not in any known module" - about 10,800

- Dmitry Vostokov @ DumpAnalysis.org -

Five golden rules of troubleshooting

Monday, November 26th, 2007

It is difficult to analyze a problem when you have crash dumps and/or traces from various tracing tools and supporting information you have is incomplete or missing. After doing crash dump and trace analysis including ETW-based traces for more than 4 years I came up with this easy to remember 4WS questions to ask when you send or request traces and memory dumps:

What - What had happened or had been observed? Crash or hang, for example?

When - When did the problem happen if traces were recorded for hours?

Where - What server or workstation had been used for tracing or where memory dumps came from? For example, one trace is from a primary server and two others are from backup servers or one trace is from a client workstation and the other is from a server.

Why - Why did a customer or a support engineer request a dump or a trace? This could shed the light on various assumptions including presuppositions hidden in problem description.

Supporting information - needed to find a needle in a hay: process id, thread id, etc. Also, the answer to the following question is important: how dumps and traces were created?

Every trace or memory dump shall be accompanied by 4WS answers.

4WS rule can be applied to any troubleshooting because even the problem description itself is some kind of a trace.

- Dmitry Vostokov @ DumpAnalysis.org -

Crash Dump Analysis Patterns (Part 39)

Friday, November 23rd, 2007

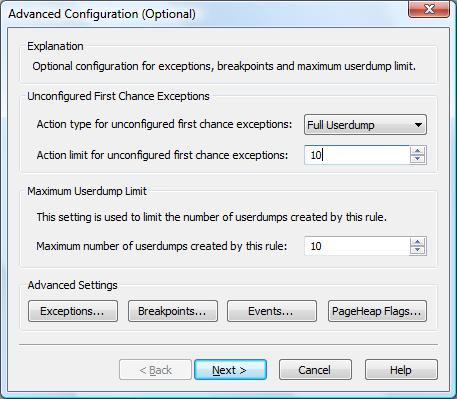

As mentioned in Early Crash Dump pattern saving crash dumps on first-chance exceptions helps to diagnose components that might have caused corruption and later crashes, hangs or CPU spikes by ignoring abnormal exceptions like access violation. In such cases we need to know whether an application installs its own Custom Exception Handler or several of them. If it uses only default handlers provided by runtime or windows subsystem then most likely a first-chance access violation exception will result in a last-chance exception and a postmortem dump. To check a chain of exception handlers we can use WinDbg !exchain extention command. For example:

0:000> !exchain
0017f9d8: TestDefaultDebugger!AfxWinMain+3f5 (00420aa9)
0017fa60: TestDefaultDebugger!AfxWinMain+34c (00420a00)
0017fb20: user32!_except_handler4+0 (770780eb)
0017fcc0: user32!_except_handler4+0 (770780eb)
0017fd24: user32!_except_handler4+0 (770780eb)
0017fe40: TestDefaultDebugger!AfxWinMain+16e (00420822)
0017feec: TestDefaultDebugger!AfxWinMain+797 (00420e4b)
0017ff90: TestDefaultDebugger!_except_handler4+0 (00410e00)
0017ffdc: ntdll!_except_handler4+0 (77961c78)

We see that TestDefaultDebugger doesn’t have its own exception handlers except ones provided by MFC and C/C++ runtime libraries which were linked statically. Here is another example. It was reported that a 3rd-party application was hanging and spiking CPU (Spiking Thread pattern) so a user dump was saved using command line userdump.exe:

0:000> vertarget
Windows Server 2003 Version 3790 (Service Pack 2) MP (4 procs) Free x86 compatible
Product: Server, suite: TerminalServer
kernel32.dll version: 5.2.3790.4062 (srv03_sp2_gdr.070417-0203)
Debug session time: Thu Nov 22 12:45:59.000 2007 (GMT+0)
System Uptime: 0 days 10:43:07.667
Process Uptime: 0 days 4:51:32.000
Kernel time: 0 days 0:08:04.000
User time: 0 days 0:23:09.000

0:000> !runaway 3
User Mode Time
Thread Time
0:1c1c      0 days 0:08:04.218
1:2e04      0 days 0:00:00.015
Kernel Mode Time
Thread Time
0:1c1c      0 days 0:23:09.156
1:2e04      0 days 0:00:00.031

0:000> kL
ChildEBP RetAddr
0012fb80 7739bf53 ntdll!KiFastSystemCallRet
0012fbb4 05ca73b0 user32!NtUserWaitMessage+0xc
WARNING: Stack unwind information not available. Following frames may be wrong.
0012fd20 05c8be3f 3rdPartyDLL+0x573b0
0012fd50 05c9e9ea 3rdPartyDLL+0x3be3f
0012fd68 7739b6e3 3rdPartyDLL+0x4e9ea
0012fd94 7739b874 user32!InternalCallWinProc+0x28
0012fe0c 7739c8b8 user32!UserCallWinProcCheckWow+0x151
0012fe68 7739c9c6 user32!DispatchClientMessage+0xd9
0012fe90 7c828536 user32!__fnDWORD+0x24
0012febc 7739d1ec ntdll!KiUserCallbackDispatcher+0x2e
0012fef8 7738cee9 user32!NtUserMessageCall+0xc
0012ff18 0050aea9 user32!SendMessageA+0x7f
0012ff70 00452ae4 3rdPartyApp+0x10aea9
0012ffac 00511941 3rdPartyApp+0x52ae4
0012ffc0 77e6f23b 3rdPartyApp+0x111941
0012fff0 00000000 kernel32!BaseProcessStart+0x23

Exception chain showed custom exception handlers:

0:000> !exchain
0012fb8c: 3rdPartyDLL+57acb (05ca7acb)
0012fd28: 3rdPartyDLL+3be57 (05c8be57)
0012fd34: 3rdPartyDLL+3be68 (05c8be68)

0012fdfc: user32!_except_handler3+0 (773aaf18)
  CRT scope  0, func:   user32!UserCallWinProcCheckWow+156 (773ba9ad)
0012fe58: user32!_except_handler3+0 (773aaf18)
0012fea0: ntdll!KiUserCallbackExceptionHandler+0 (7c8284e8)
0012ff3c: 3rdPartyApp+53310 (00453310)
0012ff48: 3rdPartyApp+5334b (0045334b)
0012ff9c: 3rdPartyApp+52d06 (00452d06)
0012ffb4: 3rdPartyApp+38d4 (004038d4)

0012ffe0: kernel32!_except_handler3+0 (77e61a60)
  CRT scope  0, filter: kernel32!BaseProcessStart+29 (77e76a10)
                func:   kernel32!BaseProcessStart+3a (77e81469)

The customer then enabled MS Exception Monitor and selected only Access violation exception code (c0000005) to avoid False Positive Dumps. During application execution various 1st-chance exception crash dumps were saved pointing to numerous access violations including function calls into unloaded modules, for example:

0:000> kL 100
ChildEBP RetAddr
WARNING: Frame IP not in any known module. Following frames may be wrong.
0012f910 7739b6e3 <Unloaded_Another3rdParty.dll>+0x4ce58
0012f93c 7739b874 user32!InternalCallWinProc+0x28
0012f9b4 7739c8b8 user32!UserCallWinProcCheckWow+0x151
0012fa10 7739c9c6 user32!DispatchClientMessage+0xd9
0012fa38 7c828536 user32!__fnDWORD+0x24
0012fa64 7739d1ec ntdll!KiUserCallbackDispatcher+0x2e
0012faa0 7738cee9 user32!NtUserMessageCall+0xc
0012fac0 0a0f2e01 user32!SendMessageA+0x7f
0012fae4 0a0f2ac7 3rdPartyDLL+0x52e01
0012fb60 7c81a352 3rdPartyDLL+0x52ac7
0012fb80 7c839dee ntdll!LdrpCallInitRoutine+0x14
0012fc94 77e6b1bb ntdll!LdrUnloadDll+0x41a
0012fca8 0050c9c1 kernel32!FreeLibrary+0x41
0012fdf4 004374af 3rdPartyApp+0x10c9c1
0012fe24 0044a076 3rdPartyApp+0x374af
0012fe3c 7739b6e3 3rdPartyApp+0x4a076
0012fe68 7739b874 user32!InternalCallWinProc+0x28
0012fee0 7739ba92 user32!UserCallWinProcCheckWow+0x151
0012ff48 773a16e5 user32!DispatchMessageWorker+0x327
0012ff58 00452aa0 user32!DispatchMessageA+0xf
0012ffac 00511941 3rdPartyApp+0x52aa0
0012ffc0 77e6f23b 3rdPartyApp+0x111941
0012fff0 00000000 kernel32!BaseProcessStart+0x23

- Dmitry Vostokov @ DumpAnalysis.org -

Four causes of crash dumps

Friday, November 23rd, 2007

Obviously the appearance of crash dumps on your computer was caused by something. A bug, fault, defect or something else?

Aristotle suggested 4 types of causation 2 millennia ago and they are:

Material cause - presence of some substance, usually material one (hardware) but can be machine code (software). The distinction between hardware and software is often blurred today because of virtualization.

Formal cause - some form or arrangement (an algorithm)

Efficient cause - an agent (data flow or event caused an algorithm to be executed)

Final cause - the desire of someone (or something, operating system, for example).

We skip material causes because hardware and software are always involved. Obviously final causality should be among of crash dump causes because they were either anticipated or made deliberately. Let’s look at 3 examples with possible causes:

Buffer Overflow

  • Formal cause - a defect in code which might have arisen from incomplete or wrong model

  • Efficient cause - data is too big to fit in a buffer

  • Final cause - operating system and runtime library support decided to save a crash dump

Bugcheck (NMI)

  • Formal cause - NMI handler

  • Efficient cause - a button on a hardware panel or KeBugCheckEx

  • Final cause - “I need a memory dump” desire. Also crash dump saving functions were written before by kernel developers in anticipation of future crash dumps.

Bugcheck (A)

  • Formal cause - a defect in code again or particular disposition of threads

  • Efficient cause - Driver Verifier triggered paging out data

  • Final cause - deliberate OS bugcheck (here we can also say that it was anticipated by OS designers)

Concrete causes depend on the organizational level you use: software/hardware systems/components, modeling act by humans, etc.

- Dmitry Vostokov @ DumpAnalysis.org -

StressPrinters in press

Friday, November 23rd, 2007

Thomas Koetzing wrote a useful article on how to use StressPrinters and put some examples:

Understanding and using Citrix StressPrinters

- Dmitry Vostokov @ DumpAnalysis.org -

Crash Dump Analysis Patterns (Part 38)

Thursday, November 22nd, 2007

Hooking functions using trampoline method is so common on Windows and sometimes we need to check Hooked Functions in specific modules and determine which module hooked them for troubleshooting or memory forensic analysis needs. If original unhooked modules are available (via symbol server, for example) this can be done by using !chkimg WinDbg extension command:

0:002> !chkimg -lo 50 -d !kernel32 -v
Searching for module with expression: !kernel32
Will apply relocation fixups to file used for comparison
Will ignore NOP/LOCK errors
Will ignore patched instructions
Image specific ignores will be applied
Comparison image path: c:\mss\kernel32.dll\44C60F39102000\kernel32.dll
No range specified

Scanning section:    .text
Size: 564445
Range to scan: 77e41000-77ecacdd
    77e44004-77e44008  5 bytes - kernel32!GetDateFormatA
 [ 8b ff 55 8b ec:e9 f7 bf 08 c0 ]
    77e4412e-77e44132  5 bytes - kernel32!GetTimeFormatA (+0×12a)
 [ 8b ff 55 8b ec:e9 cd be 06 c0 ]
    77e4e857-77e4e85b  5 bytes - kernel32!FileTimeToLocalFileTime (+0xa729)
 [ 8b ff 55 8b ec:e9 a4 17 00 c0 ]
    77e56b5f-77e56b63  5 bytes - kernel32!GetTimeZoneInformation (+0×8308)
 [ 8b ff 55 8b ec:e9 9c 94 00 c0 ]
    77e579a9-77e579ad  5 bytes - kernel32!GetTimeFormatW (+0xe4a)
 [ 8b ff 55 8b ec:e9 52 86 06 c0 ]
    77e57fc8-77e57fcc  5 bytes - kernel32!GetDateFormatW (+0×61f)
 [ 8b ff 55 8b ec:e9 33 80 08 c0 ]
    77e6f32b-77e6f32f  5 bytes - kernel32!GetLocalTime (+0×17363)
 [ 8b ff 55 8b ec:e9 d0 0c 00 c0 ]
    77e6f891-77e6f895  5 bytes - kernel32!LocalFileTimeToFileTime (+0×566)
 [ 8b ff 55 8b ec:e9 6a 07 01 c0 ]
    77e83499-77e8349d  5 bytes - kernel32!SetLocalTime (+0×13c08)
 [ 8b ff 55 8b ec:e9 62 cb 00 c0 ]
    77e88c32-77e88c36  5 bytes - kernel32!SetTimeZoneInformation (+0×5799)
 [ 8b ff 55 8b ec:e9 c9 73 01 c0 ]
Total bytes compared: 564445(100%)
Number of errors: 50
50 errors : !kernel32 (77e44004-77e88c36)

0:002> u 77e44004
kernel32!GetDateFormatA:
77e44004 e9f7bf08c0      jmp     37ed0000
77e44009 81ec18020000    sub     esp,218h
77e4400f a148d1ec77      mov     eax,dword ptr [kernel32!__security_cookie (77ecd148)]
77e44014 53              push    ebx
77e44015 8b5d14          mov     ebx,dword ptr [ebp+14h]
77e44018 56              push    esi
77e44019 8b7518          mov     esi,dword ptr [ebp+18h]
77e4401c 57              push    edi

0:002> u 37ed0000
*** ERROR: Symbol file could not be found.  Defaulted to export symbols for MyDateTimeHooks.dll -
37ed0000 e99b262f2d      jmp     MyDateTimeHooks+0×26a0 (651c26a0)
37ed0005 8bff            mov     edi,edi
37ed0007 55              push    ebp
37ed0008 8bec            mov     ebp,esp
37ed000a e9fa3ff73f      jmp     kernel32!GetDateFormatA+0×5 (77e44009)
37ed000f 0000            add     byte ptr [eax],al
37ed0011 0000            add     byte ptr [eax],al
37ed0013 0000            add     byte ptr [eax],al

- Dmitry Vostokov @ DumpAnalysis.org -

Crash Dump Analysis AntiPatterns (Part 6)

Thursday, November 22nd, 2007

Need the crash dump. Period. This might be the first thought when an engineer gets a stack trace fragment without symbolic information. It is usually based on the following presupposition:

We need an actual dump file to suggest further troubleshooting steps.

This is not actually true unless it is the first time you have the problem and get stack trace for it. Consider the following fragment from bugcheck kernel dump when no symbols were applied because the customer didn’t have them:

b90529f8 8085eced nt!KeBugCheckEx+0x1b
b9052a70 8088c798 nt!MmAccessFault+0xb25
b9052a70 bfabd940 nt!_KiTrap0E+0xdc
WARNING: Stack unwind information not available. Following frames may be wrong.
b9052b14 bfabe452 MyDriver+0x27940

We can convert module+offset information into module!function+offset2 using MAP files or using DIA SDK (Debug Interface Access SDK) to query PDB files if we know module timestamp. This might be seen as a tedious exercise but we don’t need to do it if we keep raw stack trace signatures in some database when doing crash dump analysis. If we use our own symbol servers we might want to remove references to them and reload symbols. Then redo previous stack trace commands.

In my case it happened that I already analyzed similar previous bugcheck crash dumps months ago and saved stack trace prior to applying symbols. This helped me to point to solution without requesting the crash dump corresponding to that stack trace.

- Dmitry Vostokov @ DumpAnalysis.org -

Critical thinking when troubleshooting

Thursday, November 22nd, 2007

Faulty thinking happens all the time in technical support environments partly due to hectic and demanding business realities.

Simple*ology book pointed me to this website:

http://www.fallacyfiles.org/

which taxonomically organizes fallacies:

http://www.fallacyfiles.org/taxonomy.html

For example, False Cause. Technical examples might include false causes inferred from trace analysis, customer problem description that includes steps to reproduce the problem, etc. This also applies to debugging and importance of thinking skills has been emphasized in the following book:

Debugging by Thinking: A Multidisciplinary Approach

Surface-level of basic crash dump analysis is less influenced by false cause fallacies because it doesn’t have explicitly recorded sequence of events although some caution should be exercised during detailed analysis of thread waiting times and other historical information.

Warning: when exercising critical thinking recursively we need to stop at the right time to avoid paralysis of analysis :-)

- Dmitry Vostokov @ DumpAnalysis.org

Crash Dump Analysis Patterns (Part 37)

Wednesday, November 21st, 2007

Some bugs are fixed using brute-force approach via putting an exception handler to catch access violations and other exceptions. Long time ago I saw one such “incredible fix” when the image processing application was crashing after approximately Nth heap free runtime call. To ignore crashes a SEH handler was put in place but the application started to crash in different places. Therefore the additional fix was to skip free calls when approaching N and resume afterwards. The application started to crash less frequently.

Here getting Early Crash Dump when a first-chance exception happens can help in component identification before corruption starts spreading across data. Recall that when an access violation happens in a process thread in user mode the system generates the first-chance exception which can be caught by an attached debugger and if there is no such debugger the system tries to find an exception handler and if that exception handler catches and dismisses the exception the thread resumes its normal execution path. If there are no such handlers found the system generates the so called second-chance exception with the same exception context to notify the attached debugger and if it is not attached a default thread exception handler usually saves a postmortem user dump.

You can get first-chance exception memory dumps with:

Here is an example configuration rule for crashes in Debug Diagnostic tool for TestDefaultDebugger process (Unconfigured First Chance Exceptions option is set to Full Userdump):



When we push the big crash button in TestDefaultDebugger dialog box two crash dumps are saved, with first and second-chance exceptions pointing to the same code:

Loading Dump File [C:\Program Files (x86)\DebugDiag\Logs\Crash rule for all instances of TestDefaultDebugger.exe\TestDefaultDebugger__PID__4316__ Date__11_21_2007__Time_04_28_27PM__2__First chance exception 0XC0000005.dmp]
User Mini Dump File with Full Memory: Only application data is available

Comment: 'Dump created by DbgHost. First chance exception 0XC0000005′
Symbol search path is: srv*c:\mss*http://msdl.microsoft.com/download/symbols
Executable search path is:
Windows Vista Version 6000 MP (2 procs) Free x86 compatible
Product: WinNt, suite: SingleUserTS
Debug session time: Wed Nov 21 16:28:27.000 2007 (GMT+0)
System Uptime: 0 days 23:45:34.711
Process Uptime: 0 days 0:01:09.000

This dump file has an exception of interest stored in it.
The stored exception information can be accessed via .ecxr.
(10dc.590): Access violation - code c0000005 (first/second chance not available)
eax=00000000 ebx=00000001 ecx=0017fe70 edx=00000000 esi=00425ae8 edi=0017fe70
eip=004014f0 esp=0017f898 ebp=0017f8a4 iopl=0 nv up ei ng nz ac pe cy
cs=0023 ss=002b ds=002b es=002b fs=0053 gs=002b efl=00010297
TestDefaultDebugger!CTestDefaultDebuggerDlg::OnBnClickedButton1:
004014f0 c7050000000000000000 mov dword ptr ds:[0],0  ds:002b:00000000=????????

Loading Dump File [C:\Program Files (x86)\DebugDiag\Logs\Crash rule for all instances of TestDefaultDebugger.exe\TestDefaultDebugger__PID__4316__ Date__11_21_2007__Time_04_28_34PM__693__ Second_Chance_Exception_C0000005.dmp]
User Mini Dump File with Full Memory: Only application data is available

Comment: 'Dump created by DbgHost. Second_Chance_Exception_C0000005
Symbol search path is: srv*c:\mss*http://msdl.microsoft.com/download/symbols
Executable search path is:
Windows Vista Version 6000 MP (2 procs) Free x86 compatible
Product: WinNt, suite: SingleUserTS
Debug session time: Wed Nov 21 16:28:34.000 2007 (GMT+0)
System Uptime: 0 days 23:45:39.313
Process Uptime: 0 days 0:01:16.000

This dump file has an exception of interest stored in it.
The stored exception information can be accessed via .ecxr.
(10dc.590): Access violation - code c0000005 (first/second chance not available)
eax=00000000 ebx=00000001 ecx=0017fe70 edx=00000000 esi=00425ae8 edi=0017fe70
eip=004014f0 esp=0017f898 ebp=0017f8a4 iopl=0 nv up ei ng nz ac pe cy
cs=0023 ss=002b ds=002b es=002b fs=0053 gs=002b efl=00010297
TestDefaultDebugger!CTestDefaultDebuggerDlg::OnBnClickedButton1:
004014f0 c7050000000000000000 mov dword ptr ds:[0],0  ds:002b:00000000=????????

- Dmitry Vostokov @ DumpAnalysis.org -

Crash Dump Analysis on Solaris x86 - AMD64

Tuesday, November 20th, 2007

Found the following book which is an interesting read to see crash dump analysis from a different operating system architecture perspective but on the same Intel / AMD platform:

http://www.genunix.org/gen/crashdump/book.pdf

- Dmitry Vostokov @ DumpAnalysis.org

Crash Dump Analysis Patterns (Part 31a)

Tuesday, November 20th, 2007

I have already discussed Passive Thread pattern in user space. In this part I continue with kernel space and passive system threads that don’t run in any user process context. These threads belong to the so called System process, don’t have any user space stack and their full stack traces can be seen from the output of !process command (if not completely paged out):

1: kd> !process 0 ff System

or from system portion of !stacks 2 command.

Some system threads from that list belong to core OS functionality and are not passive (function offsets can vary for different OS versions and service packs):

nt!KiSwapContext+0x84
nt!KiSwapThread+0x125
nt!KeWaitForSingleObject+0x5f5
nt!MmZeroPageThread+0×180
nt!Phase1Initialization+0xe
nt!PspSystemThreadStartup+0×5b
nt!KiStartSystemThread+0×16

nt!KiSwapContext+0x84
nt!KiSwapThread+0x125
nt!KeWaitForSingleObject+0x5f5
nt!MiModifiedPageWriter+0×59
nt!PspSystemThreadStartup+0×5b
nt!KiStartSystemThread+0×16

nt!KiSwapContext+0x84
nt!KiSwapThread+0x125
nt!KeWaitForMultipleObjects+0x703
nt!MiMappedPageWriter+0xad
nt!PspSystemThreadStartup+0×5b
nt!KiStartSystemThread+0×16

nt!KiSwapContext+0x84
nt!KiSwapThread+0x125
nt!KeWaitForMultipleObjects+0x703
nt!KeBalanceSetManager+0×101
nt!PspSystemThreadStartup+0×5b
nt!KiStartSystemThread+0×16

nt!KiSwapContext+0x84
nt!KiSwapThread+0x125
nt!KeWaitForSingleObject+0x5f5
nt!KeSwapProcessOrStack+0×44
nt!PspSystemThreadStartup+0×5b
nt!KiStartSystemThread+0×16

nt!KiSwapContext+0x84
nt!KiSwapThread+0x125
nt!KeWaitForSingleObject+0x5f5
nt!EtwpLogger+0xdd
nt!PspSystemThreadStartup+0×5b
nt!KiStartSystemThread+0×16

nt!KiSwapContext+0x84
nt!KiSwapThread+0x125
nt!KeWaitForSingleObject+0x5f5
nt!KiExecuteDpc+0×198
nt!PspSystemThreadStartup+0×5b
nt!KiStartSystemThread+0×16

nt!KiSwapContext+0x84
nt!KiSwapThread+0x125
nt!KeWaitForMultipleObjects+0x703
nt!CcQueueLazyWriteScanThread+0×73
nt!PspSystemThreadStartup+0×5b
nt!KiStartSystemThread+0×16

nt!KiSwapContext+0x84
nt!KiSwapThread+0x125
nt!KeWaitForMultipleObjects+0x703
nt!ExpWorkerThreadBalanceManager+0×85
nt!PspSystemThreadStartup+0×5b
nt!KiStartSystemThread+0×16

Other threads belong to various worker queues (they can also be seen from !exqueue ff command output) and wait for data items to arrive (passive threads):

nt!KiSwapContext+0x84
nt!KiSwapThread+0x125
nt!KeRemoveQueueEx+0x848
nt!ExpWorkerThread+0×104
nt!PspSystemThreadStartup+0×5b
nt!KiStartSystemThread+0×16

or

nt!KiSwapContext+0x26
nt!KiSwapThread+0x2e5
nt!KeRemoveQueue+0x417
nt!ExpWorkerThread+0xc8
nt!PspSystemThreadStartup+0×2e
nt!KiThreadStartup+0×16

Non-Exp system threads having Worker, Logging or Logger substrings in their function names are passive threads and wait for data too, for example:

nt!KiSwapContext+0x84
nt!KiSwapThread+0x125
nt!KeWaitForMultipleObjects+0x703
nt!PfTLoggingWorker+0×81
nt!PspSystemThreadStartup+0×5b
nt!KiStartSystemThread+0×16

nt!KiSwapContext+0x84
nt!KiSwapThread+0x125
nt!KeWaitForSingleObject+0x5f5
nt!EtwpLogger+0xdd
nt!PspSystemThreadStartup+0×5b
nt!KiStartSystemThread+0×16

nt!KiSwapContext+0x84
nt!KiSwapThread+0x125
nt!KeRemoveQueueEx+0x848
nt!KeRemoveQueue+0x21
rdpdr!RxpWorkerThreadDispatcher+0×6f
nt!PspSystemThreadStartup+0×5b
nt!KiStartSystemThread+0×16

nt!KiSwapContext+0x84
nt!KiSwapThread+0x125
nt!KeWaitForSingleObject+0x5f5
HTTP!UlpThreadPoolWorker+0×26c
nt!PspSystemThreadStartup+0×5b
nt!KiStartSystemThread+0×16

nt!KiSwapContext+0x84
nt!KiSwapThread+0x125
nt!KeRemoveQueueEx+0x848
nt!KeRemoveQueue+0x21
srv2!SrvProcWorkerThread+0×74
nt!PspSystemThreadStartup+0×5b
nt!KiStartSystemThread+0×16

nt!KiSwapContext+0x84
nt!KiSwapThread+0x125
nt!KeRemoveQueueEx+0x848
nt!KeRemoveQueue+0x21
srv!WorkerThread+0×90
nt!PspSystemThreadStartup+0×5b
nt!KiStartSystemThread+0×16

Any deviations in memory dump can raise suspicion like in the stack below for driver.sys

nt!KiSwapContext+0x26
nt!KiSwapThread+0x284
nt!KeWaitForSingleObject+0×346
nt!ExpWaitForResource+0xd5
nt!ExAcquireResourceExclusiveLite+0×8d
nt!ExEnterCriticalRegionAndAcquireResourceExclusive+0×19

driver!ProcessItem+0×2f
driver!DelayedWorker+0×27

nt!ExpWorkerThread+0×104
nt!PspSystemThreadStartup+0×5b
nt!KiStartSystemThread+0×16

- Dmitry Vostokov @ DumpAnalysis.org

Modeling side of DLL Injection

Monday, November 19th, 2007

Component injection can be used to model various process and system software behavior by writing customized DLL/SYS and injecting them into process/kernel space. Although often depicted either as security threat or value-added hooking mechanism very little has been written about its use to model various software defects. Here I don’t mean testing but studying faulty behavior and artifacts after injecting specific DLLs with design and implementation defects. For example, forgetting to release database connections or not closing file handles. NotMyLeak is an attempt to do it for different kind of leaks on x86 and x64 Windows platforms. It uses automatic DLL injection via standard Windows hooking mechanism. Stay tuned.

- Dmitry Vostokov @ DumpAnalysis.org -

NotMyLeak

Monday, November 19th, 2007

To troubleshoot and study memory leaks the following tool called NotMyLeak will be released soon. It injects different kinds of leaks into specified processes and system:

  • Process heap
  • Runtime library
  • Performance counters
  • Kernel paged pool
  • Kernel nonpaged pool
  • IRP
  • Handles
  • PTE
  • etc…

The idea is to model various real-time leaks, analyze memory dumps and then apply discovered patterns to crash dump analysis of memory dumps coming from real-world systems.

The draft GUI (subject to change):

Note: the tool name prefix NotMy… was inspired by the name of Mark Russinovich’s tool called NotMyFault.

- Dmitry Vostokov @ DumpAnalysis.org

Windows Internals book

Monday, November 19th, 2007

Scheduled to be updated with Windows Vista and Windows Server 2008 details:

Windows® Internals, Fifth Edition

- Dmitry Vostokov @ DumpAnalysis.org

Filtering processes

Monday, November 19th, 2007

When I analyze memory dumps coming from Microsoft or Citrix terminal service environments I frequently need to find a process hosting terminal service. In Windows 2000 it was the separate process termsrv.exe and now it is termsrv.dll which can be loaded into any of several instances of svchost.exe. The simplest way to narrow down that svchost.exe process if we have a complete memory dump is to use the module option of WinDbg !process command:

!process /m termsrv.dll 0

!process /m wsxica.dll 0

!process /m ctxrdpwsx.dll 0

Note: this option works only with W2K3, XP and later OS

Also to list all processes with user space stacks having the same image name we can use:

!process 0 ff msiexec.exe

or

!process 0 ff svchost.exe

Note: this command works with W2K too as well as session option (/s)

- Dmitry Vostokov @ DumpAnalysis.org
