Trace Analysis Patterns (Part 124)

Saturday, April 30th, 2016

Trace Extension is an obvious log analysis pattern that is about trace messages that refer to some other trace or log that may or may not exist. Sometimes, there can be instructions to enable additional tracing that is not possible to cover by the current trace source. We have seen this in some trace statements from .NET Exception Stack Traces.

- Dmitry Vostokov @ + -

Trace Analysis Patterns (Part 123)

Wednesday, April 27th, 2016

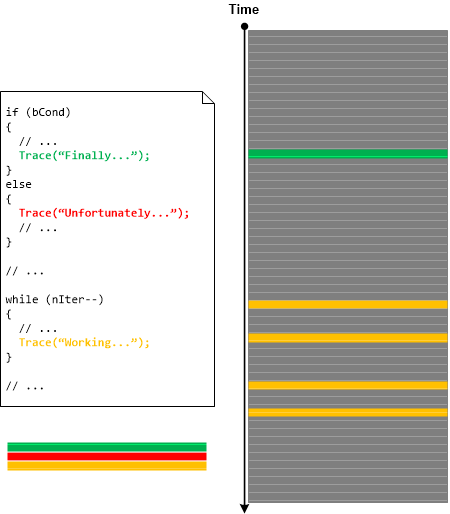

The trace statements in source code can be considered as Declarative Trace by analogy with variable declaration and definition in programming languages such as C and C++. Declaration of the variable doesn’t mean that the variable will be actually used. Some declared variables such as arrays will actually expand in memory when used (as in .bss sections). The same is with trace messages from Declarative Trace. Some of them will not appear in the actual software execution trace and some will be repeated because of loops and multiple code reentrance. However, Declarative Traces are useful for studying the possibilities of tracing and logging design, implementation, and coverage (for example, Sparse Trace). Some trace analysis patterns are also applicable for Declarative Traces such as Message Sets and Bifurcation Points (among different source code versions). This is illustrated in the following picture:

- Dmitry Vostokov @ + -
