Trace Analysis Patterns (Part 146)

Saturday, April 29th, 2017

The idea of Tensor Trace analysis pattern initially appeared in the context of memory dumps as general traces with several special traces inside but then developed further when working on Singleton Trace analysis pattern when we realized that several Singleton Traces may form a new separate log:

Therefore, we may combine several traces and logs into one global trace where each message references separate local traces and logs:

Typical example is a repeated tracing. Each trace has an i-th index spanning the number of trace messages. We say it is has Ti components. Each individual logging has an j-th index and overall global log has Tj components. Together the form the second rank tensor:

There can be Tensor Traces of the higher rank, for example, the 3rd component spanning computers:

This analysis pattern is different from Meta Trace where the latter is about trace evolution during software development. It is also different from Trace Dimension which is about one trace (Tensor Trace of rank 1).

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Trace Analysis Patterns (Part 145)

Saturday, April 29th, 2017

If we consider a log as a text, ignore its column structure, and do search for the particular attribute value (for example, PID) we get Message Set consisting of messages having that attribute value as column (Adjoint Thread of Activity) and messages having that attribute value referenced in their message text. We call this pattern Braid of Activity because metaphorically it looks like Adjoint Threads of Activity cross each other (like multibraiding):

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Trace Analysis Patterns (Part 144)

Wednesday, April 19th, 2017

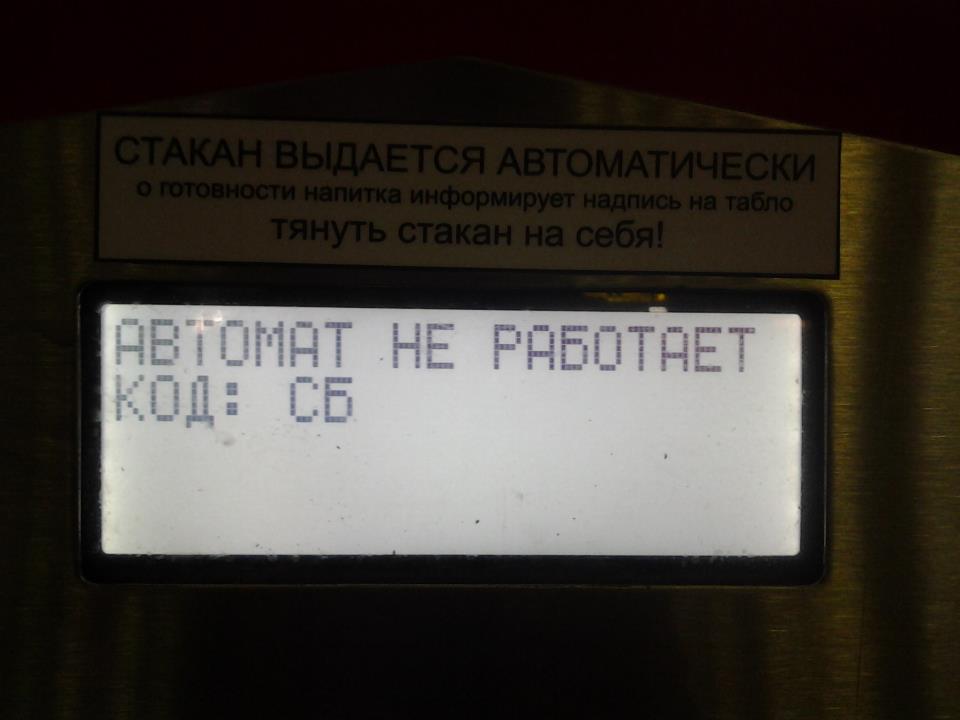

Status updates, error message boxes, and even abort errors can all be considered as examples of software traces and logs. We call such a log with one message only Singleton Trace. Please don’t confuse it with Singleton Event analysis pattern which is trivial for Singleton Traces. We illustrate this pattern with this picture of error message (in Russian it means “The machine doesn’t work. Code: SB”) from a lemonade-dispensing machine:

The message in such a trace may contain the associated stack trace as a trivial example of Fiber Bundle.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Trace Analysis Patterns (Part 143)

Tuesday, April 18th, 2017

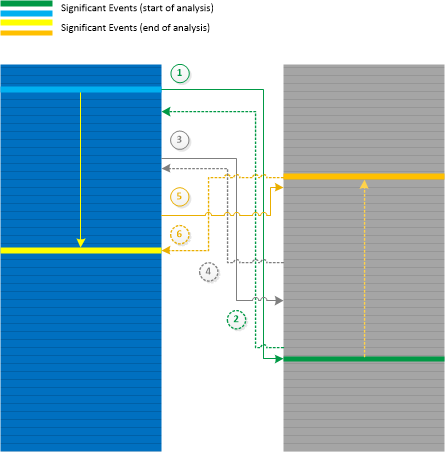

When doing Inter-Correlational analysis between different traces and logs we can move simultaneously along time direction or backwards (Back Tracing). In some cases we may start our analysis with the identification of Significant Events in both logs and then move in opposite directions finding another pair of messages that can be useful for diagnostic identification. We call this analysis pattern Galois Trace by analogy with Galois connection in mathematics. In our case moving from trace A to trace B and back corresponds to F and G functions with a and b as individual trace messages or their Message Contexts (as per monotone definition). The analysis pattern is illustrated in the following diagram:

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Crash Dump Analysis Patterns (Part 250)

Monday, April 3rd, 2017

For completeness, we add Aggregated Frames analysis pattern implemented as “aggregated stack trace” in various software performance profiling tools. Such tools periodically record CPU Stack Trace Collection. Other tools profile memory allocations and their stack traces. By aggregation we mean summing up occurrences of modules and functions from all collected stack traces similar to this table:

ModuleA         88%
   +0x234          42%
   +0x123           8%
   !foo            38%
      +0xd            30%
      +0x56            2%
   !bar             6%
      +0x18            6%
ModuleB         12%
   !export         12%
      +0x2380          1%
      +0x1224          6%
      +0x3812          5%

Related to memory dump analysis we can either use Stack Trace Collection to detect Ubiquitous Component in user and kernel spaces, or database Stack Traces, for example, used in detection of process heap, handle, and reference Memory Leaks.

We do not include “stack” in the name of this pattern because frames are not sorted by the execution direction compared to Unified Stack Trace analysis pattern where we have some notion of aggregation depicted as multiplicities.

We can also name it as Frame Usage Signature similar to Stack Trace Signature.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Trace Analysis Patterns (Part 142)

Sunday, April 2nd, 2017

We can apply Message Set trace and log analysis pattern to itself and build multilevel Message Directory. The pattern name come from the analogy with memory management page tables, where we can select every 10th message to build a smaller Message Set, and then select every 10th message from it to build another Message Set, and so on. When looking at a higher level Message Set we can select a trace message and then look at its Message Context in the lower level Message Sets:

Message Directory is similar to Trace Frames analysis pattern but is fine-grained, and more individual message oriented than the latter analysis pattern. However, the former pattern can be used to implement the latter one.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -
