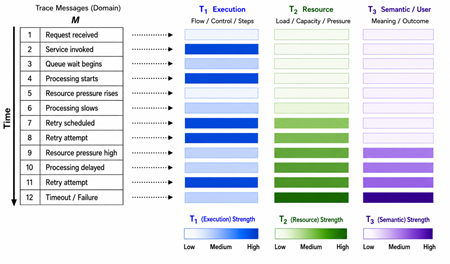

The Trace Multiphysics analysis pattern applies several Trace Fields to the same sequence of trace messages and studies both their individual strengths and their interactions. A Trace Field associates every message in a trace domain M with a value in some analytical range T. The value does not need to be numerical, although numerical or ordered values are useful when field strength must be visualized. For example, one field may represent execution significance, another resource pressure, and a third semantic or user-visible importance:

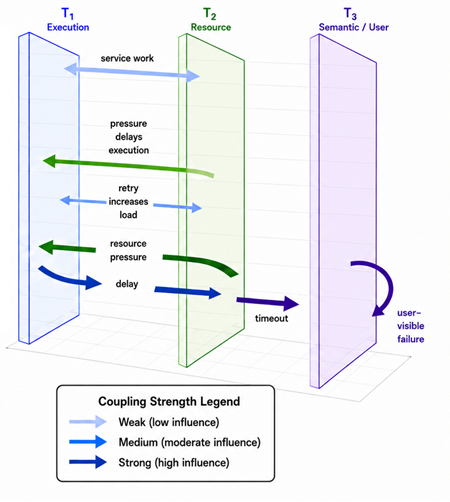

However, Trace Multiphysics is not merely the display of several independent Trace Fields: its essential feature is their coupling. A change in one field may affect another field. For example, increased resource pressure may slow execution. Slower execution may trigger retries. Repeated retries may further increase resource pressure. Eventually, the combined effect may change the semantic or user-visible outcome. The coupling diagram represents these relationships, and arrow thickness indicates coupling strength:

A simple conceptual form is: C_ij​(m)=g(f_i​(m), f_j​(m), R_ij​(m)), where f_i​: M → T_i and f_j​: M → T_j, f_i(m) and f_j(m) are the strengths or values of fields i and j at message m, C_ij(m) is the coupling between fields i and j at message m, and R_ij(m) represents evidence of an interaction between them. This formula defines coupling at message m. More generally, a coupling may relate field values at different messages when the influence is delayed or propagated through the trace: C_ij​(m_a, m_b)=g(f_i​(m_a), f_j​(m_b), R_ij​(m_a, m_b)), where m_a ⪯ m_b. High values in two fields do not automatically establish strong coupling. The trace must also contain evidence that one field influences, constrains, amplifies, transforms, or explains the other:

In computational modeling, multiphysics simulation studies several aspects of a physical system and their interactions simultaneously. A model may combine thermal, structural, fluid, electromagnetic, or other processes, together with the coupling and boundary conditions between them. Trace Multiphysics transfers this structural principle to software diagnostics. The analogy does not imply that all software behavior should be described by physical equations. Instead, it provides a disciplined way to analyze several interacting dimensions without reducing the incident to one isolated perspective.

The connection is especially appropriate in software diagnostics because software can be its own model. Software execution states and execution artifacts can be copied, preserved, replayed, or analyzed independently. Traces, logs, metrics, memory dumps, and snapshots are symbolic and digital artifacts produced by the software system itself. In this diagnostic sense, software performs a form of self-simulation: its execution generates artifacts that model selected aspects of its own structure and behavior. A trace is not a complete reproduction of the running system. It is a selective, instrumented self-model. Different Trace Fields extract different dimensions from that self-model. Trace Multiphysics studies those dimensions together and examines how they interact. Thus, multiphysics simulation models several interacting physical processes, whereas Trace Multiphysics analyzes several interacting fields in a software-generated model of software behavior.

Trace Field provides the foundational mapping from trace messages to one analytical domain. Trace Multiphysics extends this by applying several Trace Fields to the same trace domain and analyzing their simultaneous values, changing strengths, overlap at individual messages, dependencies, feedback loops, coupling strengths, and combined explanatory effects. The relationship can be summarized as follows: Trace Field describes one analytical dimension of a trace, and Trace Multiphysics studies several coupled Trace Fields defined over the same trace domain.

Trace Multiphysics also connects to several recent analysis patterns. In Trace Reactance, inductive and capacitive effects can be understood as specific forms of inter-field coupling and temporal distortion produced by interacting state fields. Karnaugh Map is also multidimensional but primarily Boolean and combinatorial, whereas Trace Multiphysics accommodates continuous or graded fields, propagation, and feedback loops. Trace World may provide a broader shared diagnostic context in which coupled Trace Fields are interpreted. Bethe Ansatz is a constrained form of Trace Multiphysics in which global behavior is reconstructed from composable pairwise interaction motives.

The pattern is particularly relevant to AI/ML and agentic AI systems. Multiphysics approaches in machine learning usually apply ML to coupled physical processes or incorporate multiple physical priors into learning. Multiphysics-Inspired AI/ML Diagnostics, by contrast, treats the AI/ML system itself as a collection of interacting analytical fields, including data, optimization, information, computation, uncertainty, control, and semantic outcome fields, defined over common training, inference, and operational trace domains. Its primary concern is how disturbances propagate across these fields, how feedback loops emerge among them, and how their combined effects produce system-level behavior. In an agentic AI system, for example, increased tool latency may cause retries, retries may enlarge the context and increase computational pressure, the expanded context may change the relative prominence of relevant information and increase uncertainty, and these changes may affect planning, tool selection, and the final semantic outcome. The resulting behavior cannot be explained adequately by any one field in isolation. Multiphysics-Inspired AI/ML Diagnostics applies the Trace Multiphysics principle to these coupled fields and studies how their interactions produce emergent agent behavior.

In summary, Trace Multiphysics is a trace and log analysis pattern that examines several Trace Fields defined over the same trace domain, together with the immediate, delayed, reinforcing, constraining, transforming, and explanatory couplings through which their combined behavior emerges. Multiphysics-Inspired AI/ML Diagnostics extends this principle to the interacting fields of AI/ML and agentic systems.
