Another example of Wait Chain pattern for objects with ownership semantics is seen in kernel and complete memory dumps where threads are waiting for thread objects. A thread object is a synchronization object whose owner is a thread so they can be easily identified. For example, the main application thread is waiting for an object:

1: kd> !thread 8818e660 16
THREAD 8818e660  Cid 1890.1c50  Teb: 7ffdf000 Win32Thread: b8411008 WAIT: (Unknown) UserMode Non-Alertable
    87d569d8  Thread
    8818e6d8  NotificationTimer
Not impersonating
DeviceMap                 e10008d8
Owning Process            87db5d88       Image:         App.exe
Wait Start TickCount      299006         Ticks: 255 (0:00:00:03.984)
Context Switch Count      1208                 LargeStack
UserTime                  00:00:00.203
KernelTime                00:00:00.203
Start Address kernel32!BaseThreadStartThunk (0×77e617ec)
Stack Init b42c3000 Current b42c2c60 Base b42c3000 Limit b42be000 Call 0
Priority 15 BasePriority 15 PriorityDecrement 0
ChildEBP RetAddr  Args to Child
b42c2c78 80833e8d 8818e660 8818e708 00000003 nt!KiSwapContext+0×26
b42c2ca4 80829b74 00000000 b42c2d14 00000000 nt!KiSwapThread+0×2e5
b42c2cec 8093b034 87d569d8 00000006 00804c01 nt!KeWaitForSingleObject+0×346
b42c2d50 8088ac4c 000001ec 00000000 b42c2d14 nt!NtWaitForSingleObject+0×9a
b42c2d50 7c8285ec 000001ec 00000000 b42c2d14 nt!KiFastCallEntry+0xfc
0006fde4 7c827d0b 77e61d1e 000001ec 00000000 ntdll!KiFastSystemCallRet
0006fde8 77e61d1e 000001ec 00000000 0006fe2c ntdll!NtWaitForSingleObject+0xc
0006fe58 77e61c8d 000001ec 00001388 00000000 kernel32!WaitForSingleObjectEx+0xac
0006fe6c 01039308 000001ec 00001388 00000000 kernel32!WaitForSingleObject+0×12
0006fe94 010204ac 0007cc00 00000001 00000002 App!WaitForNotifyList+0xf2
[…]

However that object is a thread too:

THREAD 87d569d8  Cid 1890.1ec0  Teb: 7ffd9000 Win32Thread: b869ba48 WAIT: (Unknown) UserMode Non-Alertable
    8a1f8870  Thread

Therefore, we see that thread 8818e660 is waiting for another thread 87d569d8 which belongs to the same process with PID 1890 and thread 87d569d8 itself is waiting for thread 8a1f8870 which has the following stack trace:

1: kd> !thread 8a1f8870 16
THREAD 8a1f8870  Cid 1890.07d8  Teb: 7ff95000 Win32Thread: 00000000 WAIT: (Unknown) UserMode Non-Alertable
    8a0ce4c0  NotificationEvent
    886f1870  NotificationEvent
Not impersonating
DeviceMap                 e10008d8
Owning Process            87db5d88       Image:         App.exe
Wait Start TickCount      292599         Ticks: 6662 (0:00:01:44.093)
Context Switch Count      17
UserTime                  00:00:00.000
KernelTime                00:00:00.000
Win32 Start Address Dll!StartMonitoring (0×758217b8)
Start Address kernel32!BaseThreadStartThunk (0×77e617ec)
Stack Init b6d4f000 Current b6d4e900 Base b6d4f000 Limit b6d4c000 Call 0
Priority 14 BasePriority 13 PriorityDecrement 0
ChildEBP RetAddr  Args to Child
b6d4e918 80833e8d 8a1f8870 00000002 00140000 nt!KiSwapContext+0×26
b6d4e944 808295ab 8a1f8870 00000002 00000000 nt!KiSwapThread+0×2e5
b6d4e978 8093b290 00000002 b6d4eaac 00000001 nt!KeWaitForMultipleObjects+0×3d7
b6d4ebf4 8093b3f2 00000002 b6d4ec1c 00000001 nt!ObpWaitForMultipleObjects+0×202
b6d4ed48 8088ac4c 00000002 026bfc08 00000001 nt!NtWaitForMultipleObjects+0xc8
b6d4ed48 7c8285ec 00000002 026bfc08 00000001 nt!KiFastCallEntry+0xfc
026bfbb8 7c827cfb 77e6202c 00000002 026bfc08 ntdll!KiFastSystemCallRet
026bfbbc 77e6202c 00000002 026bfc08 00000001 ntdll!NtWaitForMultipleObjects+0xc
026bfc64 77e62fbe 00000002 026bfca4 00000000 kernel32!WaitForMultipleObjectsEx+0×11a
026bfc80 6554a01f 00000002 026bfca4 00000000 kernel32!WaitForMultipleObjects+0×18
026bfcfc 758237a3 cd050002 ffffffff 026bfd4c Dll!GetStatusChange+0×7bf
026bffb8 77e64829 75833120 00000000 00000000 Dll!StartMonitoring+0×14b
026bffec 00000000 758217b8 75833120 00000000 kernel32!BaseThreadStart+0×34

Thread 8a1f8870 is waiting for two notification events disjointly which is confirmed by dumping WaitForMultipleObjects arguments. Neither of them is in signaled state and one is a named event “MyEventObject”:

1: kd> dd 026bfc08 l2
026bfc08  0000008c 00000084

1: kd> !handle 0000008c
processor number 1, process 87db5d88
PROCESS 87db5d88  SessionId: 4  Cid: 1890    Peb: 7ffdc000  ParentCid: 01d0
    DirBase: cfe438e0  ObjectTable: e178c228  HandleCount: 439.
    Image: App.exe

Handle table at e50d2000 with 439 Entries in use
008c: Object: 8a0ce4c0  GrantedAccess: 001f0003 Entry: e50d2118
Object: 8a0ce4c0  Type: (8b26ec00) Event
    ObjectHeader: 8a0ce4a8 (old version)
        HandleCount: 1  PointerCount: 3

1: kd> !handle 00000084
processor number 1, process 87db5d88
PROCESS 87db5d88  SessionId: 4  Cid: 1890    Peb: 7ffdc000  ParentCid: 01d0
    DirBase: cfe438e0  ObjectTable: e178c228  HandleCount: 439.
    Image: App.exe

Handle table at e50d2000 with 439 Entries in use
0084: Object: 886f1870  GrantedAccess: 001f0003 (Inherit) Entry: e50d2108
Object: 886f1870  Type: (8b26ec00) Event
    ObjectHeader: 886f1858 (old version)
        HandleCount: 1  PointerCount: 4
        Directory Object: e43ee320  Name: MyEventObject

1: kd> dt _DISPATCHER_HEADER 8a0ce4c0
cutildll!_DISPATCHER_HEADER
   +0×000 Type             : 0 ”
   +0×001 Absolute         : 0 ”
   +0×002 Size             : 0×4 ”
   +0×003 Inserted         : 0 ”
   +0×003 DebugActive      : 0 ”
   +0×000 Lock             : 262144
   +0×004 SignalState      : 0
   +0×008 WaitListHead     : _LIST_ENTRY [ 0×88519d18 - 0×8a1f8918 ]

1: kd> dt _DISPATCHER_HEADER 886f1870
cutildll!_DISPATCHER_HEADER
   +0×000 Type             : 0 ”
   +0×001 Absolute         : 0 ”
   +0×002 Size             : 0×4 ”
   +0×003 Inserted         : 0 ”
   +0×003 DebugActive      : 0 ”
   +0×000 Lock             : 262144
   +0×004 SignalState      : 0
   +0×008 WaitListHead     : _LIST_ENTRY [ 0×88519d30 - 0×8a1f8930 ]

Here is a diagram showing this wait chain:

- Dmitry Vostokov @ DumpAnalysis.org -

CtxHideEx32 tool has been updated to the version 1.1 and can be downloaded from Citrix support. It now allows a substring search for a window title or class, for example:

CtxHideEx32.exe HIDE "*error" "" OK

As by-product coupled with an optional command line I discovered that it allows to automatically dump any process displaying a message box with an error message in its window title. Here is an example using TestDefaultDebugger64 to simulate an application fault message where the following instance of CtxHideEx32 was setup to dump a process showing WER dialog on Vista:

CtxHideEx32.exe NONE "*Microsoft Windows" "" "C:\kktools\userdump8.1\x64\userdump.exe %d"

We click on a big lightning button:

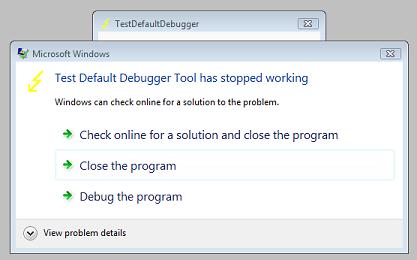

and then WER dialog appears:

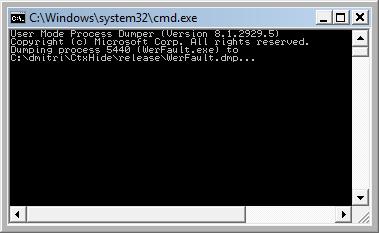

Immediately CtxHideEx32 kicks in and starts dumping the owner process incessantly so you better to dismiss this dialog by choosing something:

We see it was WerFault.exe.

Note: I think I have to amend CtxHideEx32 to make it wait until the spawned command line interpreter finishes its job. Stay tuned.

- Dmitry Vostokov @ DumpAnalysis.org -

Science fiction books are among my favourite. I used to read lots of them (in Russian) during my school and university years. Also I started reading science fiction in English 8 years ago upon my arrival to Ireland and one of Asimov’s books about Foundation was my first English fiction book fully read from cover to cover. Now I want to write something fictional related to memory dump analysis and the notion of 3-dimensional memory dumps is a fascinating idea to exploit:

Googol Dump - a 3D memory dump where the 3rd dimension is a time arrow of computational 2D memory snapshots.

Note: one googol is 10¹⁰⁰ and this number of bits is sufficient enough to record the full history of memory snapshots for 64-bit, 128-bit, 256-bit and even 1024-bit computers running thousands of years.

The novel is planned to be published next year (ISBN: 978-1906717322) and is written from the perspective of a debugger.
