WinDbg as a Binary Editor

Tuesday, April 15th, 2008

Sometimes we have a binary file or even a text file where we want to alter some bytes but we don’t have any binary editor at hand. We can use WinDbg for this purpose. To illustrate this, I created hello.bin file with “Hello World!” in its contents. Suppose we want to change it to “Hello WinDbg!”. First, we need to open any available full process user dump file and then get the list of valid address ranges by either using !address or lm command:

0:000> lm
start             end                 module name
00000000`00400000 00000000`0044d000   TestDefaultDebugger64
00000000`77850000 00000000`77981000   kernel32
00000000`77990000 00000000`77a5a000   user32
00000000`77a60000 00000000`77bda000   ntdll
000007fe`f8940000 000007fe`f8997000   winspool
000007fe`fcb00000 000007fe`fccf0000   comctl32
000007fe`fcfc0000 000007fe`fd012000   uxtheme
000007fe`fe1d0000 000007fe`fe2d4000   msctf
000007fe`fe380000 000007fe`fe3f1000   shlwapi
000007fe`fe660000 000007fe`fe799000   rpcrt4
000007fe`fe9f0000 000007fe`feac8000   oleaut32
000007fe`fead0000 000007fe`ff704000   shell32
000007fe`ff880000 000007fe`ff91a000   usp10
000007fe`ff920000 000007fe`ff9c1000   msvcrt
000007fe`ff9d0000 000007fe`ff9f8000   imm32
000007fe`ffa00000 000007fe`ffbe0000   ole32
000007fe`ffbe0000 000007fe`ffcdf000   advapi32
000007fe`ffce0000 000007fe`ffcec000   lpk
000007fe`ffcf0000 000007fe`ffd51000   gdi32

Let’s choose 00000000`00400000 address. It points to the following memory data:

0:000> dc 00000000`00400000
00000000`00400000  00905a4d 00000003 00000004 0000ffff  MZ..............
00000000`00400010  000000b8 00000000 00000040 00000000  ........@.......
00000000`00400020  00000000 00000000 00000000 00000000  ................
00000000`00400030  00000000 00000000 00000000 000000e8  ................
00000000`00400040  0eba1f0e cd09b400 4c01b821 685421cd  ........!..L.!Th
00000000`00400050  70207369 72676f72 63206d61 6f6e6e61  is program canno
00000000`00400060  65622074 6e757220 206e6920 20534f44  t be run in DOS
00000000`00400070  65646f6d 0a0d0d2e 00000024 00000000  mode....$.......

Now we load our hello.bin by specifying the this address and the number of bytes to load:

0:000> .readmem c:\dmitri\hello.bin 00000000`00400000 L0n12
Reading c bytes.

We see the new memory data immediately:

0:000> dc 00000000`00400000
00000000`00400000  6c6c6548 6f57206f 21646c72 0000ffff  Hello World!….
00000000`00400010  000000b8 00000000 00000040 00000000  ……..@…….
00000000`00400020  00000000 00000000 00000000 00000000  …………….
00000000`00400030  00000000 00000000 00000000 000000e8  …………….
00000000`00400040  0eba1f0e cd09b400 4c01b821 685421cd  ……..!..L.!Th
00000000`00400050  70207369 72676f72 63206d61 6f6e6e61  is program canno
00000000`00400060  65622074 6e757220 206e6920 20534f44  t be run in DOS
00000000`00400070  65646f6d 0a0d0d2e 00000024 00000000  mode….$…….

Then we can change it immediately using any of e* commands:

0:000> ea 00000000`00400000+6 "WinDbg!"

0:000> dc 00000000`00400000
00000000`00400000  6c6c6548 6957206f 6762446e 2100ffff  Hello WinDbg!
00000000`00400010  000000b8 00000000 00000040 00000000  ……..@…….
00000000`00400020  00000000 00000000 00000000 00000000  …………….
00000000`00400030  00000000 00000000 00000000 000000e8  …………….
00000000`00400040  0eba1f0e cd09b400 4c01b821 685421cd  ……..!..L.!Th
00000000`00400050  70207369 72676f72 63206d61 6f6e6e61  is program canno
00000000`00400060  65622074 6e757220 206e6920 20534f44  t be run in DOS
00000000`00400070  65646f6d 0a0d0d2e 00000024 00000000  mode….$…….

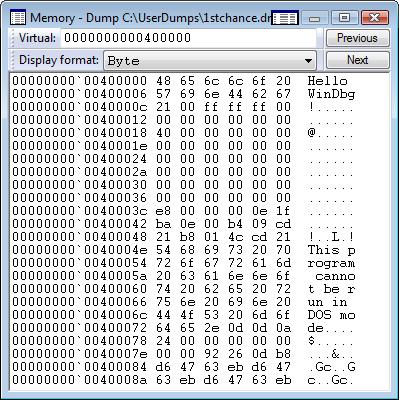

Alternatively we can use GUI memory editor:

Now we can write memory contents back to our file:

0:000> .writemem c:\dmitri\hello.bin 00000000`00400000 L0n13
Writing d bytes.
