Crash Dump Analysis Patterns (Part 42e)
Wednesday, December 17th, 2008Now its time to write about wait chains involving LPC calls. These chains are easily identified by searching for “Waiting for reply to LPC MessageId” in the output of !process 0 ff command or if we know that some specific process is hanging and see that message in its thread information output. For example, in one kernel memory dump taken when AppA was hanging we see this example of Blocked Thread pattern:
7: kd> !process 88556778 ff
PROCESS 88556778 SessionId: 0 Cid: 1f88 Peb: 7ffdc000 ParentCid: 0f74
DirBase: 96460000 ObjectTable: e65a5348 HandleCount: 80.
Image: AppA.exe
VadRoot 870d2208 Vads 54 Clone 0 Private 234. Modified 0. Locked 0.
DeviceMap e22ba7c0
Token e5e47cf0
ElapsedTime 00:04:44.017
UserTime 00:00:00.000
KernelTime 00:00:00.000
QuotaPoolUsage[PagedPool] 20092
QuotaPoolUsage[NonPagedPool] 2160
Working Set Sizes (now,min,max) (748, 50, 345) (2992KB, 200KB, 1380KB)
PeakWorkingSetSize 748
VirtualSize 16 Mb
PeakVirtualSize 16 Mb
PageFaultCount 810
MemoryPriority BACKGROUND
BasePriority 8
CommitCharge 252
PEB NULL...
THREAD 8861aab8 Cid 1f88.1bd4 Teb: 7ffdf000 Win32Thread: bc161ea8 WAIT: (Unknown) UserMode Non-Alertable
8861aca4 Semaphore Limit 0x1
Waiting for reply to LPC MessageId 00037bb2:
Current LPC port e625bbd0
Not impersonating
DeviceMap e22ba7c0
Owning Process 88556778 Image: AppA.exe
Wait Start TickCount 426549 Ticks: 18176 (0:00:04:44.000)
Context Switch Count 76 LargeStack
UserTime 00:00:00.000
KernelTime 00:00:00.000
Win32 Start Address 0×010043ab
Start Address 0×77e617f8
Stack Init bab4b000 Current bab4ac08 Base bab4b000 Limit bab47000 Call 0
Priority 11 BasePriority 8 PriorityDecrement 2
Kernel stack not resident.
ChildEBP RetAddr
bab4ac20 8083d5b1 nt!KiSwapContext+0×26
bab4ac4c 8083df9e nt!KiSwapThread+0×2e5
bab4ac94 8093eda1 nt!KeWaitForSingleObject+0×346
bab4ad50 80833bef nt!NtRequestWaitReplyPort+0×776
bab4ad50 7c8285ec nt!KiFastCallEntry+0xfc
Now we look for a server thread processing the message 00037bb2:
7: kd> !lpc message 00037bb2
Searching message 37bb2 in threads ...
Server thread 89815db0 is working on message 37bb2
Client thread 8861aab8 waiting a reply from 37bb2
Searching thread 8861aab8 in port rundown queues …
Server communication port 0xe1216be8
Handles: 1 References: 1
The LpcDataInfoChainHead queue is empty
Connected port: 0xe625bbd0 Server connection port: 0xe1323f68
Client communication port 0xe625bbd0
Handles: 1 References: 2
The LpcDataInfoChainHead queue is empty
Server connection port e1323f68 Name: ApiABC
Handles: 1 References: 43
Server process : 887d32d0 (svchost.exe)
Queue semaphore : 884df210
Semaphore state 0 (0x0)
The message queue is empty
Messages in LpcDataInfoChainHead:
0000 e6067418 - Busy Id=00020695 From: 0224.134c Context=80050003 [e1323fe8 . e65fa5a8]
Length=0044002c Type=00380001 (LPC_REQUEST)
Data: 00000001 00050242 00000000 00000000 00000000 00000000
0000 e65fa5a8 - Busy Id=0002e1dd From: 0fd8.0fe0 Context=80110002 [e6067418 . e5f6a360]
Length=0044002c Type=00380001 (LPC_REQUEST)
Data: 00000001 00050242 c03007fc c01fff7c 00000000 80a84456
0000 e5f6a360 - Busy Id=00037bb2 From: 1f88.1bd4 Context=8017000f [e65fa5a8 . e1323fe8]
Length=0044002c Type=00380001 (LPC_REQUEST)
Data: 00000001 00050242 88572278 88572290 8a386990 000015e7
The LpcDataInfoChainHead queue contains 3 messages
Threads in RunDown queue : 0xe6067258 0xe65fa3e8 0xe5f6a1a0
Done.
7: kd> !thread 89815db0
THREAD 89815db0 Cid 1218.0c00 Teb: 7ff8f000 Win32Thread: 00000000 WAIT: (Unknown) UserMode Non-Alertable
88603e40 Mutant - owning thread 884d7db0
Not impersonating
DeviceMap e10018b8
Owning Process 887d32d0 Image: svchost.exe
Wait Start TickCount 426549 Ticks: 18176 (0:00:04:44.000)
Context Switch Count 42
UserTime 00:00:00.000
KernelTime 00:00:00.000
Win32 Start Address 0×00037bb2
LPC Server thread working on message Id 37bb2
Start Address 0×77e617ec
Stack Init f60e0000 Current f60dfc60 Base f60e0000 Limit f60dd000 Call 0
Priority 9 BasePriority 8 PriorityDecrement 0
Kernel stack not resident.
ChildEBP RetAddr Args to Child
f60dfc78 8083d5b1 89815db0 89815e58 00000006 nt!KiSwapContext+0×26
f60dfca4 8083df9e 00000000 00000000 00000000 nt!KiSwapThread+0×2e5
f60dfcec 8092ae57 88603e40 00000006 00000001 nt!KeWaitForSingleObject+0×346
f60dfd50 80833bef 000004fc 00000000 00000000 nt!NtWaitForSingleObject+0×9a
f60dfd50 7c8285ec 000004fc 00000000 00000000 nt!KiFastCallEntry+0xfc
We see that it is blocked waiting for a synchronization object (mutant, shown in magenta above) and we check the thread 884d7db0 that owns it:
7: kd> !thread 884d7db0
THREAD 884d7db0 Cid 1218.12ec Teb: 7ffdd000 Win32Thread: 00000000 WAIT: (Unknown) UserMode Non-Alertable
884d7f9c Semaphore Limit 0x1
Waiting for reply to LPC MessageId 0000fa9e:
Current LPC port e121fdb8
Not impersonating
DeviceMap e10018b8
Owning Process 887d32d0 Image: svchost.exe
Wait Start TickCount 11800 Ticks: 432925 (0:01:52:44.453)
Context Switch Count 111
UserTime 00:00:00.000
KernelTime 00:00:00.000
Win32 Start Address 0×0000fa9b
LPC Server thread working on message Id fa9b
Start Address 0×77e617ec
Stack Init f4598000 Current f4597c08 Base f4598000 Limit f4595000 Call 0
Priority 9 BasePriority 8 PriorityDecrement 0
Kernel stack not resident.
ChildEBP RetAddr Args to Child
f4597c20 8083d5b1 884d7db0 884d7e58 00000007 nt!KiSwapContext+0×26
f4597c4c 8083df9e 884d7f9c 884d7f70 884d7db0 nt!KiSwapThread+0×2e5
f4597c94 8093eda1 884d7f9c 00000011 80930901 nt!KeWaitForSingleObject+0×346
f4597d50 80833bef 00000560 000ebfe0 000ebfe0 nt!NtRequestWaitReplyPort+0×776
f4597d50 7c8285ec 00000560 000ebfe0 000ebfe0 nt!KiFastCallEntry+0xfc
The thread is waiting for the LPC message 0000fa9e and we look for a server thread processing it:
7: kd> !thread 898c6db0
THREAD 898c6db0 Cid 0b38.188c Teb: 7ff4d000 Win32Thread: 00000000 WAIT: (Unknown) UserMode Non-Alertable
884362c8 SynchronizationEvent
Not impersonating
DeviceMap e11399e8
Owning Process 88340758 Image: AppB.exe
Wait Start TickCount 11801 Ticks: 432924 (0:01:52:44.437)
Context Switch Count 7
UserTime 00:00:00.000
KernelTime 00:00:00.000
Win32 Start Address 0x0000fa9e
LPC Server thread working on message Id fa9e
Start Address 0x77e617ec
Stack Init f5138000 Current f5137c60 Base f5138000 Limit f5135000 Call 0
Priority 9 BasePriority 8 PriorityDecrement 0
Kernel stack not resident.
ChildEBP RetAddr Args to Child
f5137c78 8083d5b1 898c6db0 898c6e58 00000006 nt!KiSwapContext+0x26
f5137ca4 8083df9e 00000000 00000000 00000000 nt!KiSwapThread+0x2e5
f5137cec 8092ae57 884362c8 00000006 00000001 nt!KeWaitForSingleObject+0x346
f5137d50 80833bef 0000056c 00000000 00000000 nt!NtWaitForSingleObject+0x9a
f5137d50 7c8285ec 0000056c 00000000 00000000 nt!KiFastCallEntry+0xfc
We also see that the thread 884d7db0 was working on message fa9b (shown in blue above) and therefore we can find its client thread:
7: kd> !lpc message fa9b
Searching message fa9b in threads ...
Server thread 884d7db0 is working on message fa9b
Client thread 871ab9a0 waiting a reply from fa9b
Searching thread 871ab9a0 in port rundown queues …
Server communication port 0xe23f68b8
Handles: 1 References: 1
The LpcDataInfoChainHead queue is empty
Connected port: 0xe1325c10 Server connection port: 0xe1323f68
Client communication port 0xe1325c10
Handles: 1 References: 2
The LpcDataInfoChainHead queue is empty
Server connection port e1323f68 Name: ApiABC
Handles: 1 References: 43
Server process : 887d32d0 (svchost.exe)
Queue semaphore : 884df210
Semaphore state 0 (0x0)
The message queue is empty
Messages in LpcDataInfoChainHead:
0000 e6067418 - Busy Id=00020695 From: 0224.134c Context=80050003 [e1323fe8 . e65fa5a8]
Length=0044002c Type=00380001 (LPC_REQUEST)
Data: 00000001 00050242 00000000 00000000 00000000 00000000
0000 e65fa5a8 - Busy Id=0002e1dd From: 0fd8.0fe0 Context=80110002 [e6067418 . e5f6a360]
Length=0044002c Type=00380001 (LPC_REQUEST)
Data: 00000001 00050242 c03007fc c01fff7c 00000000 80a84456
0000 e5f6a360 - Busy Id=00037bb2 From: 1f88.1bd4 Context=8017000f [e65fa5a8 . e1323fe8]
Length=0044002c Type=00380001 (LPC_REQUEST)
Data: 00000001 00050242 88572278 88572290 8a386990 000015e7
The LpcDataInfoChainHead queue contains 3 messages
Threads in RunDown queue : 0xe6067258 0xe65fa3e8 0xe5f6a1a0
Done.
7: kd> !thread 871ab9a0
THREAD 871ab9a0 Cid 180c.1810 Teb: 7ffdf000 Win32Thread: bc011008 WAIT: (Unknown) UserMode Non-Alertable
871abb8c Semaphore Limit 0x1
Waiting for reply to LPC MessageId 0000fa9b:
Current LPC port e1325c10
Not impersonating
DeviceMap e10018b8
Owning Process 8963c388 Image: AppC.exe
Wait Start TickCount 11796 Ticks: 432929 (0:01:52:44.515)
Context Switch Count 540 LargeStack
UserTime 00:00:00.046
KernelTime 00:00:00.062
Start Address 0x0103e1b0
Stack Init f68a4000 Current f68a3c08 Base f68a4000 Limit f689f000 Call 0
Priority 15 BasePriority 15 PriorityDecrement 0
Kernel stack not resident.
ChildEBP RetAddr Args to Child
f68a3c20 8083d5b1 871ab9a0 871aba48 00000004 nt!KiSwapContext+0x26
f68a3c4c 8083df9e 871abb8c 871abb60 871ab9a0 nt!KiSwapThread+0x2e5
f68a3c94 8093eda1 871abb8c 00000011 e24f0401 nt!KeWaitForSingleObject+0x346
f68a3d50 80833bef 00000150 0007fc70 0007fc70 nt!NtRequestWaitReplyPort+0x776
f68a3d50 7c8285ec 00000150 0007fc70 0007fc70 nt!KiFastCallEntry+0xfc

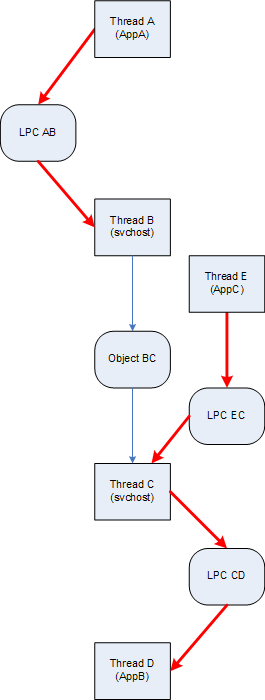

Finally we can draw this wait chain diagram where LPC calls are shown as red arrows:
- Dmitry Vostokov @ DumpAnalysis.org -
