ADPlus in 21 seconds and 13 steps

Friday, September 12th, 2008

Dealing with a problem today where NTSD failed to save a dump file either because of improper configuration for a default postmortem debugger or for other reasons I advised to use ADPlus from Debugging Tools for Windows in crash mode but found that I haven’t yet written about it. In the past I didn’t recommend ADPlus because no one wanted to install something extra on production environments.

I had to show how ADPlus works for crashes because the usual Microsoft article was too big for an immediate grasp:

How to use ADPlus to troubleshoot “hangs” and “crashes”

Here is the quick polished tutorial:

1. Download and install Debugging Tools for Windows appropriate for your application or service platform. For example, if your service is 32-bit but runs on x64 you need to download 32-bit package. Refer to http://www.windbg.org for quick download links.

2. Get ready for the test and download TesDefaultDebugger package.

3. Open a command prompt elevated as Administrator and cd to Debugging Tools for Windows installation folder.

4. Run ADPlus command:

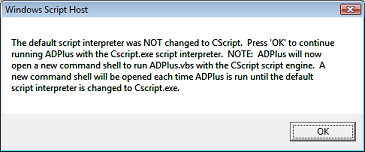

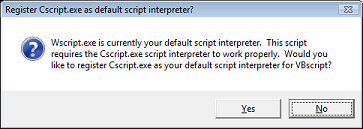

5. Skip any warnings related to script interpreter if any:

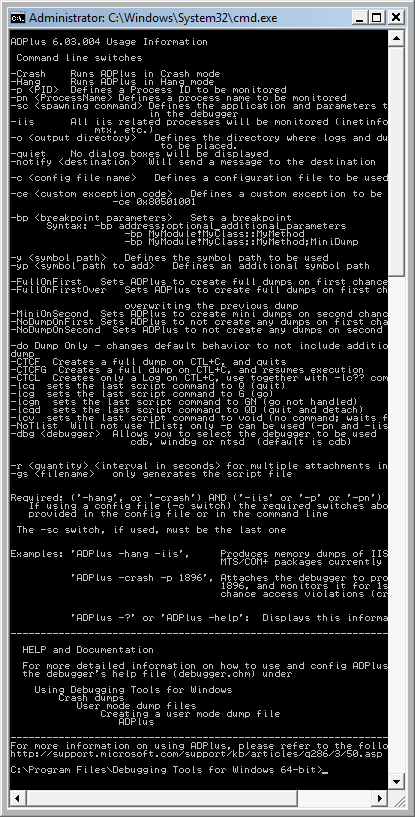

6. Another command line window appears with ADPlus switches:

7. Close it, go back to the first command line window we used to launch-test ADPlus and type this command:

ADPlus -crash -pn TestDefaultDebugger64.exe

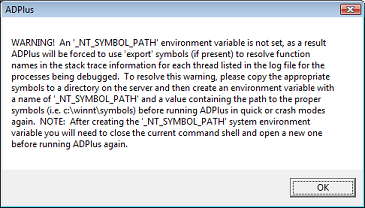

8. Skip warnings from step 5 if any and the symbol path warning if it appears too:

9. The second command line window is opened with the following expected output because we didn’t run TestDefaultDebugger64.exe:

10. Close it and launch TestDefaultDebugger64.exe from the package downloaded in step 2:

11. Go back to the first command line window and repeat the command from step 7. You can also specify PID by -p <PID> instead of -pn <Name> option. Skip warnings from steps 5 and 8 if any and you would see the following message showing where ADPlus will store logs and memory dumps if any:

There are also 2 additional command line windows appear. One is showing which PID the debugger was attached to:

and the other showing the output of attached console debugger, CDB by default:

12. We can dismiss the message from the previous step and wait for the crash to occur when we push the big button on TestDefaultDebugger window from step 10. We see the crash instantaneously in debugger console window if it is still running:

The following message box might appear and that depends on AEDebug registry key and WER settings which are beyond the scope of this post:

In case it appears you can simply choose to close the program.

13. That’s it. All files appear in this folder:

C:\Program Files\Debugging Tools for Windows 64-bit\Crash_Mode__Date_09-12-2008__Time_16-55-5151:

- Dmitry Vostokov @ DumpAnalysis.org -

DebugWare Patterns (Part 5)

Friday, September 12th, 2008

Usually after writing and using a tool we think about an extension of it or we find another tool that is suitable as that extension. In such cases it is better to reuse existing components and adapt the former tool to use the latter. Tool Chain is a good pattern name here. A programming analogy could be a compiler and linker:

Typical example could be a logging tool that now acquires log viewer functionality by implementing a button that launches a separate log viewer or vice versa, a log viewer that can now do logging. Another simple example is a command file that launches different tools in a sequence. The tools might not be related by the data they produce and operate upon: this not the same as well-known architectural Filters and Pipes pattern. What is important is the fact that tools are related buy overall tool chain goal, for example, to debug problems by recording and analyzing log files or monitor some process activity and periodically create memory dumps:

- Dmitry Vostokov @ DumpAnalysis.org -

2600 Anthology is out

Friday, September 12th, 2008

Last week I noticed this book on Amazon and I would have passed over it if I didn’t discover 2600 magazine when browsing Microsoft Encyclopedia of Security a few months ago :-) This morning it arrived in post and I’m looking forward reading it during my lunch time. Anthology books are well suited for such breaks because articles are not long and usually self sufficient to learn about something discrete:

The Best of 2600: A Hacker Odyssey

Buy from Amazon

- Dmitry Vostokov @ DumpAnalysis.org -

Bugtation No.21

Friday, September 12th, 2008

“I like people who can do” debugging.

Ralph Waldo Emerson, Journals

- Dmitry Vostokov @ DumpAnalysis.org -

The House of Bugxorcist

Friday, September 12th, 2008

New cartoon and a word “bugxorcist” from Narasimha Vedala (click on it to enlarge):

Bugs At The Gate

DBG_BugsAtTheGate from Narasimha Vedala (click to enlarge)

- Dmitry Vostokov @ DumpAnalysis.org -

Bugtation No.20

Friday, September 12th, 2008

“Crash dumps are fossils” of computations.

Thomas Monahan and Dmitry Vostokov, Crash Dump Analysis for System Administrators and Support Engineers (Chapter 1: The Origin of Crash Dumps)

- Dmitry Vostokov @ DumpAnalysis.org -
