Manual dump, virtualized process, stack trace collection, multiple exceptions, optimized code, wild code pointer, incorrect stack trace and hidden exception: pattern cooperation

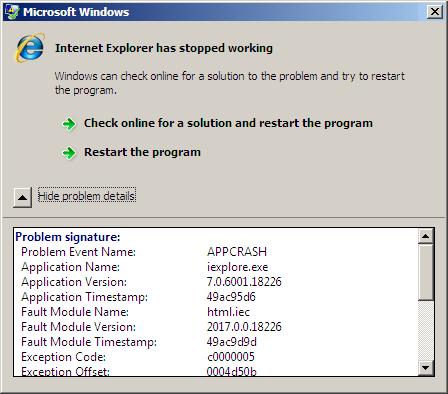

The following WER dialog appeared after I copied an RTF text from an e-mail client to IE while editing another blog post:

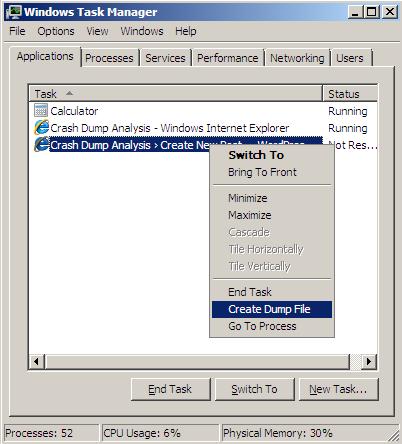

Although the dialog points to html.iec it is good to show the basic techniques for component identification using WinDbg. I took a manual user dump of that unresponsive process while it was showing that dialog above using Task Manager:

The saved process memory dump shows that IE was virtualized 32-bit process running on x64 Windows:

STACK_TEXT:
00000000`000dee18 00000000`75bbab46 : wow64cpu!TurboDispatchJumpAddressEnd+0xef
00000000`000deec0 00000000`75bba14c : wow64!Wow64SystemServiceEx+0×27a
00000000`000deef0 00000000`778f52d3 : wow64!Wow64LdrpInitialize+0×4b4
00000000`000df450 00000000`778f5363 : ntdll!CsrClientConnectToServer+0×493
00000000`000df700 00000000`778e85ce : ntdll!CsrClientConnectToServer+0×523
00000000`000df7b0 00000000`00000000 : ntdll!LdrInitializeThunk+0xe

However, even after switching to x86 mode, !analyze -v doesn’t report any signs of exception violation, c0000005, seen from WER dialog above:

0:000> .load wow64exts; .effmach x86
Effective machine: x86 compatible (x86)

0:000:x86> !analyze -v
[...]

EXCEPTION_RECORD:  ffffffffffffffff -- (.exr 0xffffffffffffffff)
ExceptionAddress: 0000000000000000
   ExceptionCode: 80000003 (Break instruction exception)
  ExceptionFlags: 00000000
NumberParameters: 0

ERROR_CODE: (NTSTATUS) 0x80000003 - {EXCEPTION}  Breakpoint  A breakpoint has been reached.

STACK_TEXT:
0027e428 7679e91a ntdll_77a60000!NtWaitForMultipleObjects+0x15
0027e4c4 76a58f76 kernel32!WaitForMultipleObjectsEx+0x11d
0027e518 75ad6071 user32!RealMsgWaitForMultipleObjectsEx+0x14d
WARNING: Frame IP not in any known module. Following frames may be wrong.
0027e538 75ad61f0 ieui+0x6071
0027e560 75ad6196 ieui+0x61f0
0027e59c 7291ffc6 ieui+0x6196
0027e5a8 7290f579 ieframe!BrowserThreadProc+0x3f
0027e5cc 7290f4c7 ieframe!BrowserNewThreadProc+0x7b
0027f63c 728fd1ba ieframe!SHOpenFolderWindow+0x188
0027f86c 013133c3 ieframe!IEWinMain+0x2d9
0027fcb0 0131325a iexplore!wWinMain+0x27b
0027fd44 7680e4a5 iexplore!_initterm_e+0x1b1
0027fd50 77adcfed kernel32!BaseThreadInitThunk+0xe
0027fd90 77add1ff ntdll_77a60000!__RtlUserThreadStart+0x23
0027fda8 00000000 ntdll_77a60000!_RtlUserThreadStart+0x1b

We list all threads for any exception processing signs and we find one such thread indeed:

0:002:x86> ~*kc 100

[...]

   2  Id: 404.ba4 Suspend: 0 Teb: 7efaa000 Unfrozen

ntdll_77a60000!NtWaitForMultipleObjects
kernel32!WaitForMultipleObjectsEx
kernel32!WaitForMultipleObjects
kernel32!WerpReportFaultInternal
kernel32!WerpReportFault
kernel32!UnhandledExceptionFilter
ntdll_77a60000!__RtlUserThreadStart
ntdll_77a60000!_EH4_CallFilterFunc
ntdll_77a60000!_except_handler4
ntdll_77a60000!ExecuteHandler2
ntdll_77a60000!ExecuteHandler
ntdll_77a60000!KiUserExceptionDispatcher

WARNING: Frame IP not in any known module. Following frames may be wrong.
0×0
html!LwMultDivRU
html!FMarkListCallback
html!JcCalcFromXaExtents
html!EmitNonBreakingSpace
html!FEmitHtmlFnOtag
html!ConvertRtfToForeign
html!FceRtfToForeign
html!RtfToForeign32
mshtmled!CRtfToHtmlConverter::ExternalRtfToInternalHtml
mshtmled!CRtfToHtmlConverter::StringRtfToStringHtml
mshtmled!CRtfToHtmlConverter::StringRtfToStringHtml
mshtmled!CHTMLEditor::ConvertRTFToHTML
mshtmled!CPasteCommand::PasteFromClipboard
mshtmled!CPasteCommand::PrivateExec
mshtmled!CCommand::Exec
mshtmled!CMshtmlEd::Exec
mshtml!CEditRouter::ExecEditCommand
mshtml!CDoc::ExecHelper
mshtml!CFrameSite::Exec
mshtml!CDoc::RouteCTElement
mshtml!CDoc::ExecHelper
mshtml!CDoc::Exec
mshtml!CDoc::OnCommand
mshtml!CDoc::OnWindowMessage
mshtml!CServer::WndProc
user32!InternalCallWinProc
user32!UserCallWinProcCheckWow
user32!SendMessageWorker
user32!SendMessageW
mshtml!CElement::PerformTA
mshtml!CDoc::PerformTA
mshtml!CDoc::PumpMessage
mshtml!CDoc::DoTranslateAccelerator
mshtml!CServer::TranslateAcceleratorW
mshtml!CDoc::TranslateAcceleratorW
ieframe!CProxyActiveObject::TranslateAcceleratorW
ieframe!CDocObjectView::TranslateAcceleratorW
ieframe!CCommonBrowser::v_MayTranslateAccelerator
ieframe!CShellBrowser2::_MayTranslateAccelerator
ieframe!CShellBrowser2::v_MayTranslateAccelerator
ieframe!CTabWindow::_TabWindowThreadProc
kernel32!BaseThreadInitThunk
ntdll_77a60000!__RtlUserThreadStart
ntdll_77a60000!_RtlUserThreadStart

[...]

The same stack fragment with function parameters has a zero for its UnhandledExceptionFilter first parameter, perhaps because of optimized code reusing local variable slots, and we cannot apply .exptr meta-command:

0:002:x86> ~2kv
ChildEBP RetAddr  Args to Child
0361d938 7679e91a 00000002 0361d988 00000001 ntdll_77a60000!NtWaitForMultipleObjects+0x15
0361d9d4 767949d9 0361d988 0361da24 00000000 kernel32!WaitForMultipleObjectsEx+0x11d
0361d9f0 7684573d 00000002 0361da24 00000000 kernel32!WaitForMultipleObjects+0x18
0361da5c 76845969 0361db2c 00000001 00000001 kernel32!WerpReportFaultInternal+0x16d
0361da70 7681c66f 0361db2c 00000001 35137a6c kernel32!WerpReportFault+0x70
0361dafc 77add03e 00000000 77aaf2d0 00000000 kernel32!UnhandledExceptionFilter+0×1b5
0361db04 77aaf2d0 00000000 0361fe04 77a8da38 ntdll_77a60000!__RtlUserThreadStart+0×6f
0361db18 77b129b3 00000000 00000000 00000000 ntdll_77a60000!_EH4_CallFilterFunc+0×12
0361db40 77a83099 fffffffe 0361fdf4 0361dc7c ntdll_77a60000!_except_handler4+0×8e
0361db64 77a8306b 0361dc2c 0361fdf4 0361dc7c ntdll_77a60000!ExecuteHandler2+0×26
0361dc14 77a82eff 0161dc2c 0361dc7c 0361dc2c ntdll_77a60000!ExecuteHandler+0×24
0361dc18 0161dc2c 0361dc7c 0361dc2c 0361dc7c ntdll_77a60000!KiUserExceptionDispatcher+0xf
WARNING: Frame IP not in any known module. Following frames may be wrong.
0361df5c 72333b0e 07feaee4 0000001f 00000000 0×161dc2c
0361df74 72332ba9 00000000 0361dffc 00000000 html!LwMultDivRU+0×4b6
0361dfb8 7233518a 0361dffc 0000000c 0361e074 html!FMarkListCallback+0×56c
0361dfc8 723368b7 0000001f 0361dffc 0000000f html!JcCalcFromXaExtents+0×91
0361e074 723370c5 0000000f 00000000 000007d0 html!EmitNonBreakingSpace+0×445
0361e1a0 723407ff 00000000 0000000f 00000104 html!FEmitHtmlFnOtag+0×17d
0361e1c4 7231c6a8 00000001 00000000 00000000 html!ConvertRtfToForeign+0×105
0361e64c 7231c745 00ed03bc 00000000 00ed0374 html!FceRtfToForeign+0×266

Also the transition from html.iec module to exception processing code is through an invalid address 0×161dc2c so we might guess that this was an instance of wild code pointer or the case of incorrect stack trace. However using techniques to get exception context from hidden exceptions we get the following stack trace:

0:002:x86> .cxr 0361dc7c
eax=0000004e ebx=09d5755f ecx=07feaee4 edx=07feaf08 esi=07feaee4 edi=00000000
eip=7233d50b esp=0361df48 ebp=0361df5c iopl=0  nv up ei pl nz na pe nc
cs=0023 ss=002b ds=002b es=002b fs=0053 gs=002b efl=00010206
html!FPseudoStyleBis+0×26:
7233d50b 0fb70f          movzx   ecx,word ptr [edi]       ds:002b:00000000=????

0:002:x86> kL 100
ChildEBP RetAddr
0361df50 7233d597 html!FPseudoStyleBis+0x26
0361df5c 72333b0e html!BisFromLpxszStyle+0x1c
0361df74 72332ba9 html!LwMultDivRU+0x4b6
0361dfb8 7233518a html!FMarkListCallback+0x56c
0361dfc8 723368b7 html!JcCalcFromXaExtents+0x91
0361e074 723370c5 html!EmitNonBreakingSpace+0x445
0361e1a0 723407ff html!FEmitHtmlFnOtag+0x17d
0361e1c4 7231c6a8 html!ConvertRtfToForeign+0x105
0361e64c 7231c745 html!FceRtfToForeign+0x266
0361e674 744e5ad4 html!RtfToForeign32+0x51
0361eabc 744e5c83 mshtmled!CRtfToHtmlConverter::ExternalRtfToInternalHtml+0x163
0361ef10 7449cc15 mshtmled!CRtfToHtmlConverter::StringRtfToStringHtml+0x11a
0361ef2c 7449cd81 mshtmled!CRtfToHtmlConverter::StringRtfToStringHtml+0x38
0361ef40 744cdcea mshtmled!CHTMLEditor::ConvertRTFToHTML+0x12
0361efac 744ce392 mshtmled!CPasteCommand::PasteFromClipboard+0x2c0
0361f01c 7448d218 mshtmled!CPasteCommand::PrivateExec+0x47a
0361f040 7448d1ad mshtmled!CCommand::Exec+0x4b
0361f064 74000d14 mshtmled!CMshtmlEd::Exec+0xf9
0361f094 73ff88a8 mshtml!CEditRouter::ExecEditCommand+0xd6
0361f43c 7415eccf mshtml!CDoc::ExecHelper+0x338d
0361f488 73ff8a2f mshtml!CFrameSite::Exec+0x264
0361f4bc 73ff87af mshtml!CDoc::RouteCTElement+0xf1
0361f854 73ff8586 mshtml!CDoc::ExecHelper+0x325e
0361f874 740a0e7b mshtml!CDoc::Exec+0x1e
0361f8ac 7401a708 mshtml!CDoc::OnCommand+0x9c
0361f9c0 73f297e1 mshtml!CDoc::OnWindowMessage+0x841
0361f9ec 76a58807 mshtml!CServer::WndProc+0x78
0361fa18 76a58962 user32!InternalCallWinProc+0x23
0361fa90 76a5c4b6 user32!UserCallWinProcCheckWow+0x109
0361fad4 76a5c517 user32!SendMessageWorker+0x55b
0361faf8 7400fb9b user32!SendMessageW+0x7f
0361fb24 73f68e5a mshtml!CElement::PerformTA+0x71
0361fb44 73f68db9 mshtml!CDoc::PerformTA+0xd8
0361fbc0 73ff381c mshtml!CDoc::PumpMessage+0x8e0
0361fc74 73ff3684 mshtml!CDoc::DoTranslateAccelerator+0x33f
0361fc90 73ff34cc mshtml!CServer::TranslateAcceleratorW+0x56
0361fcb0 7296f550 mshtml!CDoc::TranslateAcceleratorW+0x83
0361fccc 7296f600 ieframe!CProxyActiveObject::TranslateAcceleratorW+0x30
0361fcf0 7296fca1 ieframe!CDocObjectView::TranslateAcceleratorW+0xb1
0361fd10 7296faf4 ieframe!CCommonBrowser::v_MayTranslateAccelerator+0xda
0361fd3c 7296f7b0 ieframe!CShellBrowser2::_MayTranslateAccelerator+0x68
0361fd4c 7296f7f5 ieframe!CShellBrowser2::v_MayTranslateAccelerator+0x15
0361fdb8 7680e4a5 ieframe!CTabWindow::_TabWindowThreadProc+0x264
0361fdc4 77adcfed kernel32!BaseThreadInitThunk+0xe
0361fe04 77add1ff ntdll_77a60000!__RtlUserThreadStart+0x23
0361fe1c 00000000 ntdll_77a60000!_RtlUserThreadStart+0x1b

Then we can use lmv command to see the component version:

0:002:x86> lmv m html
start             end                 module name
722f0000 7236f000   html     # (pdb symbols)          c:\mss\html.pdb\34A9E6645AEA4E6A83EA51D2849C731C1\html.pdb
    Loaded symbol image file: html.iec
    Image path: C:\Windows\System32\html.iec
    Image name: html.iec
    Timestamp:        Tue Mar 03 03:26:33 2009 (49ACA369)
    CheckSum:         00086241
    ImageSize:        0007F000
    File version:     2017.0.0.18226
    Product version:  6.0.6001.18226
    File flags:       0 (Mask 3F)
    File OS:          40004 NT Win32
    File type:        2.0 Dll
    File date:        00000000.00000000
    Translations:     0409.04b0
    CompanyName:      Microsoft Corporation
    ProductName:      Microsoft® Windows® Operating System
    InternalName:     HTML.IEC
    OriginalFilename: HTML.IEC
    ProductVersion:   6.0.6001.18226
    FileVersion:      2017.0.0.18226 (vistasp1_gdr.090302-1506)
    FileDescription:  Microsoft HTML Converter
    LegalCopyright:   © Microsoft Corporation. All rights reserved.

- Dmitry Vostokov @ DumpAnalysis.org -
