Exception and deadlock: pattern cooperation

When a process experienced an unhandled exception what were the possible reasons for a postmortem debugger not saving a crash dump? One of them will be illustrated in this post. The process AppA was hanging and causing another process AppB to hang too (see Coupled Processes pattern). If we look at AppA locked critical sections we would see a loader deadlock:

0:000> !locks

CritSec ntdll!LdrpLoaderLock+0 at 7c889d94
WaiterWoken        No
LockCount          8
RecursionCount     2
OwningThread       4534
EntryCount         0
ContentionCount    a3e
*** Locked

CritSec ntdll!FastPebLock+0 at 7c889d40
WaiterWoken        No
LockCount          2
RecursionCount     1
OwningThread       3eb4
EntryCount         0
ContentionCount    15
*** Locked

   3  Id: 30b0.3eb4 Suspend: 1 Teb: 7ffdb000 Unfrozen
ChildEBP RetAddr  Args to Child
00b3e11c 7c822124 7c83970f 0000004c 00000000 ntdll!KiFastSystemCallRet
00b3e120 7c83970f 0000004c 00000000 00000000 ntdll!NtWaitForSingleObject+0xc
00b3e15c 7c839620 00000000 00000004 00000001 ntdll!RtlpWaitOnCriticalSection+0×19c
00b3e17c 7c832ad0 7c889d94 09150000 7c889e0c ntdll!RtlEnterCriticalSection+0xa8
00b3e1b0 77e68de4 00000001 00000000 00b3e1ec ntdll!LdrLockLoaderLock+0xe4
00b3e210 77e98fae 09150000 00b3e5b0 00000104 kernel32!GetModuleFileNameW+0×77
00b3e24c 77e76d5f 091518b8 00b3e5a4 00000000 kernel32!FillUEFInfo+0×51
00b3e8d4 77e84269 00b3e8fc 77e6b831 00b3e904 kernel32!UnhandledExceptionFilter+0xec
00b3e8dc 77e6b831 00b3e904 00000000 00b3e904 kernel32!BaseThreadStart+0×4a
00b3e904 7c82eeb2 00b3e9e8 00b3ffdc 00b3ea04 kernel32!_except_handler3+0×61
00b3e928 7c82ee84 00b3e9e8 00b3ffdc 00b3ea04 ntdll!ExecuteHandler2+0×26
00b3e9d0 7c82ecc6 00b38000 00b3ea04 00b3e9e8 ntdll!ExecuteHandler+0×24
00b3e9d0 7c832335 00b38000 00b3ea04 00b3e9e8 ntdll!KiUserExceptionDispatcher+0xe (CONTEXT @ 00b3ea04)
00b3eeec 77e67319 00090000 00000000 0000056a ntdll!RtlAllocateHeap+0×9e3
00b3ef50 77e67690 77e676bc 00020a50 00000000 kernel32!BasepComputeProcessPath+0xc2
00b3ef90 77e41b95 00000000 00000000 00b3f05c kernel32!BaseComputeProcessDllPath+0xe3
00b3eff0 77e67b77 74065a30 00000000 00000000 kernel32!LoadLibraryExW+0×14e
00b3f004 7406615c 74065a30 007e1ab0 00000000 kernel32!LoadLibraryW+0×11
00b3f020 74066263 007e1ab0 00000000 534c4354 AppA!ProcessItem+0×2d
[…]

  21  Id: 30b0.4534 Suspend: 1 Teb: 7ffa3000 Unfrozen
ChildEBP RetAddr  Args to Child
031eeef8 7c822124 7c83970f 00000350 00000000 ntdll!KiFastSystemCallRet
031eeefc 7c83970f 00000350 00000000 00000000 ntdll!NtWaitForSingleObject+0xc
031eef38 7c839620 00000000 00000004 031ef278 ntdll!RtlpWaitOnCriticalSection+0×19c
031eef58 7c830c25 7c889d40 031ef328 00000000 ntdll!RtlEnterCriticalSection+0xa8
031ef200 7c831016 00000001 031ef2ac 031ef288 ntdll!RtlpDosPathNameToRelativeNtPathName_Ustr+0×97
031ef21c 7c830f85 031ef2ac 031ef288 00000000 ntdll!RtlDosPathNameToRelativeNtPathName_Ustr+0×18
031ef290 7c833ce9 031ef2ac 00000001 031ef414 ntdll!RtlDoesFileExists_UstrEx+0×1c
031ef2c0 7c83350e 031ef328 031ef434 031ef33c ntdll!LdrpSearchPath+0×76
031ef3c4 7c833637 0325fc78 031ef414 00000000 ntdll!LdrpCheckForLoadedDll+0xdc
031ef668 7c833ee5 00000000 0325fc78 031ef968 ntdll!LdrpLoadDll+0×1b3
031ef8e4 77e41bcc 0325fc78 031ef968 031ef948 ntdll!LdrLoadDll+0×198
031ef984 5e00b8d7 00115b00 00000000 00000008 kernel32!LoadLibraryExW+0×1b2
031ef9b0 5dff64aa 000cee40 7406275b 0000059c AppA!LoadPluginModule+0×42
[…]

Looking at TID#3eb4 we see that the cause for deadlock was an exception while loading a DLL. Applying exception context WinDbg command .cxr reveals heap corruption pattern:

0:003> .cxr 00b3ea04
eax=0325f1f0 ebx=00000051 ecx=00090000 edx=00090400 esi=0008019d edi=0325f1e8
eip=7c832335 esp=00b3ecd0 ebp=00b3eeec iopl=0  nv up ei ng nz na po cy
cs=001b  ss=0023  ds=0023  es=0023  fs=003b  gs=0000  efl=00010283
ntdll!RtlAllocateHeap+0×9e3:
7c832335 8906            mov     dword ptr [esi],eax  ds:0023:0008019d={(AppA+0×2) (01000002)}

0:003> kL
  *** Stack trace for last set context - .thread/.cxr resets it
ChildEBP RetAddr
00b3eeec 77e67319 ntdll!RtlAllocateHeap+0×9e3
00b3ef50 77e67690 kernel32!BasepComputeProcessPath+0xc2
00b3ef90 77e41b95 kernel32!BaseComputeProcessDllPath+0xe3
00b3eff0 77e67b77 kernel32!LoadLibraryExW+0×14e
00b3f004 7406615c kernel32!LoadLibraryW+0×11
00b3f020 74066263 AppA!ProcessItem+0×2d
[…]

Seems the address pointed by ESI is valid: [0008019d] = 01000002. However this is write MOV instruction but the accessed memory page is read-only:

0:003> !address 01000002
    01000000 : 01000000 - 00001000
                    Type     01000000 MEM_IMAGE
                    Protect  00000002 PAGE_READONLY
                    State    00001000 MEM_COMMIT
                    Usage    RegionUsageImage
                    FullPath […]AppA.exe

Without heap corruption the normal course of action can be depicted on the following diagram (Wait Chain pattern applied to critical sections):

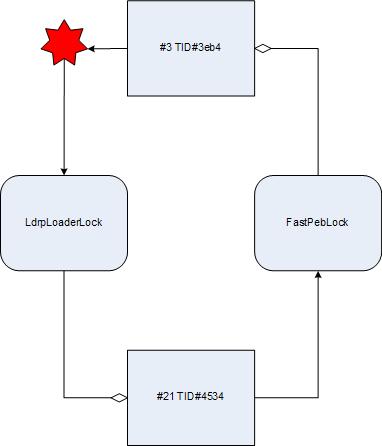

However the exception changes the picture. The course of execution is deflected to the loader again and the loop is closed. We have a classical deadlock:

- Dmitry Vostokov @ DumpAnalysis.org -
