Crash Dump Analysis

Like in a literature (and in a narratology in general) we have components that trace themselves and components that tell the story of a computation including status updates they query about other components and subsystems. This pattern gets its name Diegetic Messages from diegesis. Here’s the difference between diegetic (in blue bold) and non-diegetic trace messages:

PID    TID    TIME          MESSAGE
11864  11912  06:34:53.598  ModuleA: foo called bar. Status OK.
11620  10372  06:34:59.754  ModuleB: ModuleA integrity check. Status OK.

Some modules may emit messages that tell about their status but from their message text we know the larger computation story like in a process startup sequence example.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Madness, the absence of memory dumps.

Michel Foucault

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Today I celebrated 4 years of blogging that resulted in more than 2,000 posts across 8 blogs. I would like to thank everyone for their continuing support!

The updated timeline

This blog post belongs to the 5th year of blogging.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Sometimes a software trace is truncated when the trace session was stopped prematurely, often when a problem didn’t manifest itself visually. We can diagnose such traces by their short time duration, missing anchor messages or components necessary for analysis. My favourite example is user session initialization in a Citrix terminal services environment when problem effects are visible only after the session is fully initialized and an application is launched but a truncated CDF trace only shows the launch of winlogon.exe despite the presence of a process creation trace provider or other components that record the process launch sequence and the trace itself lasts only a few seconds after that.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

The magazine issue features my article on adjoint threads, the first part of a long article on Windows thread classification, a comparison article on Citrix CDF analysis tools and a review of Advanced .NET Debugging book.

The issue can be found on either www.debuggingexpert.com or www.debuggingexperts.com:

http://www.debuggingexperts.com/debugged-march-10

The print issue will be available in September with the back cover featuring the summary of WinDbg multithreading commands.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Blog - Binary log.

Examples: This program blogged. I’m reading its blog now.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Our future sponsor has been registered in Ireland and has its own independent website and logo: DumpAnalysis.com

More information will be available later this month.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

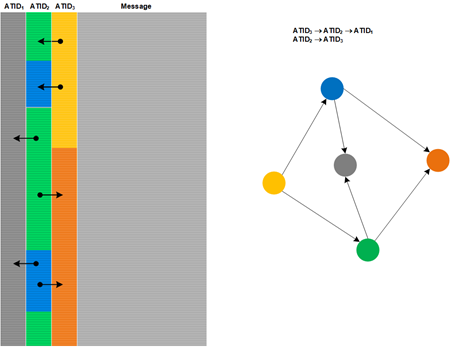

It’s time to introduce a conceptual software narratological framework for viewing software traces (using rich ETW / CDF tracing as our main focus). Here we consider a software story (fabula) as a full trace when every component was selected for tracing and emits debug messages during code execution paths. However, during viewing we can filter on and off certain modules, threads, processes, messages, etc. (adjoint threading) and see a different sub-story or plot (sujet). Every software plot (please do not confuse with PLOT acronym) can be presented differently (using appropriate discourse). Some presentational examples include temporal rearrangement, collapse of repetitive regions, source code hypertext (lexia) and allegorical devices such as message tool-tip comments. Here is a diagram that depicts story (fable, fabula) - plot (sujet) - presentation (discourse):

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Finally found music appropriate for ETW / CDF trace analysis. It’s Andre Gagnon’s album Escape:

Here’s my version of track titles (some of them are also appropriate for crash dump analysis) with my comments in italics:

1. Non Fatal Error
2. Trace Dance (Samba)
3. En Hive
4. Char, The
5. L”Debug”
6. “Memoria”L
7. Process Hearts (cores)
8. Holidays (, but always looking back)
9. WOW (64)
10. DA+TA Master
11. Concert for 4 Threads (“Concertino” doesn’t sound good here)
12. Toc-Cat-ta of Strings
13. Bugville Promenade (along bug clusters?)
14. MOVS
15. The Sea Named Trace (after Solaris movie)
16. Catching The Bottle (it is often difficult to find a relevant problem message in a billion-line trace)
17. Debug Me Tender (DebugLove?)

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Adding AI. Analysis Improvement.

After reading earlier today Windows Internals pages about system audit an idea came to my mind in the evening to provide audit services for memory dump and software trace analysis. One mind is good but two are better, especially if the second is a pattern-driven AI. Here are possible problem scenarios:

Problem: You are not satisfied with a crash report.

Problem: Your critical issue is escalated to the VP level. Engineers analyze memory dumps and software traces. No definite conclusion so far. You want to be sure that nothing has been omitted from the analysis.

Problem: You analyze a system dump or a software trace. You need a second pair of eyes but don’t want to send your memory dump due to your company security policies.

Other scenarios (use cases) will be added as soon as I see the service fit to the realities of software technical support.

I plan to make this service operational in July - August, 2010. Prices to be announced soon.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

By analogy with paratext let’s introduce a software narratological concept of the extended software trace that consists of a software trace plus additional supporting information that makes troubleshooting and debugging easier. Such “paratextual” information can consists of pictures, videos, accounts of scenarios and past problem histories, customer interviews and even software trace delivery medium and format (if preformatted).

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Here we introduce a software narratological partitioning of a trace into Head, Prologue, Core, Epilogue and Tail segments. This is useful for comparative software trace analysis. Suppose, a trace started just before the reproduction steps or a start marker was injected (by CDFMarker, for example) and finished just after the last repro steps or after an end marker was injected. Then its core trace messages are surrounded by prologue and epilogue statements. What is before and after are not necessary for analysis and usually distract an analyst. They are shown as grey areas on the following picture where the left trace is for working (non-working) scenario and the right trace is for non-working (working) scenario:

The size of a core segment need not be the same because environments and executed code paths might be different. However, often some traces are truncated (another pattern). Also sometimes it is difficult to establish whether the first trace is normal and the second has a tail or the first one is truncated and the second one is normal with an optional tail. Here artificial markers are important.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

This paleodebugging tool was excavated from Central Russia (thanks to Mr. Kutuzov) and generously provided for a photo session by its owner Mr. Mansour:

It also inspired this sequence of strcat: Analog -> Anatrace -> Analyzer -> Tracelyzer -> Loglyzer.

… enough tracing. It’s time to close our session:

… what is left? If you are curious, look at this conceptual picture:

Component Trace

If you wonder what electricity has to do with tracing (at a metaphorical level) look at this trace analysis pattern:

Statement Density and Current

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

The limit of Discontinuity pattern is No Activity. The absence of activity can be seen at a thread level or at a process level where it is similar to Missing Component pattern. The difference from the latter pattern is that we know for certain that we selected our process modules for tracing but don’t see any trace messages. Consider this example:

#  Source        PID  TID  Time         Function     Message
1  TraceSettings 1480 8692 08:04:20.682              **** Start Trace Session
[... TraceSettings messages 2-11 show that we selected AppA for tracing ...]
12 ModuleB       3124 4816 08:04:37.049 WorkerThread Worker thread running
13 TraceSettings 1480 8692 08:04:41.966              **** Trace Session was stopped

Only modules from AppA process and modules from a coupled process (for example, ModuleB) were selected. However, we only see a reminder message from the coupled process (3124.4816:ModuleB!WorkerThread) and no messages for 21 seconds. Fortunately, AppA process memory dump was saved during the tracing session:

Debug session time: Fri May 21 08:04:31.000 2010 (GMT+0)

We see 2 threads waiting for a critical section:

0:000> ~*kL

  14  Id: 640.8b8 Suspend: 1 Teb: 7ffa7000 Unfrozen
ChildEBP RetAddr
0248f8c0 7c827d29 ntdll!KiFastSystemCallRet
0248f8c4 7c83d266 ntdll!ZwWaitForSingleObject+0xc
0248f900 7c83d2b1 ntdll!RtlpWaitOnCriticalSection+0x1a3
0248f920 0040dea8 ntdll!RtlEnterCriticalSection+0xa8
[…]
0248f9a4 77ce78aa rpcrt4!Invoke+0×30
0248f9c0 77ce7a94 rpcrt4!NdrCallServerManager+0×17
0248fcb8 77ce7b7c rpcrt4!NdrStubCall+0×1d6
0248fcd0 77c7ff7a rpcrt4!NdrServerCall+0×15
0248fd04 77c8042d rpcrt4!DispatchToStubInCNoAvrf+0×38
0248fd58 77c80353 rpcrt4!RPC_INTERFACE::DispatchToStubWorker+0×11f
0248fd7c 77c7e0d4 rpcrt4!RPC_INTERFACE::DispatchToStub+0xa3
0248fdbc 77c7e080 rpcrt4!RPC_INTERFACE::DispatchToStubWithObject+0xc0
0248fdfc 77c812f0 rpcrt4!LRPC_SCALL::DealWithRequestMessage+0×41e
0248fe20 77c88678 rpcrt4!LRPC_ADDRESS::DealWithLRPCRequest+0×127
0248ff84 77c88792 rpcrt4!LRPC_ADDRESS::ReceiveLotsaCalls+0×430
0248ff8c 77c8872d rpcrt4!RecvLotsaCallsWrapper+0xd
0248ffac 77c7b110 rpcrt4!BaseCachedThreadRoutine+0×9d

  15  Id: 640.18c0 Suspend: 1 Teb: 7ffdb000 Unfrozen
ChildEBP RetAddr
01b8ff40 7c827d29 ntdll!KiFastSystemCallRet
01b8ff44 7c83d266 ntdll!ZwWaitForSingleObject+0xc
01b8ff80 7c83d2b1 ntdll!RtlpWaitOnCriticalSection+0x1a3
01b8ffa0 0040dba7 ntdll!RtlEnterCriticalSection+0xa8
[…]
01b8ffec 00000000 kernel32!BaseThreadStart+0×34

Unfortunately it belongs to a missing thread and blocked threads wait forever:

0:000> !cs -l -o -s
-----------------------------------------
DebugInfo          = 0x01facdd0
Critical section   = 0x01da19c0 (+0x1DA19C0)
LOCKED
LockCount          = 0×2
WaiterWoken        = No
OwningThread       = 0×00001384
RecursionCount     = 0×1
LockSemaphore      = 0×578
SpinCount          = 0×00000000
ntdll!RtlpStackTraceDataBase is NULL. Probably the stack traces are not enabled

0:000> ~~[1384]
              ^ Illegal thread error in ‘~~[1384]’

Apparently AppA process was hanging and it explains why we don’t see any activity in the trace. We suggested to enable user mode stack trace database using this article as an example: CTX106970 and get a new dump.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Finally, after careful consideration, I’ve come up with the topic that has been neglected so far but at the same time important for both camps (kernel space and user space, including managed space): complete memory dump and software trace analysis. I plan to publish the first webinar agenda early in July and deliver the webinar in August (the date should be finalized by mid July).

PS. Sailing memory spaces under an RGB flag

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Finally Citrix has published a tool (written by my colleague Colm Naish, lead escalation engineer) that allows controlled injection of events into CDF (ETW) trace message stream. This is useful in many troubleshooting scenarios where we need to rely on Significant Event and Anchor Message analysis patterns to partition traces into artificial Activity Regions to start our analysis with. This is also analogous for the imposition of the external time on the stream of tracing events from software narratology perspective:

CDFMarker On Demand - For XenApp and XenDesktop

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

In this part I would like to introduce the notion of Forgotten Facts in opposition to Basic Facts or supporting information. These are facts that engineers often feel uncomfortable to mention because they are troubleshooting information they couldn’t obtain (if they tried) due to some time or customer pressures, failures, incorrectly understood troubleshooting procedures or some other obstacles. Therefore it is important to have a set of counter questions or checklists mapped from common software behaviour patterns to software troubleshooting patterns. Problem descriptions should also be subjected to close reading to reveal unconsciously concealed information. Next part will explore this in more detail with some case studies commissioned by Software Maintenance Institute.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

When we have a software trace we read it in two directions. The first one is to deconstruct it into a linear ordered source code based on PLOT fragments. The second direction is to construct an interpretation that serve as an explanation for reported software behaviour. During the interpretive reading we remove irrelevant information, compress relevant activity regions and construct the new fictional software trace based on discovered patterns and our problem description.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

This pattern is similar to No Component Symbols memory analysis pattern and is called No Trace Metafile:

#     Module    PID  TID  Time        Message
21372 \src\dllA 2968 5476 3:55:10.004 Calling foo()
21373 Unknown   2968 5476 3:55:10.004 ????? Unknown( 27): GUID=1EF56EBD-A7FC-4892-8DBA-00AD813F8A24 (No Format Information found).
21374 Unknown   2968 5476 3:55:10.004 ????? Unknown( 27): GUID=1EF56EBD-A7FC-4892-8DBA-00AD813F8A24 (No Format Information found).
21375 Unknown   2968 5476 3:55:10.004 ????? Unknown( 27): GUID=1EF56EBD-A7FC-4892-8DBA-00AD813F8A24 (No Format Information found).
21376 Unknown   2968 5476 3:55:10.004 ????? Unknown( 28): GUID=1EF56EBD-A7FC-4892-8DBA-00AD813F8A24 (No Format Information found).
21377 Unknown   2968 5476 3:55:10.004 ????? Unknown( 23): GUID=1EF56EBD-A7FC-4892-8DBA-00AD813F8A24 (No Format Information found).
21378 \src\dllA 2968 5476 3:55:10.004 Calling bar()

In some case when we don’t have TMF files it is possible to detect broad behavioral patterns such as:

• Circular Trace
• Statement Density and Current
• Discontinuity
• Time Delta
• Trace Acceleration

By looking at Thread of Activity we can also sometimes infer the possible component name based on surrounding trace messages with present TMF files, escpecially when we have source code access. For example, in the trace above it can be dllA or any other module that foo function calls.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

My drive to generalization led me to place an adornment on the portal to highlight the fact that memory and software trace analysis patterns are under an umbrella of general software behaviour patterns:

http://www.dumpanalysis.org/Software-Behavior-Patterns-Headline

In the forthcoming post series I plan to write about similarities between these two branches and also provide pattern examples from non-Windows platforms. All this material will provide the foundation for the forthcoming book Software Behavior: A Guide to Systematic Analysis (ISBN: 978-1906717162).

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -
