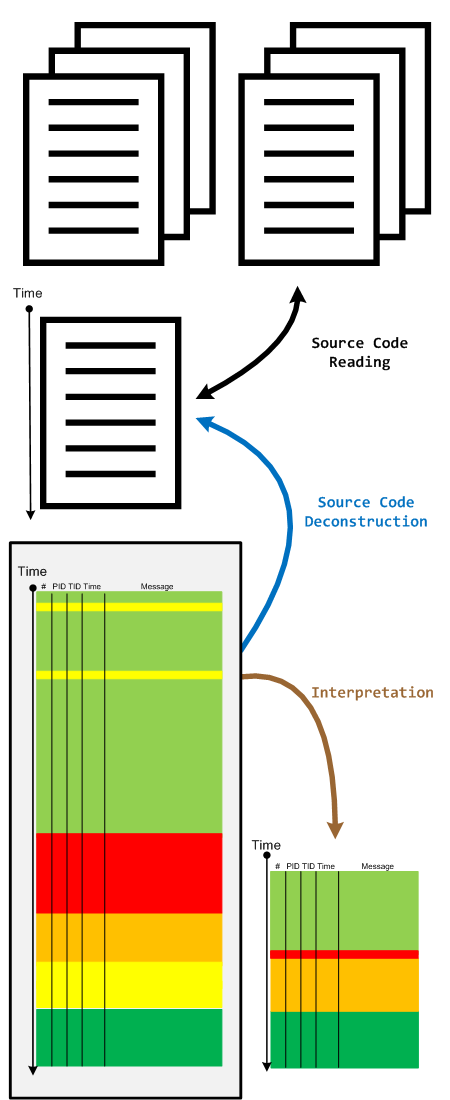

When we have a software trace we read it in two directions. The first one is to deconstruct it into a linear ordered source code based on PLOT fragments. The second direction is to construct an interpretation that serve as an explanation for reported software behaviour. During the interpretive reading we remove irrelevant information, compress relevant activity regions and construct the new fictional software trace based on discovered patterns and our problem description.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Befind every trace and its messages is source code:

Borrowing the acronym PLOT (Program Lines of Trace) we now try to discern basic source code patterns that give rise to simple message patterns in software traces. There are only a few distinct PLOTs and the ability to mentally map trace statements to source code is crucial to software trace reading and comprehension. More about that in subsequent parts. More complex message patterns (for example, specific message blocks or correlated messages) arise from supportable and maintainable realizations of architectural, design and implementation patterns and will be covered in another post series.

I was thinking about acronym SLOT (Source Lines of Trace) but decided to use PLOT because it metaphorically bijects into literary theory and narrative plots.

Forthcoming CDF and ETW Software Trace Analysis: Practical Foundations

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org

OpenTask to offer first 3 volumes of Memory Dump Analysis Anthology in one set:

The set is available exclusively from OpenTask e-Commerce web site starting from June. Individual volumes are also available from Amazon, Barnes & Noble and other bookstores worldwide.

Product information:

• Title: Modern Memory Dump and Software Trace Analysis: Volumes 1-3
• Author: Dmitry Vostokov
• Language: English
• Product Dimensions: 22.86 x 15.24
• Paperback: 1600 pages
• Publisher: Opentask (31 May 2010)
• ISBN-13: 978-1-906717-99-5

Information about individual volumes:

• Volume 1
• Volume 2
• Volume 3

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

Plan to start providing training and seminars in my free time. If you are interested please answer these questions (you can either respond here in comments or use this form for private communication http://www.dumpanalysis.org/contact):

• Are you interested in on-site training, prefer traveling or attending webinars?
• Are you interested in software trace analysis as well?
• What specific topics are you interested in?
• What training level (beginner, intermediate, advanced) are you interested in? (please provide an example, if possible)

Additional topics of expertise that can be integrated into training include Source Code Reading and Analysis, Debugging, Windows Architecture, Device Drivers, Troubleshooting Tools Design and Implementation, Multithreading, Deep Down C and C++, x86 and x64 Assembly Language Reading.

Looking forward to your responses. Any suggestions are welcome.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

As soon as I dug out the 3rd edition of this book to download samples for my internal projects I found that the new edition was published this month! I read all of them and now ordering the 4th edition:

Windows System Programming (4th Edition)

Actually I re-read the 2nd edition of Johnson M. Hart’s book when looking for a job in 2003 and coupled with timely reading of John Robbings’ book Debugging Applications (1st 2000 edition) secured my landing in Dublin East Point Business Park.

This book is an essential reading for Windows memory dump analysts, software maintenance and escalation engineers, software defect researchers and software tool developers. It lucidly describes and succinctly illustrates user-land Windows API with practical console mode samples in plain C. This book is especially valuable for software engineers coming from UNIX background because the author draws various parallels and provides maps between UNIX / Pthreads and Win32 / 64 APIs. Highly recommended! Plan to post an Amazon review when I get the copy of the 4th edition.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

This is a revised, edited, cross-referenced and thematically organized volume of selected DumpAnalysis.org blog posts about crash dump analysis and debugging written in July 2009 - January 2010 for software engineers developing and maintaining products on Windows platforms, quality assurance engineers testing software on Windows platforms and technical support and escalation engineers dealing with complex software issues. The fourth volume features:

- 13 new crash dump analysis patterns
- 13 new pattern interaction case studies
- 10 new trace analysis patterns
- 6 new Debugware patterns and case study
- Workaround patterns
- Updated checklist
- Fully cross-referenced with Volume 1, Volume 2 and Volume 3
- New appendixes

Product information:

• Title: Memory Dump Analysis Anthology, Volume 4
• Author: Dmitry Vostokov
• Language: English
• Product Dimensions: 22.86 x 15.24

• Paperback: 410 pages
• Publisher: Opentask (30 March 2010)
• ISBN-13: 978-1-906717-86-5

• Hardcover: 410 pages
• Publisher: Opentask (30 April 2010)
• ISBN-13: 978-1-906717-87-2

Back cover features memory space art image: Internal Process Combustion.

- Dmitry Vostokov @ DumpAnalysis.org + TraceAnalysis.org -

See the greeting card on the portal together with New Year’s Eve code analysis puzzle:

DumpAnalysis.org Wishes Happy New Year 7DA!

- Dmitry Vostokov @ DumpAnalysis.org -

When looking at crash dumps it is good to keep an eye on new API that might surface on stack traces and in component relationships. Plan to order this book tomorrow and put my reading notes on Software Generalist blog:

Introducing Windows® 7 for Developers

- Dmitry Vostokov @ DumpAnalysis.org -

“Memory dumps are facts.”

I’m very excited to announce that Volume 3 is available in paperback, hardcover and digital editions:

Memory Dump Analysis Anthology, Volume 3

Table of Contents

In two weeks paperback edition should also appear on Amazon and other bookstores. Amazon hardcover edition is planned to be available in January 2010.

The amount of information was so voluminous that I had to split the originally planned volume into two. Volume 4 should appear by the middle of February together with Color Supplement for Volumes 1-4.

- Dmitry Vostokov @ DumpAnalysis.org -

What prompted me to found this discipline (that is supposed to be a sister discipline of software criminology, software security, secure code construction and software defect construction) is understanding that some software components are innocent victims of other component coding mistakes or deliberate subversion and some start as a part of crimeware but eventually become victims themselves (they crash, hang, spike, leak, are dumped, subverted, etc.). I would also like to borrow and reuse the neglected term victimware here in a broad sense. More on this later as I have to switch to software trace analysis patterns.

- Dmitry Vostokov @ DumpAnalysis.org -

This is a revised, edited, cross-referenced and thematically organized volume of selected DumpAnalysis.org blog posts about crash dump analysis and debugging written in October 2008 - June 2009 for software engineers developing and maintaining products on Windows platforms, quality assurance engineers testing software on Windows platforms and technical support and escalation engineers dealing with complex software issues. The third volume features:

- 15 new crash dump analysis patterns
- 29 new pattern interaction case studies
- Trace analysis patterns
- Updated checklist
- Fully cross-referenced with Volume 1 and Volume 2
- New appendixes

Product information:

• Title: Memory Dump Analysis Anthology, Volume 3
• Author: Dmitry Vostokov
• Language: English
• Product Dimensions: 22.86 x 15.24

• Paperback: 404 pages
• Publisher: Opentask (20 December 2009)
• ISBN-13: 978-1-906717-43-8

• Hardcover: 404 pages
• Publisher: Opentask (30 January 2010)
• ISBN-13: 978-1-906717-44-5

Back cover features 3D computer memory visualization image.

- Dmitry Vostokov @ DumpAnalysis.org -

Having discussed dereference fixpoints we come back to the quiz code and see what happens when we execute it after compilation as default Debug target with Debug Information Format set to Program Database to avoid extra stack space allocation:

int _tmain(int argc, _TCHAR* argv[])
{
   char c;
   char* pc = &c;
   while(1)
   {
     *pc = 0;
     pc++;
   }


   return 0;
}

Expecting crashes I created the following key HKEY_LOCAL_MACHINE \ SOFTWARE \ Microsoft \ Windows \ Windows Error Reporting \ LocalDumps with the following values: DumpFolder (REG_EXPAND_SZ) and DumpType (2, Full).

When running the compiled program I noticed that it crashed according to my expectations. The saved dump StackErasure.exe.2096.dmp confirmed that the crash was due to the stack underflow when it hit the base address:

0:000> r
eax=002c0000 ebx=7efde000 ecx=00000001 edx=002c0000 esi=00000000 edi=00000000
eip=00e11039 esp=002bf7c4 ebp=002bf7d4 iopl=0         nv up ei pl nz na po nc
cs=0023  ss=002b  ds=002b  es=002b  fs=0053  gs=002b             efl=00010202
StackErasure!wmain+0x29:
00e11039 c60200          mov     byte ptr [edx],0           ds:002b:002c0000=??

0:000> !teb
TEB at 7efdd000
    ExceptionList:        002bf810
    StackBase:            002c0000
    StackLimit:           002be000
    SubSystemTib:         00000000
    FiberData:            00001e00
    ArbitraryUserPointer: 00000000
    Self:                 7efdd000
    EnvironmentPointer:   00000000
    ClientId:             00000830 . 00000a78
    RpcHandle:            00000000
    Tls Storage:          7efdd02c
    PEB Address:          7efde000
    LastErrorValue:       0
    LastStatusValue:      0
    Count Owned Locks:    0
    HardErrorMode:        0

The loop from source code is highlighted in blue:

0:000> uf wmain
StackErasure!wmain:
00e11010 push    ebp
00e11011 mov     ebp,esp
00e11013 sub     esp,10h
00e11016 mov     eax,0CCCCCCCCh
00e1101b mov     dword ptr [ebp-10h],eax
00e1101e mov     dword ptr [ebp-0Ch],eax
00e11021 mov     dword ptr [ebp-8],eax
00e11024 mov     dword ptr [ebp-4],eax
00e11027 lea     eax,[ebp-5]
00e1102a mov     dword ptr [ebp-10h],eax

StackErasure!wmain+0x1d:
00e1102d mov     ecx,1
00e11032 test    ecx,ecx
00e11034 je      StackErasure!wmain+0x37 (00e11047)

StackErasure!wmain+0x26:
00e11036 mov     edx,dword ptr [ebp-10h]
00e11039 mov     byte ptr [edx],0
00e1103c mov     eax,dword ptr [ebp-10h]
00e1103f add     eax,1
00e11042 mov     dword ptr [ebp-10h],eax
00e11045 jmp     StackErasure!wmain+0x1d (00e1102d)

StackErasure!wmain+0x37:
00e11047 xor     eax,eax
00e11049 push    edx
00e1104a mov     ecx,ebp
00e1104c push    eax
00e1104d lea     edx,[StackErasure!wmainCRTStartup+0x10 (00e11060)]
00e11053 call    StackErasure!__tmainCRTStartup+0x50 (00e110c0)
00e11058 pop     eax
00e11059 pop     edx
00e1105a mov     esp,ebp
00e1105c pop     ebp
00e1105d ret

We see that our char variable ‘c’ is located at EBP-5 and the pointer ‘pc’ is located at EBP-10 (in another words ‘c’ follows ‘pc’ in memory):

00e11027 lea     eax,[ebp-5]
00e1102a mov     dword ptr [ebp-10h],eax

Both locations were initialized to 0xCCCCCCCC:

00e11016 mov     eax,0CCCCCCCCh
00e1101b mov     dword ptr [ebp-10h],eax
00e1101e mov     dword ptr [ebp-0Ch],eax
00e11021 mov     dword ptr [ebp-8],eax  ; this ends with EBP-5
00e11024 mov     dword ptr [ebp-4],eax

The memory layout before the start of the loop is depicted on the following diagram in the style of Windows Debugging: Practical Foundations book:

At the crash point we have the following final memory layout:

We can see it from the raw stack:

0:000> db esp
002bf7c4  00 00 2c 00 cc cc cc cc-cc cc cc 00 00 00 00 00
002bf7d4  00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00
002bf7e4  00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00
002bf7f4  00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00
002bf804  00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00
002bf814  00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00
002bf824  00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00
002bf834  00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00

or in pointer-sized (double word) values where we can see little endian effects (compare 00 00 2c 00  with 002c0000):

0:000> dp esp
002bf7c4  002c0000 cccccccc 00cccccc 00000000
002bf7d4  00000000 00000000 00000000 00000000
002bf7e4  00000000 00000000 00000000 00000000
002bf7f4  00000000 00000000 00000000 00000000
002bf804  00000000 00000000 00000000 00000000
002bf814  00000000 00000000 00000000 00000000
002bf824  00000000 00000000 00000000 00000000
002bf834  00000000 00000000 00000000 00000000

The loop code erases stack starting from EBP-5 until it hits the base address.

Now we change Basic Runtime Checks in Code Generation properties to Default, recompile and launch the project. Suddenly it no longer crashes but loops infinitely (shown in blue):

0:000> bp wmain

0:000> g
[...]

0:000> uf wmain
StackErasure!wmain:
00d01010 push    ebp
00d01011 mov     ebp,esp
00d01013 sub     esp,8
00d01016 lea     eax,[ebp-5]
00d01019 mov     dword ptr [ebp-4],eax

StackErasure!wmain+0xc:
00d0101c mov     ecx,1
00d01021 test    ecx,ecx
00d01023 je      StackErasure!wmain+0x26 (00d01036)

StackErasure!wmain+0x15:
00d01025 mov     edx,dword ptr [ebp-4]
00d01028 mov     byte ptr [edx],0
00d0102b mov     eax,dword ptr [ebp-4]
00d0102e add     eax,1
00d01031 mov     dword ptr [ebp-4],eax
00d01034 jmp     StackErasure!wmain+0xc (00d0101c)

StackErasure!wmain+0x26:
00d01036 xor     eax,eax
00d01038 mov     esp,ebp
00d0103a pop     ebp
00d0103b ret

At first it looks strange but if we look at the stack memory layout we would see that ‘pc’ pointer follows ‘c’ (the opposite to the memory layout discussed above):

00d01016 lea     eax,[ebp-5]
00d01019 mov     dword ptr [ebp-4],eax

0:000> dp esp
002dfb90 00d014ee 002dfb93 002dfbe4 00d01186
002dfba0 00000001 00081d70 00081df8 5a16a657
002dfbb0 00000000 00000000 7ffdb000 00000000
002dfbc0 00000000 00000000 00000000 002dfbac
002dfbd0 000001bb 002dfc28 00d06e00 5aed06eb
002dfbe0 00000000 002dfbec 00d0105f 002dfbf8
002dfbf0 77844911 7ffdb000 002dfc38 7791e4b6
002dfc00 7ffdb000 705b3701 00000000 00000000

Therefore, when the pointer at EBP-4 is incremented by 1 during the first loop iteration it becomes a dereference fixpoint:

0:000> bp 00d0101c

0:000> g
Breakpoint 1 hit
eax=002dfb93 ebx=7ffdb000 ecx=00000001 edx=00081df8 esi=00000000 edi=00000000
eip=00d0101c esp=002dfb90 ebp=002dfb98 iopl=0         nv up ei pl nz na pe nc
cs=001b  ss=0023  ds=0023  es=0023  fs=003b  gs=0000             efl=00000206
StackErasure!wmain+0xc:
00d0101c b901000000      mov     ecx,1

0:000> t
eax=002dfb93 ebx=7ffdb000 ecx=00000001 edx=00081df8 esi=00000000 edi=00000000
eip=00d01021 esp=002dfb90 ebp=002dfb98 iopl=0         nv up ei pl nz na pe nc
cs=001b  ss=0023  ds=0023  es=0023  fs=003b  gs=0000             efl=00000206
StackErasure!wmain+0x11:
00d01021 85c9            test    ecx,ecx

0:000> t
eax=002dfb93 ebx=7ffdb000 ecx=00000001 edx=00081df8 esi=00000000 edi=00000000
eip=00d01023 esp=002dfb90 ebp=002dfb98 iopl=0         nv up ei pl nz na po nc
cs=001b  ss=0023  ds=0023  es=0023  fs=003b  gs=0000             efl=00000202
StackErasure!wmain+0x13:
00d01023 7411            je      StackErasure!wmain+0x26 (00d01036)      [br=0]

0:000> t
eax=002dfb93 ebx=7ffdb000 ecx=00000001 edx=00081df8 esi=00000000 edi=00000000
eip=00d01025 esp=002dfb90 ebp=002dfb98 iopl=0         nv up ei pl nz na po nc
cs=001b  ss=0023  ds=0023  es=0023  fs=003b  gs=0000             efl=00000202
StackErasure!wmain+0x15:
00d01025 8b55fc          mov     edx,dword ptr [ebp-4] ss:0023:002dfb94=002dfb93

0:000> t
eax=002dfb93 ebx=7ffdb000 ecx=00000001 edx=002dfb93 esi=00000000 edi=00000000
eip=00d01028 esp=002dfb90 ebp=002dfb98 iopl=0         nv up ei pl nz na po nc
cs=001b  ss=0023  ds=0023  es=0023  fs=003b  gs=0000             efl=00000202
StackErasure!wmain+0x18:
00d01028 c60200          mov     byte ptr [edx],0           ds:0023:002dfb93=00

0:000> t
eax=002dfb93 ebx=7ffdb000 ecx=00000001 edx=002dfb93 esi=00000000 edi=00000000
eip=00d0102b esp=002dfb90 ebp=002dfb98 iopl=0         nv up ei pl nz na po nc
cs=001b  ss=0023  ds=0023  es=0023  fs=003b  gs=0000             efl=00000202
StackErasure!wmain+0x1b:
00d0102b 8b45fc          mov     eax,dword ptr [ebp-4] ss:0023:002dfb94=002dfb93

0:000> t
eax=002dfb93 ebx=7ffdb000 ecx=00000001 edx=002dfb93 esi=00000000 edi=00000000
eip=00d0102e esp=002dfb90 ebp=002dfb98 iopl=0         nv up ei pl nz na po nc
cs=001b  ss=0023  ds=0023  es=0023  fs=003b  gs=0000             efl=00000202
StackErasure!wmain+0x1e:
00d0102e 83c001          add     eax,1

0:000> t
eax=002dfb94 ebx=7ffdb000 ecx=00000001 edx=002dfb93 esi=00000000 edi=00000000
eip=00d01031 esp=002dfb90 ebp=002dfb98 iopl=0         nv up ei pl nz na po nc
cs=001b  ss=0023  ds=0023  es=0023  fs=003b  gs=0000             efl=00000202
StackErasure!wmain+0x21:
00d01031 8945fc          mov     dword ptr [ebp-4],eax ss:0023:002dfb94=002dfb93

0:000> t
eax=002dfb94 ebx=7ffdb000 ecx=00000001 edx=002dfb93 esi=00000000 edi=00000000
eip=00d01034 esp=002dfb90 ebp=002dfb98 iopl=0         nv up ei pl nz na po nc
cs=001b  ss=0023  ds=0023  es=0023  fs=003b  gs=0000             efl=00000202
StackErasure!wmain+0x24:
00d01034 ebe6            jmp     StackErasure!wmain+0xc (00d0101c)

0:000> dp ebp-4 l1
002dfb94  002dfb94

During the second iteration the assignment of zero to ‘*pc’ clears the first byte of ‘pc’:

0:000> t
Breakpoint 1 hit
eax=002dfb94 ebx=7ffdb000 ecx=00000001 edx=002dfb93 esi=00000000 edi=00000000
eip=00d0101c esp=002dfb90 ebp=002dfb98 iopl=0         nv up ei pl nz na po nc
cs=001b  ss=0023  ds=0023  es=0023  fs=003b  gs=0000             efl=00000202
StackErasure!wmain+0xc:
00d0101c b901000000      mov     ecx,1

0:000> t
eax=002dfb94 ebx=7ffdb000 ecx=00000001 edx=002dfb93 esi=00000000 edi=00000000
eip=00d01021 esp=002dfb90 ebp=002dfb98 iopl=0         nv up ei pl nz na po nc
cs=001b  ss=0023  ds=0023  es=0023  fs=003b  gs=0000             efl=00000202
StackErasure!wmain+0x11:
00d01021 85c9            test    ecx,ecx

0:000> t
eax=002dfb94 ebx=7ffdb000 ecx=00000001 edx=002dfb93 esi=00000000 edi=00000000
eip=00d01023 esp=002dfb90 ebp=002dfb98 iopl=0         nv up ei pl nz na po nc
cs=001b  ss=0023  ds=0023  es=0023  fs=003b  gs=0000             efl=00000202
StackErasure!wmain+0x13:
00d01023 7411            je      StackErasure!wmain+0x26 (00d01036)      [br=0]

0:000> t
eax=002dfb94 ebx=7ffdb000 ecx=00000001 edx=002dfb93 esi=00000000 edi=00000000
eip=00d01025 esp=002dfb90 ebp=002dfb98 iopl=0         nv up ei pl nz na po nc
cs=001b  ss=0023  ds=0023  es=0023  fs=003b  gs=0000             efl=00000202
StackErasure!wmain+0x15:
00d01025 8b55fc          mov     edx,dword ptr [ebp-4] ss:0023:002dfb94=002dfb94

0:000> t
eax=002dfb94 ebx=7ffdb000 ecx=00000001 edx=002dfb94 esi=00000000 edi=00000000
eip=00d01028 esp=002dfb90 ebp=002dfb98 iopl=0         nv up ei pl nz na po nc
cs=001b  ss=0023  ds=0023  es=0023  fs=003b  gs=0000             efl=00000202
StackErasure!wmain+0x18:
00d01028 c60200          mov     byte ptr [edx],0           ds:0023:002dfb94=94

0:000> t
eax=002dfb94 ebx=7ffdb000 ecx=00000001 edx=002dfb94 esi=00000000 edi=00000000
eip=00d0102b esp=002dfb90 ebp=002dfb98 iopl=0         nv up ei pl nz na po nc
cs=001b  ss=0023  ds=0023  es=0023  fs=003b  gs=0000             efl=00000202
StackErasure!wmain+0x1b:
00d0102b 8b45fc          mov     eax,dword ptr [ebp-4] ss:0023:002dfb94=002dfb00

0:000> dp esp
002dfb90  00d014ee 002dfb00 002dfbe4 00d01186
002dfba0  00000001 00081d70 00081df8 5a16a657
002dfbb0  00000000 00000000 7ffdb000 00000000
002dfbc0  00000000 00000000 00000000 002dfbac
002dfbd0  000001bb 002dfc28 00d06e00 5aed06eb
002dfbe0  00000000 002dfbec 00d0105f 002dfbf8
002dfbf0  77844911 7ffdb000 002dfc38 7791e4b6
002dfc00  7ffdb000 705b3701 00000000 00000000

The new ‘pc’ pointer points to the following region of the stack:

0:000> dp 002dfb00 l100/4
002dfb00  002dfb0c 00000004 00000000 5c008ede
002dfb10  002dfb28 00d0634a 0008128c 5aed018b
002dfb20  000807f8 7790fb66 00000000 7ffdb000
002dfb30  00000000 002dfb40 00d089a6 00d68ab8
002dfb40  002dfb4c 00d019bc 00000008 002dfb84
002dfb50  00d07520 00d07519 5a16a637 00000000
002dfb60  00000000 7ffdb000 00d02b10 00000004
002dfb70  00000002 002dfbd4 00d06e00 5aed007b
002dfb80  fffffffe 002dfb90 00d0769e 002dfba0
002dfb90  00d014ee 002dfb00 002dfbe4 00d01186
002dfba0  00000001 00081d70 00081df8 5a16a657
002dfbb0  00000000 00000000 7ffdb000 00000000
002dfbc0  00000000 00000000 00000000 002dfbac
002dfbd0  000001bb 002dfc28 00d06e00 5aed06eb
002dfbe0  00000000 002dfbec 00d0105f 002dfbf8
002dfbf0  77844911 7ffdb000 002dfc38 7791e4b6

The loop code now starts clearing this region until the pointer becomes the fixpoint again after successive increments and therefore continues to loop indefinitely:

0:000> bc 0 1

0:000> g
(1238.c9c): Break instruction exception - code 80000003 (first chance)
eax=7ffde000 ebx=00000000 ecx=00000000 edx=7796d094 esi=00000000 edi=00000000
eip=77927dfe esp=00a4ff30 ebp=00a4ff5c iopl=0         nv up ei pl zr na pe nc
cs=001b  ss=0023  ds=0023  es=0023  fs=003b  gs=0000             efl=00000246
ntdll!DbgBreakPoint:
77927dfe cc              int     3

0:001> dp 002dfb00 l100/4
002dfb00  0000000c 00000000 00000000 00000000
002dfb10  00000000 00000000 00000000 00000000
002dfb20  00000000 00000000 00000000 00000000
002dfb30  00000000 00000000 00000000 00000000
002dfb40  00000000 00000000 00000000 00000000
002dfb50  00000000 00000000 00000000 00000000
002dfb60  00000000 00000000 00000000 00000000
002dfb70  00000000 00000000 00000000 00000000
002dfb80  00000000 00000000 00000000 00000000
002dfb90  00000000 002dfb1f 002dfbe4 00d01186
002dfba0  00000001 00081d70 00081df8 5a16a657
002dfbb0  00000000 00000000 7ffdb000 00000000
002dfbc0  00000000 00000000 00000000 002dfbac
002dfbd0  000001bb 002dfc28 00d06e00 5aed06eb
002dfbe0  00000000 002dfbec 00d0105f 002dfbf8
002dfbf0  77844911 7ffdb000 002dfc38 7791e4b6

StackErasure that loops indefinitely is available for download.
